The turbo control valve (TCV) on my T5-R

Postby Cincyken » 17 May 2012, 22:25

how does it work?
It is a solinoid, that on an electrical signal alters the air flow thru it.
It has three hoses:
Red is to the turbo compressor (this should be a positive pressure off the turbo casing)
Blue is an atmospheric connection (not sure if it pulls in air or discharges air)
Yellow is the turbo waste gate.
This is what i think goes on.
At some predetemined value the computer takes the pressure from the red line and sends it to the yellow line thru the TCV to the wastegate actuator. Then at some other predtermined value the TCV allows the pressure from the compressor (red hose) to vent outside via the blue hose.
Coorect so far? If not, how does it work?
when it fails, how does it fail? The pressure vents to blue all the time?
Cincyken
Forum Member
Forum Member

Posts: 105
Joined: 02 Mar 2009, 21:19
Location: Loveland Ohio (Cincinnati area)
Model and Year: 1995 850 T5-R

Re: The turbo control valve (TCV) on my T5-R

Postby JDS60R » 17 May 2012, 23:11

Its a pulse modulated solenoid. So it opens and closes like a fuel injector to get the right boost characteristics throughout the entire rpm range.
Red and yellow are correct. Blue goes back to the intake tube before the turbo. (No air is lost in these systems)

They tend to fail with the red and blue open (no boost) but most are replaced far ahead of failure time as the response is lowered with the age of the solenoid components. It has been common, to maintain peak performance to replace the TCV and boost pressure sensor at about 60 K miles. Many of them continue to perform great far after 60K. When Volvo started with actual boost pressure sensors the first design would often go bad by 60K. This is why many folks replaced them both.

Several of the Volvo systems do not use a dedicated boost pressure sensor . They are using the rpm, MAF etc to calculate a boost pressure.

I think the boost pressure sensors came in around 1999. On your T5R if you have over 100K miles I would replace the TCV with a real Volvo one from FCP. If the MAF is in spec and the oxygen sensors have been replaced every 100K you should do fine.
Streetlight Insurance Brokers See what the market has to offer you !!!
Car, Home, Boat & Motorcycle Insurance in Tennessee
"Now its your turn to start saving"
Free VIDA Volvo code readings at my Mount Juliet, TN location
User avatar
JDS60R
MVS Moderator
MVS Moderator

Posts: 3175
Joined: 22 Feb 2009, 02:52
Location: Mount Juliet, TN
Model and Year: 2007 S60R 2004 XC70

Re: The turbo control valve (TCV) on my T5-R

Postby JDS60R » 17 May 2012, 23:59

Kind of like this .
Please log in or register to see attachments.
Streetlight Insurance Brokers See what the market has to offer you !!!
Car, Home, Boat & Motorcycle Insurance in Tennessee
"Now its your turn to start saving"
Free VIDA Volvo code readings at my Mount Juliet, TN location
User avatar
JDS60R
MVS Moderator
MVS Moderator

Posts: 3175
Joined: 22 Feb 2009, 02:52
Location: Mount Juliet, TN
Model and Year: 2007 S60R 2004 XC70

Re: The turbo control valve (TCV) on my T5-R

Postby Cincyken » 24 May 2012, 13:19

I think i have now figured it out.
The red to yellow is nornally open (NO)
the red to blue is normally closed(NC)
I did not know if mine was bad so i replaced it with a spare one i had for my S70 (slighly differnt design but the same operational characteristics and since my T5-R has a built engine from a 1998 S70 T-5, it should work, right).
The engine runs much smoother, and my gas mileage has gone up by about 10%. I would say that is a success story.
Thanks to y'all.
Cincyken
Forum Member
Forum Member

Posts: 105
Joined: 02 Mar 2009, 21:19
Location: Loveland Ohio (Cincinnati area)
Model and Year: 1995 850 T5-R

Re: The turbo control valve (TCV) on my T5-R

Postby bugleg » 04 Jul 2012, 20:49

I have a 2000 V70XC with a low boost condition. Do I have a TCV and a boost pressure valve or are they one in the same?
bugleg
Forum Member
Forum Member

Posts: 61
Joined: 14 Aug 2011, 23:51
Location: NYC
Model and Year: 2000 V70XCSE

Re: The turbo control valve (TCV) on my T5-R

Postby KlubMarcus » 09 Jul 2012, 00:44

bugleg wrote:I have a 2000 V70XC with a low boost condition. Do I have a TCV and a boost pressure valve or are they one in the same?
IIRC 1999 and newer have a separate Boost Pressure Sensor and Turbo Control Valve.
:o The beater just won't die! So we're clawing our way back to Stage 0.
User avatar
KlubMarcus
Forum Member
Forum Member

Posts: 129
Joined: 03 Jul 2007, 19:31
Location: Hampton Roads, VA
Model and Year: V70 XC, 1998

The turbo control valve (TCV) on my T5-R

Postby Amys 940 » 09 Jul 2012, 05:59

I have a 98 v70xc. Does anybody have a vacuum diagram for my 2.4 turbo? Thanks!
Amys 940
Forum Member
Forum Member

Posts: 80
Joined: 08 Mar 2012, 13:14
Location: Devon PA
Model and Year: 940, 1994

Re: The turbo control valve (TCV) on my T5-R

Postby abscate » 15 Jun 2013, 16:20

Old thread alert - adding to this informative thread as I am diagnosing boost issues

My 1999 indeed has a "Manifold Pressure/Vacuum Sensor" also called a "Boost Pressure Sensor" located down on the Electronic Throttle Body (ETB) horn. Volvo part 9155870 - expensive part.

The Turbo Control Valve (also called the Boost Solenoid) is part 9155936 and is located up on the air cleaner box.

My vacuum hose diagram under hood actually does not match my solenoid at all, and shows the earlier '850 style' cylindrical can one. I have an early run 1999 car (OCT 1998 build date)
1999 V70 T5 HPT with stick... :-)
2003 Turbo Beetle Convertible with stick :-)
2002 Eurovan camper slusher
2005 V70 with stick :-)
2006 BMW X3 E83 slusher
A fleet of 17 boats and kayaks
3 great teenagers
Shepard Husky
Shepard Lab
Grey cat, ginger cat, black cat
My soul mate of 30 years
abscate
MVS Moderator
MVS Moderator

Posts: 2858
Joined: 18 Feb 2013, 00:54
Location: NYC
Model and Year: 1999 V70T5, 2005 V70

Re: The turbo control valve (TCV) on my T5-R

Postby abscate » 15 Jun 2013, 16:46

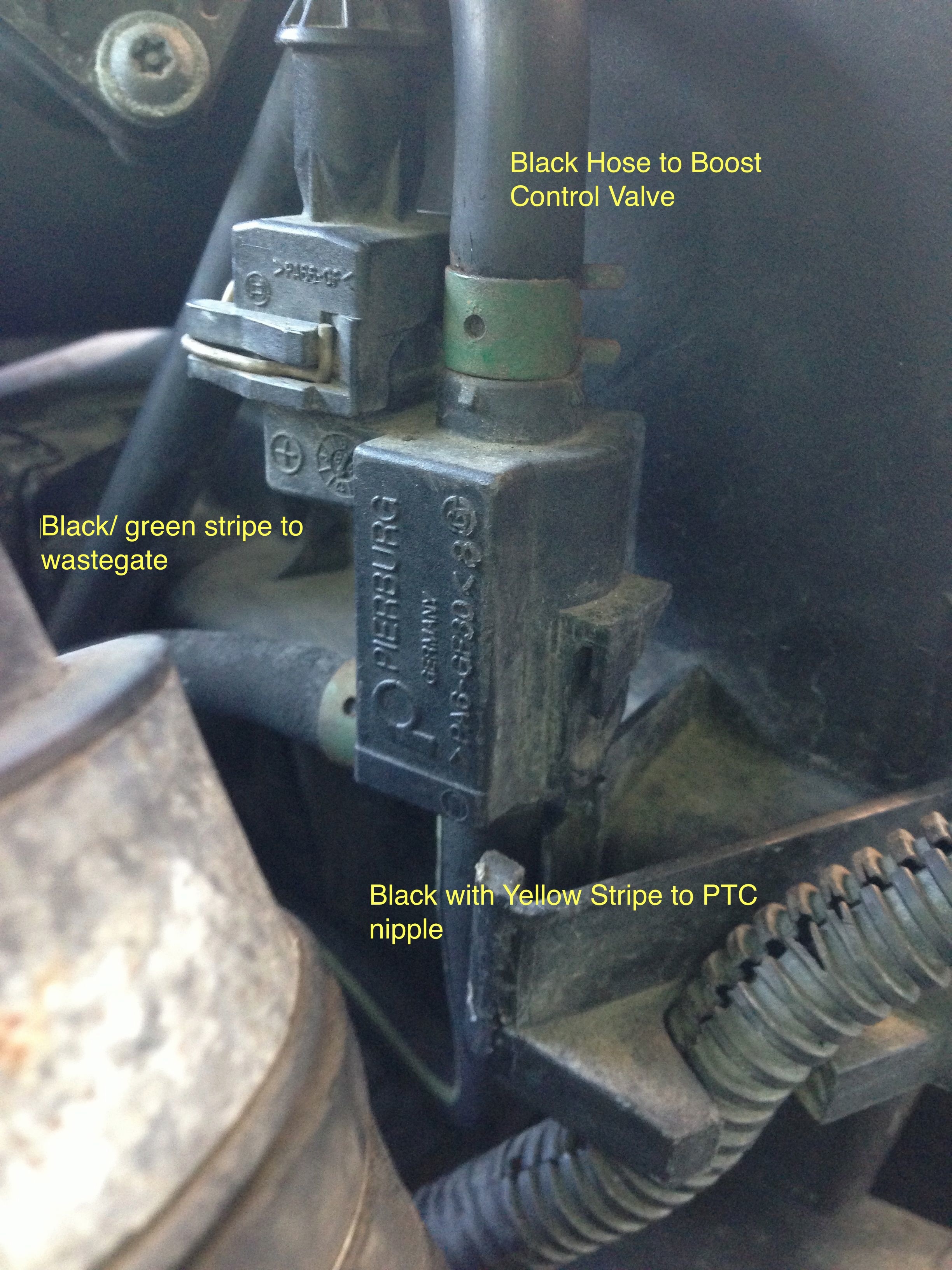

Here are the hose colours and assignments on the 1999 Turbo control valve, aka Boost Control Solenoid
