DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstick!

Help and Advice on Volvo's extremely popular car line, powered by Volvo's nearly indestructible, versatile inline 5-cylinder engine.
1992 - 1997 850, 850 R, 850 T5-R, 850 T5, 850 GLT
1997 - 2000 S70, S70 AWD
1997 - 2000 V70, V70 AWD
1997 - 2000 V70-XC
1997 - 2004 C70

DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstick!

Postby cn90 » 14 Dec 2012, 16:23

DIY: 1998 Volvo S70 GLT PCV Modification, how to get rid of smoking dipstick!

There are a few threads/DIYs on how to overhaul the PCV (See REFERENCES section below).

Many people overhauled the PCV only to find out they still have smoking dipstick (no increased in PCV pressure but simply smoking dipstick, whose significance is unknown).

Some people install a snorkel tube out of a modified oil cap ---> intake (ugly looking but works).

Some use plumbing copper pipe to replace the plastic pipe, seemed to work.

My PCV was performed by the Volvo dealer 2 years ago (by previous owner), and from looking at the previous service records, they did a half job. I overhauled the PCV again and found the 2-year-old plastic pipe (from oil trap ---> intake) broken, piece of junk. Read on…

After I modified this plastic pipe (ID = 3/8”) with standard heater hose (ID = 5/8”), the smoking dipstick issue is solved!!!

My theory (see sketch below), my numbers are arbitrary strictly for illustrative purposes:
- Let’s say from factory, the engine blow-by rate (volume/minute) is 4 for Top hose and 4 for crankcase hose, and let’s say the 3/8” pipe was designed to carry a rate of 10, then the PCV system works fine from factory with a margin of 2.
- As the engine ages (mine has 150K), the piston clearance increases, the valve stem seals are not as tight, now there is increased crankcase pressure that the factory setup cannot handle ---> smoking dipstick.
- So the engine with 150K miles blow-by rate (volume/minute) is now 8 for Top hose and 8 for crankcase hose, and since the 3/8” pipe can only handle 10 ---> crankcase pressure builds up! By using 5/8” heater hose, the diameter is increased by a factor of 5/8 divided by 3/8 = 1.67; surface area is increased by 2.77 times, so now the flow is 27.7 instead of 10. Remember surface area = pi r^2 (high school stuff).





PARTS For 1998 S70 GLT

- Heater Hose with ID = 5/8”, $6 for 6-foot roll at Advance Auto Parts.
- 956561...Oetiker clamp...qty = 4; $1.94 x4
- 976584...Oetiker clamp...qty = 2; $2.00 x2
- 977964...Oetiker clamp...qty = 2; $2.58 x 2

- 8653339...Short hose to engine block...$5.85
- 1271653..Short hose to engine block... qty = 1; $8.76

- 1271654..Hose to top of engine... qty = 1; $21.24
(I guess you can use heater hose here, just a guess)

- 1271988...Oil trap $29.88

- 9146266...Intake manifold gasket... $13.86

---> 9471644...piece of junk, save $40 for beer! This PN has 2 items: 3/8” pipe and vacuum hose. Do NOT buy this for 2 reasons:
a. The plastic pipe will break in 2-3 years.
b. The pipe is too restrictive for high mileage vehicle.
Instead, use 5/8” heater hose as I mentioned above. For the vacuum hose: use standard vacuum hose.



TOOLS

For Tools, see the other DIYs listed in REFERENCES section below. The bottom line is:
- Some 10-mm, 12-mm sockets, wrenches. Box wrenches are useful here!
- Iron Pipe (for stubborn bolts, I slide the ratchet inside the iron pipe for added leverage) or 3/8” breaker bar
- 3/8” Universal joint is a must-have!
- Telescopic magnet to retrieve dropped bolts!
- Oetiker clamp crimp tool (about $10, go to Sprinkler section at Home Depot)
- Grease/antiseize for the bolts
- Blue Masking Tape for marking hoses etc.


PROCEDURE (Abbreviated Version)

- This has been discussed in the other DIYs, so I won’t go into detail. Instead, I will only highlight the important tricks of the trade:

1. Get some blue masking tape, any part that is disconnected, put blue tape on so it is easy to know that part needs to be re-connected.

2. Label all bolts removed.

3. D/C battery (check your radio code).

4. D/C Turbo hoses (via clamps) and set aside.

5. De-pressurize fuel system 1st via Schrader valve, then disconnect fuel line using 14-mm/17-mm wrenches as shown. If you have the EVAP fuel line (like mine), then later you need to undo the 2 bolts holding the fuel rail/injectors, gently lift that up and ease the EVAP line out a bit. Don’t disturb the fuel injectors too much.





6. The Intake Manifold has 3 UPPER bolts and 4 LOWER bolts and two (2) more bolts from underneath.

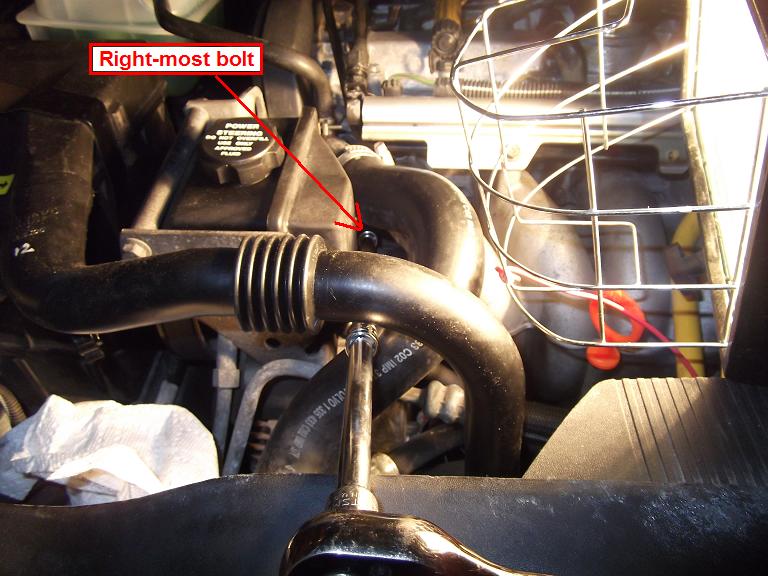

- Remove the 3 UPPER bolts using 10-mm socket with swivel and telescoping magnet.
- Note that I put some paper towel under the bolt to catch it from dropping down.

- Do NOT remove the 4 LOWER bolts, loosen them a few turns only.

- Underneath the Intake Manifold: reach your hand down, there are two (2) 12-mm bolts holding the Manifold to the L-shaped bracket(longer bolt) and Engine Oil Dipstick (shorter bolt). If they don’t come out, get a socket and long extension passing in front of the subframe and come from underneath with breaker bar (R hand hold socket/swivel extension; L hand holding ratchet/break bar). No need to have car on ramp. I did all this job from above.








7. Lift the Manifold upward and rest it on iron pipe as shown. During this process, watch the throttle side to be sure no hoses are strained. If in doubt, disconnect appropriate vacuum hose(s) and label them with blue tape. I d/c the connector to the idle valve.

8. Note the Oil Trap and its connections. Note the following:
- Rad hose is tied out of the way (cushioned by some paper towel to prevent string from cutting into rad hose).
- EVAP line is moved out of the way.
- L-shaped bracket that supports the bottom of the manifold.
- Manifold rests on iron pipe.
- The Manifold pass side nipple, connect the vacuum elbow before re-installing the Manifold!





9. Note Intake Valves don’t look too bad at 150K miles.





10. Once the oil trap is removed, get the heater hose and connect to the “Oil Return” Port, blow through it: if you hear air bubbling inside the oil pan, then this port is open. Mine was wide open.
(The Volvo dealer told the P.O. that he had smoking dipstick and the oil pan needs to be dropped for inspection, and they quoted 4h of labor and $600! As you can see, this is a simple test from above, no need to drop the oil pan!).





11. Plumb all the connections on the oil trap before install. This will make your life easier.
- Now this is the time to get rid of factory 3/8” pipe and replace with 5/8” Heater Hose. This will increase the flow by a factor of 2.77!
- Make sure the heater hose is 2-3 inches longer than factory length. This way you can trim it later where it enters the intake.









12. Alright, as they say installation is the reverse of removal.
- Do not forget to re-connect the fuel line and EVAP line.
- Install the vacuum elbow on the pass side of the Intake Manifold before install!
- Use new Intake Manifold gasket.

---> For the L-shaped bracket holding the bottom of the Manifold:
- Once the Manifold is properly tightened and secured by its 7 bolts, install the 12-mm bolt from the L-shaped bracket ---> bottom of the Manifold (note this is the longer bolt, the shorter bolt is for the dipstick housing); then install the 2nd 12-mm bolt from the bracket to the engine block.
- Don't forget the dipstick housing bolt that goes underneath the I.M.

- Use antiseize/grease for the bolts.
- Prime the fuel system before cranking (leave key in position II for 30 sec).
- Visually check all hoses/blue tape and make sure all are connected.


CONCLUSION

- Went for a long drive at night, came back home, opened the hood, guess what: no more smoking dipstick!

- So the morale of this long story is: this mod (getting rid of factory 3/8” pipe using 5/8” heater hose) solved the smoking dipstick mystery!


REFERENCES

PCV System Repair on a Volvo 5-cylinder (by “jblackburn”)
viewtopic.php?t=28487

My previous PCV for NA engine:
viewtopic.php?f=1&t=28334

Discussion on what parts to buy:
viewtopic.php?f=1&t=53363
Please log in or register to see attachments.
1998 S70 GLT 150K+
User avatar
cn90
Senior Forum Member
Senior Forum Member

Posts: 3003
Joined: 31 Mar 2010, 15:54
Location: Omaha NE
Model and Year: 1998 S70 GLT

Re: DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstic

Postby jblackburn » 14 Dec 2012, 16:32

So you'd done the typical PCV repair and it ended up still smoking? If so, good to know this solves that!
'98 S70 T5 218K miles
2012 Chevy Cruze LT 6MT


A learning experience is one of those things that says, "You know that thing you just did? Don't do that."

mercuic: Long live the tractor motor!
User avatar
jblackburn
MVS Moderator
MVS Moderator

Posts: 13526
Joined: 08 Jun 2008, 21:54
Location: Alexandria, VA
Model and Year: 1998 S70 T5

Re: DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstic

Postby cn90 » 14 Dec 2012, 16:37

Yep,

The factory 3/8" pipe was the culprit.
This (5/8" heater hose) is a permanent fix for high mileage vehicles!
I am very happy with the result, absolutely no smoke coming out of dipstick.
1998 S70 GLT 150K+
User avatar
cn90
Senior Forum Member
Senior Forum Member

Posts: 3003
Joined: 31 Mar 2010, 15:54
Location: Omaha NE
Model and Year: 1998 S70 GLT

Re: DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstic

Postby jblackburn » 14 Dec 2012, 16:46

Nice! Good to know this simple fix will let the otherwise-stock PCV system handle increased blowby by providing more vacuum.

(At least in a turbo engine!)
'98 S70 T5 218K miles
2012 Chevy Cruze LT 6MT


A learning experience is one of those things that says, "You know that thing you just did? Don't do that."

mercuic: Long live the tractor motor!
User avatar
jblackburn
MVS Moderator
MVS Moderator

Posts: 13526
Joined: 08 Jun 2008, 21:54
Location: Alexandria, VA
Model and Year: 1998 S70 T5

Re: DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstic

Postby xHeart » 14 Dec 2012, 17:40

This is a comprehensive write up, long overdue after our Justin's breakthrough several years ago.
Author cn90 painstakingly delineate and makes reference to the historic development of this critical DIY.

A DIYer myself, though It may appear obvious to many, I would ask the author to add the OE/OEM part # for seals and gaskets for the filler cap, and complete dipstick assembly to make this a foremost write up on this topic.

Top it off with oil change procedure.
--
Golden Retriever
2001 - Volvo V70XC with +148kmi/ +238kkm
1997 - Volvo 850 NA (2.5L/5) Sedan with +133kmi/ +214kkm

Past:
German Shepherd
1989 - Volvo 740 GL
1979 - Volvo 240
User avatar
xHeart
Senior Forum Member
Senior Forum Member

Posts: 1438
Joined: 03 Dec 2011, 15:05
Location: Great Lakes - USA
Model and Year: 850 NA Sedan, 1997

Re: DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstic

Postby cn90 » 14 Dec 2012, 18:29

OK xHeart,

Ask and You Shall Receive haha.

- Oil Filler Cap GASKET PN 1275379, $5 at Volvo dealer.

- Dipstick is a sticky topic for the 1998+ S/V70 models. PN 1271921 is no longer available, but I ordered 1271920, guess what, the label says 1271920 but the dipstick clearly has 1271921 engraved on it!
Read more in this thread:

viewtopic.php?f=1&t=18739
1998 S70 GLT 150K+
User avatar
cn90
Senior Forum Member
Senior Forum Member

Posts: 3003
Joined: 31 Mar 2010, 15:54
Location: Omaha NE
Model and Year: 1998 S70 GLT

Re: DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstic

Postby osman » 14 Dec 2012, 22:16

I found this out the hard way when FCP Groton sent me the wrong hoses in my PCV kit. I had a 97 850 GLT wagon as we all know the 97 and up GLT's are all Low Pressure Turbos. They sent me the hoses for a NA type throttle body attachment as upposed to the long one which goes to the turbo breather hose. This was even after the sales rep made me read of the VIN and the engine serial number on the timing belt cover (which is usually long gone by the time I get these cars) As I was on Xmas vacation in rural alabama 16 hours away from my Texas Euro Car Ranch and didnt have the time or the desire to engage in the lenghty and costly return policy i made a quick trip to the hardware store (only thing open on sunday in my parents small town) bought and cut some 5/8 heater hose and some usable old-fashioned clamps. I hate those one-time, (not gonna attempt the name) clamps. Plus that stuff is good to have around for heater core bypasses.
Brick Life
2000 S70 NA 150K For Sale
99 V70 Manual 100K Newest Edition
98 XC70 AWD T5 motor/turbo 150K
97 850 T5 180K son
96 850 Turbo daughter
97 960 150K For sale
94 Mercedes S420 200K For Sale
Kiwi bluetooth/Torq Pro app VOL-FCR/VAG-COM USB cable
User avatar
osman
Forum Member
Forum Member

Posts: 342
Joined: 20 Jan 2012, 20:32
Location: san marcos texas
Model and Year: 98 XC70

Re: DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstic

Postby erikv11 » 15 Dec 2012, 00:04

Yeah, people have been posting the same things about PCV over and over the last few weeks, but maybe good to have them all in one thread, here would be my points:

- Oil trap. 99% of the time, there is no need to replace the oil trap. It is hollow and durable. If it is clogged, clean it. If you must replace it, just buy a cheap one, it is hard plastic and there is no history of the cheapies breaking.

- Breather hose to the IM nipple. This was posted by Matthew1 over a year ago: wide (5/16) diameter, cheap vacuum hose is a great solution. Lasts longer, breathes better, is cheaper and easier to work with than hard plastic tubing. Just route it around the front, no need to tuck it behind the IM. This goes for NA or turbo engines, but for a turbo you need a longer hose to reach to the PTC.

- Breather hose from the trap to the intake. keaton (not sure of his username at MVS) has been preaching for a couple years to just use flexible copper pipe, and that no matter what you use, the bigger the diameter the better. Now cn90 brings the heater hose idea, this is a good and cheap solution. Eliminates the need for rubber elbow hoses.

- Clamps. many people despise Oetiker clamps, some people love them. Standard screw clamps are cheaper and work just fine and since I always have some around, I use them for PCV.

- Parts from Volvo. So there are almost always only 3 parts that you must mail order, and as cn90 posted these should come from Volvo:
8653339 short hose to engine block
1271653 hose to engine block
1271654 hose to top of engine

- Also, clean the throttle body while you have the intake manifold off. If you are going to remove it to clean it, get a throttle body gasket, they run like $1.75 each.

- Never, ever buy any rubber hoses from URO parts. Their oil trap is fine.
'96 NA 855 | 207 k | wrecked body, rebuilt engine needs a home
'96 NA 855 | 121 k
'95 R 854 | 180 k
'98 V70 GLT | 221 k
User avatar
erikv11
Senior Forum Member
Senior Forum Member

Posts: 3541
Joined: 25 Jul 2009, 20:03
Location: Iowa
Model and Year: few 850s, 98 V70 GLT

Re: DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstic

Postby binglax09 » 18 Dec 2012, 17:16

This is Keaton85 from VS....

Here is my quick run down.

To start, great write-up! hopefully someday it will just be common place to never use the stock hose for this application.

- The copper tubing idea that I used a while back was due to having a big spool of it left over from a construction job. It's what I had and I love being able to use it since it can be cleaned and I wont ever have to worry about it again. The heater hose, though, is a much better idea since you don't have to mess with the original 90degree ends from the whole system and it can bend around the block very easily. Once I run out of the copper tubing, this is probably what I will use. Although, is the heater hose rated for constant contact with oil and fuel vapor? If not, the hose will cause more issues later on down the road.

- In my opinion, it is not this hose that is the cause of the smoking dipstick. The cause of the smoking dipstick is the small vacuum line that runs from the intake manifold to the PTC fitting at the turbo inlet. This hose is what controls crankcase pressure at idle, then once the throttle is opened and the turbo starts in, the little hole leading into the intake tube creates the vacuum to release crankcase pressure. So no matter how large the main hose is, the little hole on the PTC leading into the intake tube is what controls the amount of "suction" on the crankcase ventilation system.

- By upgrading the vacuum line from the intake to the PTC, you create more vacuum on the crankcase during idle, thus removing the residual "smoking dipstick" issue. This is where the restriction is in the stock system. The original vacuum line for the system is extremely small and can not handle an older motors increased crankcase pressure.

Side notes:
- The oil trap can be reused sometimes! I have had ones that it's worth every penny to buy new as they were so clogged that it would have been almost impossible to clean.
- Use zip-ties rated for 185degree temps instead of metal clamps. it makes the job a lot easier and you don't risk tearing the rubber hoses.
- The side hose to the block, the top hose to the head and the new bottom fitting for the drain almost always need to be replaced.
- Always replace the intake gasket!!!!
- I personally like routing all the hoses under the intake to keep them out of the way.
- don't use silicone for the vacuum line on this, it will work just fine but starts to sweat oil and getting all slimy on the outside.
Summer: 2002 Triumph TT600
Fair Weather: 2001 S60 T5M
Winter: 2000 S70 AWD
Restoration: 1983 Mercedes 300CDT
binglax09
Forum Member
Forum Member

Posts: 165
Joined: 31 Oct 2008, 22:03

Re: DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstic

Postby cn90 » 18 Dec 2012, 17:28

binglax09,

Thanks for your input, I learned the copper piping from your post. I appreciated it.

The reason I think 5/8" heater hose (yes I have been using the heater hose for PCV in many many cars in 25 years, zero problem, it is rated for oil etc.) works in getting of smoking dipstick is that: even people with NA non-turbo engine still had the smoking dipstick after a complete overhaul of the PCV.

It took me a while to go through the engineering aspect of the PCV and came up with that theory (that the factory 3/8" pipe is too restrictive). I took the Volvo factory 3/8" pipe and blew through it, it was OK, but when I blew through the 5/8" heater hose, wow, the flow was nice! Anyway, just a theory.

All I can say is I am very happy, no more smoking dipstick!
1998 S70 GLT 150K+
User avatar
cn90
Senior Forum Member
Senior Forum Member

Posts: 3003
Joined: 31 Mar 2010, 15:54
Location: Omaha NE
Model and Year: 1998 S70 GLT

Re: DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstic

Postby matthew1 » 18 Dec 2012, 18:54

Slated for Repair Database inclusion.

CN, another killer DIY writeup. :!:
Please buy from MVS sponsors. It keeps this site on the web.
Like this spam-free, organized forum? Thank a moderator.
Help keep MVS running: shop Amazon with this link.
Thanks for choosing MVS!

1997 850 T5
2004 V70 R [gone]
User avatar
matthew1
Site Admin

Posts: 6679
Joined: 14 Sep 2002, 17:03
Location: Denver, Colorado, US
Model and Year: 850 T5, 1997

Re: DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstic

Postby precopster » 24 Dec 2012, 02:12

Great write-up CN90!!

I too had a smoking dipstick (but not pressurised smoke) on my '99 NA V70 (now gone) after replacing the cylinder block with one from a 70K mile engine and thoroughly cleaning the rings with carby cleaner by lifting the cylinders repeatedly while spraying and soaking the piston tops then rotating the crank to loosen the debris. It was clean as a whistle when finished.

The compression was 195-205 psi BEFORE doing all this so I really didn't understand why I still got the smoking from the dipstick using new PCV and ensuring all ports were clear. There was no lip at all on cylinder bores.

It wasn't a high pressure output as on my high mileage 960 with VERY large lip on cylinder walls but smoke nonetheless.

Next time I do a PCV job this is how it will be done.
Please log in or register to see attachments.
Current cars: 1995 850, 2000 V70 non turbo, 2001 V70 XC project, 2002 XC70

What we used to own:1987 740 sedan, 2002 S60AWD, 1989 740 turbo wagon, 1985 760 V6, 1995 850 wagon, 1999 V70 project car.

In forum posts please call me Mike
User avatar
precopster
Senior Forum Member
Senior Forum Member

Posts: 3815
Joined: 21 Aug 2010, 06:20
Location: Melbourne Australia
Model and Year: Lots

Re: DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstic

Postby hankbates » 27 Dec 2012, 19:00

I have been thinking about this subject for a while now, as the sophisticated PVC system Volvo has used on these cars cannot adjust itself to compensate for increased blowby as mileage builds up.

I did the"normal" PCV job on my 96 855T a little over a year ago after I had started to get some driveway spots from the rear end of the engine. It cured this temporarily, but the leaks came back about 30k later, and I had the RMS done then.

I have had the nagging thought, that if the capacity of the pcv system is still insufficient after cleaning and replacement, then I can expect (as I saw) more rapid RMS wear in the future.

The use of the 5/8" heater hose looks like a great improvement, but since the greatest restriction to gas flow in this line exists in the small orifice in the PTC itself, why not modify it at the same time? Should the opening in the PTC be opened, perhaps in the same ratio as the increase in hose diameter?

I'm thinking that it probably also a good idea to do this even if the hose (as in my case) is still the restrictive old one....

In the case of my 96, the small vacuum line from the PTC to the intake manifold runs from a branch on the PTC, but I have noticed that on later models, the PTC doesn't have this connection, and the line runs to a port on the intake pipe. Less chance there, I guess, for it to become plugged up. I plan to get a complete intake pipe assembly with the later configuration and put it into my 96, after slightly enlarging the hole in the copper ptc heating plate.

Anyone else done this?
User avatar
hankbates
Forum Member
Forum Member

Posts: 35
Joined: 02 Apr 2009, 15:24
Location: Cape Cod, MA
Model and Year: 96-855T, 01-V70T5

Re: DIY: 1998 Volvo S70 GLT PCV Mod: no more smoking dipstic

Postby cn90 » 27 Dec 2012, 20:13

hankbates wrote:...The use of the 5/8" heater hose looks like a great improvement, but since the greatest restriction to gas flow in this line exists in the small orifice in the PTC itself, why not modify it at the same time? Should the opening in the PTC be opened, perhaps in the same ratio as the increase in hose diameter?...


Interesting idea.

Whatever the cause is, I know for fact that the 5/8" hose fixed the smoking dipstick because I checked the engine before and after the 5/8" hose mod.

I am attaching the PTC photo from "jblackburn" PCV thread for everyone to see.
Personally, I don't know how we can "mess around" with the PTC w/o damaging it.
I would leave the PTC valve alone.


1998 S70 GLT 150K+
User avatar
cn90
Senior Forum Member
Senior Forum Member

Posts: 3003
Joined: 31 Mar 2010, 15:54
Location: Omaha NE
Model and Year: 1998 S70 GLT

Next

Save thousands off MSRP on your new car.

Return to Volvo 850, S70, V70, C70 & V70-XC Forum (1992-2000)

Who is online

Users browsing this forum: Exabot [Bot], Google [Bot], MSNbot Media, Rbaratt and 75 guests
