Volvo Repair Database Boost Gauge Install

Post by micah861 » Sat Feb 04, 2012 12:22 pm

Hi there!

I haven't been on here in a long while because School and other things got in the way of my Volvo Hobby! But things have calmed down, and a week ago i bought a 98 S70 T5M.

I'm moving my boost gauge over from my 94 850. Are there any plugs in the firewall i can feed my line through, or will I have to drill. On the 850 I drilled a hole a couple inches above the throttle cable.

I'm also very poor in the electrical area, where should I wire the light for the gauge, so it can be controlled with the dimmer?

Thanks alot for the help!


Red 98 S70 T5M
Black 98 S70 N/A

D_V_ENT850R
Posts: 208
Joined: Wed Aug 03, 2011 5:02 pm
Year and Model: 850R 1996
Location: SWFL
Has thanked: 0
Been thanked: 0
D_V_ENT850R

Boost Gauge Install

Post by D_V_ENT850R » Sat Feb 04, 2012 1:07 pm

For the light just hook it to the illumination circuit for the radio! I hooked mine up to the stock boost gauge hose! Unless you try to feed thought the pass through harness the hole drilled maybe your option!



User avatar
matthew1
Site Admin
Posts: 9936
Joined: Sat Sep 14, 2002 11:03 am
Year and Model: 850 T5, 1997
Location: Denver, Colorado, US
Has thanked: 401 times
Been thanked: 151 times
United States of America
matthew1

Re: Boost Gauge Install

Post by matthew1 » Sat Feb 04, 2012 1:33 pm

Just did this. What's displayed below in my photos isn't the final product, so to speak, but more of a "proof of concept". I have an IPD A-pillar mount that is going in soon to house the gauge. Then the wiring and tube will be hidden and look professional, no silly double-sided tape to keep the gauge attached to the pilar.











You can go through the firewall like I did, or do it the smart way like D_V_ENT850R and tap into the line that goes to your boost gauge on the dash. You should be able to find it under there somewhere.

For wiring, I wired into the dimmer switch (pink wire on my '97). Works perfectly, looks fantastic. For wiring done right, see this car wiring topic I started to know how to do it right next time.

Next up for me, manual boost controller :-D.


Help keep MVS on the web -> click sponsors' links here on MVS when you buy from them.
Also -> Amazon link
. Click that when you go to buy something on Amazon and MVS gets a kickback.

1997 850 T5, MSD ignition coil, Hallman manual boost controller, injectors, R bumper, OMP strut brace [gone]
2004 V70 R [gone]

micah861
Posts: 143
Joined: Fri Sep 11, 2009 6:46 pm
Year and Model: 98 S70, 98 S70 T5M
Location: Cheyenne, WY
Has thanked: 0
Been thanked: 0
micah861

Re: Boost Gauge Install

Post by micah861 » Sat Feb 04, 2012 2:10 pm

Thanks guys!

I went ahead and drilled the fire wall, above the throttle cable. My 850 had a boost gauge, but unless i'm blind as a bat, there is no boost gauge on my S70, so I went to the vacume tree. I think i'll copy Matt for wireing the bulb. I have more wires than I see in your picture. I gess ill just back probe them with my test light and see which one is power/ will dim. I also have the IPD a pillar, i think it's going to look really good, just kind of bare unless I get two more gauges!
You do not have the required permissions to view the files attached to this post.


Red 98 S70 T5M
Black 98 S70 N/A

User avatar
matthew1
Site Admin
Posts: 9936
Joined: Sat Sep 14, 2002 11:03 am
Year and Model: 850 T5, 1997
Location: Denver, Colorado, US
Has thanked: 401 times
Been thanked: 151 times
United States of America
matthew1

Boost Gauge Install

Post by matthew1 » Sat Feb 04, 2012 2:55 pm

Oh I'm sorry. I forgot S70s don't have a factory boost gauge.

Let us know which wire does the dimming trick.


Help keep MVS on the web -> click sponsors' links here on MVS when you buy from them.
Also -> Amazon link
. Click that when you go to buy something on Amazon and MVS gets a kickback.

1997 850 T5, MSD ignition coil, Hallman manual boost controller, injectors, R bumper, OMP strut brace [gone]
2004 V70 R [gone]

micah861
Posts: 143
Joined: Fri Sep 11, 2009 6:46 pm
Year and Model: 98 S70, 98 S70 T5M
Location: Cheyenne, WY
Has thanked: 0
Been thanked: 0
micah861

Re: Boost Gauge Install

Post by micah861 » Sat Feb 04, 2012 4:51 pm

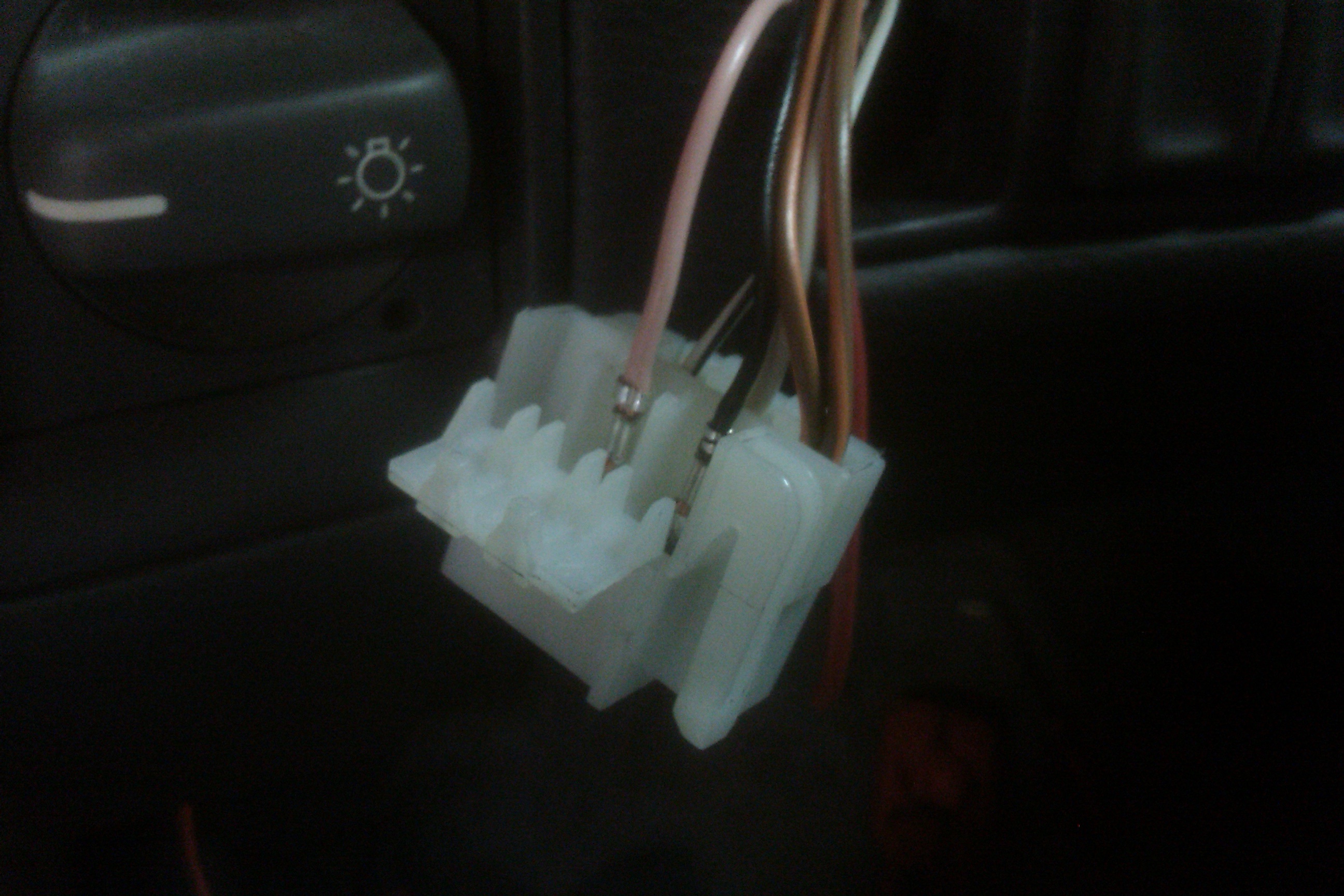

Turns out it was the pink wire. My connector can come apart and fold on the side (see picture) which makes it alot easier to connect the new wires to the original without cutting them.

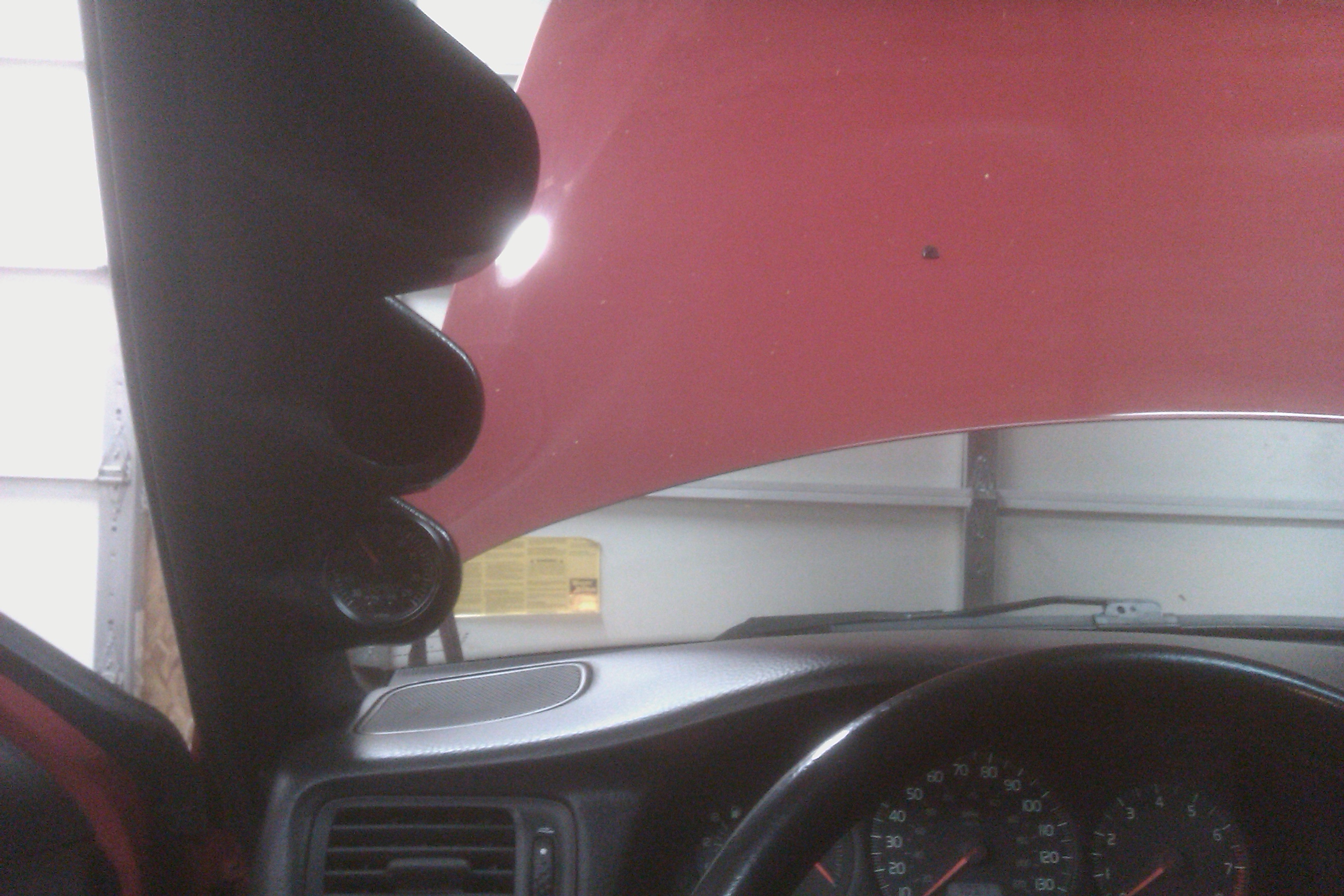

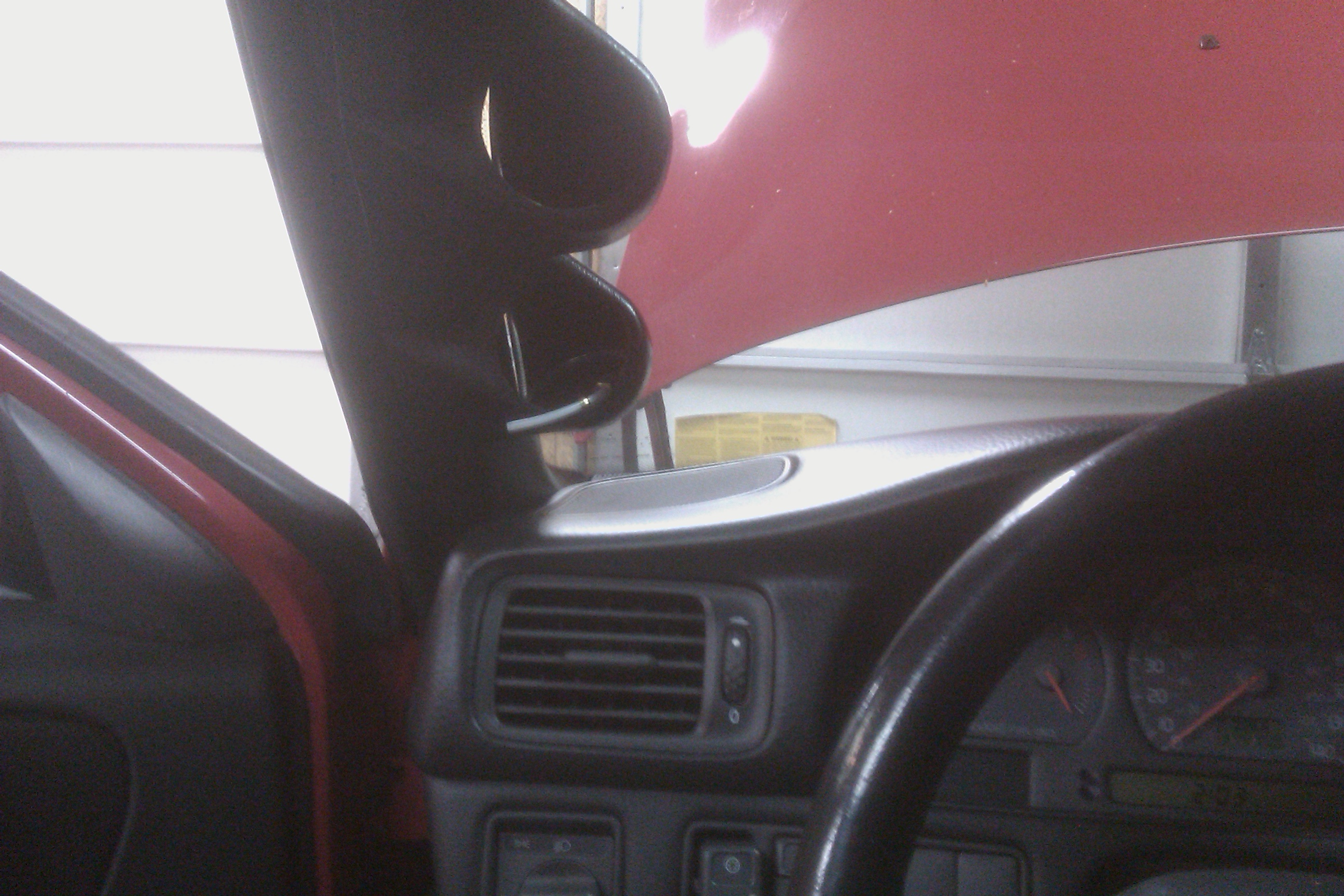

Then put the gauge cluster up, and ta-dum!
You do not have the required permissions to view the files attached to this post.


Red 98 S70 T5M
Black 98 S70 N/A

s70glt novice[Will]
Posts: 233
Joined: Sat Sep 24, 2011 5:18 pm
Year and Model: s70 glt 98
Location: Martinez, CA
Has thanked: 0
Been thanked: 0
s70glt novice[Will]

Re: Boost Gauge Install

Post by s70glt novice[Will] » Sat Feb 04, 2012 8:47 pm

You guys are so lucky. I got the boost gauge kit from ipd, and apparently the little wire splices dont work, so no lights, and the guide failed to mention (although i'm more at fault for being a dumbass and thinking otherwise) that there was wiring in the A-frame. Needless to say, when i drilled, the drill decided to shoot forward and sever the red wire, and damage another. So no interior lights, boost gauge lights, and whenever opens to glovebox or sunblocker mirrors, the door open sound comes on.
XD. Got some work to do some weekend... *sigh* I break more things then i fix... Oh, the perils of car tuning! Alas!


'98 s70 GLT-127k
ARD Green, obx, 16t, other go-fast parts

micah861
Posts: 143
Joined: Fri Sep 11, 2009 6:46 pm
Year and Model: 98 S70, 98 S70 T5M
Location: Cheyenne, WY
Has thanked: 0
Been thanked: 0
micah861

Re: Boost Gauge Install

Post by micah861 » Sun Feb 05, 2012 1:42 pm

s70glt novice[Will] wrote:You guys are so lucky. I got the boost gauge kit from ipd, and apparently the little wire splices dont work, so no lights, and the guide failed to mention (although i'm more at fault for being a dumbass and thinking otherwise) that there was wiring in the A-frame. Needless to say, when i drilled, the drill decided to shoot forward and sever the red wire, and damage another. So no interior lights, boost gauge lights, and whenever opens to glovebox or sunblocker mirrors, the door open sound comes on.
XD. Got some work to do some weekend... *sigh* I break more things then i fix... Oh, the perils of car tuning! Alas!
That's rough! Electric fail! Is that all going to be difficult to take appart? At least there is no air bag in there!....granted you probably wouldn't have been drilling on it if there was...


Red 98 S70 T5M
Black 98 S70 N/A

s70glt novice[Will]
Posts: 233
Joined: Sat Sep 24, 2011 5:18 pm
Year and Model: s70 glt 98
Location: Martinez, CA
Has thanked: 0
Been thanked: 0
s70glt novice[Will]

Re: Boost Gauge Install

Post by s70glt novice[Will] » Mon Feb 06, 2012 12:30 am

Its not too bad, the only thing is i'll have to re-wire the boost gauge and re-secure the vacuum line. Just a fair warning :)

Totally worth it to see my boost shoot up :D
*edit* In the day time that is...


'98 s70 GLT-127k
ARD Green, obx, 16t, other go-fast parts

db130
Posts: 308
Joined: Tue Mar 18, 2008 12:58 pm
Year and Model: 2002 V70 T5
Location: MA
Has thanked: 0
Been thanked: 0
United States of America
db130

Re: Boost Gauge Install

Post by db130 » Mon Feb 06, 2012 9:14 am

NO NEED TO DRILL THROUGH THE FIREWALL, guys!

there's a factory pass-through underneath the master cylinder:


Culled from IPD's boost gauge install instructions:

"Under the hood, on the driver side of the engine compartment, locate the plastic fuse box labeled
“MAIN FUSES”. Use a small flat blade screwdriver to depress the tab locks (one on the front and one on
the side closest to the fender) and carefully pop the fuse box out of its bracket. Lay it to the side to
gain access to the pass thru below. The pass thru is a plastic flexible tube that passes through the
firewall, it has a rubber cap on each end with several nipples on each cap. Locate the end of the
pass thru and pull the entire rubber cap free from the plastic flex tubing, this will allow the gauge
tubing to pass through from the interior of the car. Leave this open for the time being."

Once the tubing for the gauge has been pushed through the passthrough, cut off the tip of one of the smaller nipples and feed the tubing through the open nipple.


2002 V70 T5 169k
2002 V70 NA 249k
2006 Mini Cooper S 90k
