Rear bumper bracket - bolt broke 982831 6816114

Post by erikv11 » Sun Jul 21, 2013 10:57 am

The rear bumper brackets on my 95 are totally rusted out and it is sagging. I bought the parts a couple weeks ago and thought i would do the job today (see jreed's great DIY at http://www.matthewsvolvosite.com/forums ... =1&t=49802, I didn't want to clutter that thread).

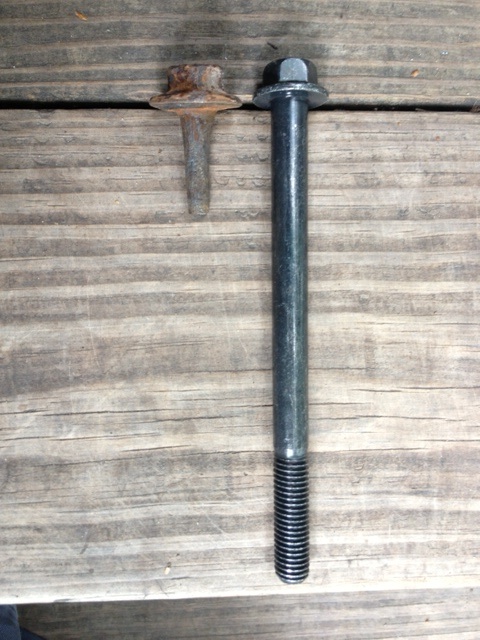

So the rivets and side mount bolts came off fine, then I moved to remove the long bolts and the first one sheared right off, no excessive force applied. Here is the sheared bolt next to a new one:
rusted bumper bolt.jpg
rusted bumper bolt.jpg (124.6 KiB) Viewed 1138 times
As you can see, the bolt had rusted away to like half the diameter of the original one. That explains why it broke so easily.

So ... any ideas how to get the bumper off and complete the job? I'm assuming the portion of the bolt that remains will prevent the bumper from coming off but I didn't have time to try to investigate more, needed to reattach the bumper sides temporarily and use the car.
'95 854 T5-R, Motronic 4.4, 185k
'96 855 NA, 145k
'98 S70 NA, 220k (living out west)
'98 V70, T5 tune-injectors-turbo, LPT engine, 286k
'06 S60 R, 167k
'99 Camry V6 :shock: 125k
gone: '96 NA 850 210k, '98 NA V70 182k

Ozark Lee
MVS Moderator
Posts: 14798
Joined: Thu Sep 07, 2006 8:24 am
Year and Model: Many Volvos
Location: USA Midwest
Has thanked: 4 times
Been thanked: 52 times
United States of America
Ozark Lee

Re: Rear bumper bracket - bolt broke

Post by Ozark Lee » Sun Jul 21, 2013 11:46 am

How much of the original bracket is left? If they are anything like mine are you can likely pry the support bracket out in chunks until the bumper comes free.

...Lee
'94 850 N/A 5 speed
'96 Platinum Edition Turbo
Previous:
1999 V70XC - Nautic Blue - Totaled while parked.
1999 V70XC - RIP - Wrecked Parts Car.
1998 S70 T5
1996 850 N/A
1989 740 GLT
1986 740 GLT
1972 142 Grand Luxe

Ben850
Posts: 1613
Joined: Thu Sep 08, 2011 1:53 pm
Year and Model: 1996 850 R Wagon
Location: Michigan
Has thanked: 0
Been thanked: 4 times
United States of America
Ben850

Re: Rear bumper bracket - bolt broke

Post by Ben850 » Sun Jul 21, 2013 11:48 am

Yes. If you are using new brackets, simply bend the bottom of the old brackets downward . You can then slide the bumper downward off of what is left of the broken bolts.

That is what I did here on the sedan when I found a nice, rare white '93 bumper for it at the yards.

http://www.matthewsvolvosite.com/forums ... 7&start=14

Click on the photo and zoom in to see the brackets.

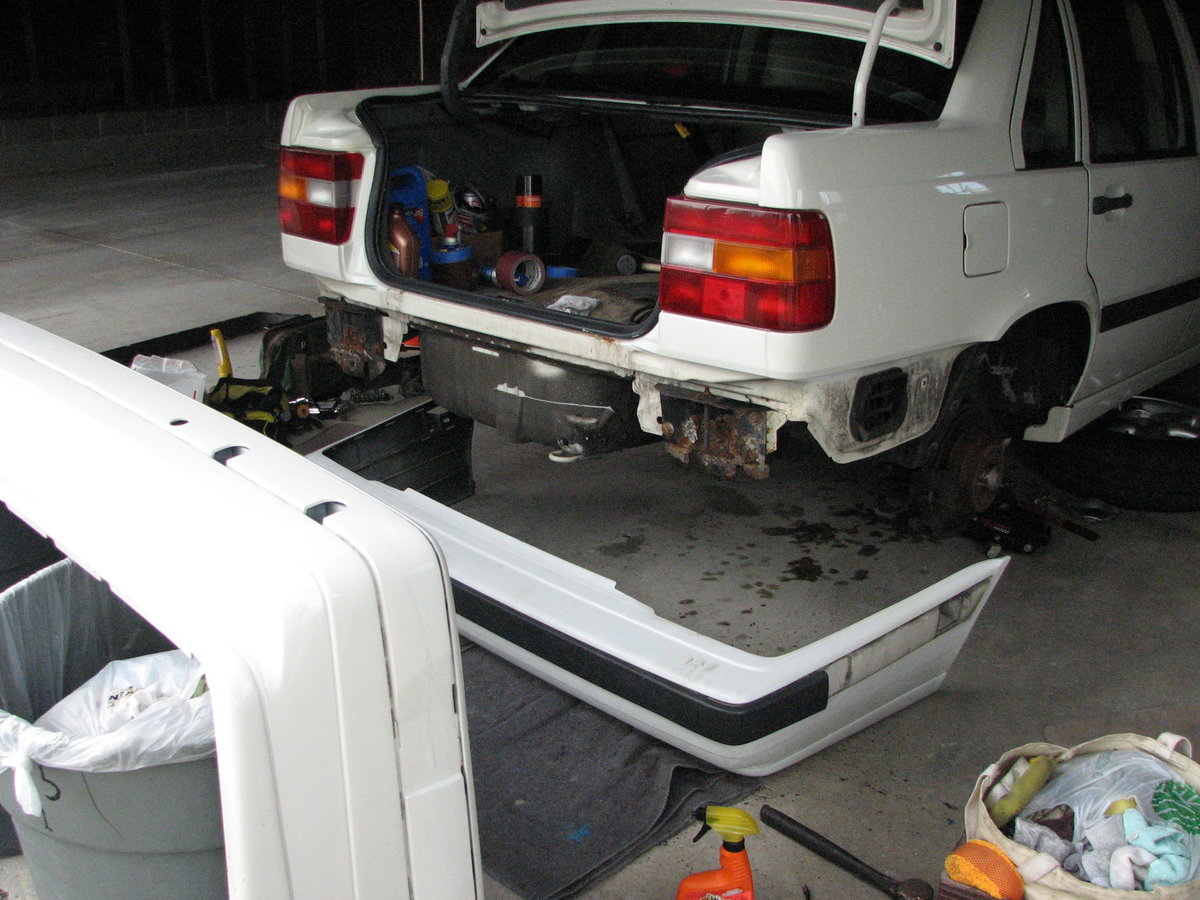

Old Brackets.
1993 850 GLT , You wouldn't know it.
1996 850 Turbo Wagon White.
1995 T-5R Black. New work in progress.
1998 V70 XC Cross Country White.
1994 850 N/A Wagon Black.
1997 850 Sedan Black.
1996 850R Wagon White.
1997 850 Sedan Red ( not white or black!)

User avatar
rspi
Posts: 7278
Joined: Sat Nov 05, 2011 10:40 am
Year and Model: 850 T-5R Wagon
Location: Albuquerque, NM
Has thanked: 22 times
Been thanked: 49 times
United States of America
rspi

Re: Rear bumper bracket - bolt broke

Post by rspi » Sun Jul 21, 2013 3:26 pm

I went through the same thing. Installed new brackets and bolts as well (got the car from up north). When I installed my un-rusted brackets I cut a grove in the lower part of the bumper to allow water to drain off and not sit in that area. Probably the only place Volvo messed up with drainage.
'95 855 T-5R M, Panther - 22/28 mpg
'98 S70 GLT, Lil' Red 25/32 mpg
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos

User avatar
erikv11
Posts: 9771
Joined: Sat Jul 25, 2009 2:03 pm
Year and Model: 850, S/V70, 06 S60R
Location: Iowa
Has thanked: 101 times
Been thanked: 293 times
United States of America
erikv11

Re: Rear bumper bracket - bolt broke

Post by erikv11 » Sun Jul 21, 2013 8:19 pm

Thanks for the posts, very helpful! The other bolt broke in pretty much the same place but with the tips I was able to get the old bumper off pretty easily.

The brackets were incredibly rusted away, much worse than the ones Ben's picture shows, I think rust was all that was holding the bumper on. But underneath it is clean and I mounted up the new brackets. Unfortunately I ordered the long bolts for a wagon, they are about an inch shorter than the sedan ones. I will get long bolts from the machine supply shop tomorrow and button it up.
'95 854 T5-R, Motronic 4.4, 185k
'96 855 NA, 145k
'98 S70 NA, 220k (living out west)
'98 V70, T5 tune-injectors-turbo, LPT engine, 286k
'06 S60 R, 167k
'99 Camry V6 :shock: 125k
gone: '96 NA 850 210k, '98 NA V70 182k

User avatar
abscate
MVS Moderator
Posts: 21493
Joined: Sun Feb 17, 2013 5:54 pm
Year and Model: 99T5 ,99S70,2005V70
Location: NYC, ALBANY NY
Has thanked: 333 times
Been thanked: 1035 times
Trinidad & Tobago
abscate

Re: Rear bumper bracket - bolt broke

Post by abscate » Thu Jul 05, 2018 6:45 pm

I got lucky on this job and my bumper came off with most of the metal crumbling away.

Once you have the bumper off on the bench, a tickle on the top mounted nut with H-C=C-H and it zipped off
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 BMW
Link to Maintenance record thread
Link To Volvo Glossary

JimBee
Posts: 1769
Joined: Tue Dec 09, 2008 9:23 pm
Year and Model: 93 and 2 96 850's
Location: Minneapolis
Has thanked: 13 times
Been thanked: 27 times
United States of America
JimBee

Re: Rear bumper bracket - bolt broke

Post by JimBee » Thu Jul 05, 2018 9:20 pm

My drivers side bolt snapped like Erik's, so I had to bend the remains of the lower flange of the bracket down to drop the assembly. The right side was no problem, it was completely gone except for the mount plate that bolts to the chassis.

What makes the job harder is if you round off the head of the remains of the long bolt. Since I was concerned that was going to happen, I used the next smaller size socket and pounded it onto the rusty bolt head. It went on far enough that I could get enough torque on it to snap it off.

BTW: Tasca still sells the brackets for the 850 wagon. They're around $15.00. Extra for the bolts. Both sides are the same.

For my 93 854, left side is no longer available. Not sure if the later 854's are also side specific, or if those are available.

User avatar
abscate
MVS Moderator
Posts: 21493
Joined: Sun Feb 17, 2013 5:54 pm
Year and Model: 99T5 ,99S70,2005V70
Location: NYC, ALBANY NY
Has thanked: 333 times
Been thanked: 1035 times
Trinidad & Tobago
abscate

Re: Rear bumper bracket - bolt broke 982831 6816114

Post by abscate » Fri Jul 06, 2018 3:24 am

Added part numbers to thread title for search

Jim, my 99 were side specific. The bolt holes are offset so the bracket will only go one side.

Corrodion really saved me hours of work on this one, once I drilled the rivets only my zip ties were holding the bumper on. There is some weight carried by the plastic side on the side of the car



It was a joy to see how nicely the bumper slid back on and aligned , even though it’s has 20 years of hard labour. Volvo fasteners are awesome too, high quality steel.
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 BMW
Link to Maintenance record thread
Link To Volvo Glossary

User avatar
erikv11
Posts: 9771
Joined: Sat Jul 25, 2009 2:03 pm
Year and Model: 850, S/V70, 06 S60R
Location: Iowa
Has thanked: 101 times
Been thanked: 293 times
United States of America
erikv11

Re: Rear bumper bracket - bolt broke 982831 6816114

Post by erikv11 » Fri Jul 06, 2018 7:51 am

All 854's have different left and right side rear bumper brackets. For that detail and basically ALL part numbers, go to the linked thread at the top, started by jreed. Everything is very well documented.
'95 854 T5-R, Motronic 4.4, 185k
'96 855 NA, 145k
'98 S70 NA, 220k (living out west)
'98 V70, T5 tune-injectors-turbo, LPT engine, 286k
'06 S60 R, 167k
'99 Camry V6 :shock: 125k
gone: '96 NA 850 210k, '98 NA V70 182k

User avatar
abscate
MVS Moderator
Posts: 21493
Joined: Sun Feb 17, 2013 5:54 pm
Year and Model: 99T5 ,99S70,2005V70
Location: NYC, ALBANY NY
Has thanked: 333 times
Been thanked: 1035 times
Trinidad & Tobago
abscate

Re: Rear bumper bracket - bolt broke 982831 6816114

Post by abscate » Fri Jul 06, 2018 8:14 am

Thats an awesome write up and Ive linked it to my pitiful, phoned-in version

thanks
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 BMW
Link to Maintenance record thread
Link To Volvo Glossary
