Re: 2000 S70 Transmission project

Post by wheelsup » Tue Jun 17, 2014 10:00 pm

Ozark Lee wrote:My guess is that Matt would rapidly have a cease and desist slapped on him if I tried to upload it. ATSG tends to defend their copyrights vigorously. The link to the .ru site came up with a Google search for "Aisin AW 50-42le repair" and it was on the first page. They don't exactly have gigabit speed off of the server but it was only a few minutes to download it.

...Lee
Thanks Lee you are probably right! I'll use a hotel computer to download I don't trust those foreign ip's!!
1995 850 GLT Wagon w/ 185,000 miles

wheelsup
Posts: 1221
Joined: Tue Jun 28, 2005 8:30 pm
Year and Model:
Location: Raleigh, NC
Has thanked: 2 times
Been thanked: 3 times
wheelsup

Re: 2000 S70 Transmission project

Post by wheelsup » Tue Jun 17, 2014 10:02 pm

precopster wrote:
Last time I looked at the Hastings cattalogue they had 2.4 rings but that was over 2 years ago.
I'll check there thank you. I did find one set but they were close to $500, seemed like a large amount for just rings.
1995 850 GLT Wagon w/ 185,000 miles

jimmy57
Posts: 6573
Joined: Fri Nov 12, 2010 9:25 am
Year and Model: 2004 V70R GT, et al
Location: Ponder Texas
Has thanked: 4 times
Been thanked: 237 times
jimmy57

Re: 2000 S70 Transmission project

Post by jimmy57 » Wed Jun 18, 2014 7:13 am

What plate in the pump is cracked?

Transtar is a good source for hard parts. They will have used and new available.

User avatar
kallekula
Posts: 478
Joined: Sun Mar 02, 2014 12:34 pm
Year and Model: S70 2000
Location: Orange County, CA
Has thanked: 17 times
Been thanked: 15 times
United States of America
kallekula

Re: 2000 S70 Transmission project

Post by kallekula » Wed Jun 18, 2014 9:54 am

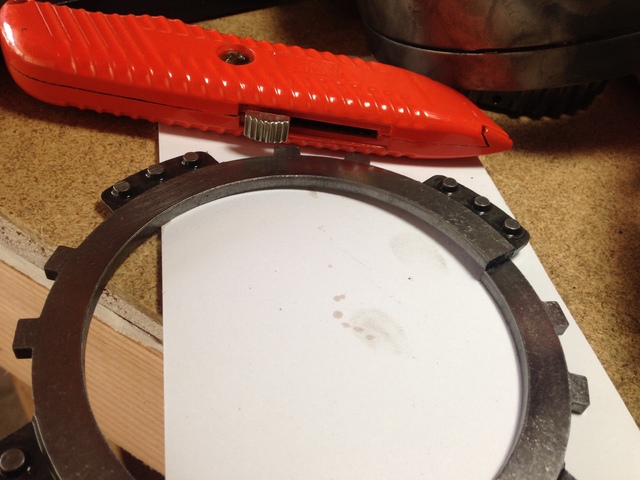

This is the plate inside the pump assembly that was cracked. Its the last one of the smaller clutch package. As far as I can see this plate and also all of the plates in the clutch that burned up is the only hard parts I will need.

BMW 540i 2002
S70 Base 2000
S40 T5 2004.5 (For Sale)

jimmy57
Posts: 6573
Joined: Fri Nov 12, 2010 9:25 am
Year and Model: 2004 V70R GT, et al
Location: Ponder Texas
Has thanked: 4 times
Been thanked: 237 times
jimmy57

Re: 2000 S70 Transmission project

Post by jimmy57 » Wed Jun 18, 2014 11:33 am

That is the C2 pressure plate. That clutch is carried by the pump but is not the pump.
Make sure the piston behind it is OK and the housing isn't damaged in some way to make the piston hang.
Usually there is a cause for a part like that to crack.

precopster
Posts: 7477
Joined: Sat Aug 21, 2010 12:20 am
Year and Model: Lots
Location: Melbourne Australia
Has thanked: 4 times
Been thanked: 108 times
Australia
precopster

Re: 2000 S70 Transmission project

Post by precopster » Wed Jun 18, 2014 11:56 am

The banging that sluggish solenoids creates can be a cause of shock damage in these transmissions.

However be very thorough in the way you rebuild both the valve body and the other areas. The largest gasket on the valve body plate is usually baked on and requires the use of a dishwasher or immersion in boiling water to remove.

Ctp Powertrain sell a Transtar kit packaged with all gaskets and a nice cork VB gasket.
Current cars:2002 XC70, 2006 Ssangyong Rodius (Stavic), 2006 XC90 2.5T, VW Transporter 2.5TDI

www.precisioncarmodules.com.

User avatar
kallekula
Posts: 478
Joined: Sun Mar 02, 2014 12:34 pm
Year and Model: S70 2000
Location: Orange County, CA
Has thanked: 17 times
Been thanked: 15 times
United States of America
kallekula

Re: 2000 S70 Transmission project

Post by kallekula » Wed Jun 18, 2014 12:30 pm

jimmy57 wrote:That is the C2 pressure plate. That clutch is carried by the pump but is not the pump.
Make sure the piston behind it is OK and the housing isn't damaged in some way to make the piston hang.
Usually there is a cause for a part like that to crack.
Oh ok thanks for the tip. I will look closely at all the parts I will take apart. This is my first auto transmission job I've done so I really appreciate all the help I can get :)

BMW 540i 2002
S70 Base 2000
S40 T5 2004.5 (For Sale)

User avatar
kallekula
Posts: 478
Joined: Sun Mar 02, 2014 12:34 pm
Year and Model: S70 2000
Location: Orange County, CA
Has thanked: 17 times
Been thanked: 15 times
United States of America
kallekula

Re: 2000 S70 Transmission project

Post by kallekula » Wed Jun 18, 2014 12:32 pm

precopster wrote:The banging that sluggish solenoids creates can be a cause of shock damage in these transmissions.

However be very thorough in the way you rebuild both the valve body and the other areas. The largest gasket on the valve body plate is usually baked on and requires the use of a dishwasher or immersion in boiling water to remove.

Ctp Powertrain sell a Transtar kit packaged with all gaskets and a nice cork VB gasket.
Yes I had the banging when the tranny was hot for quite a while. Maybe it was wat caused the damage to the steel plate I have no idea. Gonna do the solenoids at the same time.

BMW 540i 2002
S70 Base 2000
S40 T5 2004.5 (For Sale)

User avatar
kallekula
Posts: 478
Joined: Sun Mar 02, 2014 12:34 pm
Year and Model: S70 2000
Location: Orange County, CA
Has thanked: 17 times
Been thanked: 15 times
United States of America
kallekula

Re: 2000 S70 Transmission project

Post by kallekula » Thu Jun 19, 2014 8:18 pm

Bought the overhaul kit today and some hard parts.

BMW 540i 2002
S70 Base 2000
S40 T5 2004.5 (For Sale)

User avatar
abscate
MVS Moderator
Posts: 21041
Joined: Sun Feb 17, 2013 5:54 pm
Year and Model: 99T5 ,99S70,2005V70
Location: NYC, ALBANY NY
Has thanked: 315 times
Been thanked: 972 times
Trinidad & Tobago
abscate

Re: 2000 S70 Transmission project

Post by abscate » Fri Jun 20, 2014 4:38 am

This thread makes me feel like a velvet Elvis painter in a room full of Picassos, Dalis, and Sergels.

Carry on!

:D :D :D
