Testing Coolant (IAT/ETC?) sensor

Post by scot850 » Mon Aug 22, 2016 3:14 pm

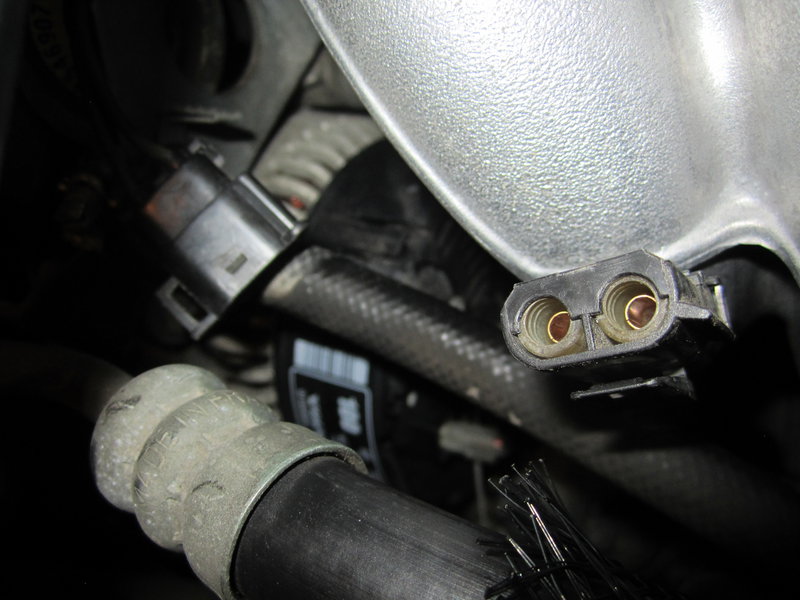

I have separated the coolant sensor connector by the back of the power steering pump)
850 Coolant temp sensor connector.JPG
Coolant temperature sensor connector
I have read the thread below stating the different resistances at different temperatures. I am not confident in electrical testing, so how do you test the resistance of the sensor? Do you just probe across the 2 pins with a meter set to resistance? Does the connector have to be connected together or the engine running to do this test?

Appreciate this is a basic question but like I said I am a mecheng not an electeng!

Thanks,

Neil.
2000 V70 R - still being an endless PITA
2006 XC70
2003 Toyota 4Runner V8 Limited
2015 Kia Sportage EX-L
1993 850 GLT -Sold
1998 V70 XC - Sold
1997 Volvo 850 SE NA - Went to niece in California - Sold
2000 V70 SE NA - New project and test bed - Sold

tryingbe
Posts: 1891
Joined: Thu Jun 18, 2009 12:43 pm
Year and Model: None
Location: Mesa, AZ, USA
Has thanked: 0
Been thanked: 23 times
United States of America
tryingbe

Re: Testing Coolant (IAT/ETC?) sensor

Post by tryingbe » Mon Aug 22, 2016 3:42 pm

V70R?

You be able to get the coolant temperature by using a OBDII scanner.
85 GLH, 367 whp
00 Insight, 72 mpg

scot850
Posts: 5762
Joined: Mon Apr 05, 2010 2:46 pm
Year and Model: 2000 V70 R
Location: Calgary, Alberta, Canada
Has thanked: 9 times
Been thanked: 187 times
Canada
scot850

Re: Testing Coolant (IAT/ETC?) sensor

Post by scot850 » Mon Aug 22, 2016 4:12 pm

Sorry should have been more specific. This is on the 97 850 NA, but technically the same question would still be appropriate if you don't have a scanner for any P80 I guess.

I re-checked with my electrical tester and realised I had not got it set high enough for the resistance levels I needed to be checking for. I tried it on 2 sensors, the one in the car in the coolant, and a spare one I removed from the V70R when I first bought it as I thought it was faulty as the needle was not registering at 3 o'clock. Brand newVolvo IAT/ETC (?) sensor made no difference, so I am assuming the old sensor should be a reasonable cross reference. The only concern isthat I believe there is a different sensor used up to 1998 and 99-00 used a different part number for some reason. Strange thing I my Vida copy shows the same part number for all, but when you chec the actual vehicles and years it lists different part #'s.

Anyway, I have just placed a thermometer in the garage to check the temp out there, but both were tested out there. I have also just checked with my hand held digital thermometer. It read at 65F at the thermostat housing and at 67.5 at the tip ofthe non-fitted sensor

1) old sensor from 2000 V 70R resistance: 2,400 Ohms (65F = 18C approx.)

2) Sensor in 850 in coolant resistance : 3,000 Ohms (67.5F = 20C approx.)

Not sure if this test is relevant or not.

Either way, does this sensor control the cooling fan operation through the ECU? The sensor in the 850 reads at 3 o'clock when the car is warm, so is this a reasonable assumption it is reading correctly?

Thanks,

Neil.
2000 V70 R - still being an endless PITA
2006 XC70
2003 Toyota 4Runner V8 Limited
2015 Kia Sportage EX-L
1993 850 GLT -Sold
1998 V70 XC - Sold
1997 Volvo 850 SE NA - Went to niece in California - Sold
2000 V70 SE NA - New project and test bed - Sold

beigg
Posts: 691
Joined: Sun Sep 22, 2013 9:07 am
Year and Model: 850 97
Location: Est. Mi
Has thanked: 0
Been thanked: 0
Uruguay
beigg

Re: Testing Coolant (IAT/ETC?) sensor

Post by beigg » Mon Aug 22, 2016 4:14 pm

Reading should be done with meter set to ohms (resistance) and display a "+" positive readout number and if it has the dash pre-number, reverse connections and be sure to wire appropriately to the pigtail and not mix or cross the negative/minus/"-". Car will run like poop if it'll start at all before fouling the plugs should the wires be crossed incorrectly.
ugh smh 850 Turbo fridge

scot850
Posts: 5762
Joined: Mon Apr 05, 2010 2:46 pm
Year and Model: 2000 V70 R
Location: Calgary, Alberta, Canada
Has thanked: 9 times
Been thanked: 187 times
Canada
scot850

Re: Testing Coolant (IAT/ETC?) sensor

Post by scot850 » Mon Aug 22, 2016 4:32 pm

Went back and re-checked as I wasn't sure I got the readings the right way around.

The ambient temp in the engine area was registering at 18.4C (65.1F) on a digital sensor placed there.

Using the hand held digital laser sensor, I measured the temp of the thermostat housing in the 850 engine bay in the garage and it was 65F so the same. Re-checked the resistance and it measured at 3000 Ohms this time. Based on a chart I found it states it should read 2,400 Ohms at 20C (68F) and at 0C (32F) it should be at 7200. So not knowing if the resistance is linear, I would think this would look about right. Is this a fair assumption? If so it would suggest the sensor is ok?

Neil.
2000 V70 R - still being an endless PITA
2006 XC70
2003 Toyota 4Runner V8 Limited
2015 Kia Sportage EX-L
1993 850 GLT -Sold
1998 V70 XC - Sold
1997 Volvo 850 SE NA - Went to niece in California - Sold
2000 V70 SE NA - New project and test bed - Sold

User avatar
abscate
MVS Moderator
Posts: 20458
Joined: Sun Feb 17, 2013 5:54 pm
Year and Model: 99T5 ,99S70,2005V70
Location: NYC, ALBANY NY
Has thanked: 285 times
Been thanked: 898 times
Trinidad & Tobago
abscate

Re: Testing Coolant (IAT/ETC?) sensor

Post by abscate » Mon Aug 22, 2016 7:15 pm

Those readings look ok. They are documented here in the P80 forum. I think typical failures are the curve goes non linear which is much harder to diagnose. The ECT and resistance changes in the 1999 model, of course
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 BMW
Link to Maintenance record thread
Link To Volvo Glossary

User avatar
erikv11
Posts: 9584
Joined: Sat Jul 25, 2009 2:03 pm
Year and Model: 850, S/V70, 06 S60R
Location: Iowa
Has thanked: 90 times
Been thanked: 261 times
United States of America
erikv11

Re: Testing Coolant (IAT/ETC?) sensor

Post by erikv11 » Mon Aug 22, 2016 8:48 pm

Everything you mention points to the sensor being fine but if you want to test it you need to pull the sensor and make up a little curve with the resistance at different temps.
'95 854 T5-R, Motronic 4.4, 185k
'96 855 NA, 145k
'98 S70 NA, 220k (living out west)
'98 V70, T5 tune-injectors-turbo, LPT engine, 285k
'06 S60 R, 165k
'99 Camry V6 :shock: 125k
gone: '96 NA 850 210k, '98 NA V70 182k

scot850
Posts: 5762
Joined: Mon Apr 05, 2010 2:46 pm
Year and Model: 2000 V70 R
Location: Calgary, Alberta, Canada
Has thanked: 9 times
Been thanked: 187 times
Canada
scot850

Re: Testing Coolant (IAT/ETC?) sensor

Post by scot850 » Mon Aug 22, 2016 10:59 pm

I'm fairly confident it is correct. As there are only 2 wires going to the ECT all they can be measuring surely is a resistance change as temperature changes so all it is, is a thermocouple. This sends a signal to the engine ECU to determine fuel settings and that in turn must send a signal to the fan relay to determine if the fan needs to run at what speed. Have to believe if the temperature on the gauge is where we expect it to be, then the same signal goes to the ECU. So I am going with it is ok for now. Will now have to check the relay operation and then if that is ok then I'm assuming the electrical side of things is ok. The onto looking for leaks, or hope it is just another burp!

Thanks again,

Neil.
2000 V70 R - still being an endless PITA
2006 XC70
2003 Toyota 4Runner V8 Limited
2015 Kia Sportage EX-L
1993 850 GLT -Sold
1998 V70 XC - Sold
1997 Volvo 850 SE NA - Went to niece in California - Sold
2000 V70 SE NA - New project and test bed - Sold

User avatar
MrAl
Posts: 709
Joined: Wed Apr 08, 2015 4:45 pm
Year and Model: v70, 1998
Location: New Jersey
Has thanked: 0
Been thanked: 6 times
United States of America
MrAl

Re: Testing Coolant (IAT/ETC?) sensor

Post by MrAl » Tue Aug 23, 2016 5:04 am

Hi,

Is that a resistance type sensor, and it is the same on the 98 v70 ?
I’ve been driving a Volvo long before anyone ever paid me to drive one.
1998 v70 on the road since April 2nd, 2015

Cees Klumper
Posts: 280
Joined: Sat Dec 28, 2013 1:24 pm
Year and Model: C70 2008 T5
Location: Marina del Rey
Has thanked: 19 times
Been thanked: 9 times
United States of America
Cees Klumper

Re: Testing Coolant (IAT/ETC?) sensor

Post by Cees Klumper » Tue Aug 23, 2016 6:05 am

If based on the above we assume that the sensor is ok, then the needle not sitting at 3 o'clock could mean the thermostat is faulty? At least that's what happened in my S80. Engine would not reach proper operating temp. Replaced themostat (ahich BTW came with its housing and a new sender) and all was well again.
