1999 S70NA Evita dome light 9483142 troubleshooting [Passenger door switch fault]

Post by abscate »

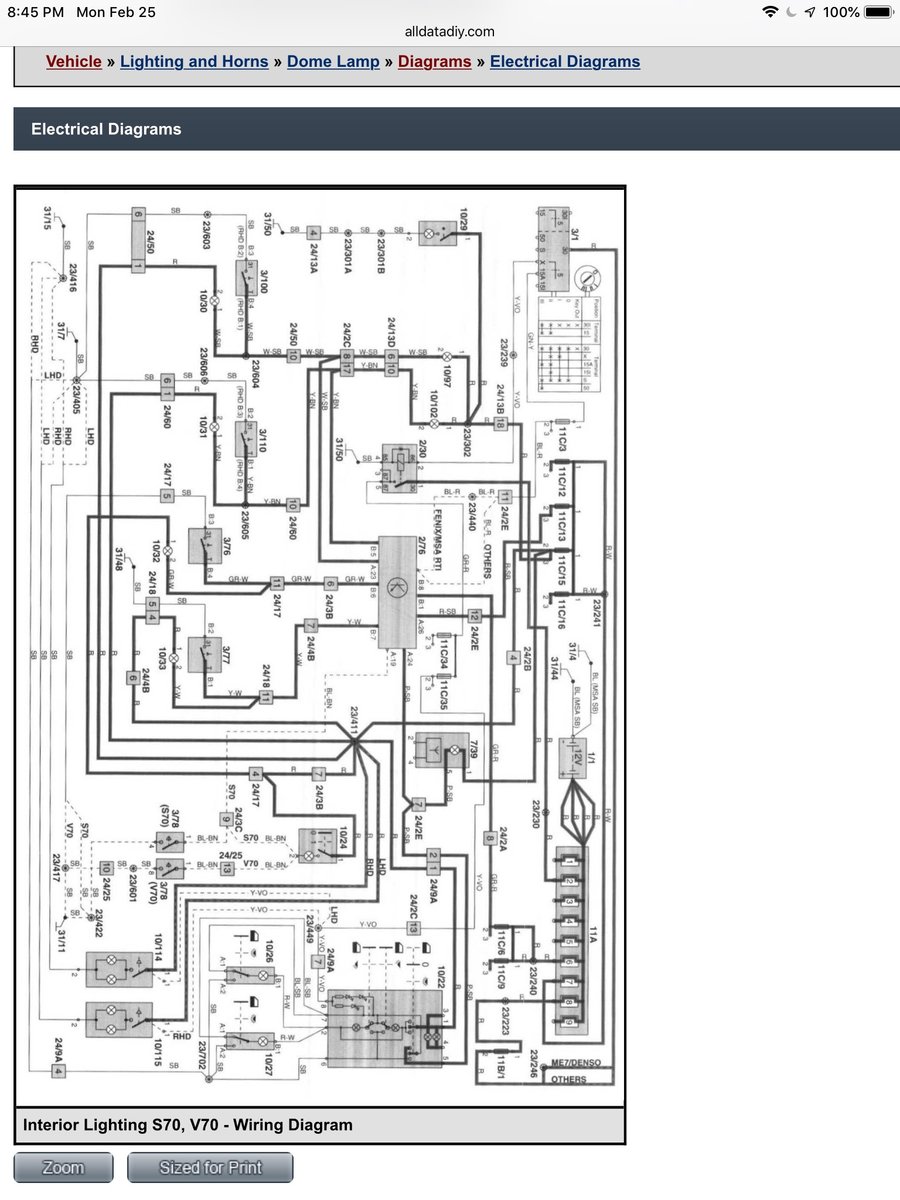

Symptom, dome lights come on with switch in power And door position. Have to figure out why it’s triggered in door position.

I never though this was worth a thread until I pulled up the diagram from AllData

Strewth !
Attachments
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 BMW
Link to Maintenance record thread
Link To Volvo Glossary
User avatar
RickHaleParker
Posts: 4785
Joined: Mon May 25, 2015 2:30 pm
Year and Model: See Signature below.
Location: Kansas
Has thanked: 3 times
Been thanked: 617 times

Re: 1999 S70NA Evita dome light troubleshooting

Post by RickHaleParker »

Ohm out the dome light switch. Make sure [Door] is not shorted to [Power]. Part substitution, if you got an extra laying around, would be the easy way to determine if it is the dome light switch.
1998 C70, B5234T3, 16T, AW50-42, Bosch Motronic 4.4, Special Edition package.
2003 S40, B4204T3, 14T twin scroll AW55-50/51SN, Siemens EMS 2000.
2004 S60R, B8444S TF80 AWD.
2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0.
User avatar
raivis_rsn
Posts: 63
Joined: Sun Jan 01, 2017 10:24 am
Year and Model: V70 1999 TDI
Location: Latvia, Jekabpils
Has thanked: 4 times
Been thanked: 6 times

Re: 1999 S70NA Evita dome light troubleshooting

Post by raivis_rsn »

These switches in dome lights assembly go crazy over time. When I turn on both lights, only one side lights up but the other one wakes up when I touch corresponding switch. I guess they need cleaning inside.
User avatar
erikv11
Posts: 9989
Joined: Sat Jul 25, 2009 2:03 pm
Year and Model: 850, S/V70, 06 S60R
Location: Iowa
Has thanked: 117 times
Been thanked: 337 times

Re: 1999 S70NA Evita dome light troubleshooting

Post by erikv11 »

Agreed, super common in the dome switch, get all kinds of crazy behavior. I have been cleaning them or swapping them out when it happens. It's always been the dome switch fore me, not a short somewhere, YMMV.
'95 854 T5-R, Motronic 4.4, 185k
'96 855 NA, 145k
'98 S70 NA, 220k (living out west)
'98 V70, T5 tune-injectors-turbo, LPT engine, 293k
'06 S60 R, 167k
'99 Camry V6 :shock: 130k
gone: '96 NA 850 210k, '98 NA V70 182k
User avatar
abscate
MVS Moderator
Posts: 22868
Joined: Sun Feb 17, 2013 5:54 pm
Year and Model: 99T5 ,99S70,2005V70
Location: NYC, ALBANY NY
Has thanked: 389 times
Been thanked: 1222 times

Re: 1999 S70NA Evita dome light 9483142 troubleshooting

Post by abscate »

I put a new one in as the old one crumbled into entropic bliss from age old plastic

The new one, part 9483142 was actually made in 1999 but the plastic was like new - its sun/ozone/heat that kill these, not time.

Dome light is 10/22 assembly in the diagram above - that is a real Rube Goldberg of electrical logic for a lousy dome light.

My new one has same symptom - lights up on door position, has to be turned to off.
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 BMW
Link to Maintenance record thread
Link To Volvo Glossary
User avatar
erikv11
Posts: 9989
Joined: Sat Jul 25, 2009 2:03 pm
Year and Model: 850, S/V70, 06 S60R
Location: Iowa
Has thanked: 117 times
Been thanked: 337 times

Re: 1999 S70NA Evita dome light 9483142 troubleshooting

Post by erikv11 »

Check the rear lights too, at the grab handles, I've had problems back there that made the dome light misbehave. Can't remember what it was though ...
'95 854 T5-R, Motronic 4.4, 185k
'96 855 NA, 145k
'98 S70 NA, 220k (living out west)
'98 V70, T5 tune-injectors-turbo, LPT engine, 293k
'06 S60 R, 167k
'99 Camry V6 :shock: 130k
gone: '96 NA 850 210k, '98 NA V70 182k
User avatar
RickHaleParker
Posts: 4785
Joined: Mon May 25, 2015 2:30 pm
Year and Model: See Signature below.
Location: Kansas
Has thanked: 3 times
Been thanked: 617 times

Re: 1999 S70NA Evita dome light 9483142 troubleshooting

Post by RickHaleParker »

3/100 & 3/110 are the Door Lock Modules. It could be that one of the two is not opening when you close the door or you got a short on one of the circuits.
1998 C70, B5234T3, 16T, AW50-42, Bosch Motronic 4.4, Special Edition package.
2003 S40, B4204T3, 14T twin scroll AW55-50/51SN, Siemens EMS 2000.
2004 S60R, B8444S TF80 AWD.
2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0.
User avatar
abscate
MVS Moderator
Posts: 22868
Joined: Sun Feb 17, 2013 5:54 pm
Year and Model: 99T5 ,99S70,2005V70
Location: NYC, ALBANY NY
Has thanked: 389 times
Been thanked: 1222 times

Re: 1999 S70NA Evita dome light 9483142 troubleshooting

Post by abscate »

Here is where all the parts are on this -
Attachments
Screen Shot 2019-02-28 at 5.35.19 AM.png
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 BMW
Link to Maintenance record thread
Link To Volvo Glossary
User avatar
abscate
MVS Moderator
Posts: 22868
Joined: Sun Feb 17, 2013 5:54 pm
Year and Model: 99T5 ,99S70,2005V70
Location: NYC, ALBANY NY
Has thanked: 389 times
Been thanked: 1222 times

Re: 1999 S70NA Evita dome light troubleshooting

Post by abscate »

raivis_rsn wrote: Wed Feb 27, 2019 7:58 am These switches in dome lights assembly go crazy over time. When I turn on both lights, only one side lights up but the other one wakes up when I touch corresponding switch. I guess they need cleaning inside.
Well this should be fun

Neither the front (3/100, 3/110) nor the rear (3/76. 3/77) door switches control actual voltage of course, they send logic signals to the 2/76 lock controller (my verbiage)

They all show as normally open (when doors are closed?) so I should be able to go around and try to find a lock module that is closed with my test gear.
