Volvo Repair Database NEW V8 Timing Cover Reseal Kit from FCP EURO

Post by FCPEURO » Tue Apr 04, 2017 2:58 pm

Hey Mathews,

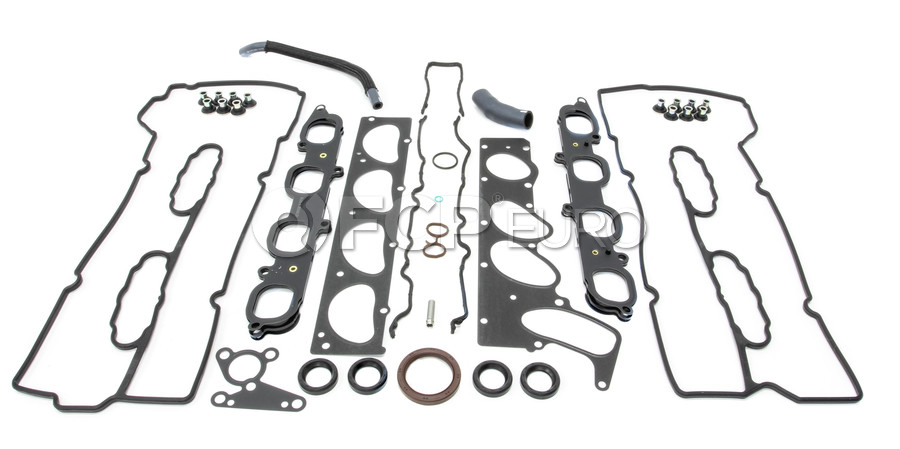

Anyone who has a Volvo V8 is usually a big fan of its performance, reliability, and feel. However, it's no secret that the timing cover on the Volvo V8 can leak over time and after recently having to perform this job on my own personal vehicle, a 2006 XC90 V8, I quickly realized that there are a ton of parts to replace to do the job correctly and that there really wasn't a good kit on the market for us enthusiasts. I created this kit which includes all of the gaskets, seals, and hoses needed in order to reseal or replace the timing cover on the Volvo V8's. Another reason as to why this cover needs to be replaced can be due to the serpentine belt idler or tensioner failure which, when fails, put a tremendous amount of pressure on the boss incorporated on the timing cover itself. When this happens, the boss will break off and require the cover replacement.


On the product page of the kit I've included links to a few more items that may be considered when replacing or resealing the cover such as:

Serpentine Belt Tensioner - https://www.fcpeuro.com/products/volvo- ... 0-31216199
Idler Pulley 2 needed - https://www.fcpeuro.com/products/volvo- ... 0-31216198
Spark Plug Set - https://www.fcpeuro.com/products/volvo- ... 0-30731383
Fuel Injector O-Ring Kit - 8 needed - https://www.fcpeuro.com/products/volvo- ... 0-30731386
Timing Cover - https://www.fcpeuro.com/products/volvo- ... 0-30720104
Timing Cover Bolt Kit - https://www.fcpeuro.com/products/volvo- ... -volvo-kit


I personally just bought my XC90 V8 with about 151k on it and it was in need of some TLC. I also wanted the set the car up for years of reliability.

With that said, I replaced a few other components such as:

Alternator - https://www.fcpeuro.com/products/volvo- ... v8-al0821x
Although not faulty it was saturated in oil. They're also known to over heat on these cars so I thought it was a good idea to replace it.

Power Steering Pump - https://www.fcpeuro.com/products/volvo- ... 0-36000748
This was leaking....and leaking pretty bad. What happens to these cars is that the fluid travels down and across the balance shaft cover and down along the block and down onto the transmission. It resembles a rear main seal leak but its actually coming from the power steering pump.

Water Pump - https://www.fcpeuro.com/products/volvo- ... 0-30731384
While not leaking, I noticed a small amount of coolant crust built up on the freeze plug of the pump. I thought it was a good idea to replace while I was in there.

Lastly, It not a bad idea to replace some filters and fluids:

Engine Coolant - https://www.fcpeuro.com/products/volvo- ... vo-9434699
Power Steering Fluid - https://www.fcpeuro.com/products/volvo- ... d-30741424
Maintenance Kit - https://www.fcpeuro.com/products/volvo- ... in-kit-kit
I went with the Pentosin kit. The Fuel filter on my car was original and I can't begin to describe the gunk that came out. In fact, as soon as I replaced it, it triggered a fuel pressure sensor code and I had to replace the sensor

Fuel Pressure Sensor: https://www.fcpeuro.com/products/volvo- ... 0261230110

The Air filter was in bad shape and the plugs were in desperate need of a replacement. While I had the valve covers off I figured it would be foolish not to replace. Also, just in case any gasket material fell into the pan while the timing cover was off, I performed an engine oil change as it needed one anyhow.

The job was not difficult however very tedious with lots of cleaning involved. I'm convinced this engine is good to go for at least another 100k miles (I hope).

I know there's an S80 V8 on here with over 300k, how many miles are on yours?

If you have any additional questions please feel free to reach out to me personally at [email protected] or check us out at FCPEuro.com

Always happy to help

Jason
Jason VanGorden
Volvo Product Manager
[email protected]

FCP Euro - European Car Parts Specialists
Quality & Service, Guaranteed for Life
155 Hill Street, Milford, CT 06460

cuhfs
MVS Moderator
Posts: 540
Joined: Wed Aug 31, 2011 1:28 pm
Year and Model: 850,V70,C70,XC90
Location: New Jersey
Has thanked: 8 times
Been thanked: 10 times
United States of America
cuhfs

Re: NEW V8 Timing Cover Reseal Kit from FCP EURO

Post by cuhfs » Tue Apr 04, 2017 6:31 pm

Thanks for the info.
95 850 Sedan Auto Trans
98 V70 Manual Trans
01 C70 Manual Trans
03 XC70 Auto
04 C70 Auto
06 XC90 Auto (ORE)
96 850 Wagon Manual Trans (parts car)

User avatar
FCPEURO
Posts: 2955
Joined: Wed Jun 17, 2009 9:57 am
Year and Model: 2006 XC90 V8
Location: Milford, CT
Has thanked: 0
Been thanked: 5 times
United States of America
FCPEURO

Re: NEW V8 Timing Cover Reseal Kit from FCP EURO

Post by FCPEURO » Wed Apr 05, 2017 7:25 am

Anytime!
Jason VanGorden
Volvo Product Manager
[email protected]

FCP Euro - European Car Parts Specialists
Quality & Service, Guaranteed for Life
155 Hill Street, Milford, CT 06460

User avatar
matthew1
Site Admin
Posts: 10237
Joined: Sat Sep 14, 2002 11:03 am
Year and Model: 850 T5, 1997
Location: Denver, Colorado, US
Has thanked: 505 times
Been thanked: 188 times
United States of America
matthew1

Re: NEW V8 Timing Cover Reseal Kit from FCP EURO

Post by matthew1 » Wed Apr 12, 2017 10:16 am

Yes, good info for V8 owners. I'll put this in the Repair Database in the next few days.
Help keep MVS on the web -> click sponsors' links here on MVS when you buy from them.
Also -> Amazon link
. Click that when you go to buy something on Amazon and MVS gets a kickback.

1997 850 T5, MSD ignition coil, Hallman manual boost controller, injectors, R bumper, OMP strut brace [gone]
