Tennis balls in tire wall.

Post by Faheyk1981 »

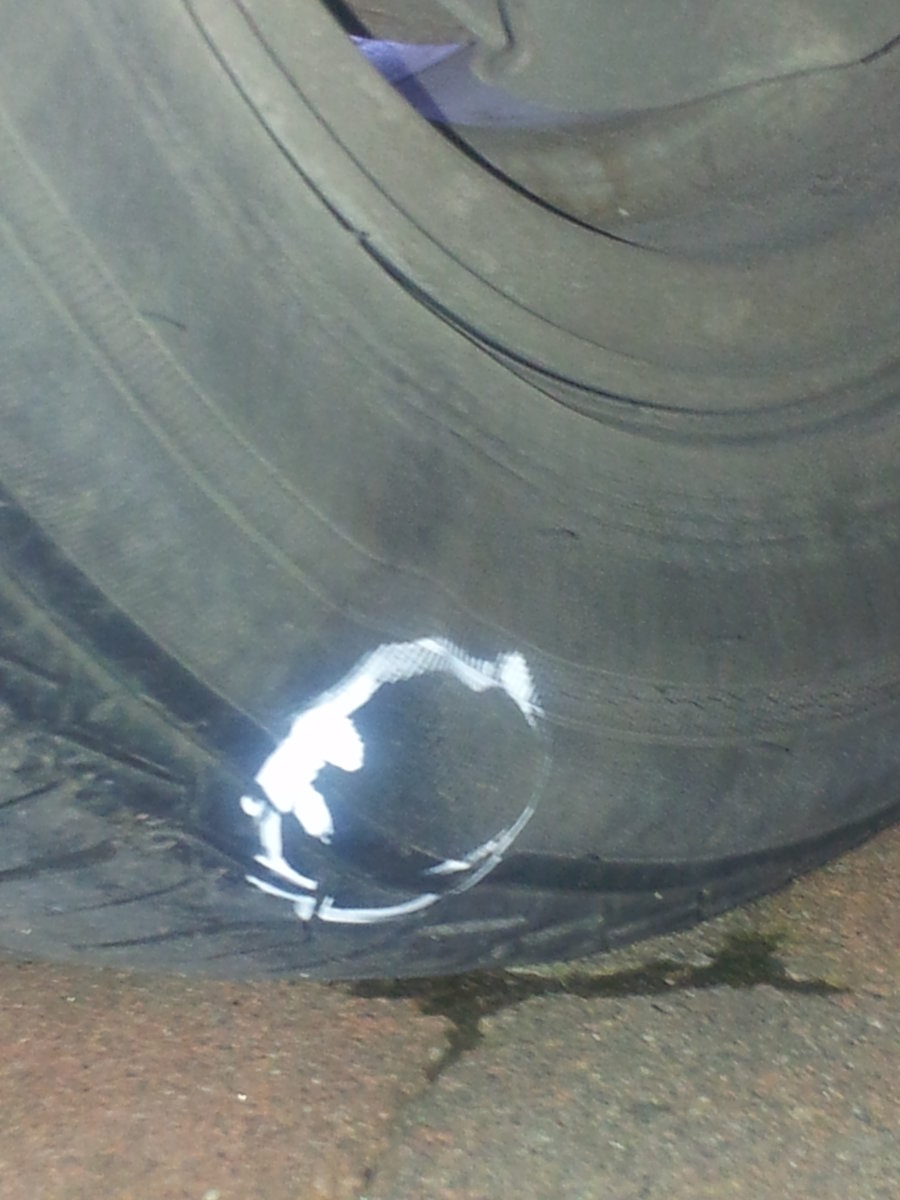

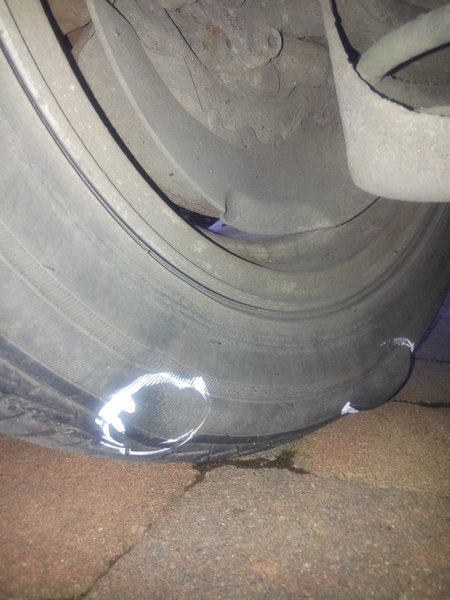

While on the road i was hearing an odd sound at my rear nearside tire. I decided to take a look and this is what i found. Two quite large tennis balls along the wall of my tire. Good thing i checked. I'll obviously get a new tire asap. I wouldn't mind but its a Bridgestone tire with about 15k miles on it.

How and why does this happen?
Attachments

JDS60R
MVS Moderator
Posts: 3532
Joined: 21 February 2009
Year and Model: 2007 S60R 2016 XC70
Location: Mount Juliet, TN
Been thanked: 3 times

Post by JDS60R »

Not sure from the picture but it looks like some dry rot in the rubber. Mostly these lumps are caused by a structural failure on the tire either from hitting something (curb/pot hole) or just poor manufacturing.
Retired

User avatar
matthew1
Site Admin
Posts: 14468
Joined: 14 September 2002
Year and Model: 850 T5, 1997
Location: Denver, Colorado, US
Has thanked: 2652 times
Been thanked: 1243 times
Contact:

Post by matthew1 »

+1, those small cracks mean unhealthy or old rubber.
Help keep MVS on the web -> click sponsors' links here on MVS when you buy from them.

Also -> Amazon link
. Click that when you go to buy something on Amazon and MVS gets a cut!

1998 V70, no dash lights on

1997 850 T5 [gone] w/ MSD ignition coil, Hallman manual boost controller, injectors, R bumper, OMP strut brace

2004 V70 R [gone]

How to Thank someone for their post


LASteve
Posts: 98
Joined: 19 August 2008
Year and Model: 2015 V60 T5 E-Drive
Location: Hollywood, CA

Post by LASteve »

You should be able to take it back to any Firestone shop and have it replaced. Most of their tires have a manufacturers warranty which covers this sort of fault.
Current Sled: 2015 V60 T5 E-Drive

Volvos I used to own:
02 V70XC
99 V70XC
97 855 NA
87 245 DL

nitehawk55
Posts: 60
Joined: 7 July 2012
Year and Model: S70 T5 1998
Location: Canada

Post by nitehawk55 »

Running a tire flat or hitting curbs or pot holes can cause this too .

Faheyk1981
Posts: 81
Joined: 13 February 2011
Year and Model: Volvo V70 1999
Location: Ireland

Post by Faheyk1981 »

From thinking back on it i did hit a massive pot hole recently and when i checked the tyre pressure it was about 20psi. So hitting the pot hole with low tyre pressure looks to have done it.

Thanks all!
Kevin

jimmy57
Posts: 6694
Joined: 12 November 2010
Year and Model: 2004 V70R GT, et al
Location: Ponder Texas
Has thanked: 4 times
Been thanked: 320 times

Post by jimmy57 »

Tubeless tires effectively have an innertube as the inner layer of tire. If that layer gets bruised and has a breach it will leak through the carcass and be retained by the outer layer of tire. Since the outer layer is not not cloth reinforced it inflates like a balloon. There is enough rubber vulcanized through the cloth layers that the breach on the inside layer is localized. I have seen these ballooned spots grow and look like sausages. I have also seen them stay the same size and the tire wore out with the ballooned spot, though a small spot, still the same size.
DO not expect warranty. It would be very unlikely that the tire would not show impact damage when dismounted and spread on a tire patching spreader.

User avatar
regent
Posts: 1319
Joined: 22 February 2010
Year and Model: 2015 XC60 T5
Location: Under the Hood
Has thanked: 2 times
Been thanked: 12 times

Post by regent »

i did hit a massive pot hole recently
I have no clue how big the potholes in Ireland are but you definitely have a much bigger problem: Your car seems to be attracting those Jumbo Mosquitoes... :lol:
Example of Precision: Measure with a Micrometer, mark it with Chalk, and then cut it with an Axe.
