Parameter Baseline

draser · Post by **draser** » 16 Oct 2014, 05:45

Moderators and members - Do we want to get a set of working parameters for the 5 cyl. engine and save in Repair DB for future ref? We can do that easily using the blue tooth obd2 and torque app, and it's a good starting point for repairs. Looks like one can read a lot of sensors signals using these apps, and that can be a money/time saver for a guy in need.

Post by **IVIUSTANG** » 21 Oct 2014, 18:49

I like the sound of this! Next time I have my Dice hooked up I'll try and get some numbers to add.

Jesse

draser · Post by **draser** » 22 Oct 2014, 06:22

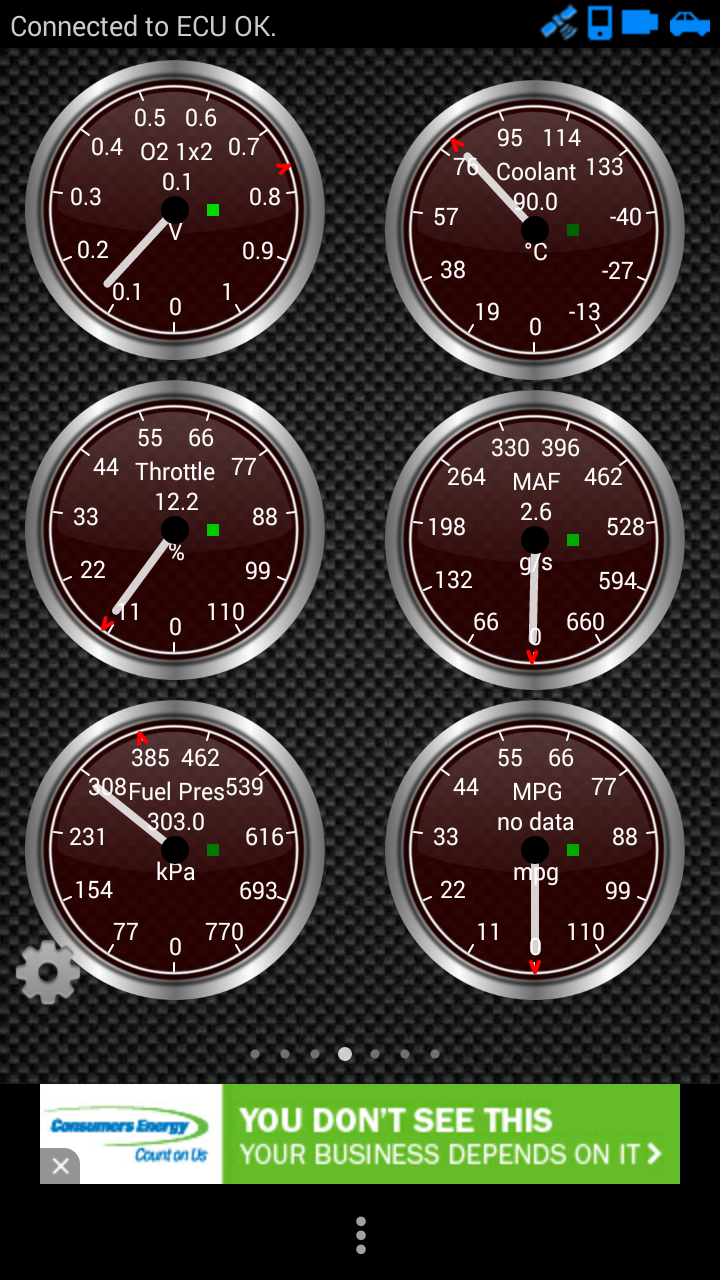

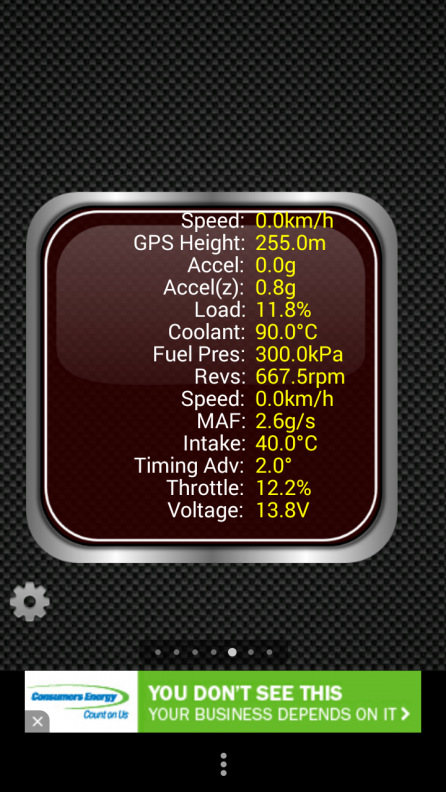

I have some data logged at idle w/engine warmed up... The O2 dial will switch between 0.1 and 0.75 volts in closed loop mode.
