side brake lights don't work
-
pventuri81
- Posts: 9
- Joined: 5 May 2016
- Year and Model: 2001 v70 x/c
- Location: Scranton, PA
side brake lights don't work

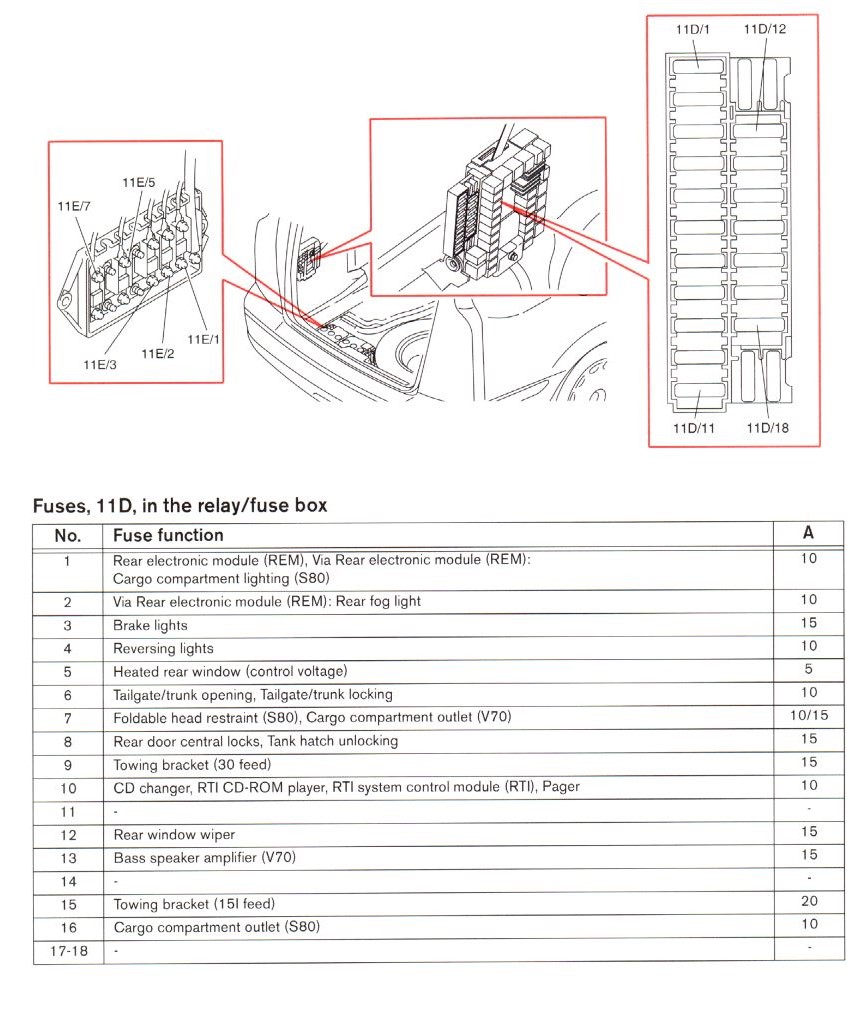

Hi everyone recently purchased a 2001 v70 xc and noticed the side brake lights don't work. I read somewhere that in the cargo bay in the back the fuse box that is back there has fuses for these. I have the fuses the black ones not the colored ones but cannot locate which ones they are and the drivers manual doesn't tell me which ones. Can anyone help
-
packetfire
- Posts: 234
- Joined: 24 July 2012
- Year and Model: 2010 v50 2.4i
- Location: Manhattan, NYC, NY, USA
- Has thanked: 17 times
- Been thanked: 30 times

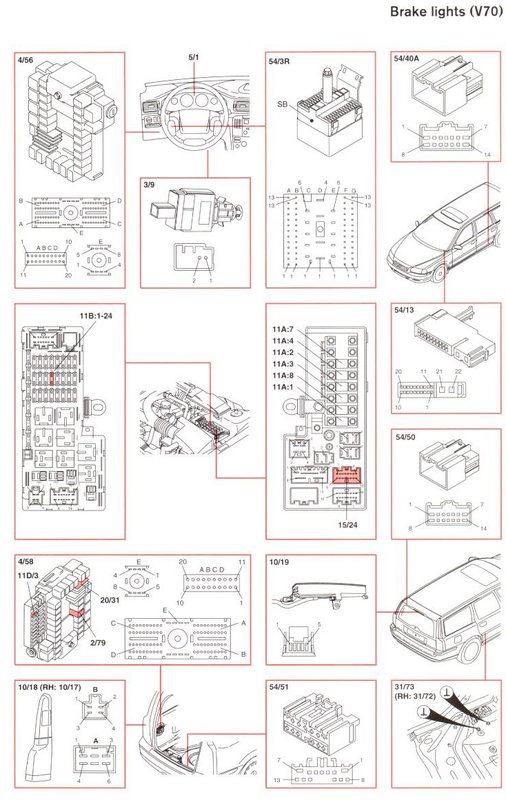

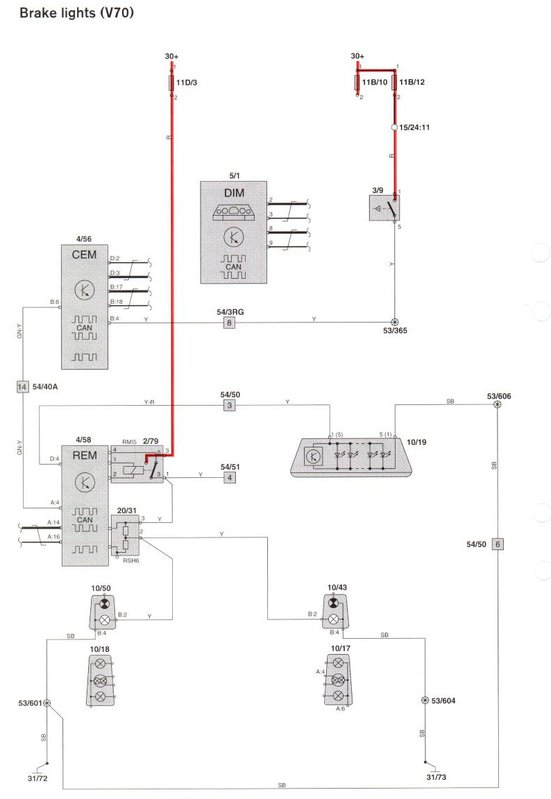

I do not have an XC, but the wiring diagrams include the XC as well as the non-XC cars, attached.
1982 240DL: Drove it 32 years and 1.5 million miles (sold, even still had mint leather!)
2001 v70 2.4T: The most expensive $1500 car I ever bought ("Volvo Turbo" - what an oxymoron!) (sold)
2004 v70: Far less fatally-flawed v70 - It served well (sold)
2010 v50: Smaller, slightly sportier wagon. Its got a spoiler, so I upgraded with sway bars!
2001 v70 2.4T: The most expensive $1500 car I ever bought ("Volvo Turbo" - what an oxymoron!) (sold)
2004 v70: Far less fatally-flawed v70 - It served well (sold)
2010 v50: Smaller, slightly sportier wagon. Its got a spoiler, so I upgraded with sway bars!
-
pventuri81
- Posts: 9
- Joined: 5 May 2016
- Year and Model: 2001 v70 x/c
- Location: Scranton, PA

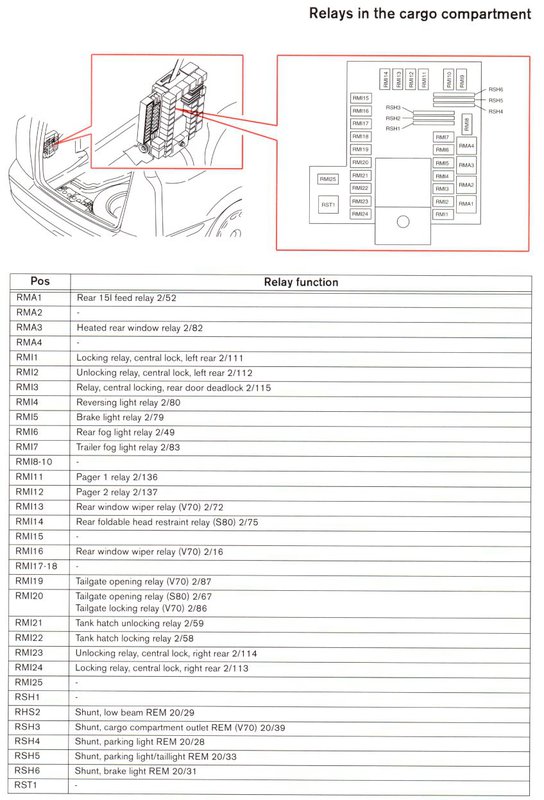

yeah im sorry just found this now i replaced the relay they work now it was a blue on in slot RM15 behind the big cover in the back thank you though im saving this diagram
-
