v70 2.5 year 1997 start problems.

Help, Advice and DIY Tutorials on Volvo's P80 platform cars -- Volvo's 1990s "bread and butter" cars -- powered by the ubiquitous and durable Volvo inline 5-cylinder engine.

1992 - 1997 850, including 850 R, 850 T-5R, 850 T-5, 850 GLT
1997 - 2000 S70, S70 AWD
1997 - 2000 V70, V70 AWD
1997 - 2000 V70-XC
1997 - 2004 C70
Post Reply
kentn
Posts: 6
Joined: 25 September 2014
Year and Model: v70 1997
Location: denmark

Re: V70 2.5 year 1997 start problems.

Post by kentn »

is there some where i can find the explanation on the different numbers on the diagram? like 24/43. and 2/32. 2/32 i know is the main relay, but all other numbers could be nice to know the meaning
Top
User avatar
abscate
MVS Moderator
Posts: 35321
Joined: 17 February 2013
Year and Model: 99: V70s S70s,05 V70
Location: Port Jefferson Long Island NY
Has thanked: 1507 times
Been thanked: 3825 times

Post by abscate »

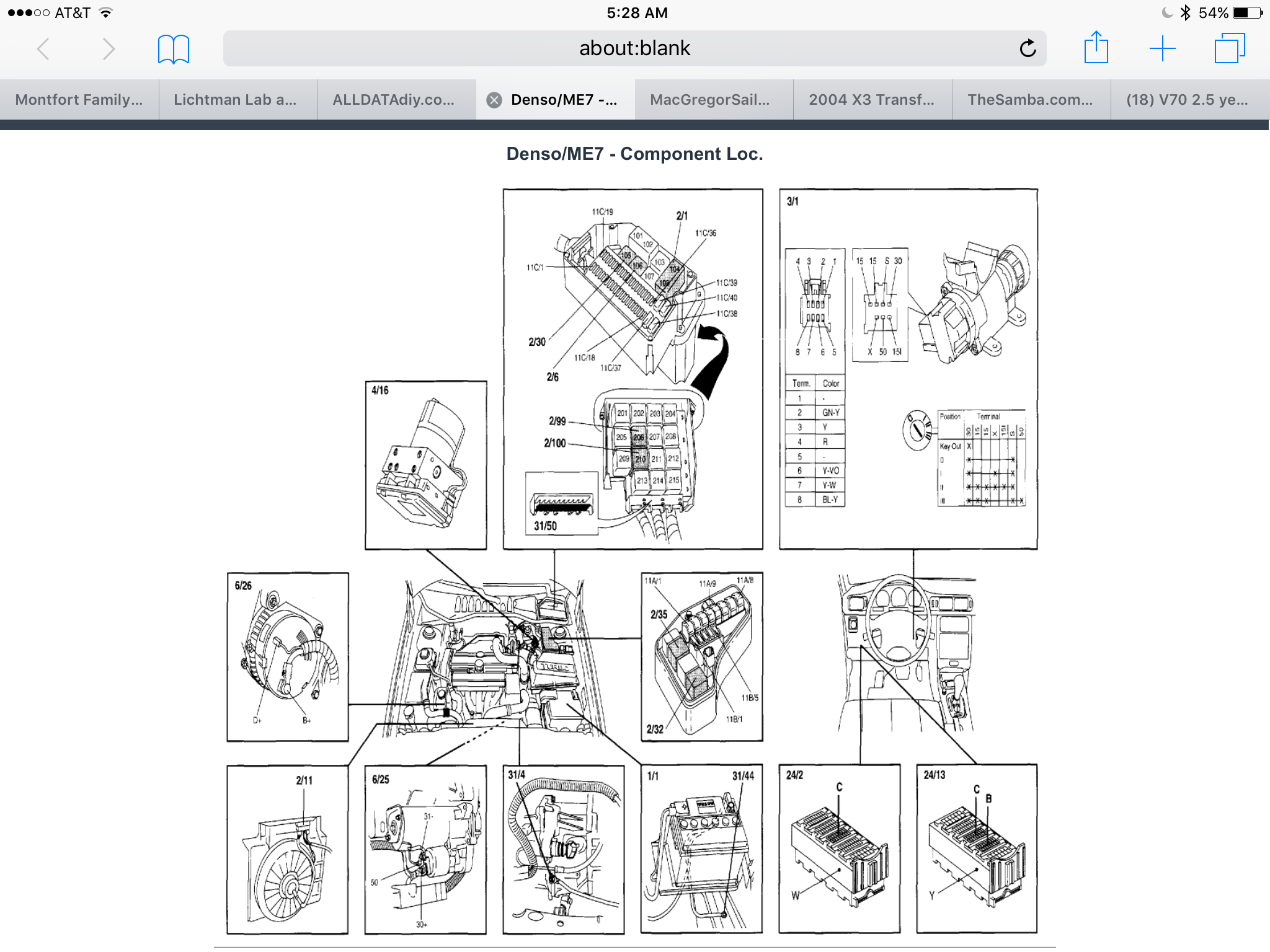

There should be a page in the diagram which shows the physical location and sketch if each labeled item like this

Incidentally, I believe 24/xxx always designates a connector in Svenska electrical diagrams

For my 1999 ME7, exemplia gratis
Attachments
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread
