10 disc CD changer connections...

Post by Stu70 »

Hi All,
I’m hoping someone can help - I’m wanting to hook up a changer and there is no factory installed wiring, that isnt a big problem; But ,I’m needing to know the pin configuration of the blue power plug.I know it utilises a brown (-ve) and red/green(+ve) but I have a choice of 5 pins on the charger side .I have searched everywhere and there is either broken images -thanks photobucket, or it’s not clear enough to make out.
Any help in wire positioning would be greatly appreciated!
1998 S70 10v BiFuel - Sold
2006 Sonic V70R - “this is going to be expensive “
Top
User avatar
RickHaleParker
Posts: 7129
Joined: 25 May 2015
Year and Model: See Signature below.
Location: Kansas
Has thanked: 8 times
Been thanked: 958 times

Post by RickHaleParker »

It is a Deutsches Institut für Normung best knowen by it's acronym DIN.

What is the Make and model of the CD changer?

⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙
1998 C70, B5234T3, 16T, AW50-42, Bosch Motronic 4.4, Special Edition package.
2003 S40, B4204T3, 14T twin scroll AW55-50/51SN, Siemens EMS 2000.
2004 S60R, B8444S TF80 AWD. Yamaha V8 conversion
2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0.
Top
User avatar
kranz
Posts: 241
Joined: 8 July 2006
Year and Model: '98 V70 NA stick
Location: Atlanta
Been thanked: 7 times

Post by kranz »

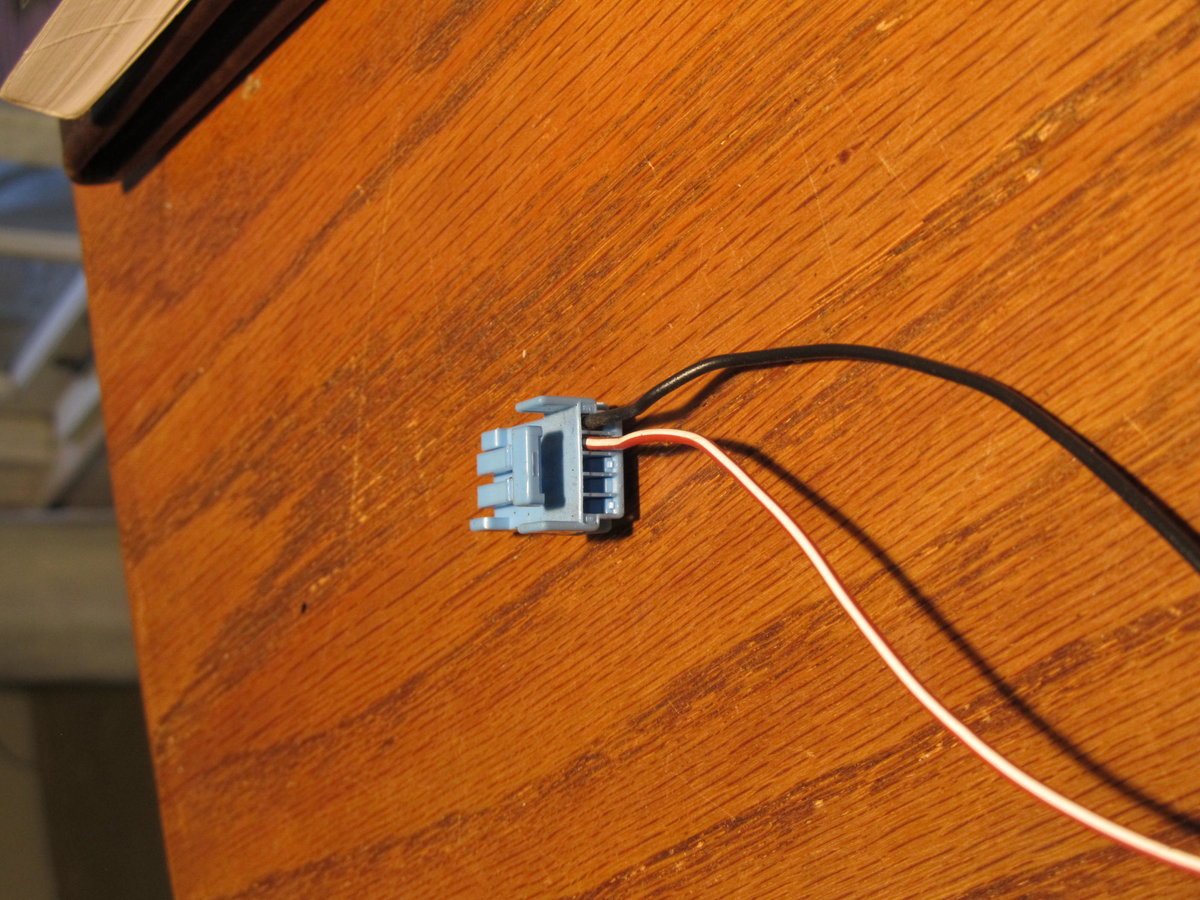

This is the power connector for the 10 disc changer commonly found in the P2 volvos
Les is more.
Top
User avatar
Stu70
Posts: 171
Joined: 12 October 2016
Year and Model: 2006 Sonic VR GT
Location: New Zealand
Has thanked: 34 times
Been thanked: 26 times

Post by Stu70 »

kranz wrote: ↑09 Jan 2018, 06:45 This is the power connector for the 10 disc changer commonly found in the P2 volvos

Many thanks for the reply’s.
I’m happy with the 8 pin din plug layout.
Thanks Kranz -Thats the picture I needed !
1998 S70 10v BiFuel - Sold
2006 Sonic V70R - “this is going to be expensive “
