98 v70 need a pic of under-dash wiring harness 24/9A roof lock lights Topic is solved

Post by **CIK7** » 17 Oct 2019, 17:53

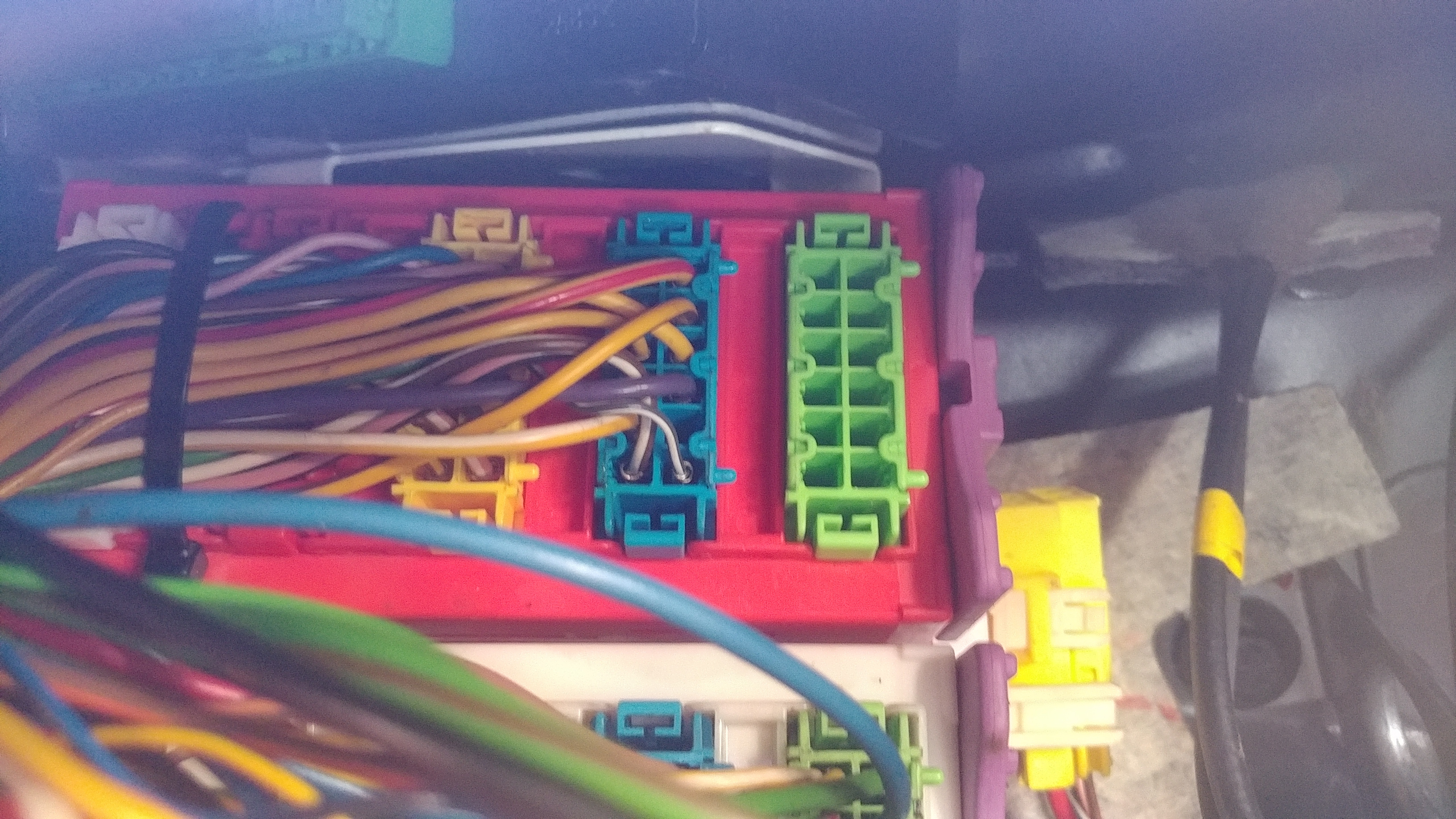

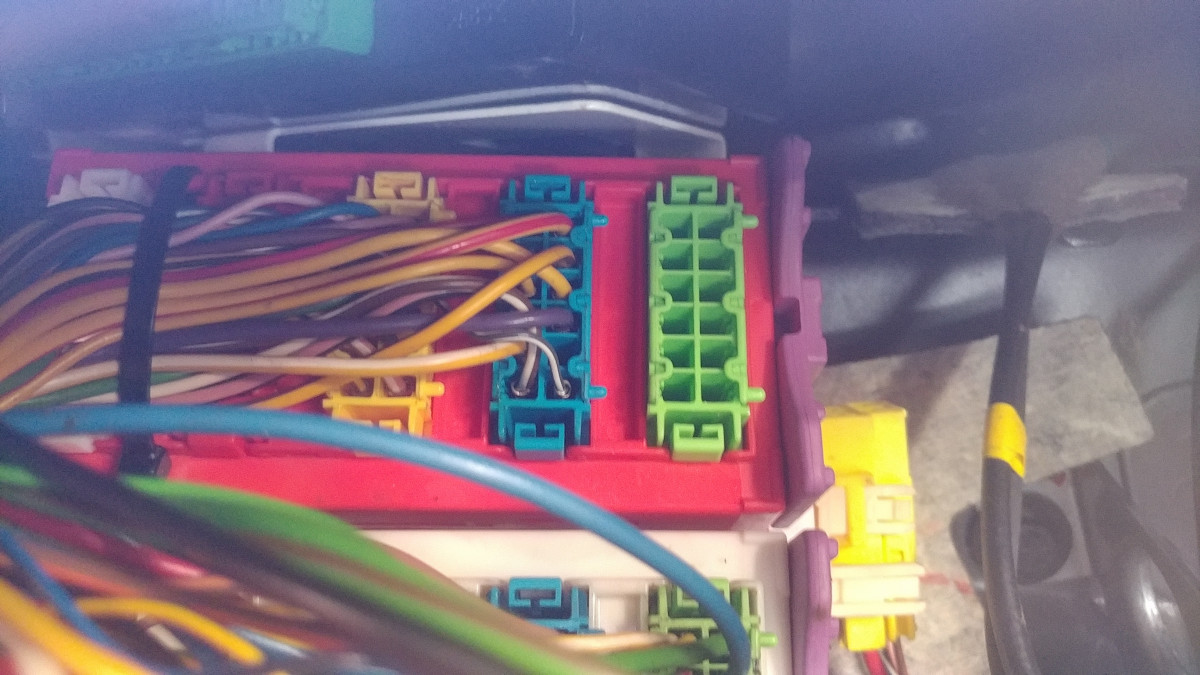

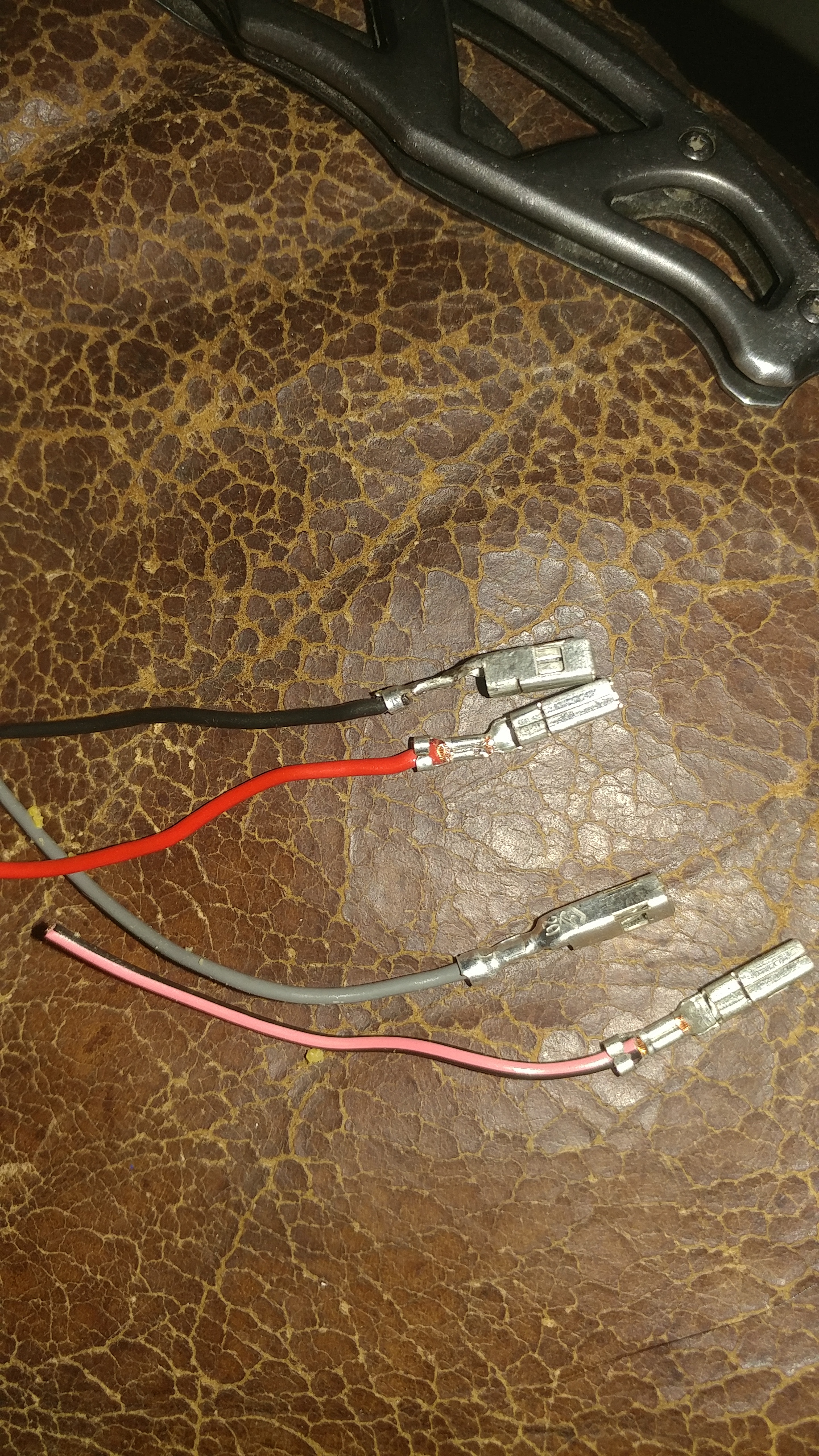

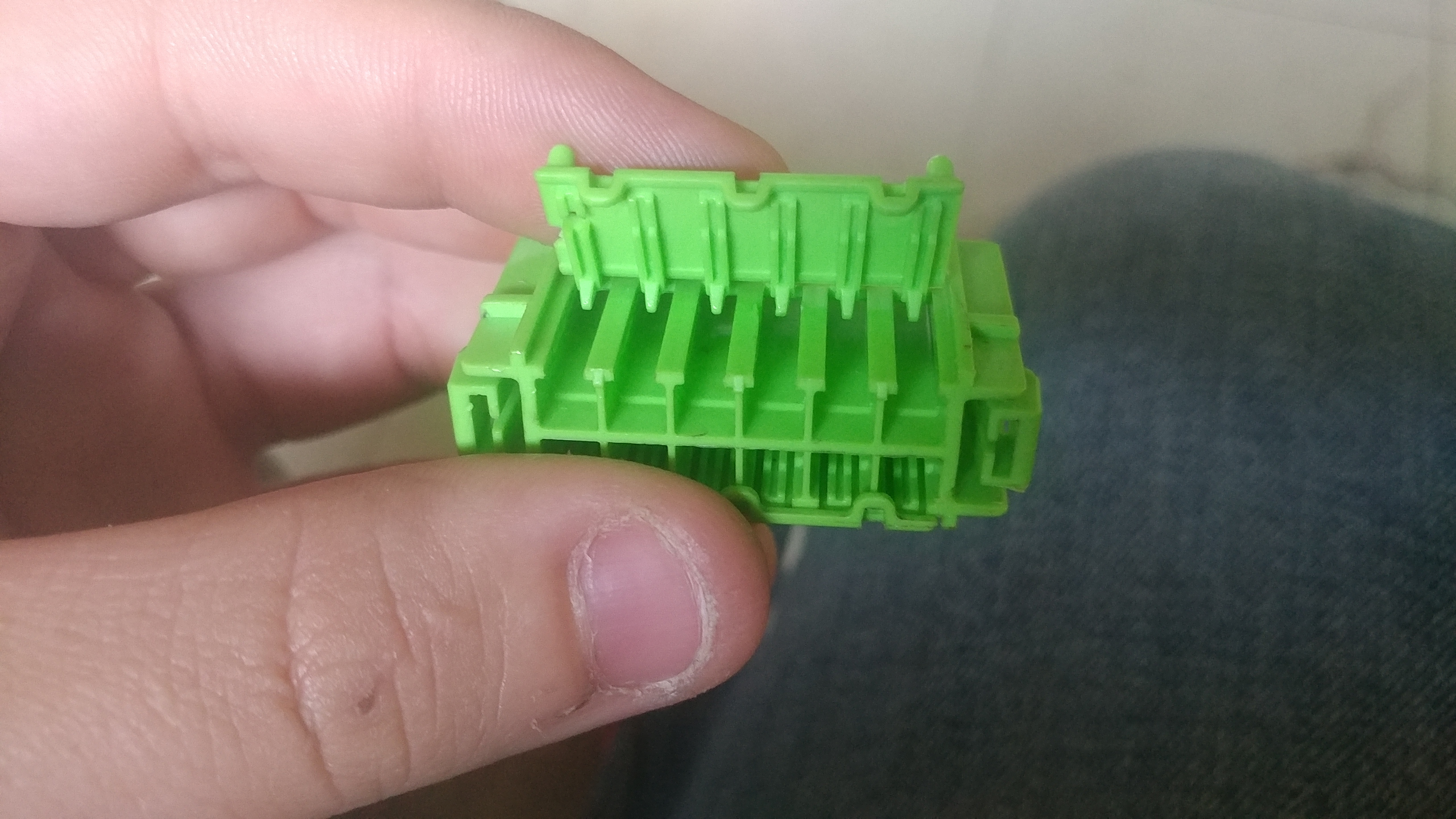

The bright green wire harness below the yellow one (in picture) is what I'm looking for. The wires that should be in it are red, black, gray, pink/black (pictured). You can see I removed the wires from mine. I forgot to take a picture before doing so. so now using that picture as reference, I need you to take a picture of yours so I can figure out where to put the red and black wires. TIA

Post by **bmdubya1198** » 17 Oct 2019, 21:20

Don't have any '98s in the fleet right now, but I'll share this to Facebook for you.

Post by **CIK7** » 17 Oct 2019, 22:02

bmdubya1198 wrote: ↑17 Oct 2019, 21:20 Don't have any '98s in the fleet right now, but I'll share this to Facebook for you.

In your signature, I notice you have 2000 v70r and 2000 s70. Can you please check one of those for that wire harness? It might not be the same but just in case. I have no interior lights except the driver footwell.

Stu70 · Post by **Stu70** » 18 Oct 2019, 00:38

Can’t get to car , hope this helps

Black SB -4
Red R - 1
Grey GR - 3
Pink/Black P-SB - 2

Post by **CIK7** » 18 Oct 2019, 06:51

Stu70 wrote: ↑18 Oct 2019, 00:38 Can’t get to car , hope this helps

Black SB -4
Red R - 1
Grey GR - 3
Pink/Black P-SB - 2

Stu70, thank you SO much! I can finally put some lights in my car. I should not have cut them before this point. Thank you!

Post by **bmdubya1198** » 18 Oct 2019, 06:54

CIK7 wrote: ↑17 Oct 2019, 22:02
bmdubya1198 wrote: ↑17 Oct 2019, 21:20 Don't have any '98s in the fleet right now, but I'll share this to Facebook for you.
In your signature, I notice you have 2000 v70r and 2000 s70. Can you please check one of those for that wire harness? It might not be the same but just in case. I have no interior lights except the driver footwell.

I think they’re different though, I had an issue with these connectors on my 2000 R and when I checked my ‘98 for reference when I had it, they didn’t match up. Same connector, just different wires.

Post by **CIK7** » 18 Oct 2019, 06:59

bmdubya1198 wrote: ↑18 Oct 2019, 06:54
CIK7 wrote: ↑17 Oct 2019, 22:02
bmdubya1198 wrote: ↑17 Oct 2019, 21:20 Don't have any '98s in the fleet right now, but I'll share this to Facebook for you.
In your signature, I notice you have 2000 v70r and 2000 s70. Can you please check one of those for that wire harness? It might not be the same but just in case. I have no interior lights except the driver footwell.
I think they’re different though, I had an issue with these connectors on my 2000 R and when I checked my ‘98 for reference when I had it, they didn’t match up. Same connector, just different wires.

Ok I understand. All good though. Stu70 found what I needed. Thank you.

Post by **bmdubya1198** » 18 Oct 2019, 07:32

Very good, glad he was able to find a diagram!
