Abnormal tire wear..

Help, Advice, Owners' Discussion and DIY Tutorials on Volvo's stylish, distinctive P2 platform cars sold as model years 2001-2007 (North American market year designations).

2001 - 2007 V70
2001 - 2004 V70 XC (Cross Country)
2004 - 2007 XC70 (Cross Country)
2001 - 2009 S60
2003 - 2007 S60 R
2004 - 2007 V70 R

Post Reply
gcha8e
Posts: 45
Joined: 16 May 2019
Year and Model: 2005 S60 2.5T AWD
Location: Kansas City, Missouri
Has thanked: 20 times
Been thanked: 2 times

Re: Abnormal tire wear..

Post by gcha8e »

abscate wrote: 08 Sep 2020, 18:54 That looks like bad toe in to me, not camber, I should say toe out.

Front of tires are wider than rear of tires
could be an extreme case of both camber and toe being out. but yes, the toe out is what it looks like to me as well.

Free2drive!
Posts: 231
Joined: 24 October 2006
Year and Model: 2007 XC90
Location: At home, at work.
Been thanked: 1 time

Post by Free2drive! »

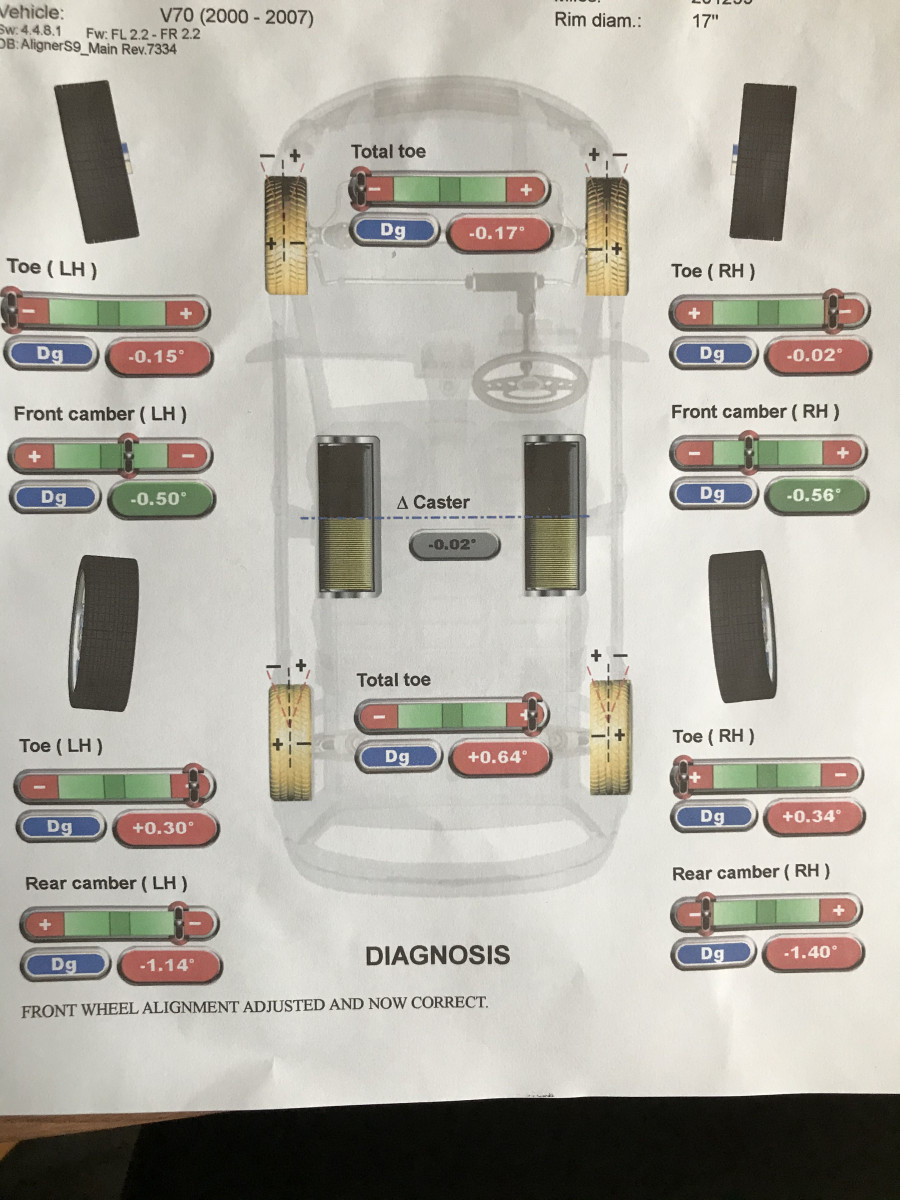

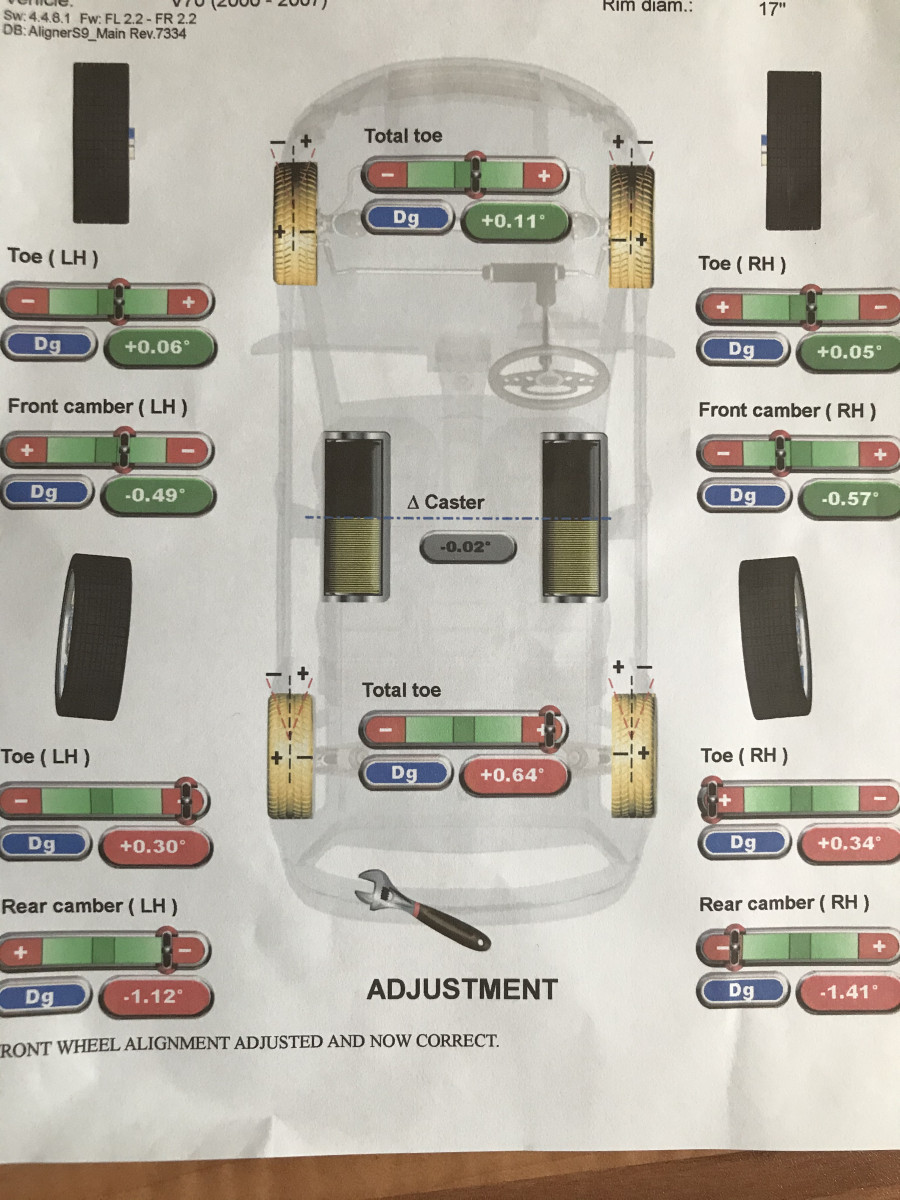

Update: both front wheels severe toe out. Camber is within tolerance. Front toe was adjusted on the tie rods and car is transformed!

They said rear bushes are on the way out causing uneven wear.
Any suggestions what to do to square up the rear end?
Thanks for all comments advice.
Matt
Attachments
