get odometer value from volvo CAN messages

Post by VolvoCANBus »

Volvo odometer/mileage is stored in multiple ECUs: the instrument cluster(Drivers information module, DIM),
PSCM (Power Steering Control Module), ABS, TCM(Transmission Control Module)or VDDM(Vehicle Dynamic Domain Host)。

Furthermore, volvo also broadcasts odometer in its CAN messages,

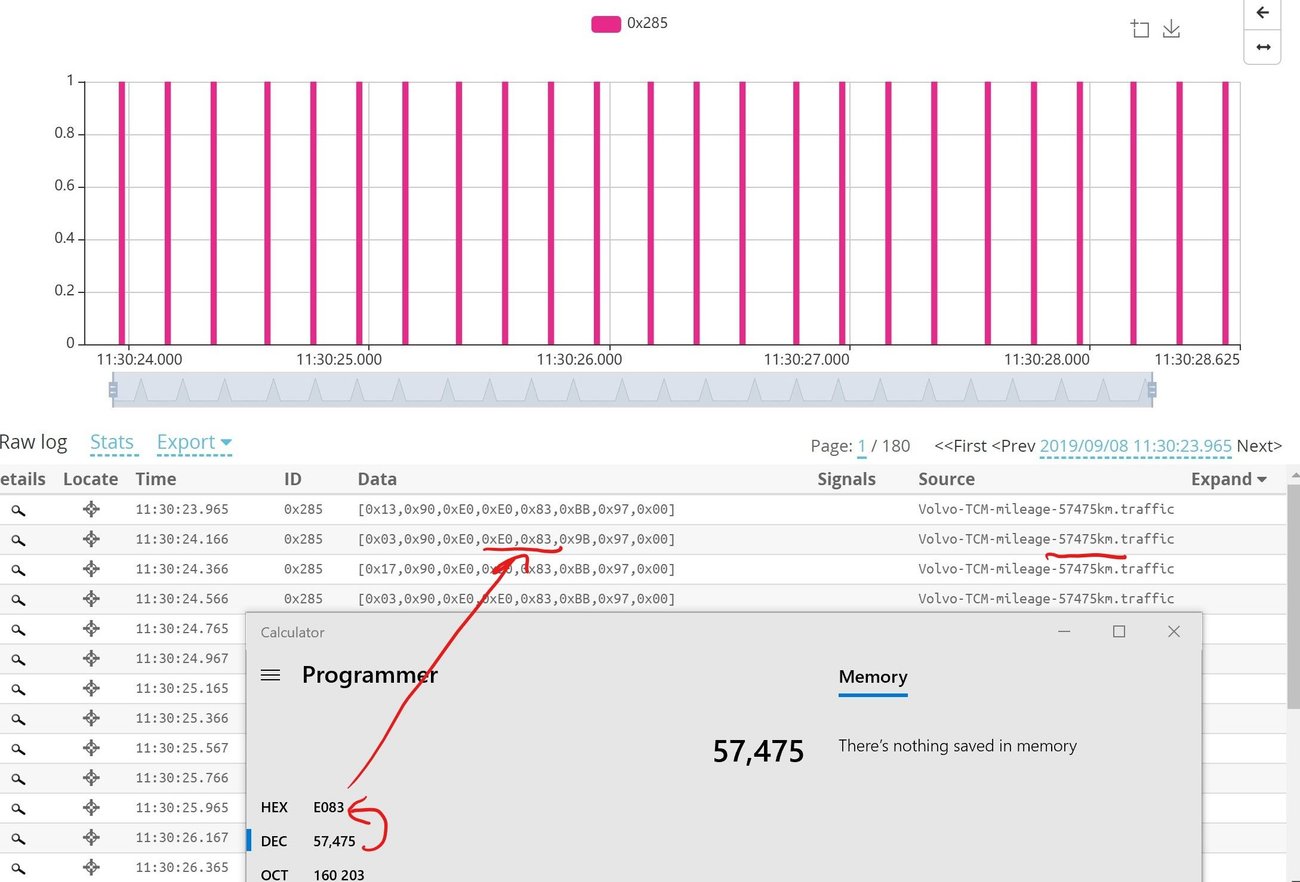

e.g. CAN ID 0x285 every 200ms, byte [2 3 4 ], converted them into km
0x405 every 1000ms byte【5 6 7 】
