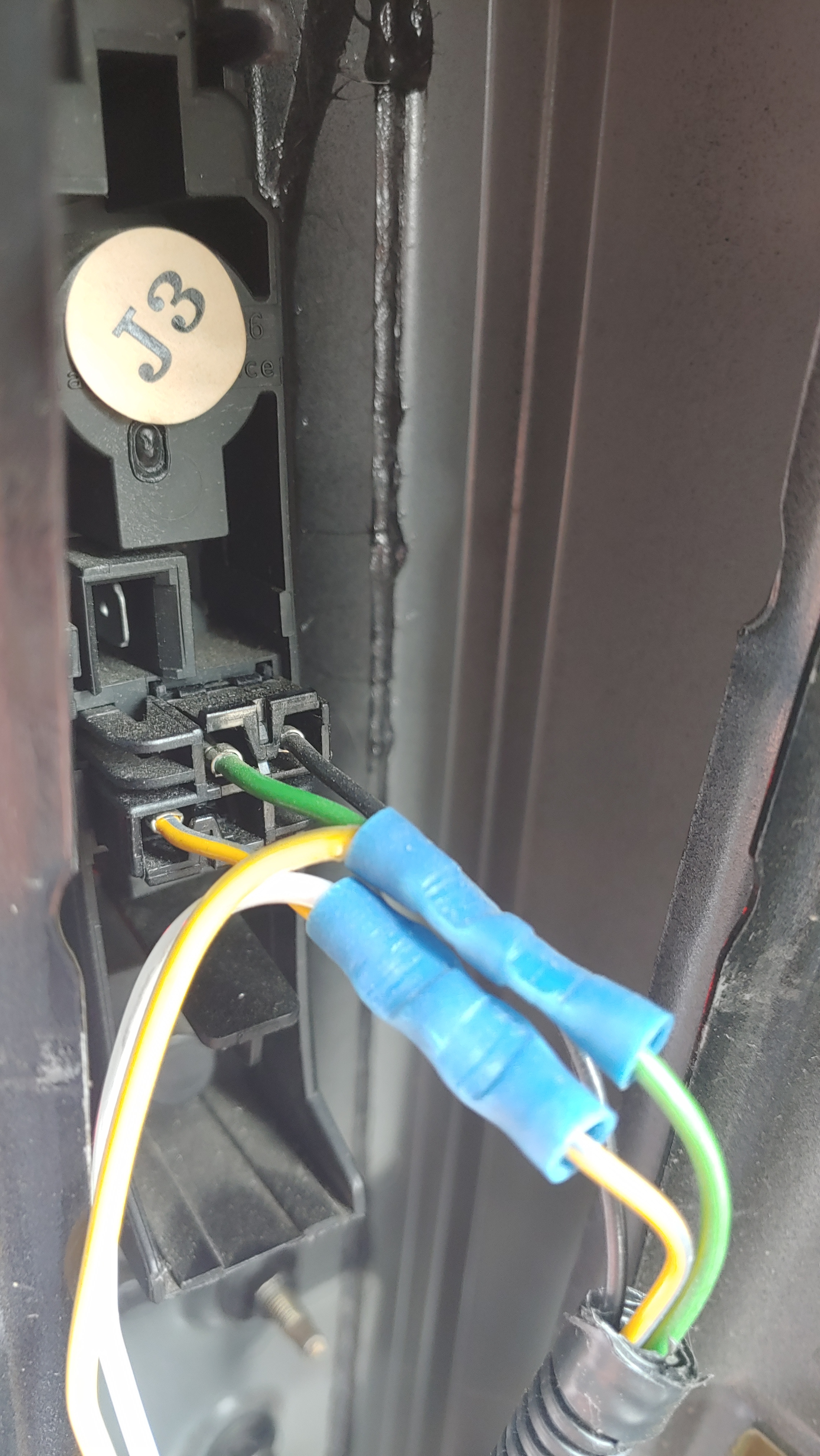

The first pic is of the sunroof wiring. Green and black go to sunroof motor. What are the other 2?

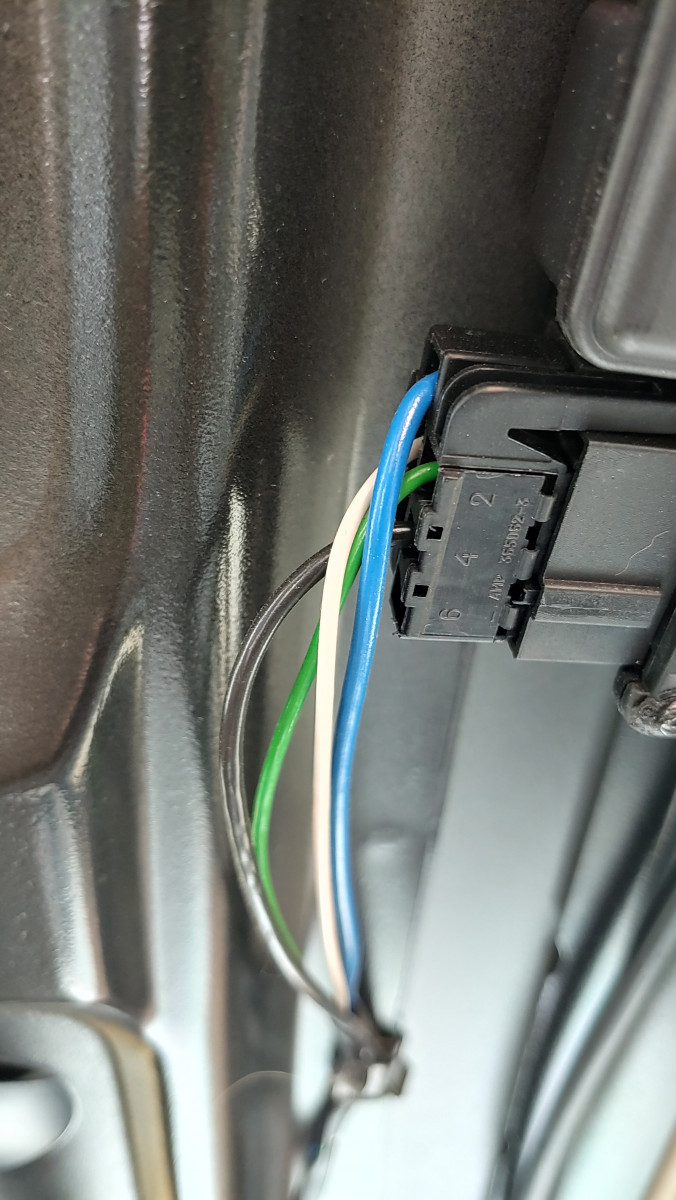

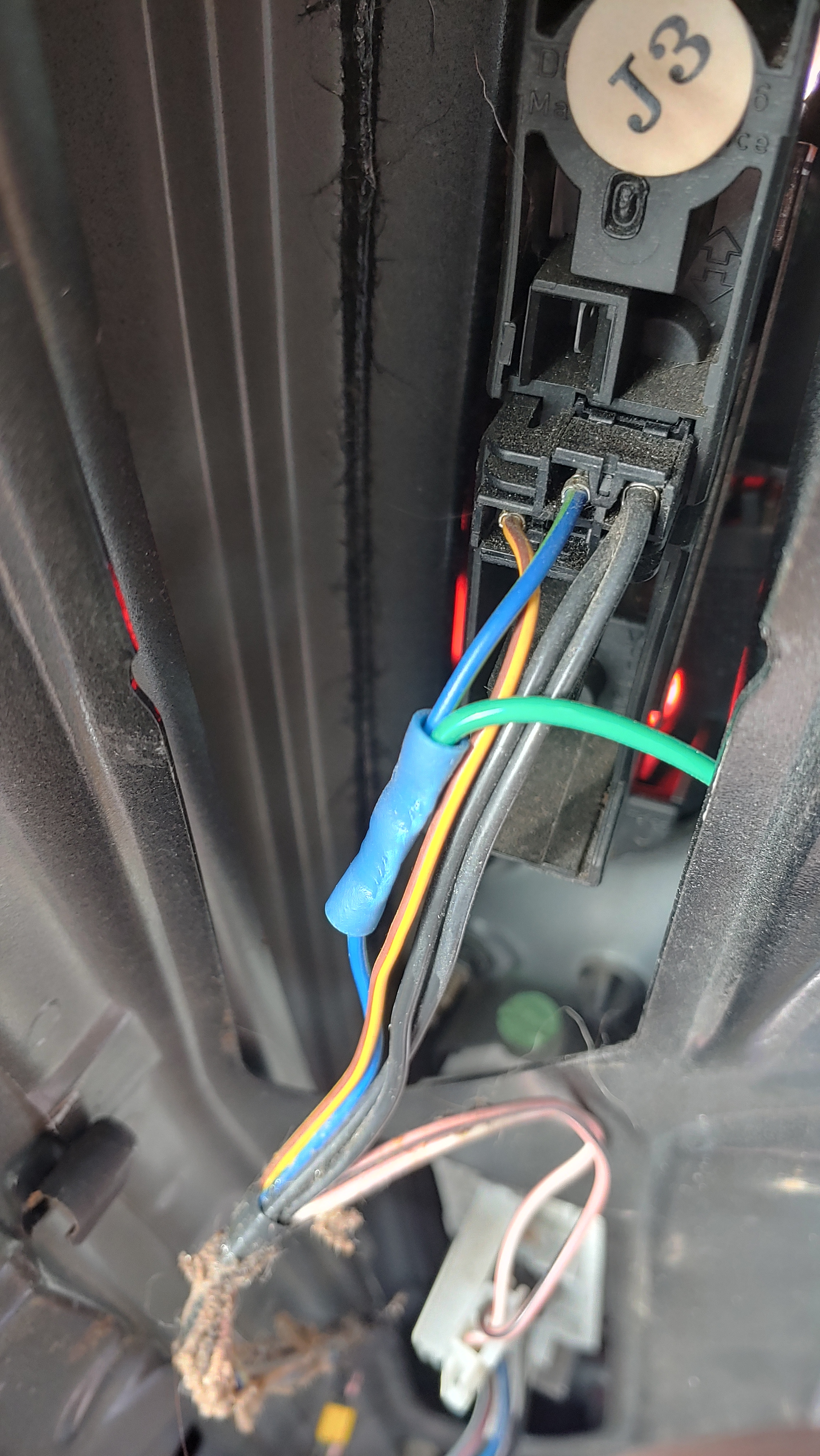

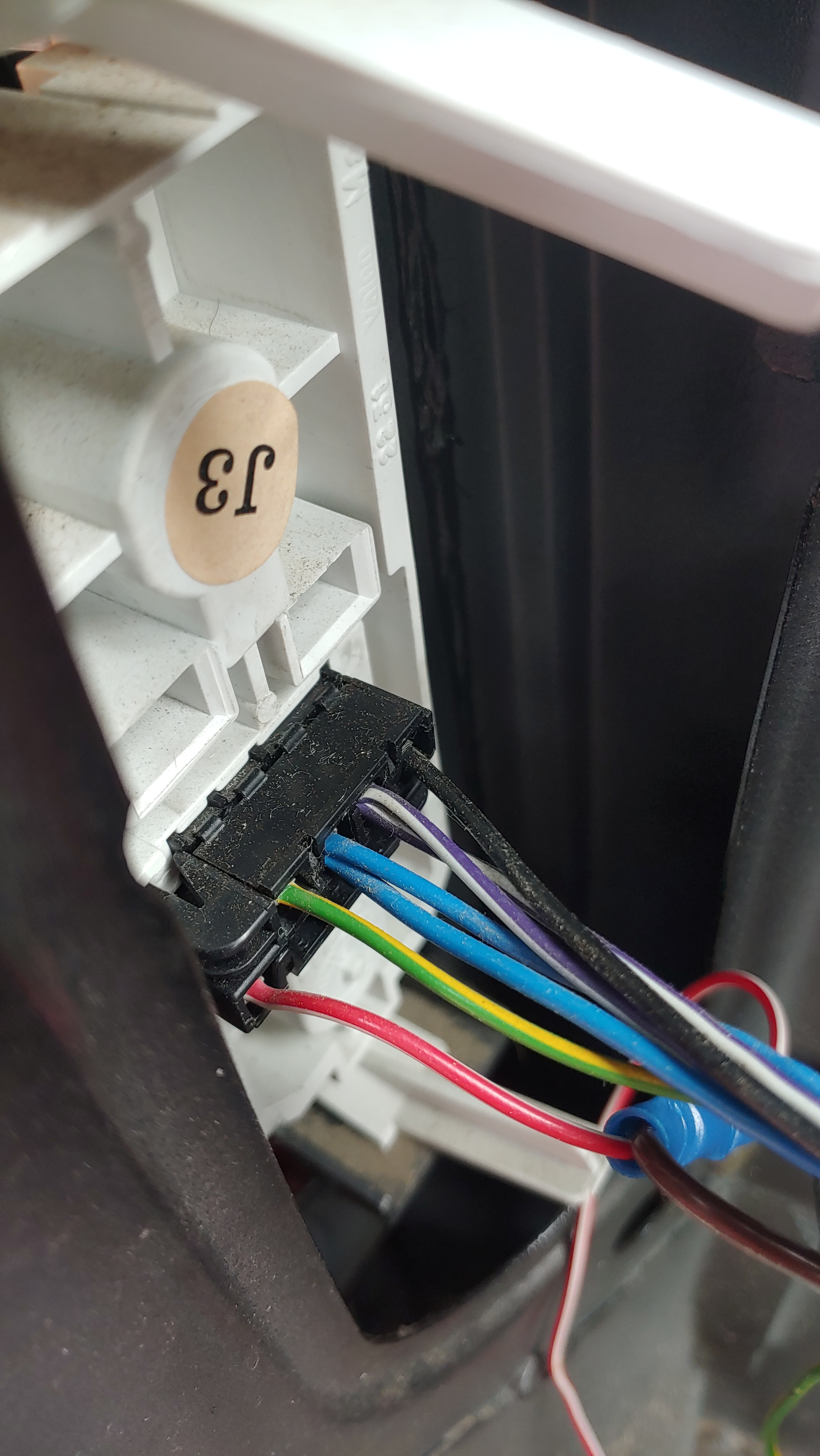

The other three pics are of the brake, reverse, and turn lights. Can y'all please ID the wiring? Im using 5 way and need to wire this appropriately to prep the trailer plugs.
I hate the technical diagrams. I have those already. I can't read them. I like the kind that list the wire color, point to the wire, then list the function.
NEEDED: harness wiring ID
-
