Vida CEM swapping

A mid-size luxury crossover SUV, the Volvo XC90 made its debut in 2002 at the Detroit Motor Show. Recognized for its safety, practicality, and comfort, the XC90 is a popular vehicle around the world. The XC90 proved to be very popular, and very good for Volvo's sales numbers, since its introduction in model year 2003 (North America). P2 platform.
Post Reply
User avatar
charlie13
Posts: 46
Joined: 23 March 2022
Year and Model: 2009 XC70
Location: Krakow
Has thanked: 8 times
Been thanked: 18 times

Re: Vida CEM swapping

Post by charlie13 »

gooroo wrote: ↑21 Apr 2022, 10:28 No idea if this is what you wanted....?

Regards, Simon
Newer version
Attachments
VBF-convert-to-BIN 1.2.7z
(658.35 KiB) Downloaded 216 times
Top
blasaab
Posts: 34
Joined: 24 March 2021
Year and Model: Volvo xc90/V50/144
Location: Perstorp
Has thanked: 4 times
Been thanked: 3 times

Post by blasaab »

Can you crack p3 from 2016 through obd port?
Top
User avatar
charlie13
Posts: 46
Joined: 23 March 2022
Year and Model: 2009 XC70
Location: Krakow
Has thanked: 8 times
Been thanked: 18 times

Post by charlie13 »

blasaab wrote: ↑21 Apr 2022, 11:58 Can you crack p3 from 2016 through obd port?
CEM MPC5645 / 5748G or version R5F64524 / R5F64525 ?
Top
urosm
Posts: 29
Joined: 24 May 2012
Year and Model: 2015 Volvo XC70 D5
Location: Montenegro
Has thanked: 10 times

Post by urosm »

charlie13 wrote: ↑21 Apr 2022, 06:12
alevol wrote: ↑21 Apr 2022, 05:58
vtl wrote: ↑13 Apr 2022, 14:46 Let us know how it goes.
Cracking about 2h now.
SEED 90 0f f5, PIN 00 01 11 45 47, KEY 42 1e 44, 235 pins/s

If there were ways to accelerate the speed... SMOK.pl promises 0...10h to crack. Some tools claims 4-6h. They must be using different approach. Or better hardware maybe?
Still counts. I have a UHDS and an I / 0 terminal. UHDS counts slowly, I / 0 terminal does all CEM P1, P2, P3, SPA. That's why I / 0 is the better tool for me.
But with I/O Terminal you don't have a crack CEM PIN, right?
Just use it to read CEM flash and eeprom thru OBD, but first, you must find the PIN...
Volvo 744 TDIC SOLD, 1989. ; 1997. - 2000.
Volvo 855 GLT + LPG Estate SOLD, 1996. ; 1998. - 2020.
Volvo V70 D5 SOLD, 2004. ; 2013. - 2021.
Volvo XC70 D5 SOLD, 2007. ; 2017. - 2021.
Nissan Pathfinder DRIVING, 2007. ; 2019. -
Volvo XC70 D5 DRIVING, 2015. ; 2021. -
Volvo XC90 D5 DRIVING, 2008. ; 2022. -
Top
User avatar
charlie13
Posts: 46
Joined: 23 March 2022
Year and Model: 2009 XC70
Location: Krakow
Has thanked: 8 times
Been thanked: 18 times

Post by charlie13 »

urosm wrote: ↑22 Apr 2022, 01:15
charlie13 wrote: ↑21 Apr 2022, 06:12
alevol wrote: ↑21 Apr 2022, 05:58

Cracking about 2h now.
SEED 90 0f f5, PIN 00 01 11 45 47, KEY 42 1e 44, 235 pins/s

If there were ways to accelerate the speed... SMOK.pl promises 0...10h to crack. Some tools claims 4-6h. They must be using different approach. Or better hardware maybe?
Still counts. I have a UHDS and an I / 0 terminal. UHDS counts slowly, I / 0 terminal does all CEM P1, P2, P3, SPA. That's why I / 0 is the better tool for me.
But with I/O Terminal you don't have a crack CEM PIN, right?
Just use it to read CEM flash and eeprom thru OBD, but first, you must find the PIN...
Yes. I need a pin for I/0 but SMOK has limited functions. For this, teensy 4.0 complements the I/0 functionality
Top
User avatar
charlie13
Posts: 46
Joined: 23 March 2022
Year and Model: 2009 XC70
Location: Krakow
Has thanked: 8 times
Been thanked: 18 times

Post by charlie13 »

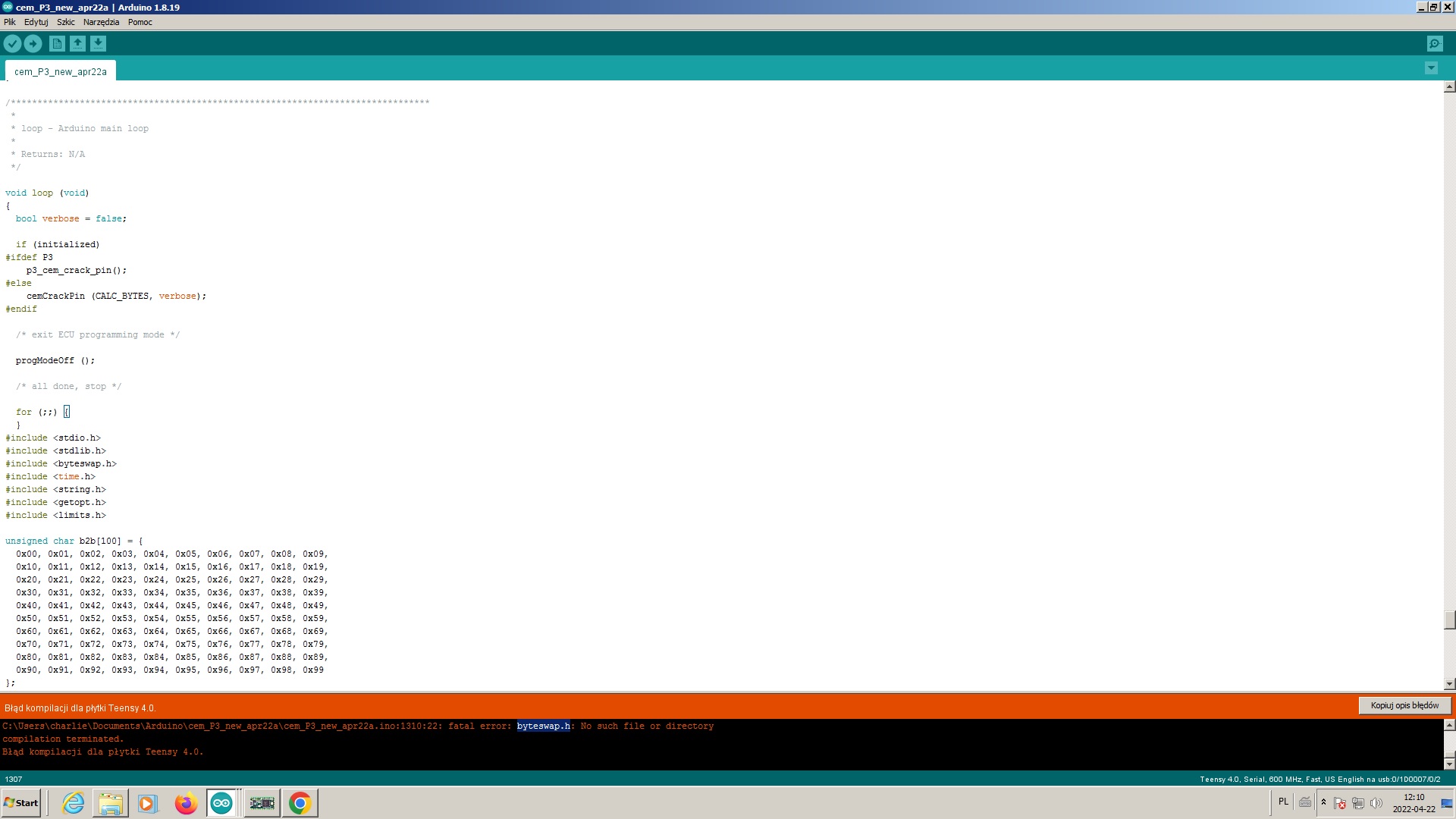

Where can I find missing libraries?
Attachments
No lib.jpg
No lib.jpg (236.4 KiB) Viewed 427 times
Top
lmaggio
Posts: 2
Joined: 20 April 2022
Year and Model: v50 2005
Location: france
Has thanked: 1 time

Post by lmaggio »

Hello everyone

I wanted to thank you for the work you have done, it is wonderful!

I wanted to make something to crack my pin on a P1, but it's out of stock everywhere for the SN65HVD230DR.

By chance will there be someone in France who could crack my pin or send me the equipment?

thanking you

Loic
Top
User avatar
RickHaleParker
Posts: 7129
Joined: 25 May 2015
Year and Model: See Signature below.
Location: Kansas
Has thanked: 8 times
Been thanked: 958 times

Post by RickHaleParker »

lmaggio wrote: ↑22 Apr 2022, 06:47
but it's out of stock everywhere for the SN65HVD230DR.
You can find them on eBay France for ~1,8 euros. Search for CAN Transceiver.
⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙⸙
1998 C70, B5234T3, 16T, AW50-42, Bosch Motronic 4.4, Special Edition package.
2003 S40, B4204T3, 14T twin scroll AW55-50/51SN, Siemens EMS 2000.
2004 S60R, B8444S TF80 AWD. Yamaha V8 conversion
2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0.
Top
vtl
Posts: 4724
Joined: 16 August 2012
Year and Model: 2005 XC70
Location: Boston
Has thanked: 114 times
Been thanked: 604 times

Post by vtl »

charlie13 wrote: ↑22 Apr 2022, 04:13 Where can I find missing libraries?
That's a standalone utility that you run on host.
Top
User avatar
charlie13
Posts: 46
Joined: 23 March 2022
Year and Model: 2009 XC70
Location: Krakow
Has thanked: 8 times
Been thanked: 18 times

Post by charlie13 »

vtl wrote: ↑22 Apr 2022, 07:24
charlie13 wrote: ↑22 Apr 2022, 04:13 Where can I find missing libraries?
That's a standalone utility that you run on host.
Thank you for your answer. I have all the diagnostics on windows. I don't have linux.
Top
