Nevada1906 1995 850 S60R m56 build thread

Post by **Sveedy** » 06 May 2022, 15:54

It's a wonderful feeling getting the engine back in its place. Second only to hearing start up for the first time !

Good work !

Post by **Nevada1906** » 06 May 2022, 16:51

Sveedy wrote: ↑06 May 2022, 15:54 It's a wonderful feeling getting the engine back in its place. Second only to hearing start up for the first time !

Good work !

Thank you!

I can't wait to get it running.

Post by **Nevada1906** » 06 May 2022, 16:53

abscate wrote: ↑06 May 2022, 02:37 Wait, you have coil on plug ignition on a -1998 style ps pump motor?

Don’t forget to put the aluminum exhaust shield on before the turbo pipe, much easier

Yeah, the accessory drive is from the 850.

It fits, though - after a fashion.

Post by **Nevada1906** » 07 May 2022, 13:15

Since I have to wait to get the rest of the engine mounts, I thought I'd take care of some other items.

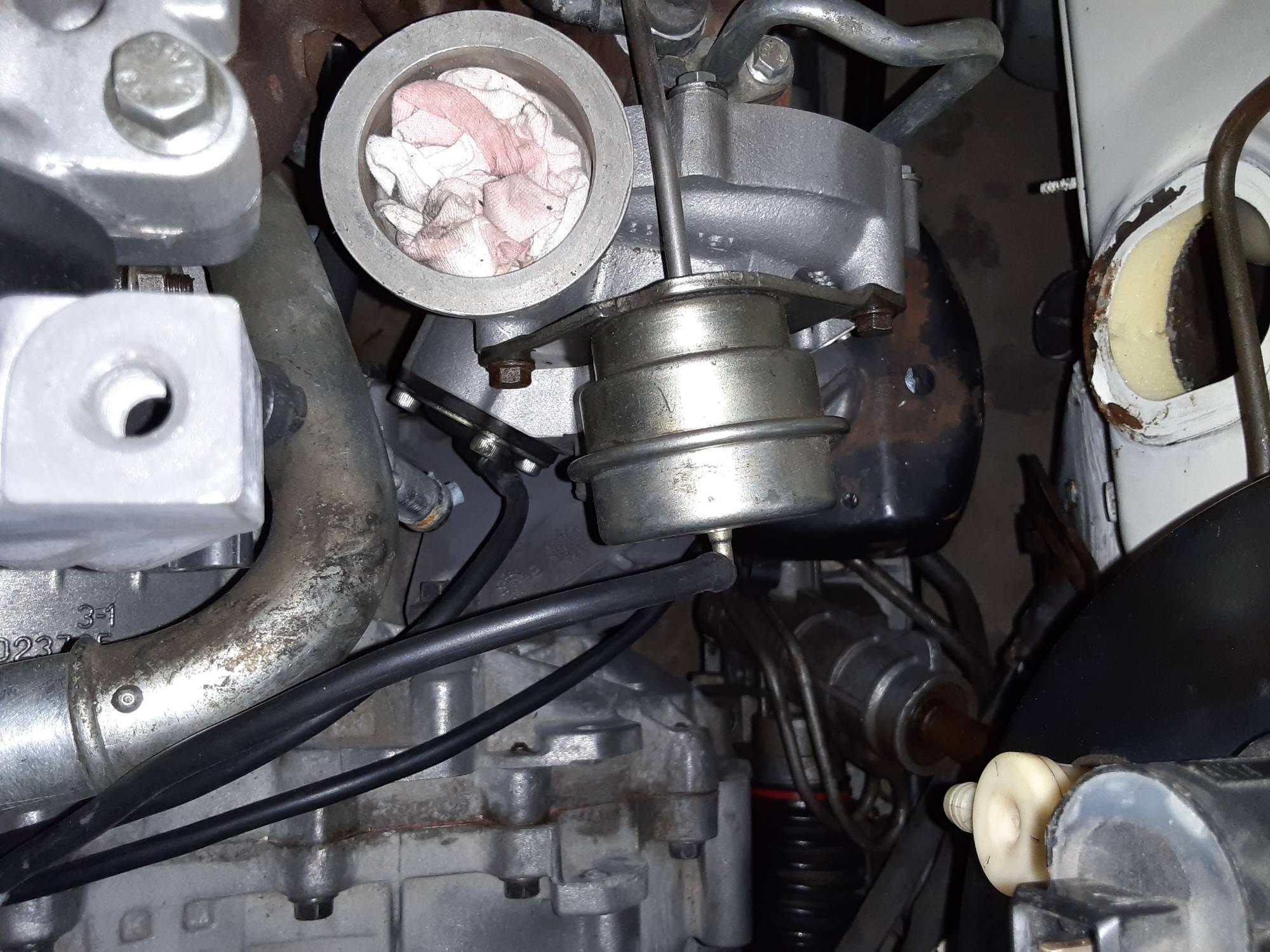

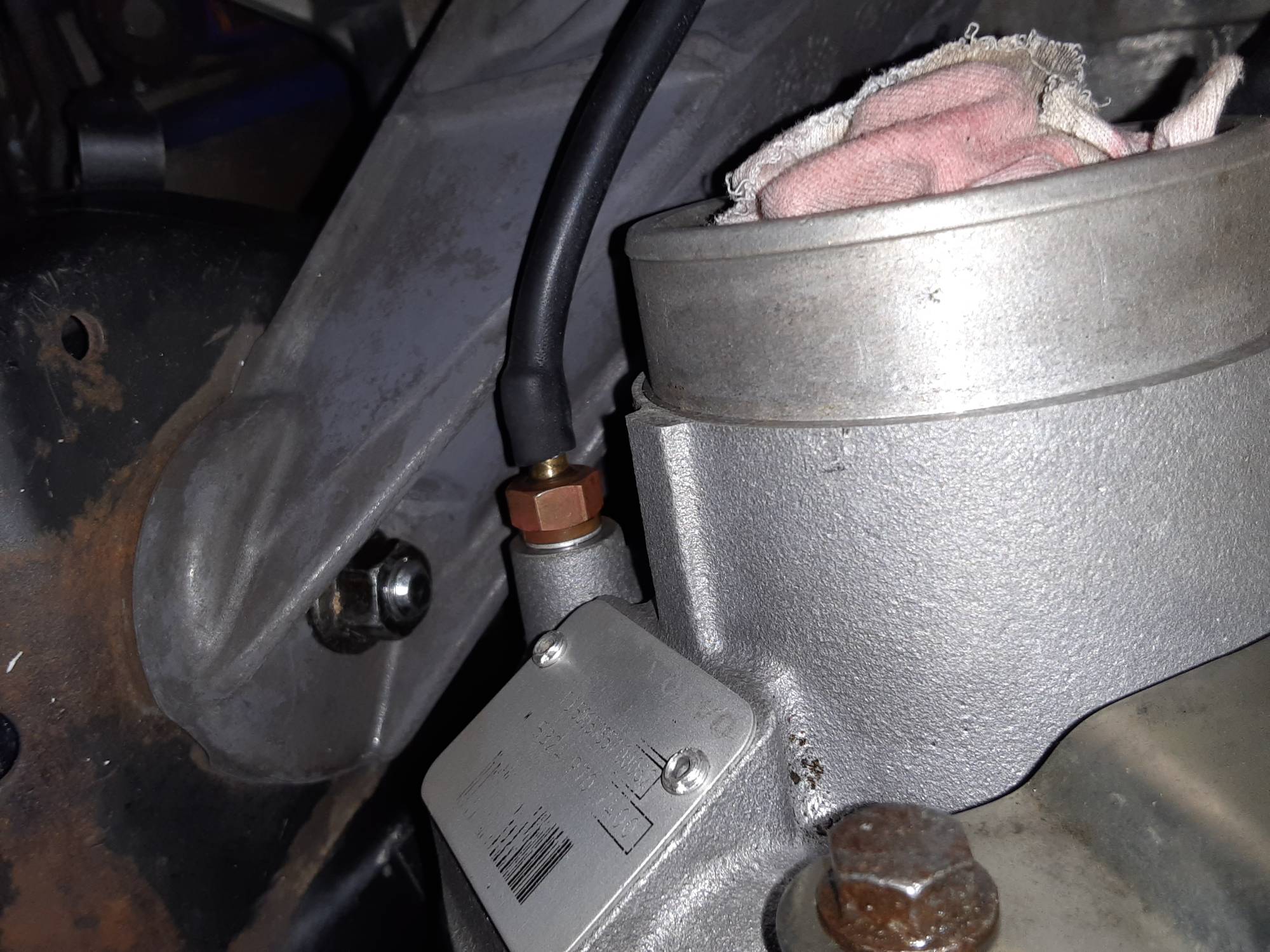

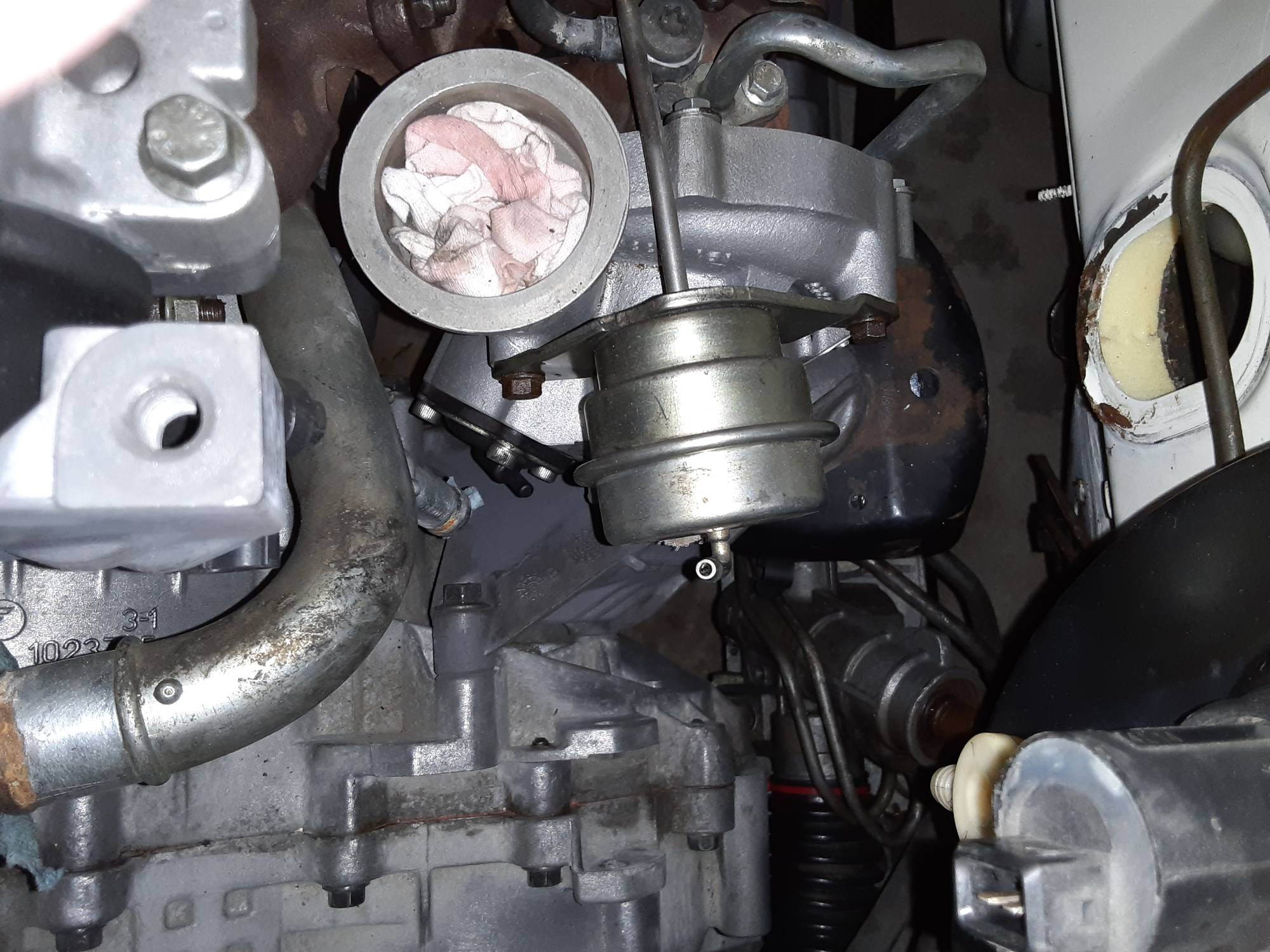

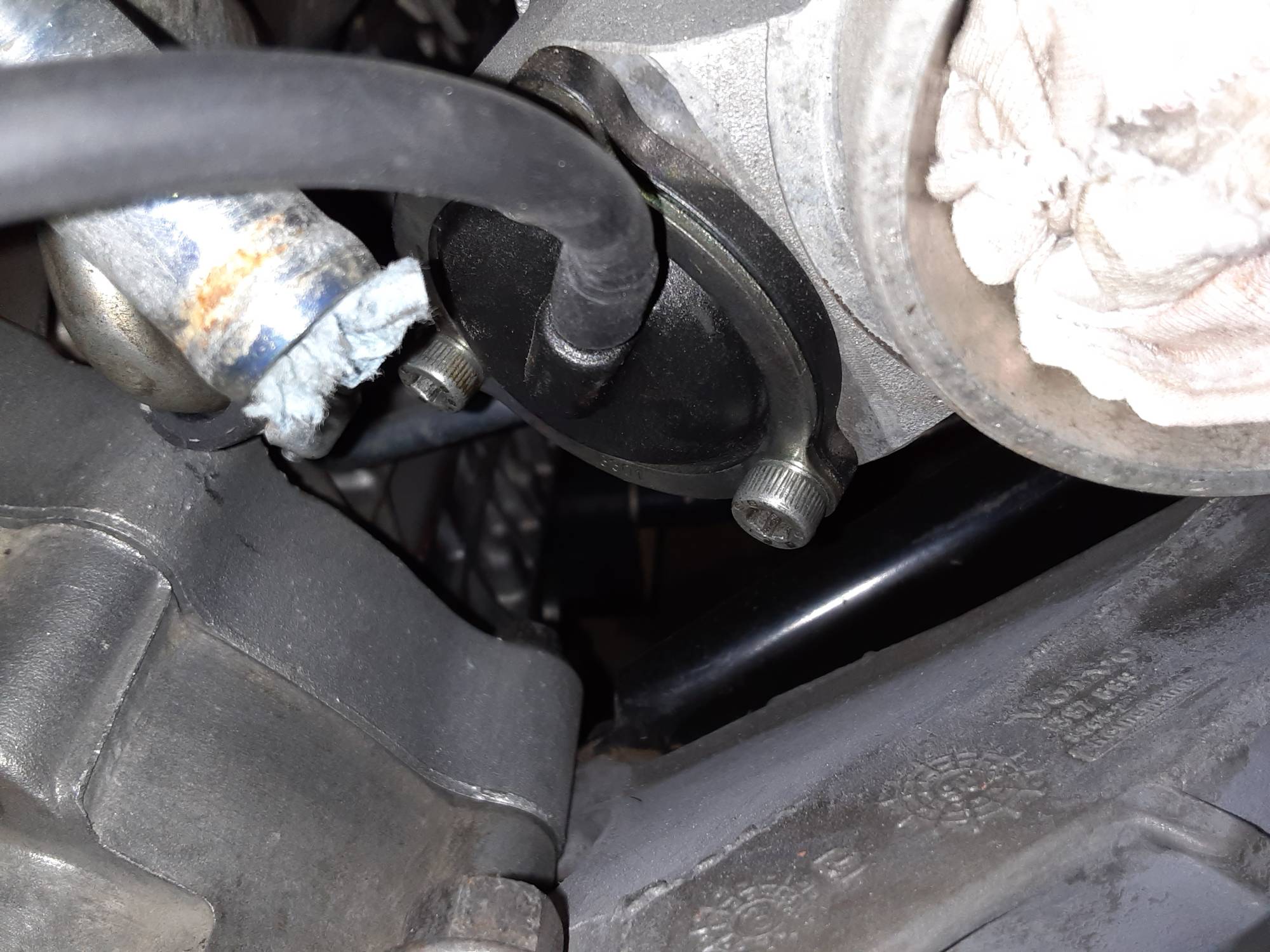

First up, I plumbed the turbo with vacuum lines. They're on there so tight I'm not going to bother with clamps.

: 20220507_134439.jpg (373.78 KiB) Viewed 561 times

: 20220507_135236.jpg (375.64 KiB) Viewed 561 times

: 20220507_135301.jpg (308.92 KiB) Viewed 561 times

: 20220507_135312.jpg (337.79 KiB) Viewed 561 times

: 20220507_135254.jpg (379.19 KiB) Viewed 561 times

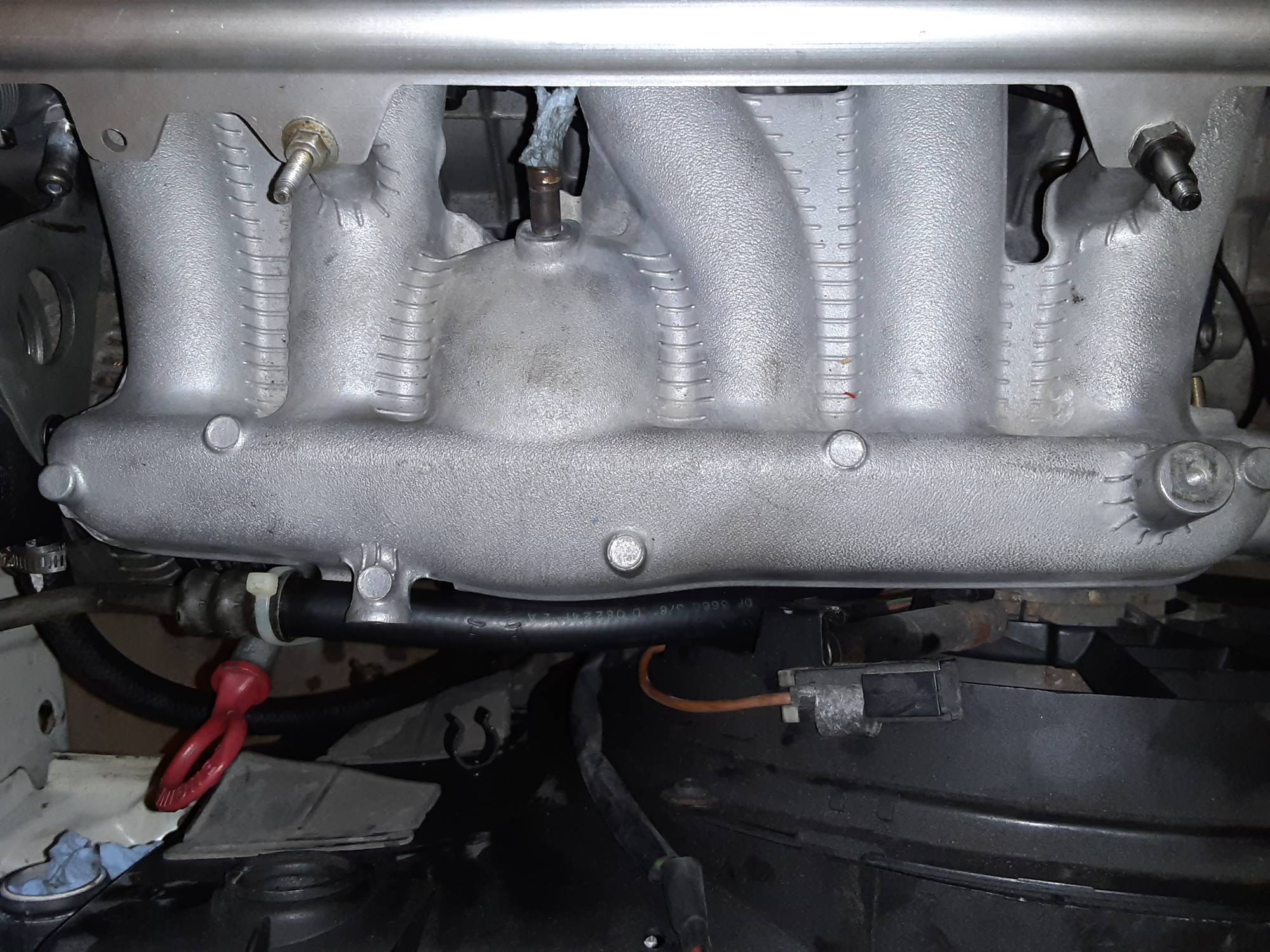

Then I found out the fan shroud won't clear the power steering pressure line. I'll probably trim it to fit.

: 20220507_145148.jpg (407.43 KiB) Viewed 561 times

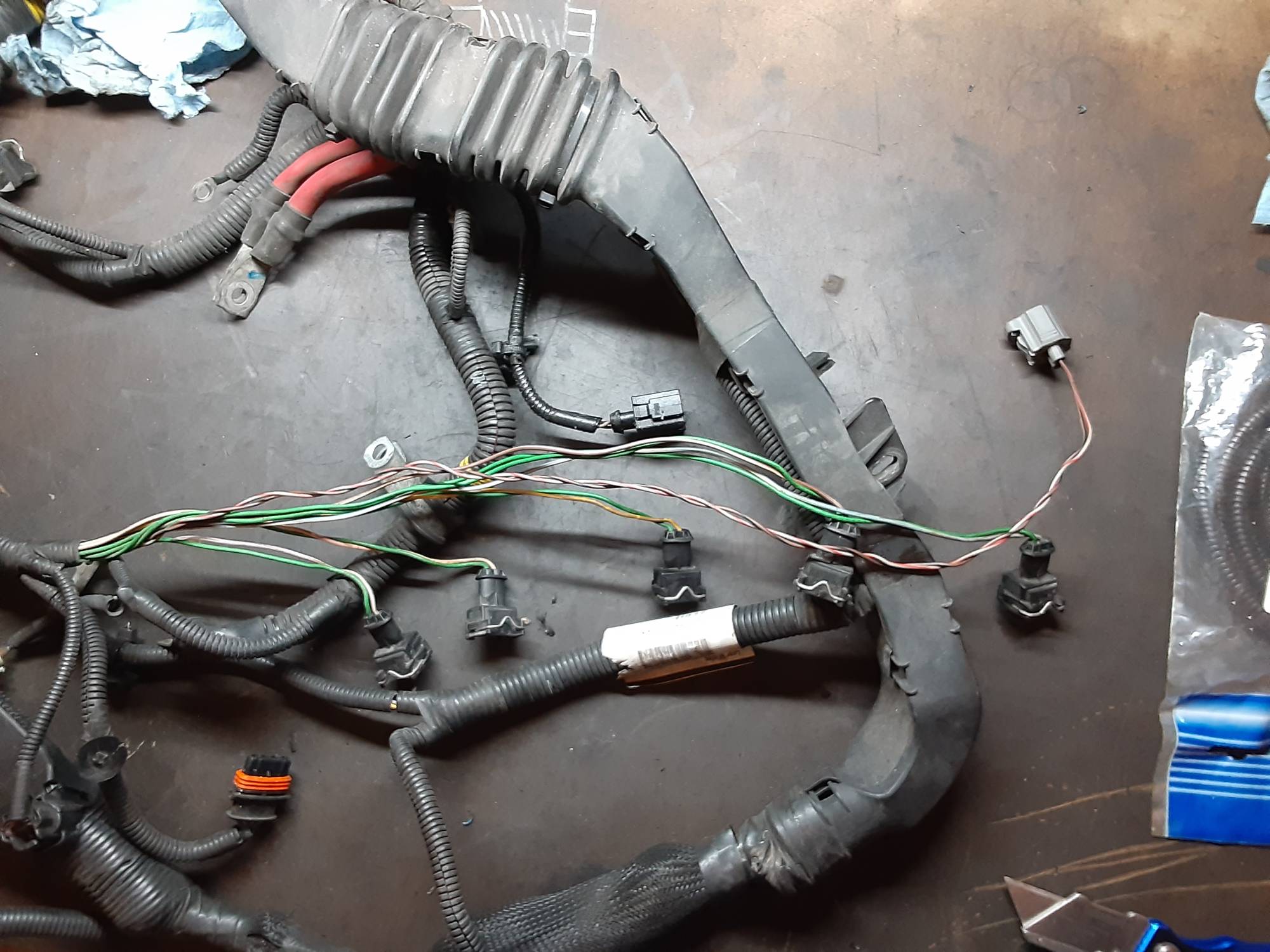

Then I started unwrapping the wiring harness, starting with the coolant sensor and working backwards. I have the injector connections unwrapped in preparation for rerouting and new tape & conduit.

: 20220507_150516.jpg (324.83 KiB) Viewed 561 times

Post by **volvolugnut** » 07 May 2022, 13:25

I would replace any plastic wire loom that shows any signs of deterioration. They will never get any easier to reach. Use only high temperature rated loom.
volvolugnut

Post by **Nevada1906** » 07 May 2022, 13:36

volvolugnut wrote: ↑07 May 2022, 13:25 I would replace any plastic wire loom that shows any signs of deterioration. They will never get any easier to reach. Use only high temperature rated loom.
volvolugnut

I agree.

From what I can see, the wiring itself looks solid. There don't seem to be any breaks in the insulation, the colors are all still pretty vibrant, the connector insulation is intact and smooth. The wiring's stiff from thermal cycling, but I'm going slow and careful with it. The conduit and electrical tape are pretty sooty and nasty, but I've actually got two separate harnesses to work with - the one that came with the engine from the junkyard, and one I bought separately.

Most likely, I'll replace all the conduit and rewrap it in fresh tape.

Post by **Nevada1906** » 07 May 2022, 17:32

Started laying out the wiring.

: 20220507_185214.jpg (354.12 KiB) Viewed 529 times

: 20220507_185235.jpg (315.17 KiB) Viewed 529 times

: 20220507_185243.jpg (358.09 KiB) Viewed 529 times

: 20220507_185703.jpg (392.32 KiB) Viewed 529 times

: 20220507_185710.jpg (352.61 KiB) Viewed 529 times

: 20220507_185723.jpg (368.56 KiB) Viewed 529 times

: 20220507_185731.jpg (285.13 KiB) Viewed 529 times

: 20220507_185736.jpg (359.95 KiB) Viewed 529 times

: 20220507_185743.jpg (377.48 KiB) Viewed 529 times

: 20220507_185747.jpg (424.26 KiB) Viewed 529 times

: 20220507_185757.jpg (346.93 KiB) Viewed 529 times

: 20220507_185153.jpg (395.16 KiB) Viewed 529 times

Post by **Nevada1906** » 18 May 2022, 21:52

A few updates.

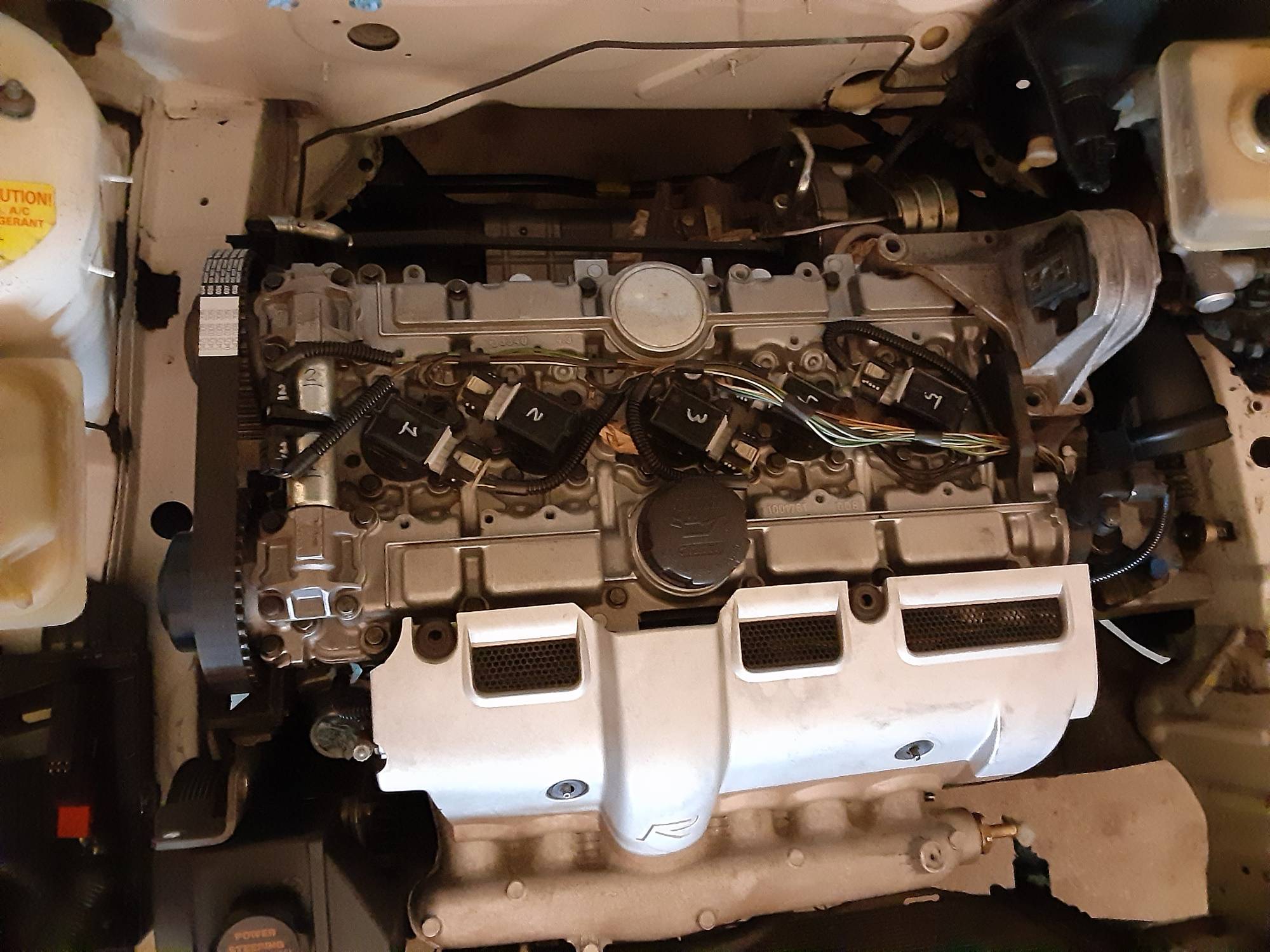

I installed the spark plugs and coil packs.

: 20220516_173621.jpg (394.19 KiB) Viewed 485 times

: 20220518_232344.jpg (341.63 KiB) Viewed 485 times

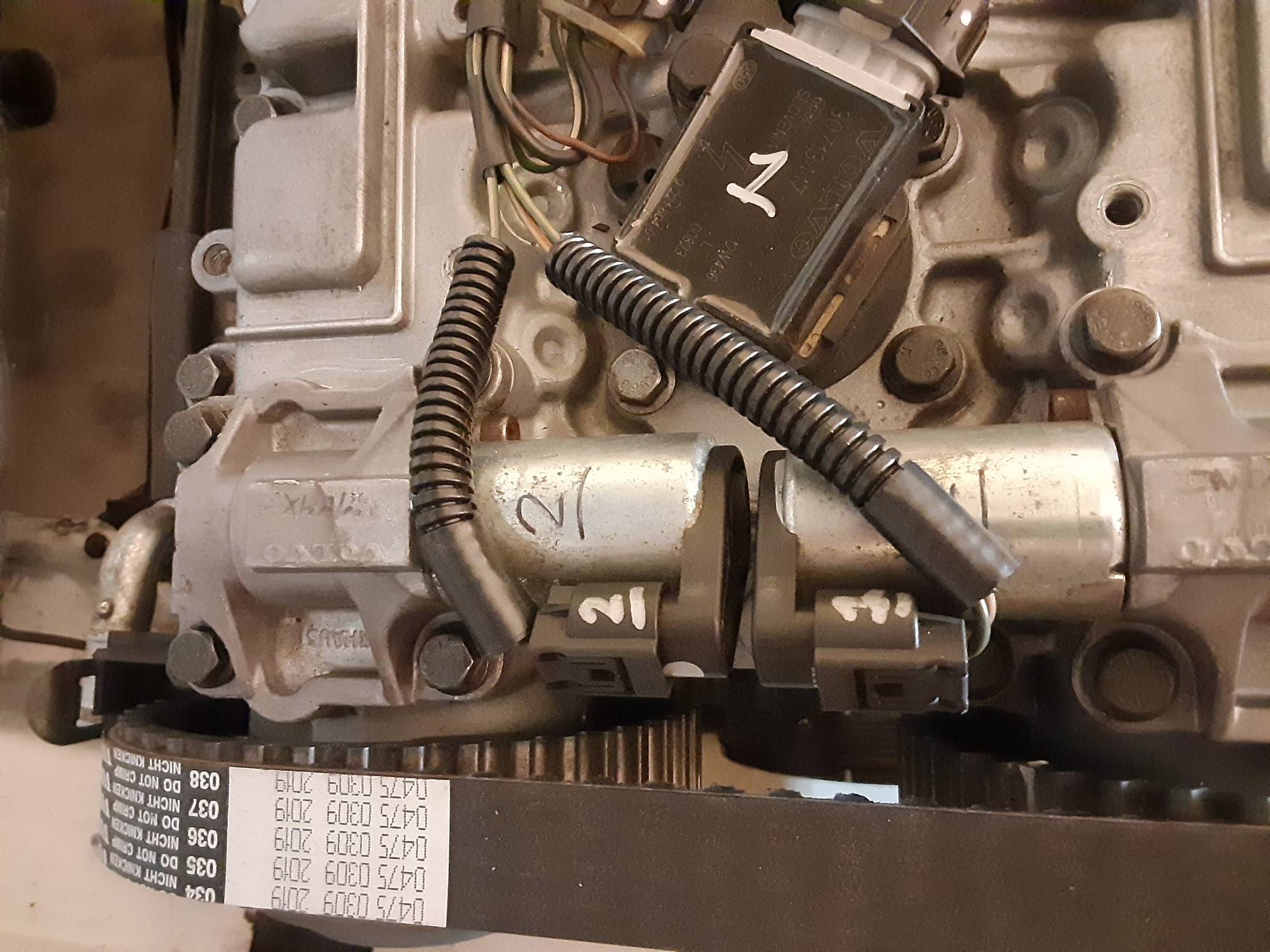

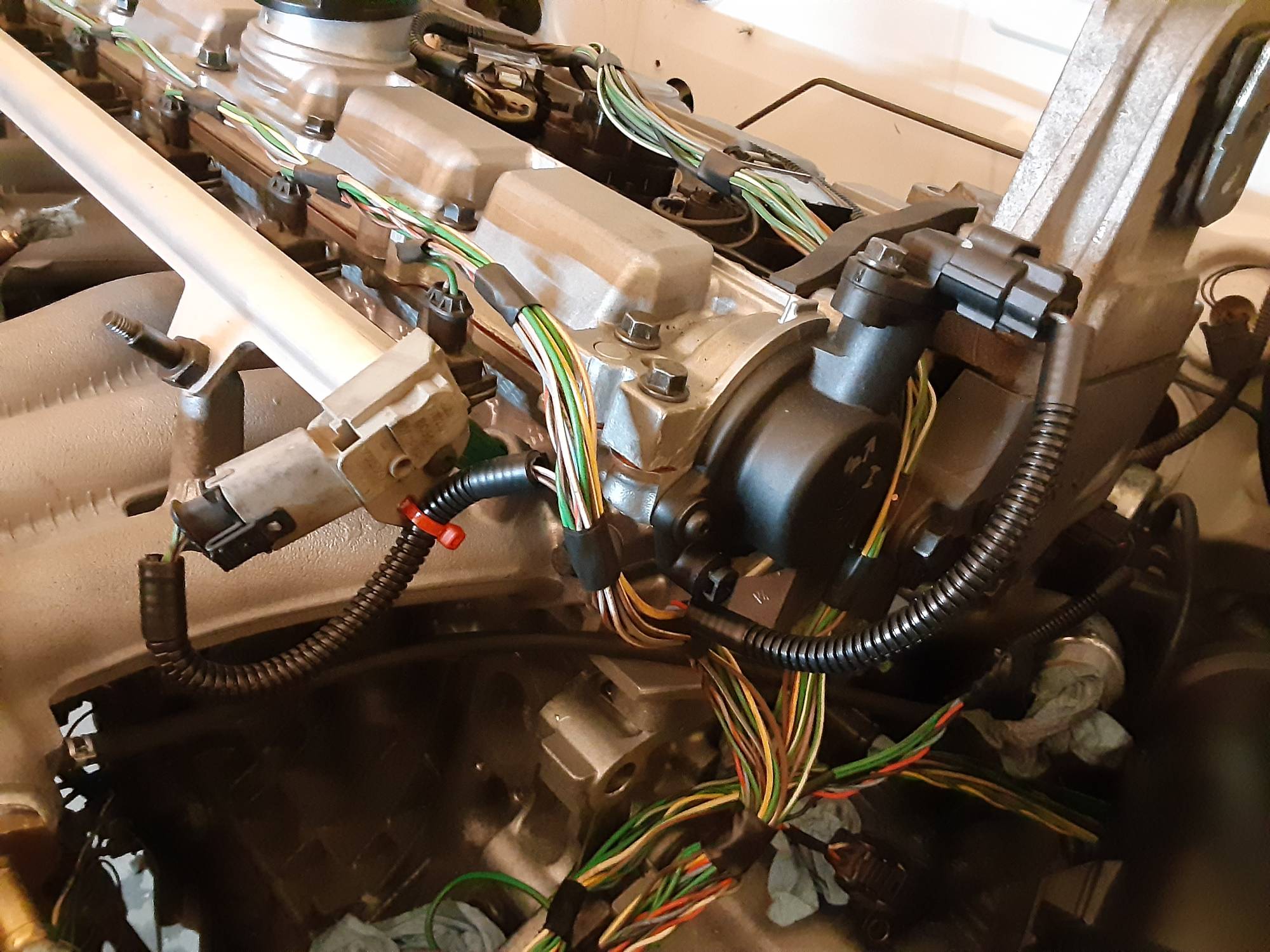

Started running new wiring conduit:

: 20220518_232352.jpg (374.78 KiB) Viewed 485 times

: 20220518_232413.jpg (381.4 KiB) Viewed 485 times

: 20220518_232453.jpg (520.02 KiB) Viewed 485 times

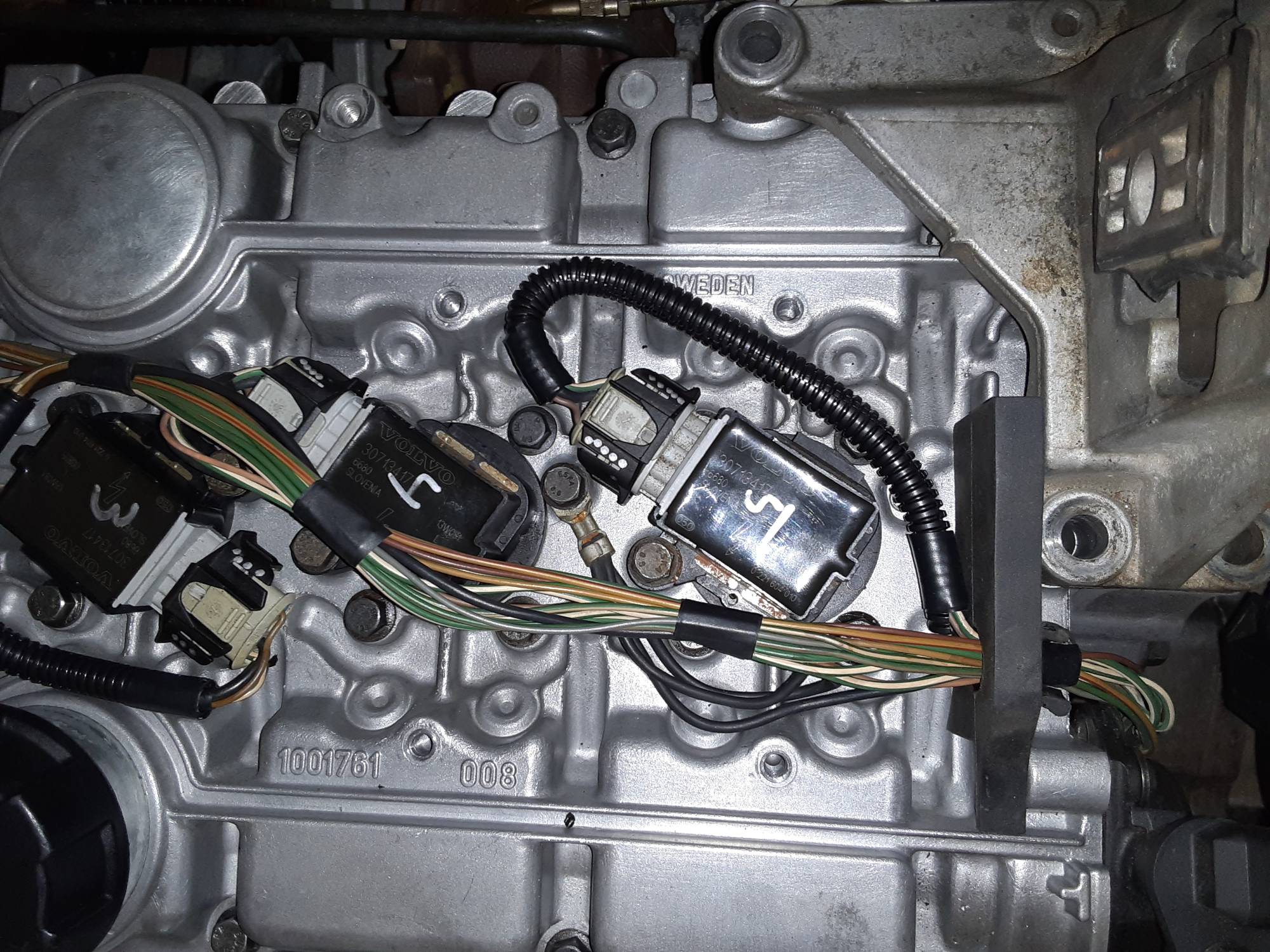

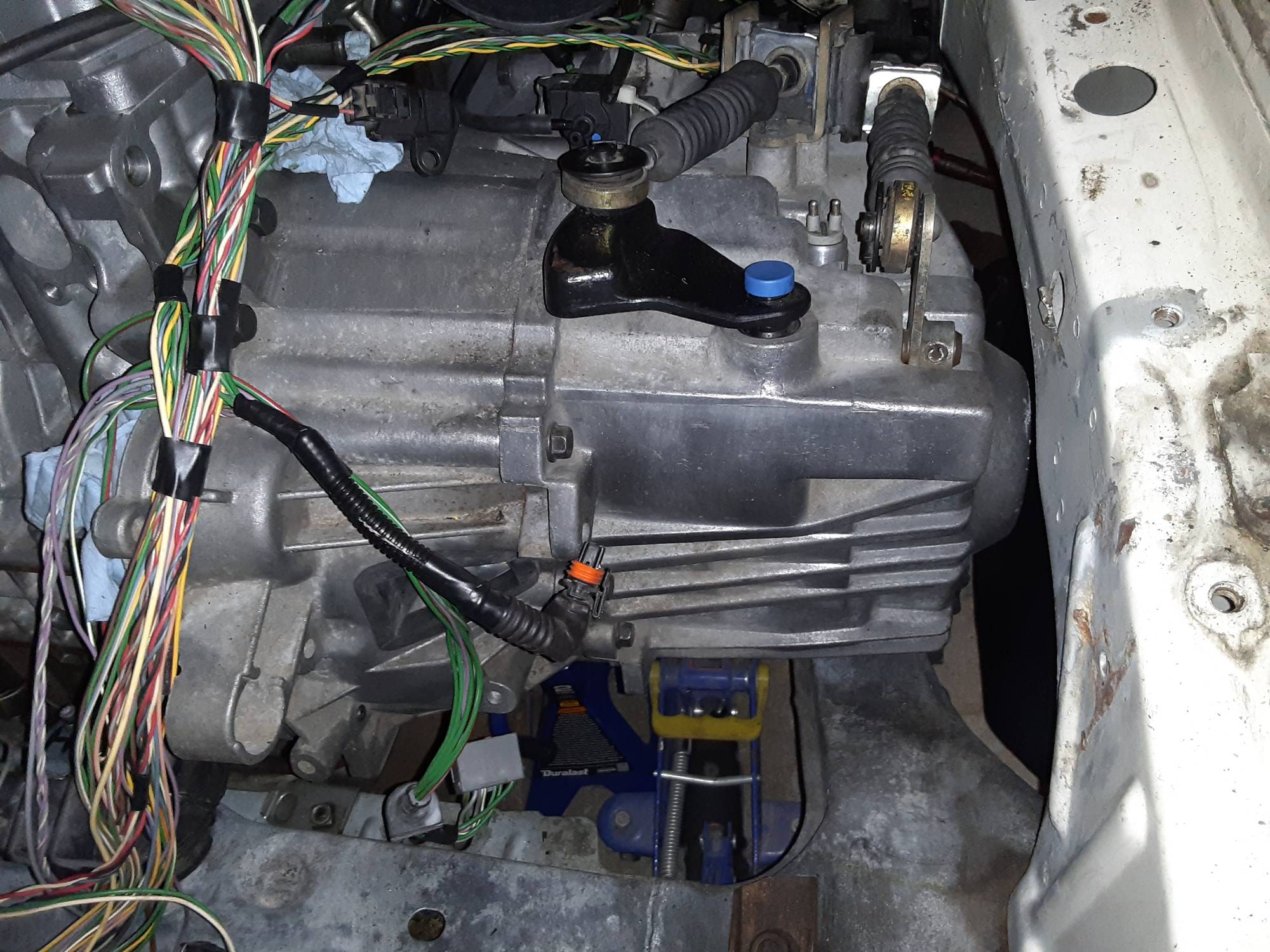

Continued mapping out the reconfigured wiring harness:

: 20220518_232627.jpg (442.08 KiB) Viewed 485 times

: 20220518_232504.jpg (520.71 KiB) Viewed 485 times

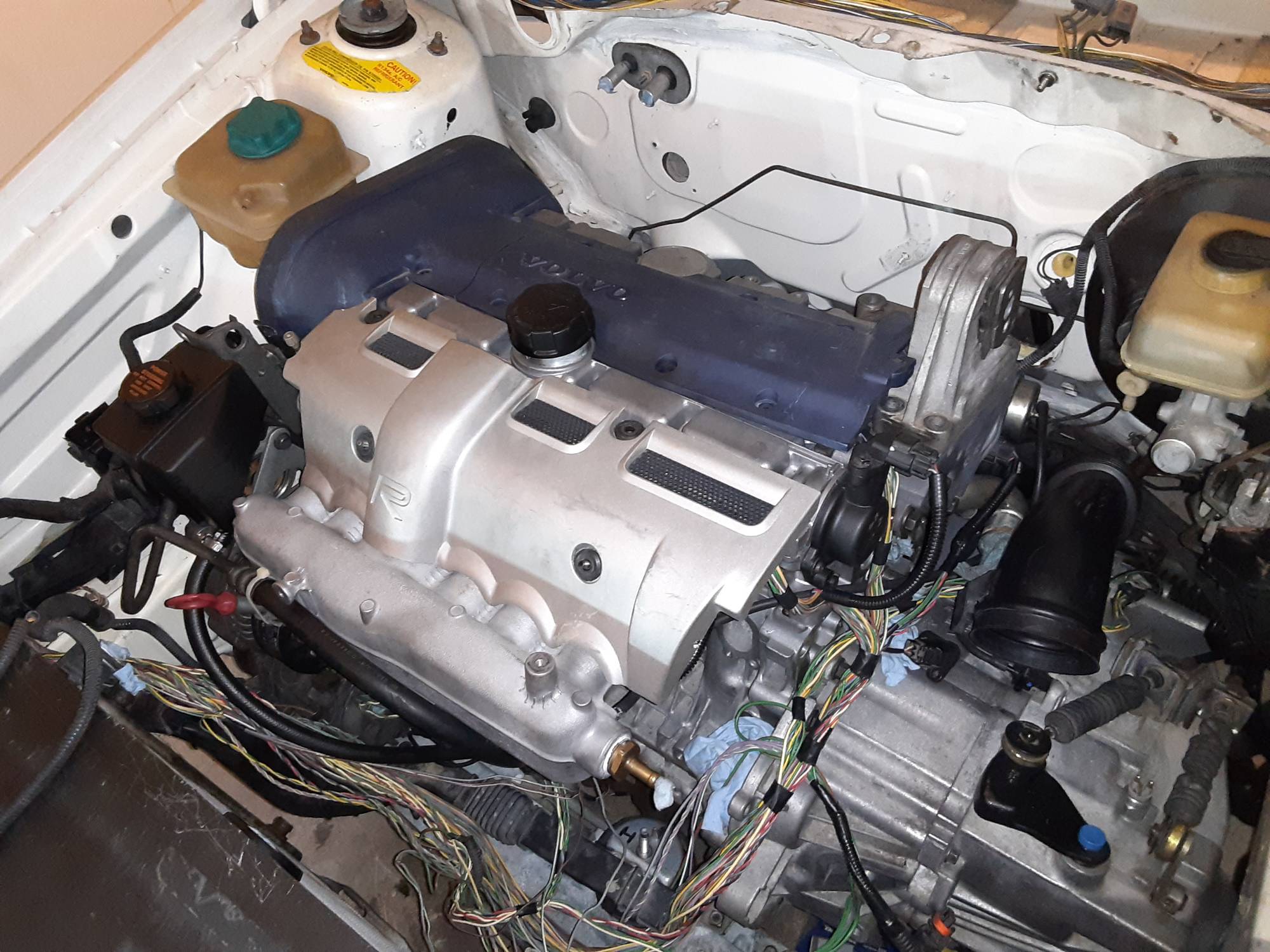

Test fit some parts like the computer box base, the overflow tank, the engine's cosmetic covers & upper mount and if you look down by the radiator, the lower wiring guide:

: 20220518_232605.jpg (390.75 KiB) Viewed 485 times

: 20220518_232617.jpg (405.79 KiB) Viewed 485 times

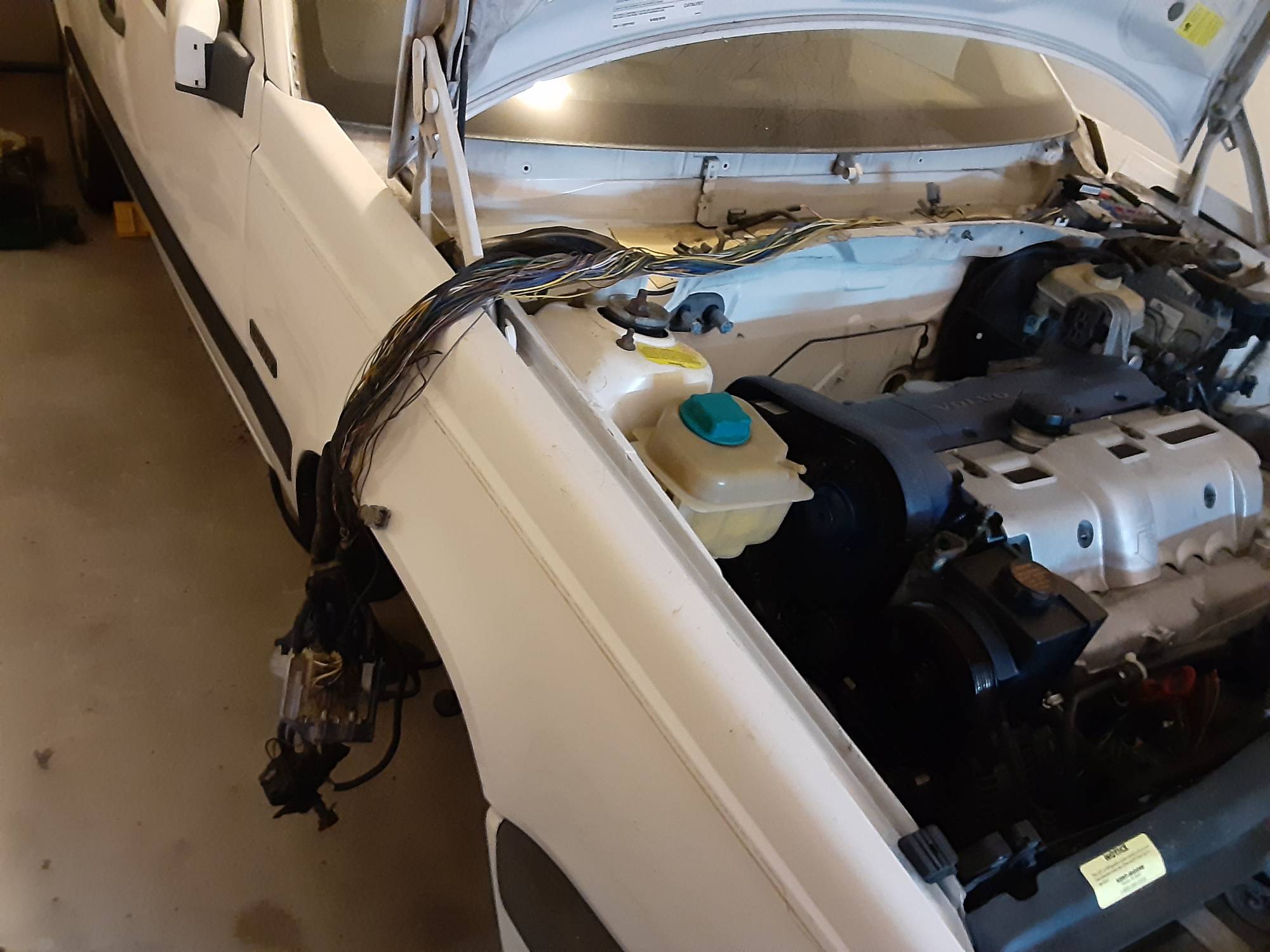

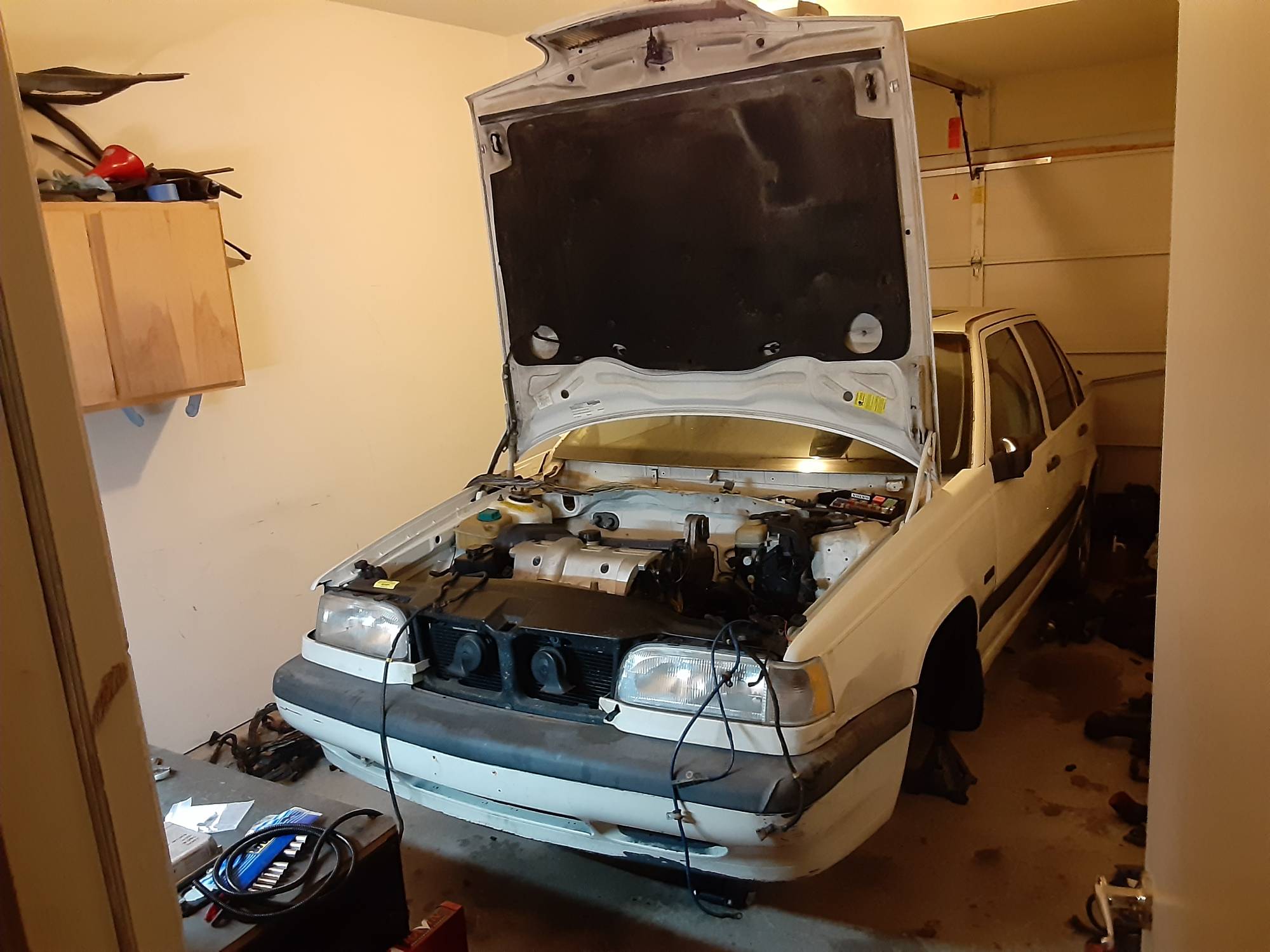

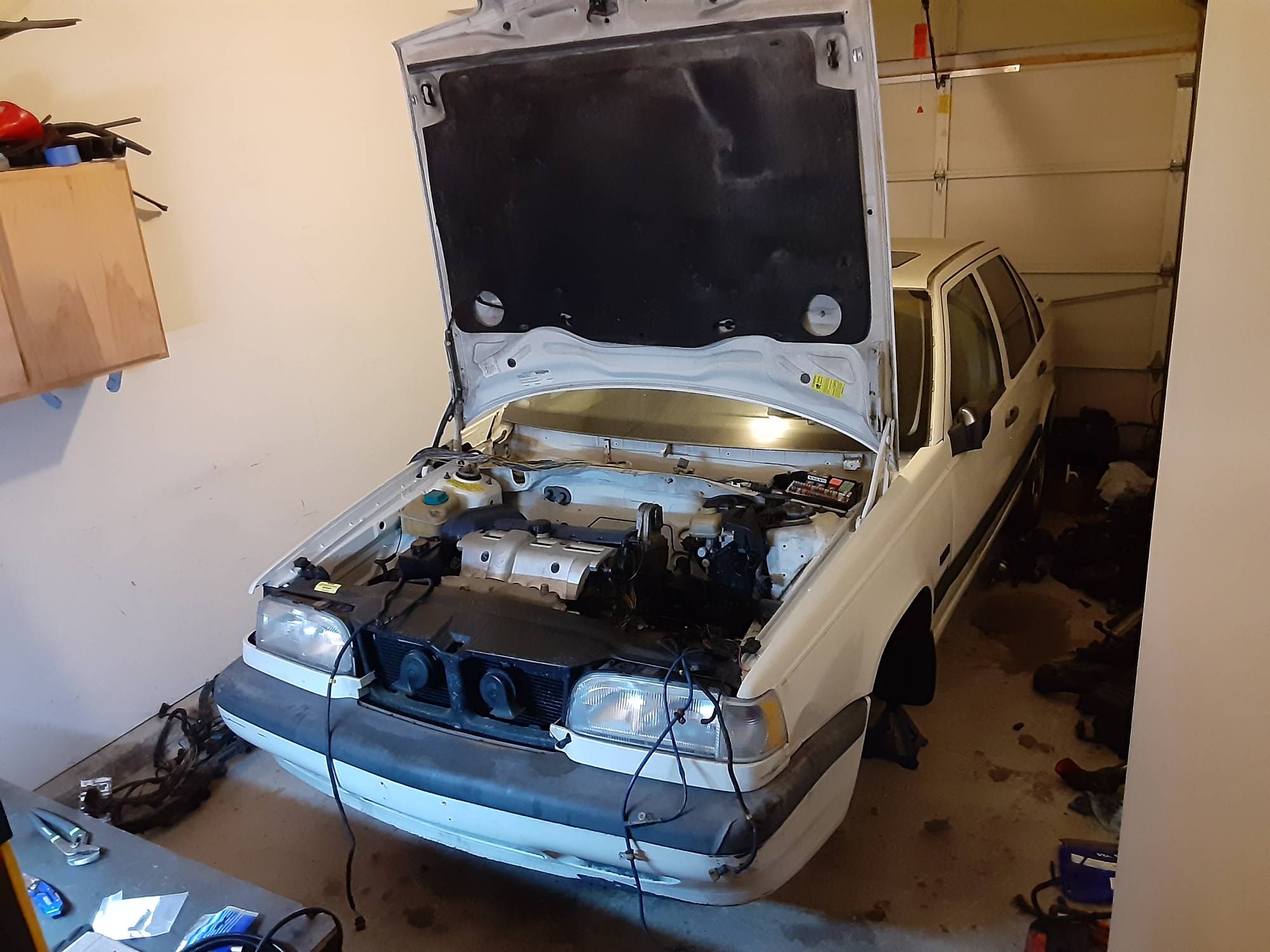

Here're a few overall shots:

: 20220518_232851.jpg (285.82 KiB) Viewed 485 times

: 20220518_232907.jpg (295.45 KiB) Viewed 485 times

: 20220518_232719.jpg (274.22 KiB) Viewed 485 times

Post by **bmdubya1198** » 19 May 2022, 08:39

Getting closer!

Post by **scot850** » 19 May 2022, 10:20

This is looking incredible! I would suggest you may want to wrap the coil and VVC wires over the head to help protect from the heat. Even using the split corrugated cable cover would help. Cars came with this originally so I can only assume it was for this reason in the decade of decomposing wiring harnesses! You may have already done this as I saw in one picture a short piece in place.

Neil.

Nevada1906 1995 850 S60R m56 build thread

Re: Nevada1906 1995 850 S60R m56 build thread
