P80 Electrical assignments for Ignition Switch 9447804 Help needed

Post by **abscate** » 02 Apr 2020, 08:49

A very good friend of mine had the electrical connector pop off and scramble the wires on a 1999 NA car - can anyone find the thread where we documented the position of the wires ??

Post by **RickHaleParker** » 02 Apr 2020, 23:59

I assume this is what you are looking for.

It is here on page 2.

Post by **abscate** » 03 Apr 2020, 02:41

Thanks Rick

There are two different switches on the 1999 model that are also documented in that thread

Post by **abscate** » 03 Apr 2020, 03:52

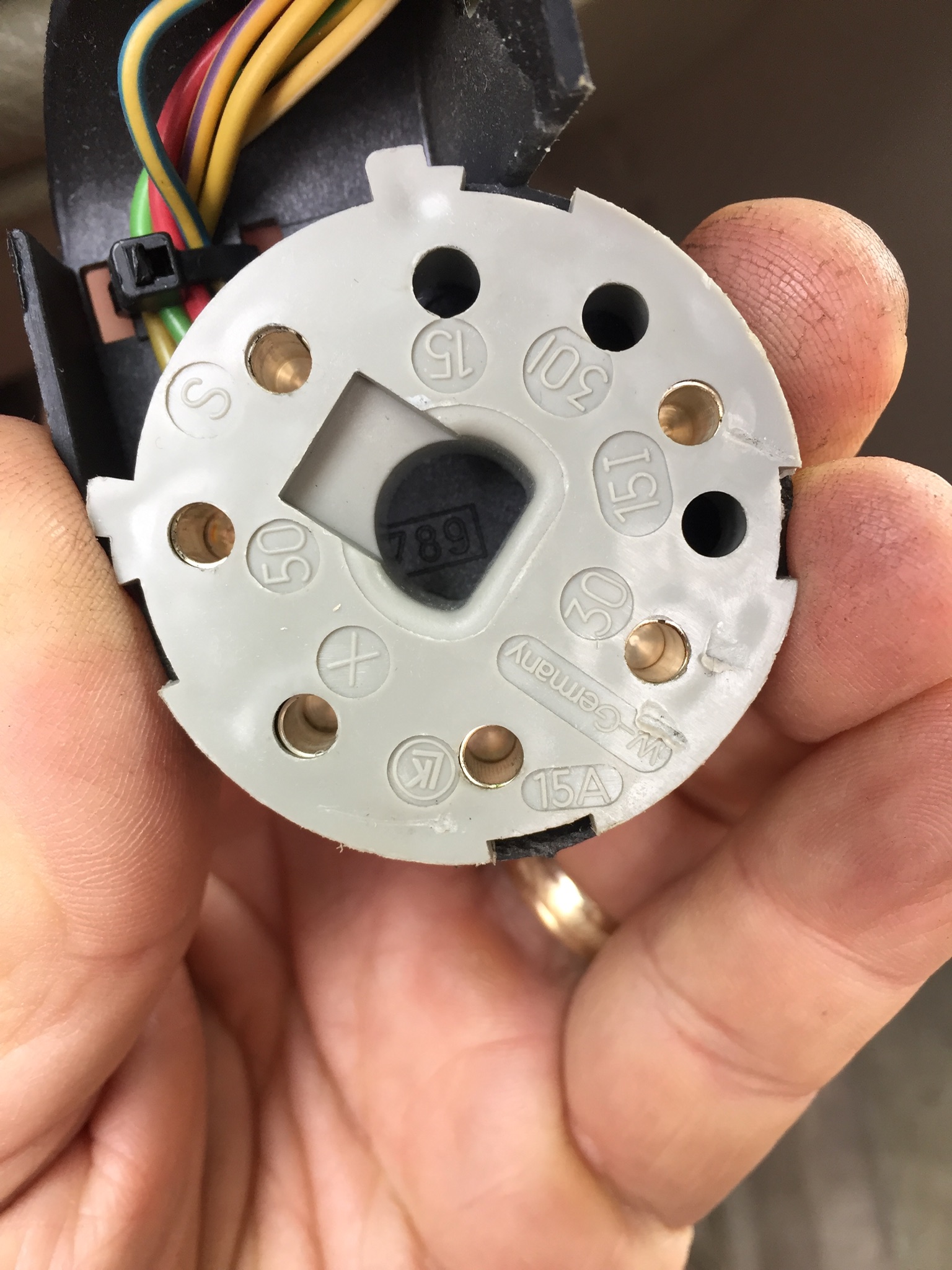

Note there are two terminal positions labeled 15I, and reports are that the blue yellow wire has been found in either one of them

It is likely these are bridged inside the switch so the variation isn’t important.
I’ll open my dead switch today and confirm

Post by **RickHaleParker** » 03 Apr 2020, 17:52

abscate wrote: 03 Apr 2020, 03:52 Note there are two terminal positions labeled 15I, and reports are that the blue yellow wire has been found in either one of them

In the diagram. See the dashed line on the second 15I? Dash lines means options.

Just like the wires to the PNP switch and the manual by pass are dashed line because they are both options.

Post by **abscate** » 02 Jun 2022, 03:41

Decided to add these notes to this thread.

Recently replaced the ignition switch in the cat and I had some interesting symptoms

Occasional mileage blackout on DIM
dash lights out on occasion
Right turn signal INOP
ECC controller would go INOP intermittently
Fuel gauge position varied day to day
Coolant temp gauge once took 20 minutes to reach equilibrium

New electrical part fixed all of these
