Vida CEM swapping

[oscilloscope]

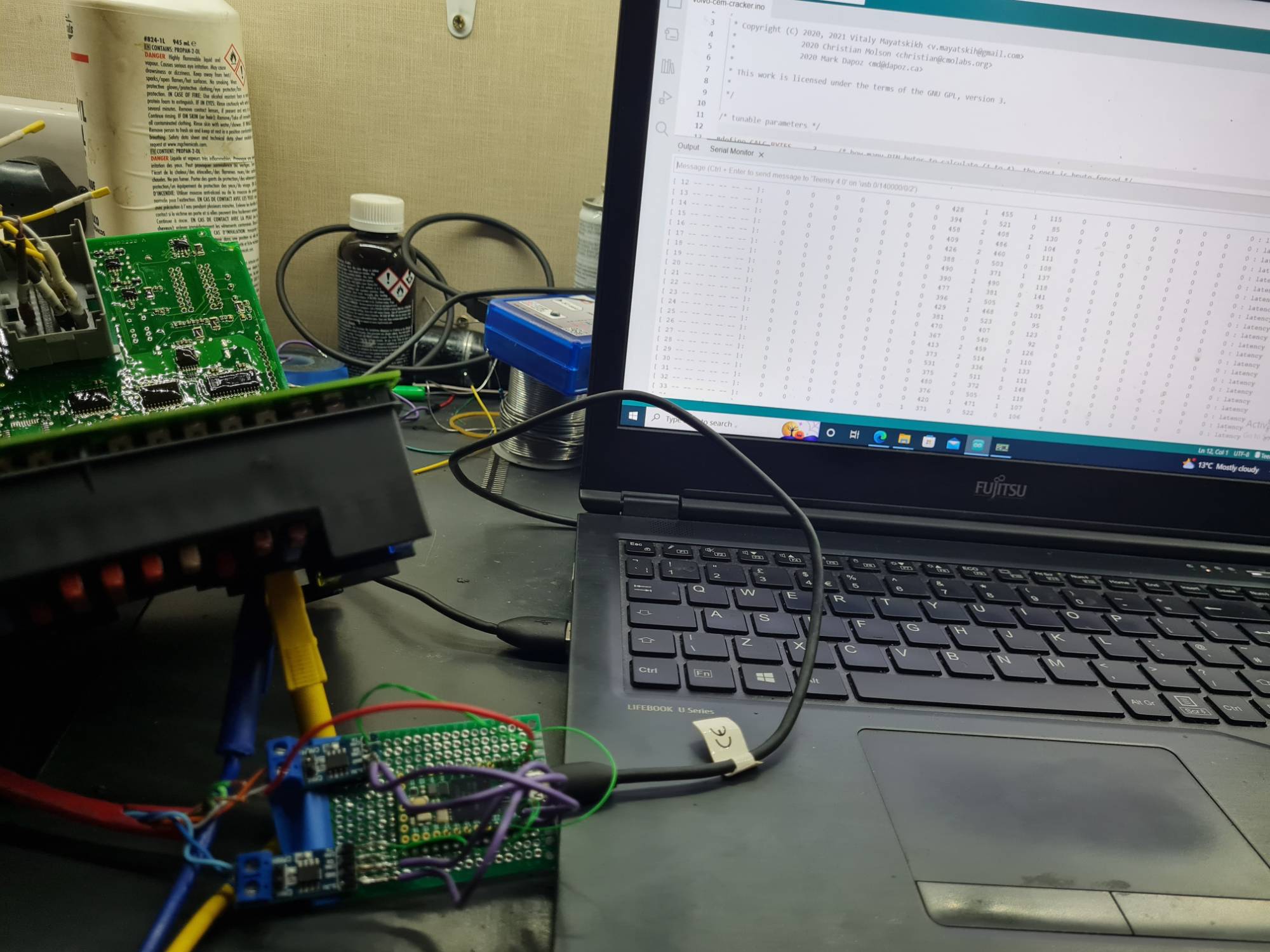

Furthering on with the wiring changing to 30awg on the transmission lines.

It remains to be seen If it works. , I haven't checked the other cem but it's worth ago once again. Just encase


[oscilloscope]

Furthering on with the wiring changing to 30awg on the transmission lines.

It remains to be seen If it works. , I haven't checked the other cem but it's worth ago once again. Just encase


Something very odd happened lastnight during testing, I had it all connected up with the alternative wires , but tiredness prevailed, and I didn't switch on the power supply. But the cem cracker was working away as if it was on and reckoned it was working through the cem.

[RickHaleParker]

But the cem cracker was working away as if it was on and reckoned it was working through the cem.

Look at the schematic. The transceivers are connected to the USB 5V. It powering off the USB. You don't need an external power supply for just CAN Bus. K-Line would be a different story but the CEM-B is still uncrackable and we found a way around the K-line if anybody does ever come up with a crack that works on the CEM-B.

[oscilloscope]

But the cem cracker was working away as if it was on and reckoned it was working through the cem.

Look at the schematic. The transceivers are connected to the USB 5V. It powering off the USB. You don't need an external power supply for just CAN Bus. K-Line would be a different story but the CEM-B is still uncrackable and we found a way around the K-line if anybody does ever come up with a crack that works on the CEM-B.

That's fine , I wasn't sure what vtl ment if there was something else I was suppose to use. , I have indeed powered the transceiver modules i have with the teensy.

Which one is the cem-b The brick style one ?

[oscilloscope]

Excellent

The £20 quid cem was able to be cracked. , my next task to see If it works in IOT terminal

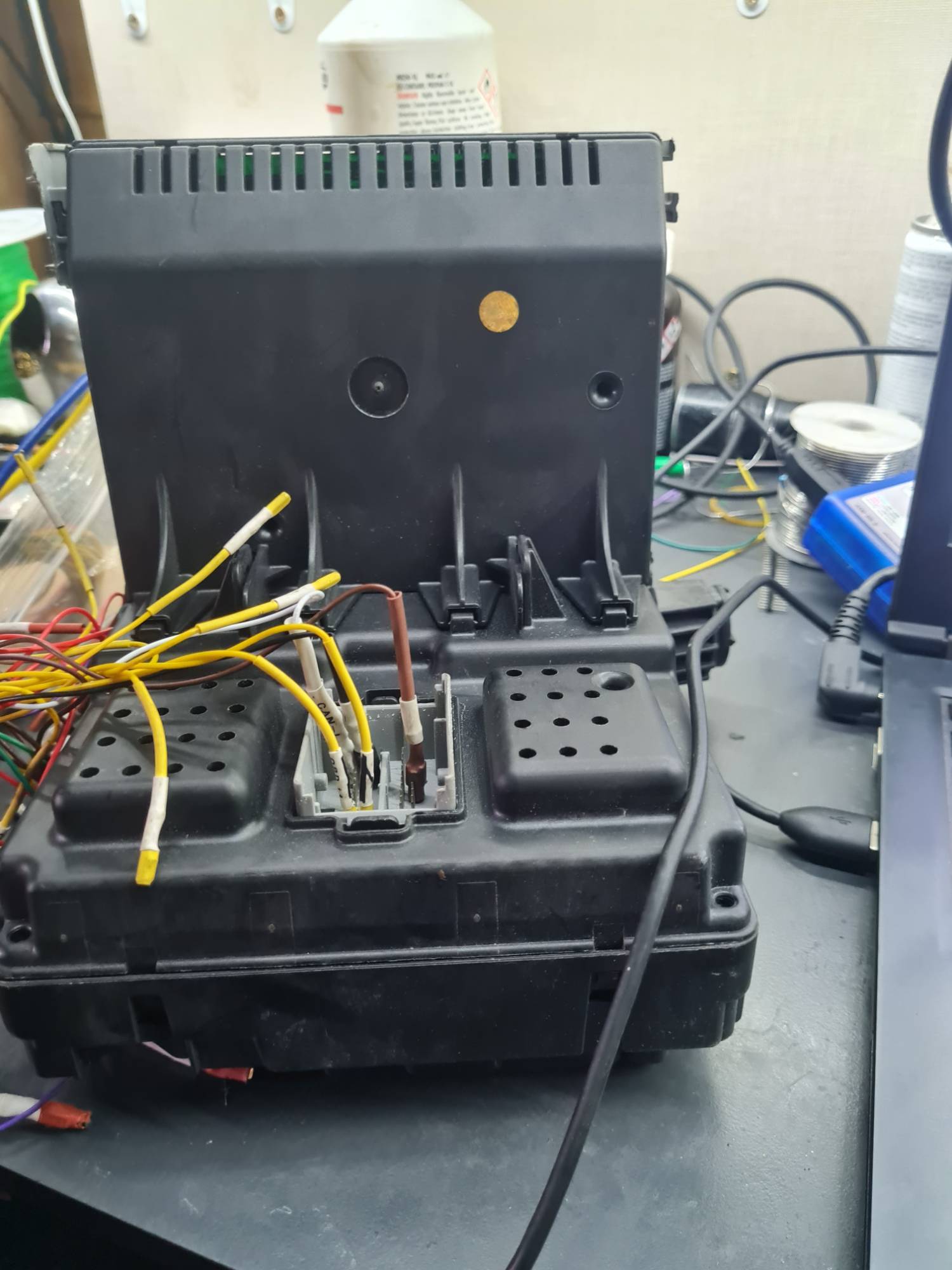

volvo cem test cem.jpg (220.84 KiB) Viewed 604 times

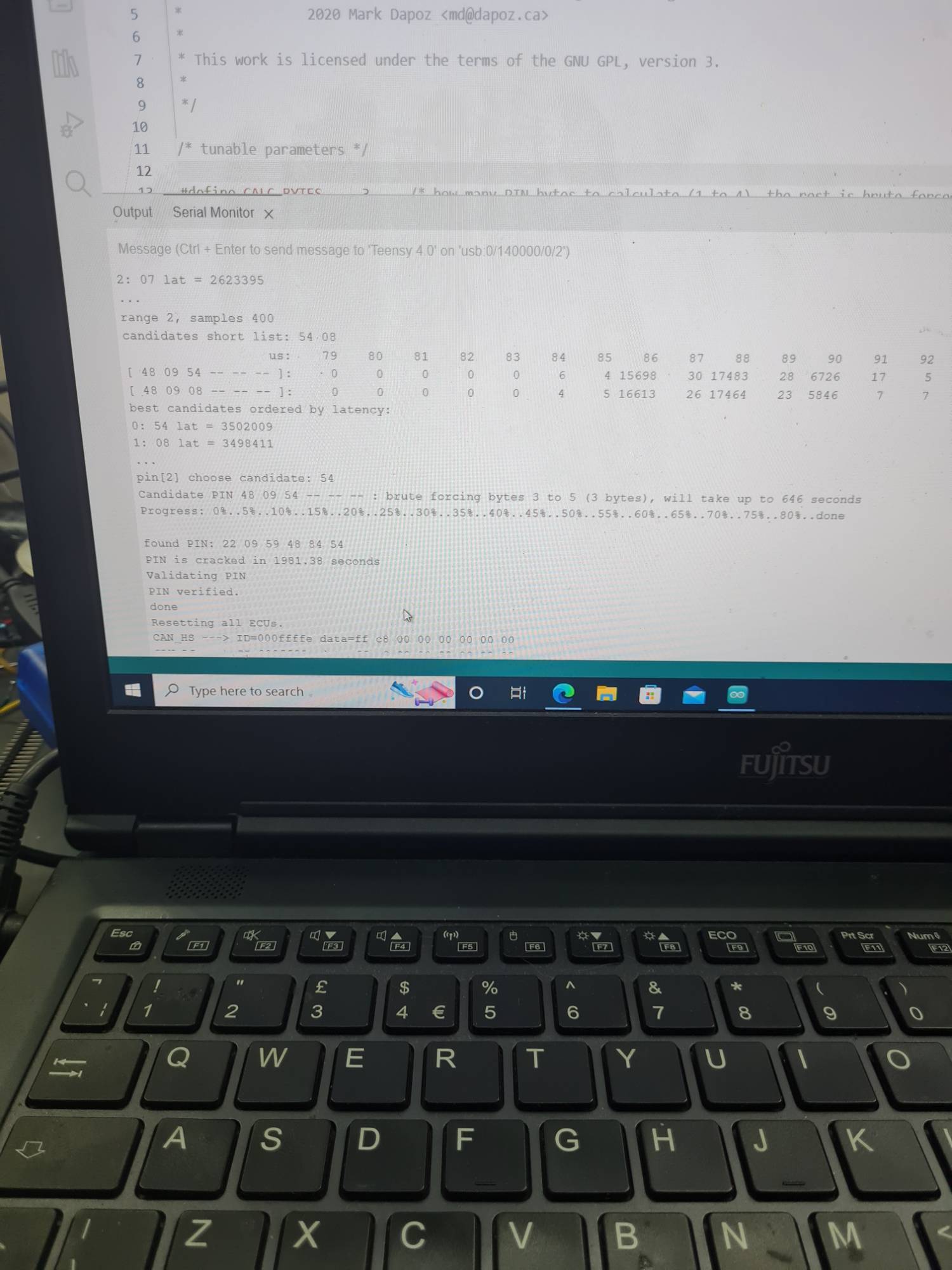

volvo cem test cem pic 2.jpg (223.44 KiB) Viewed 604 times

[XCGuy]

Good job really helpful tool.

[oscilloscope]

But the cem cracker was working away as if it was on and reckoned it was working through the cem.

Look at the schematic. The transceivers are connected to the USB 5V. It powering off the USB. You don't need an external power supply for just CAN Bus. K-Line would be a different story but the CEM-B is still uncrackable and we found a way around the K-line if anybody does ever come up with a crack that works on the CEM-B.

Do you mean via an open source obdii reader where the k-line source code is freely available?

[vtl]

You can connect to CAN via REM, etc, where k-line keep alive is not necessary.

BTW, the cracker supports k-line, just needs a chip and a couple of resistors. Mine has it.

[oscilloscope]

You can connect to CAN via REM, etc, where k-line keep alive is not necessary.

BTW, the cracker supports k-line, just needs a chip and a couple of resistors. Mine has it.

Would that mean it can support the older brick style cem ? With the correct supporting ic and Resistors?

[RickHaleParker]

Which one is the cem-b The brick style one ?

Yep ... 1998 - 2004 P2. I could not come with a official name for it so I named it CEM-Brick.
