What are these seals in head set? 99 S70 GLT 2.4

[Twarr12000]

I may regret asking this question if the answer turns out to be obvious, but I can’t place these seals that were included in the Victor Reinz head gasket set I purchased. Are they not used on my application?


[scot850]

The 5 of, look like injector seals. No idea of scale. Remember some kits have parts that you may not need in your engine configuration.

Neil

[scot850]

Now I can see this on my PC, the large 5 washers sit around the recess for the injectors and the 5 small are the injector seals.

Do the not supply any parts number or ID list with these kits?

Neil.

[abscate]

No they don’t.

Good practice to match your stuff to the kit as you disassemble

[Twarr12000]

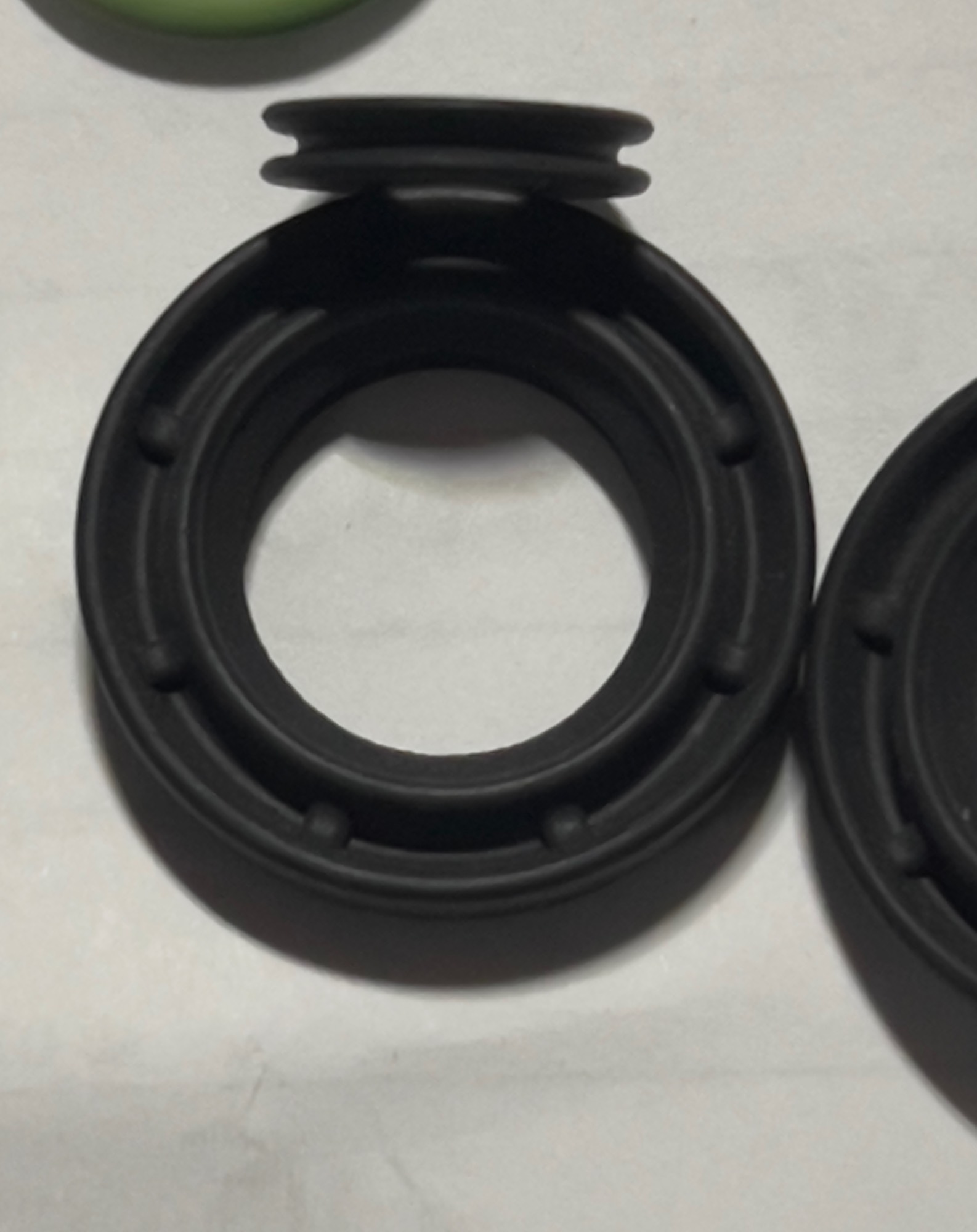

Here are better photos.



The 5 smaller ones look more like grommets.
These items came in a package with the part number shown, but Google returns nothing for this number. And the US Victor Reinz site doesn’t list the number separately.

[scot850]

Like I said, the large 5 rings sit in the well where the injectors sit. I can't now recall if all cars use these or if it was 850's or up to 98 cars. They are like a spacer/seat for the injector body to the cylinder head. AS to the 5 smaller ones, now I have no clue. If they were o-rings then they would likely be injector seals. The square section I have never seen.

The 2 larger o-rings could be from a variety of places. The larger one could be from the seal for the body of the flame trap case. It's size could be also used in a multiple of places. Again it may not be from your variant. The small one again could be from a multitude of places.

Like Abscate says, either leaving stuff in place until you go to return a part to the engine so you can see where stuff goes or bagging and tagging is the way to go on complex jobs.

Neil.

[rrres]

I used a Fel-Pro kit and also had those 5 large and small o-rings left over. The kit lists "5-fuel injector o-rings-lower" and "5-fuel injector o-rings-upper". You can see those in one of RobertDIY's video on 850 injector seals.

I also had a couple of o-rings left over when I did the head on my V70XC. The Fel-Pro kit also lists "1-air pump" and "1-air injection valve", so the o-rings could be for the air-pump.

[dikidera]

I had to purchase the same seals, but used. I still wonder if it's not better without them.
