2003 volvo v70 map sensor help

ThaBearjew6989 · Post by **ThaBearjew6989** » 21 Mar 2023, 17:15

Hello everyone, i recently had my check engine light come on, got codes emc 100a (ecm internal fault, baro sensor faulty signal) and ecm 140a (map sensor faulty signal)

Where is the map sensor exactly on this car? I uploaded a picture of something I wasnt sure what it was and maybe that is it?

Car is getting increasingly worse gas mileage and surge at cold idle.

Thanks for any help

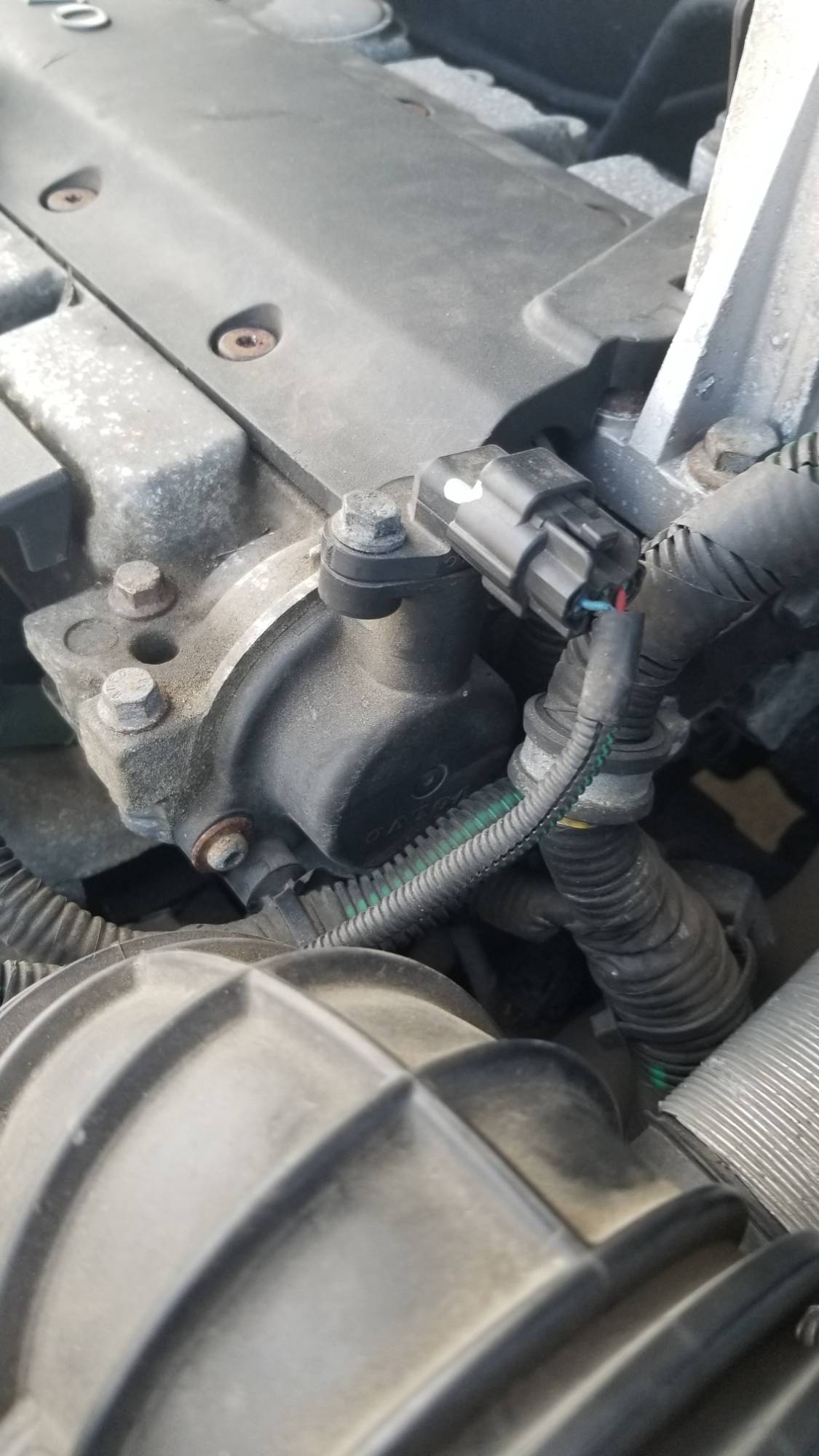

: What is this connector go to?; 20230321_155716.jpg (181.14 KiB) Viewed 3707 times

Post by **bmdubya1198** » 21 Mar 2023, 19:04

That's the camshaft position sensor in your picture. The MAP sensor is part #10 in this diagram. Follow the hose that connects to the intake manifold, I believe it's mounted ahead of the intake manifold but I'm not 100% sure.

ThaBearjew6989 · Post by **ThaBearjew6989** » 21 Mar 2023, 20:19

Awesome thank you for the diagram and the identification of the camshaft sensor

I've been looking for couple days on a diagram but everyone I looked at was in a different spot I couldn't find.

I'm gonna go outside and see if it's there.

ThaBearjew6989 · Post by **ThaBearjew6989** » 22 Mar 2023, 20:17

Found it, the vacuum hose was disconnected but sensor has no signal so I got to test the map connector and the map itself using a code reader

Thanks again for the diagram and response.

Post by **bmdubya1198** » 22 Mar 2023, 22:01

ThaBearjew6989 wrote: ↑22 Mar 2023, 20:17 Found it, the vacuum hose was disconnected but sensor has no signal so I got to test the map connector and the map itself using a code reader

Thanks again for the diagram and response.

Glad you got it figured out!

SOURDOUGHJIM · Post by **SOURDOUGHJIM** » 26 Nov 2024, 09:02

'04 V70, after changing oil and a dump and fill on the trans, CEL came on. Still runs OK with a slight hunting at idle. Oreillys read the code for me, P2227, MAP sensor. I bumped the hose off the manifold while filling/checking the trans. Thanks to bmdubya for the MAP sensor drawing!

SteveOV70 · Post by **SteveOV70** » 08 Jun 2025, 11:15

Hey can someone tell me in that diagram what #14 is? I don’t think Iv never noticed that b4 on the left side
Of my engine? Also where does #17 go? It’s just randomly there on the print lol. And laaaaastly does anyone know if there MAP sensor the hose that come directly off the MAP sensor does that have a clamp? Or is it just there holding on by itself?

Post by **bmdubya1198** » 08 Jun 2025, 20:20

SteveOV70 wrote: ↑08 Jun 2025, 11:15 Hey can someone tell me in that diagram what #14 is? I don’t think Iv never noticed that b4 on the left side
Of my engine? Also where does #17 go? It’s just randomly there on the print lol. And laaaaastly does anyone know if there MAP sensor the hose that come directly off the MAP sensor does that have a clamp? Or is it just there holding on by itself?

It's this part https://www.volvopartswebstore.com/prod ... 31288.html

SteveOV70 · Post by **SteveOV70** » 09 Jun 2025, 10:19

Hey thanks much appreciated

SteveOV70 · Post by **SteveOV70** » 17 Jun 2025, 10:34

Hey does anyone have a wire diagram for the cam position sensor? I Tryed a search and nothing came up?, mines a 04 V70 2.4 FWD
