Mine has Yellow & Yellow/White for the middle connector.
Which wire goes to pin (#1 or #2) for "in" ?
I searched, but some shows Yellow on pin 1. Some pictures show Yellow/White on pin 1.
New connector is on the way, but want to figure it out.
99 V70XC Fan Control Relay. Wire colors
-
PatternFlyer
- Posts: 133
- Joined: 09 Jun 2008, 01:59
- Year and Model: 99 V70 XC
- Location: Pittsburg, KS
- Has thanked: 6 times
- Been thanked: 7 times
- Attachments
-
-
PatternFlyer
- Posts: 133
- Joined: 09 Jun 2008, 01:59
- Year and Model: 99 V70 XC
- Location: Pittsburg, KS
- Has thanked: 6 times
- Been thanked: 7 times

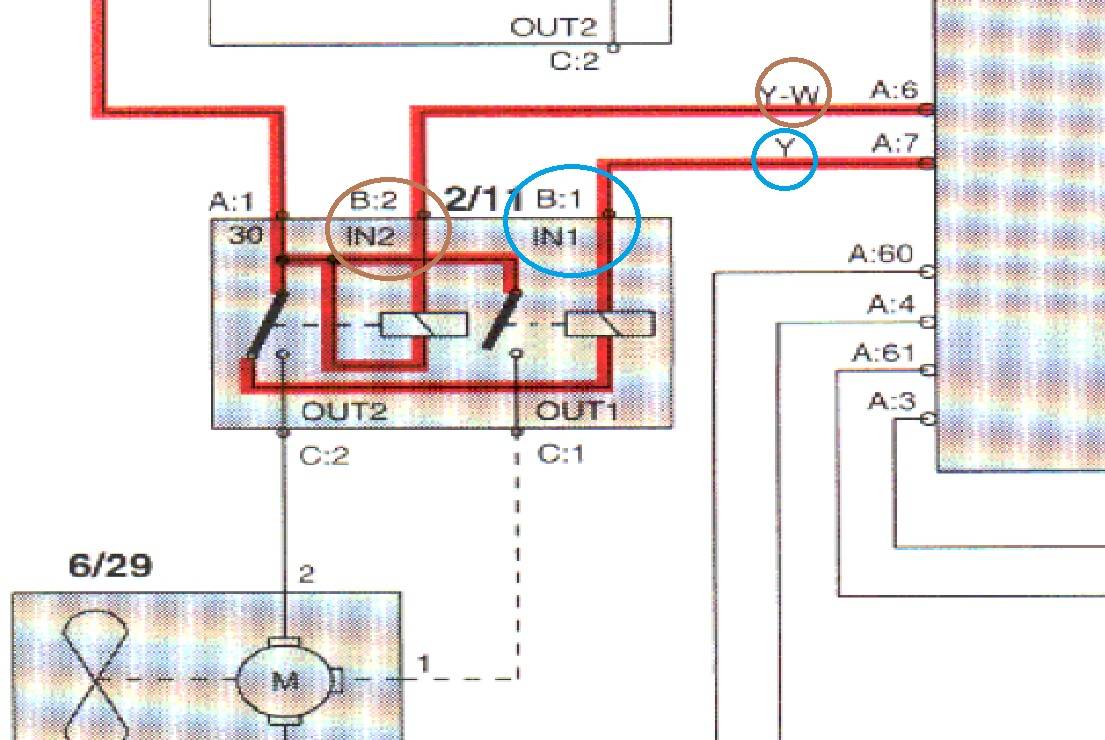

I think I found the correct color.
Pin 1 is Yellow
Pin 2 is Yellow/White
Pin 1 is Yellow
Pin 2 is Yellow/White
- Attachments
-
- FanControlRelay-Wiring.jpg (104.25 KiB) Viewed 200 times
-
abscate
- MVS Moderator
- Posts: 36140
- Joined: 17 Feb 2013, 17:54
- Year and Model: 99: V70s S70s,05 V70
- Location: Port Jefferson Long Island NY
- Has thanked: 1609 times
- Been thanked: 4064 times
That looks like the 1998 diagram? In 1999 the wire colours and pin assignments to the ECU are different between DENSO and ME7 engine management. Your XC will have ME7 , please confirm
Here is the 1999 story…
Here is the 1999 story…
- Attachments
-
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread
-
PatternFlyer
- Posts: 133
- Joined: 09 Jun 2008, 01:59
- Year and Model: 99 V70 XC
- Location: Pittsburg, KS
- Has thanked: 6 times
- Been thanked: 7 times
I got the diagram from service manual 3941202 Section 3 for the wiring of 99 C/S/V70.
Denso is for non turbo. So, mine should be ME7 as it also is listed as ME7 at my IPD account.
Denso is for non turbo. So, mine should be ME7 as it also is listed as ME7 at my IPD account.
-
