P3 XC70 battery cover mislabeled

Post Reply
User avatar
matthew1
Site Admin
Posts: 14799
Joined: 14 Sep 2002, 11:03
Year and Model: 850 T5, 1997
Location: Denver, Colorado, US
Has thanked: 2854 times
Been thanked: 1332 times
Contact:
Contact matthew1
..

Post by matthew1 »

Both photos down = front of car. Notice the battery symbol on the cover shows ground = front of car, but positive is actually toward front of car. I checked my XC70 against photos on the wider Internet and they confirmed that my sample is factory correct in battery orientation. So what gives?

Is this just a symbol meaning "battery under this"?

Screenshot 2026-07-19 at 11-53-40 Photo - Library - iCloud Photos.png
Screenshot 2026-07-19 at 11-53-40 Photo - Library - iCloud Photos.png (663.86 KiB) Viewed 1645 times

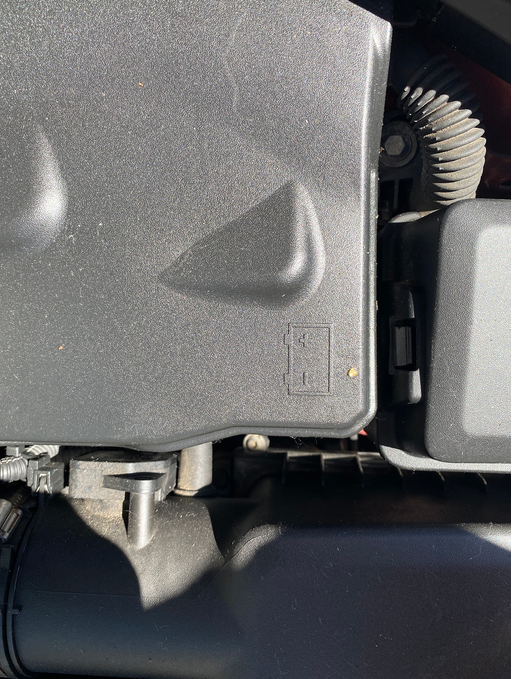

Screenshot 2026-07-19 at 11-53-59 Photo - Library - iCloud Photos.png
Screenshot 2026-07-19 at 11-53-59 Photo - Library - iCloud Photos.png (745.35 KiB) Viewed 1645 times
Help keep MVS on the web -> click sponsors' links here on MVS when you buy from them.

Also -> Amazon link. Click that when you go to buy something on Amazon and MVS gets a cut!

1998 V70, no dash lights on

1997 850 T5 [gone] w/ MSD ignition coil, Hallman manual boost controller, injectors, R bumper, OMP strut brace

2004 V70 R [gone]

How to Thank someone for their post

Top
User avatar
volvolugnut
Posts: 6500
Joined: 19 Jan 2014, 09:51
Year and Model: 2001 V70
Location: Oklahoma USA
Has thanked: 987 times
Been thanked: 1075 times

Post by volvolugnut »

Yes, I think it is a generic battery symbol with no other information or direction on battery installation.
volvolugnut
The Fleet:
Volvo: 2001 V70 T5, 1986 244DL, 1983 245DL, 1975 245DL, 1959 PV544, multiple Volvo parts cars.
Mercedes: 2001 E320, 1973 280, 1974 280C, 1989 300E, 1988 300TE, 1979 300TD, parts cars.
2009 Smart Passion
Ford: 1977 F350, 1964 F150 (2), 1938 Tudor Sedan
Farmall tractors: 1956 400 Diesel, 1946 A
John Deere 214 lawn tractor about 1977 model
And others.
Top
Georgeandkira
Posts: 900
Joined: 07 Apr 2009, 08:24
Year and Model: '07 V70 + '15 XC70
Location: Hudson & Champlain Valleys, USA
Has thanked: 79 times
Been thanked: 71 times

Post by Georgeandkira »

51 days have passed since the above post.

The "battery under this" symbol on my 2015 P3 battery cover has no "+ or -" signs.
I have the cover for the H7 size battery (pn 31383949).
Also, my cover features no blisters as seen in the photo above. It is entirely smooth atop.

Perhaps the cover mated to the H6 battery (pn 31402984) includes the "+ and -" signs?
