Cable where does it attach

ericv199 · Post by **ericv199** » 31 Jul 2022, 11:55

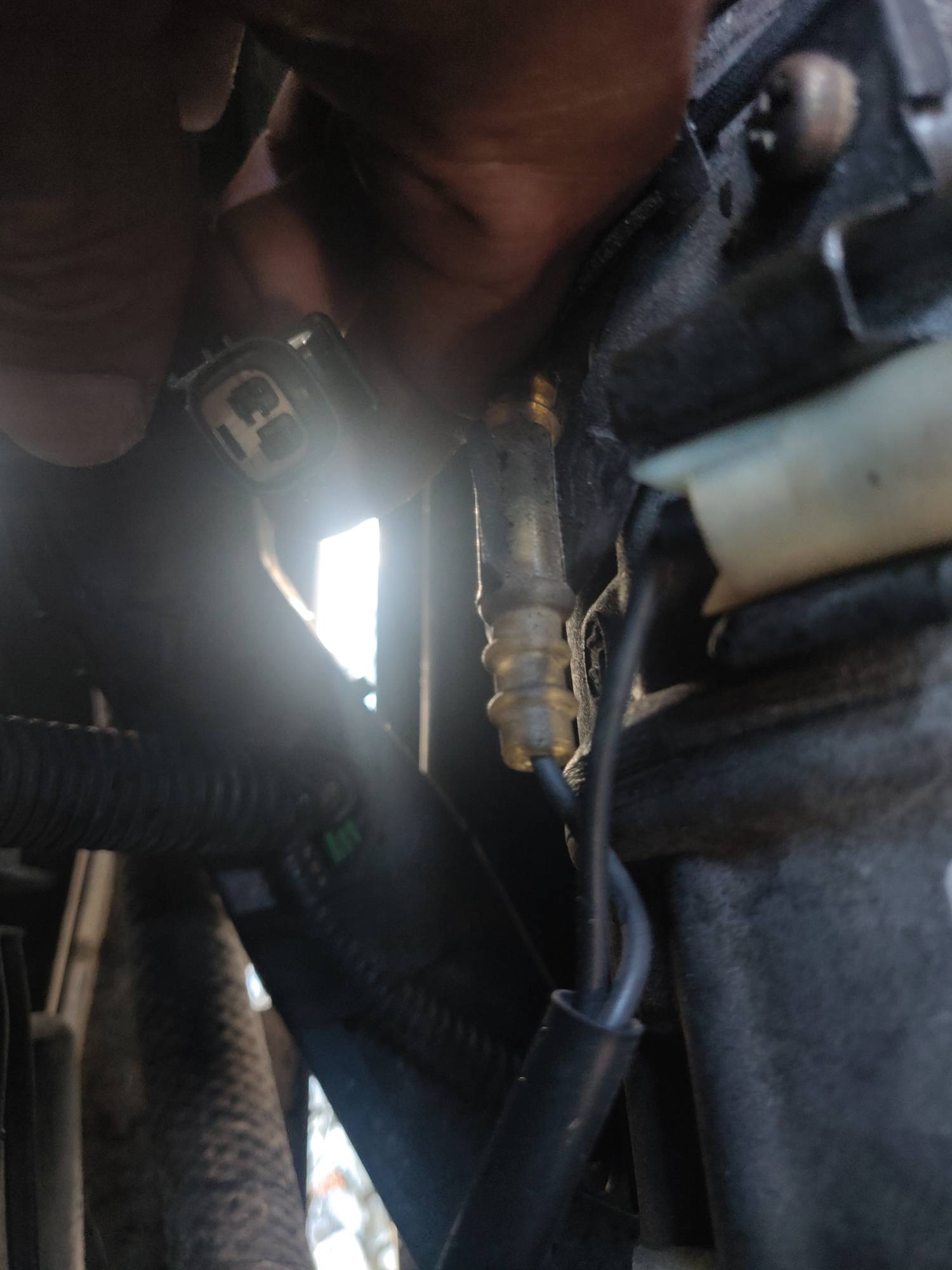

Putting back together my alternator and I have one cable that I have no idea where it came from. Please help.

Post by **abscate** » 31 Jul 2022, 12:12

Connection to the coolant temperature sender? Comes up behind the alternator.

ericv199 · Post by **ericv199** » 31 Jul 2022, 13:32

Where does it attach to I've been looking for an empty connector. But can't find one

ericv199 · Post by **ericv199** » 01 Aug 2022, 11:35

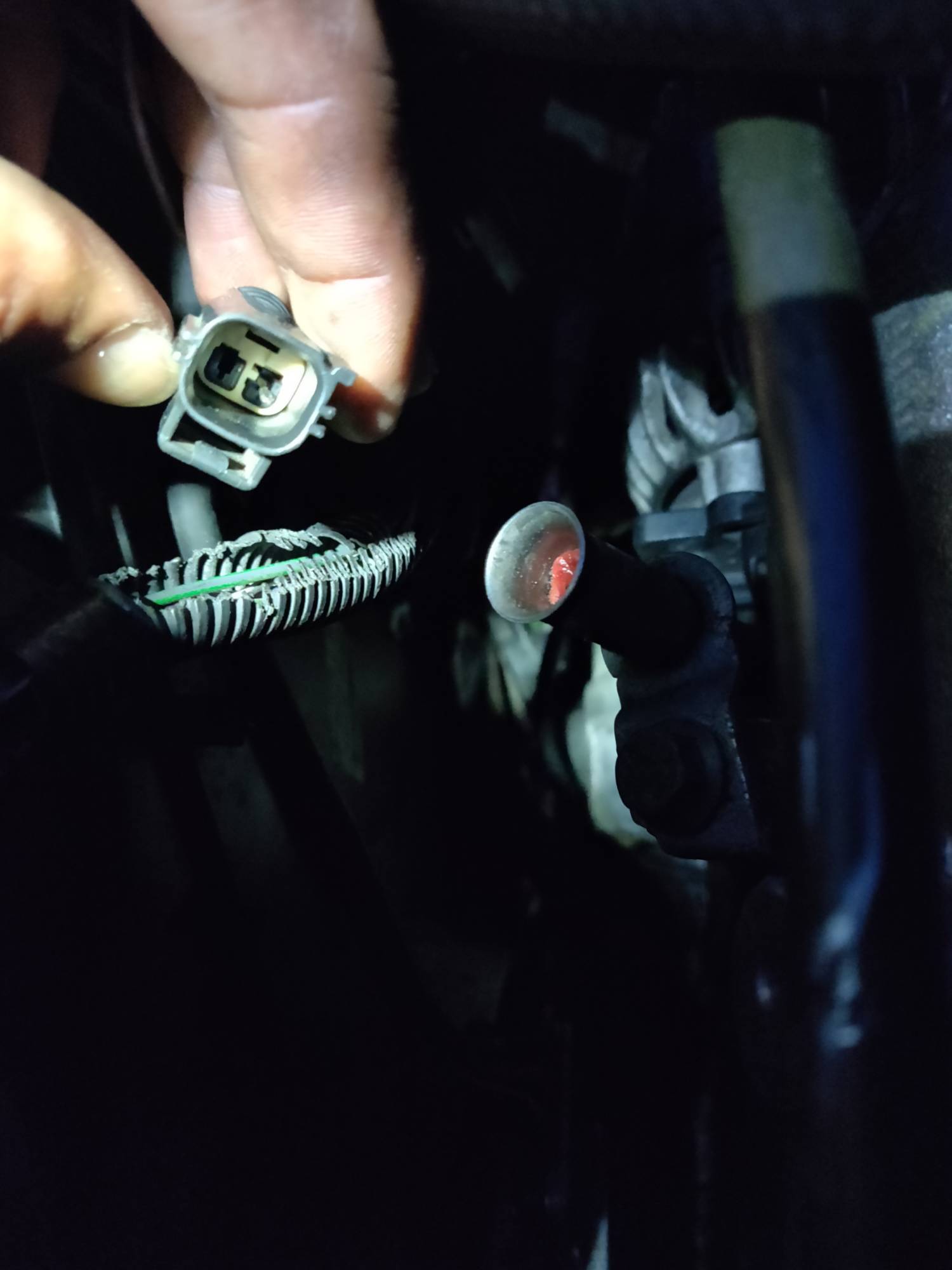

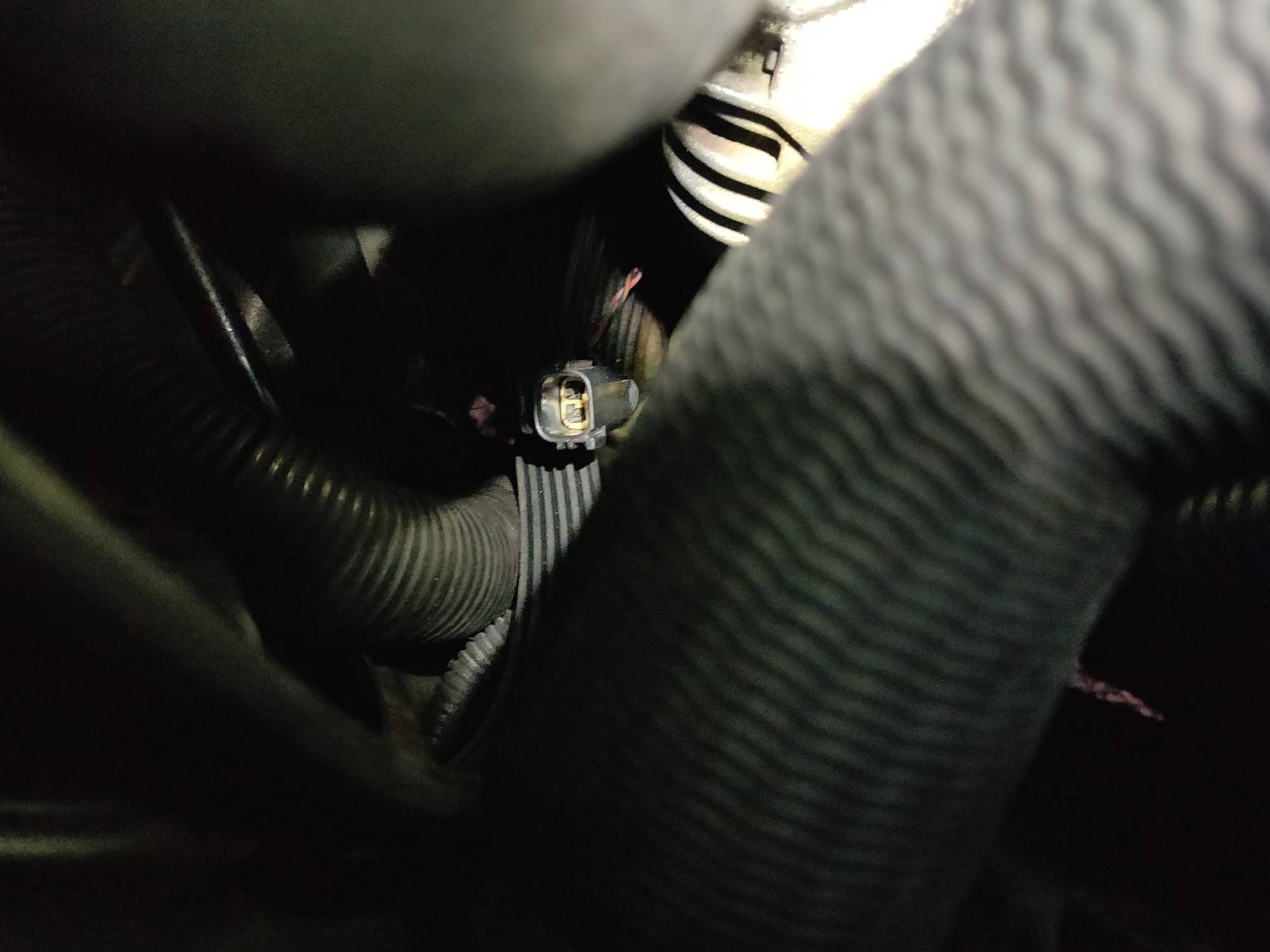

Also these..

Post by **packetfire** » 01 Aug 2022, 13:15

Describe the wire colors leading to each connector, and the closest component to where the cable dangles. This will help to locate the connector (by shape and # of conductors) on the wiring diagram, which includes each connector type, the harness layouts, and the connectors associated with each compontent.
Your own car's diagram is likely here:
https://web.archive.org/web/20110806081 ... g-diagrams

ericv199 · Post by **ericv199** » 01 Aug 2022, 16:16

packetfire wrote: 01 Aug 2022, 13:15 Describe the wire colors leading to each connector, and the closest component to where the cable dangles. This will help to locate the connector (by shape and # of conductors) on the wiring diagram, which includes each connector type, the harness layouts, and the connectors associated with each compontent.
Your own car's diagram is likely here:
https://web.archive.org/web/20110806081 ... g-diagrams

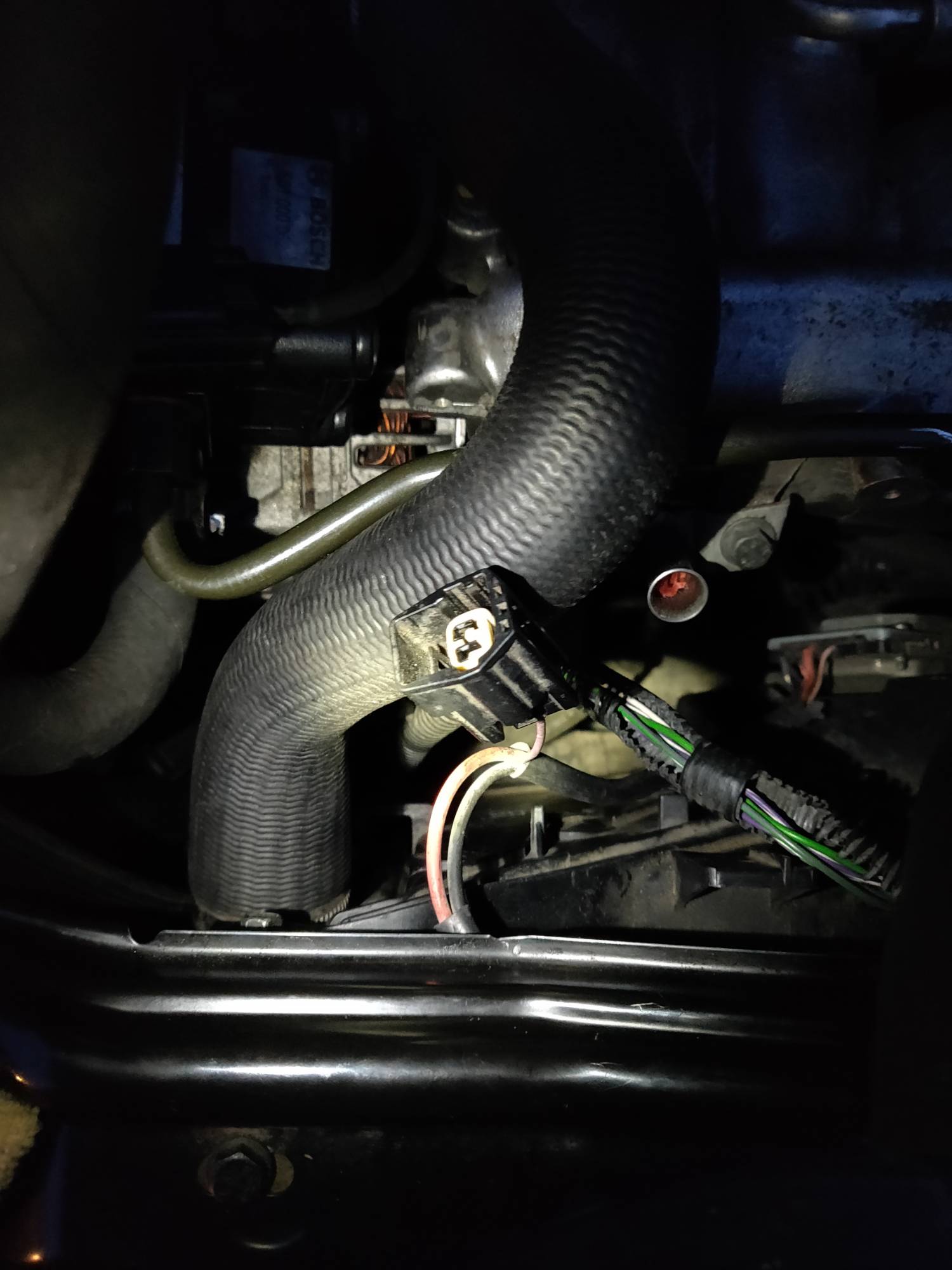

-One has purple wire/coming from harness
-black wire/on top near steering pump pulley
-faded pink or purple/coming from fan
-grey and multicolor red yellow grey/coming from backside of ac compressor
