How to close a stuck rear door window? Topic is solved

[scot850]

I went to see a S70 yesterday and while there found that one of the rear windows was stuck open. The owner's kid had been in the car and opened it and then they couldn't close it again.

I hoped it was an issue with the master switch but I went back with a new Switch Doctor one and a good used OE one. All had the same issue of not closing the window so I am assuming it is not the master switch. It is more likely a broken LF door wiring harness wire but I will try a rear door switch spare I have as a long shot.

Assuming none of this works, is there any way to power the motor with a direct feed from the battery to see if that will close it?

I could remove the door switch but need to know which pin to power. I could also remove the door multi-plug at the B pillar and and power the pin directly in the harness but again need to know which pin to power. I am not sure if that would work though as do you not need both switches to be linked for that to work? Maybe have to power from the door switch?

Appreciate any wisdom on this problem!

Neil.

[abscate]

If you pop out the rear door window switch putting 12 volts onto Rw and green wires that go to pins 4,5 ( center two pins on the row of four spades) will direct connect to the motor

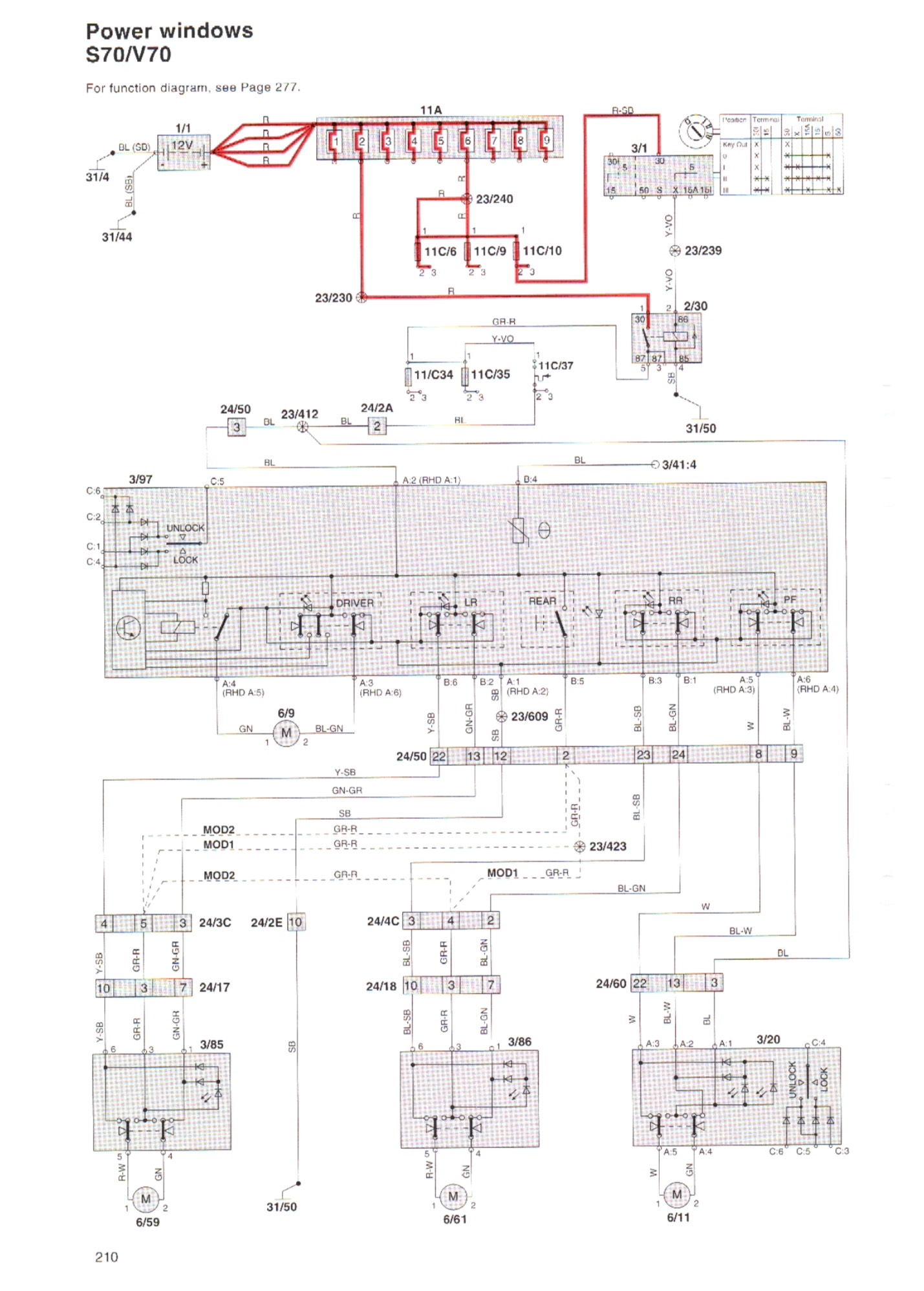

From VIDA

[BEJinFbk]

The motor is connected directly to the local switch.
Unplug the switch and you have two leads direct to

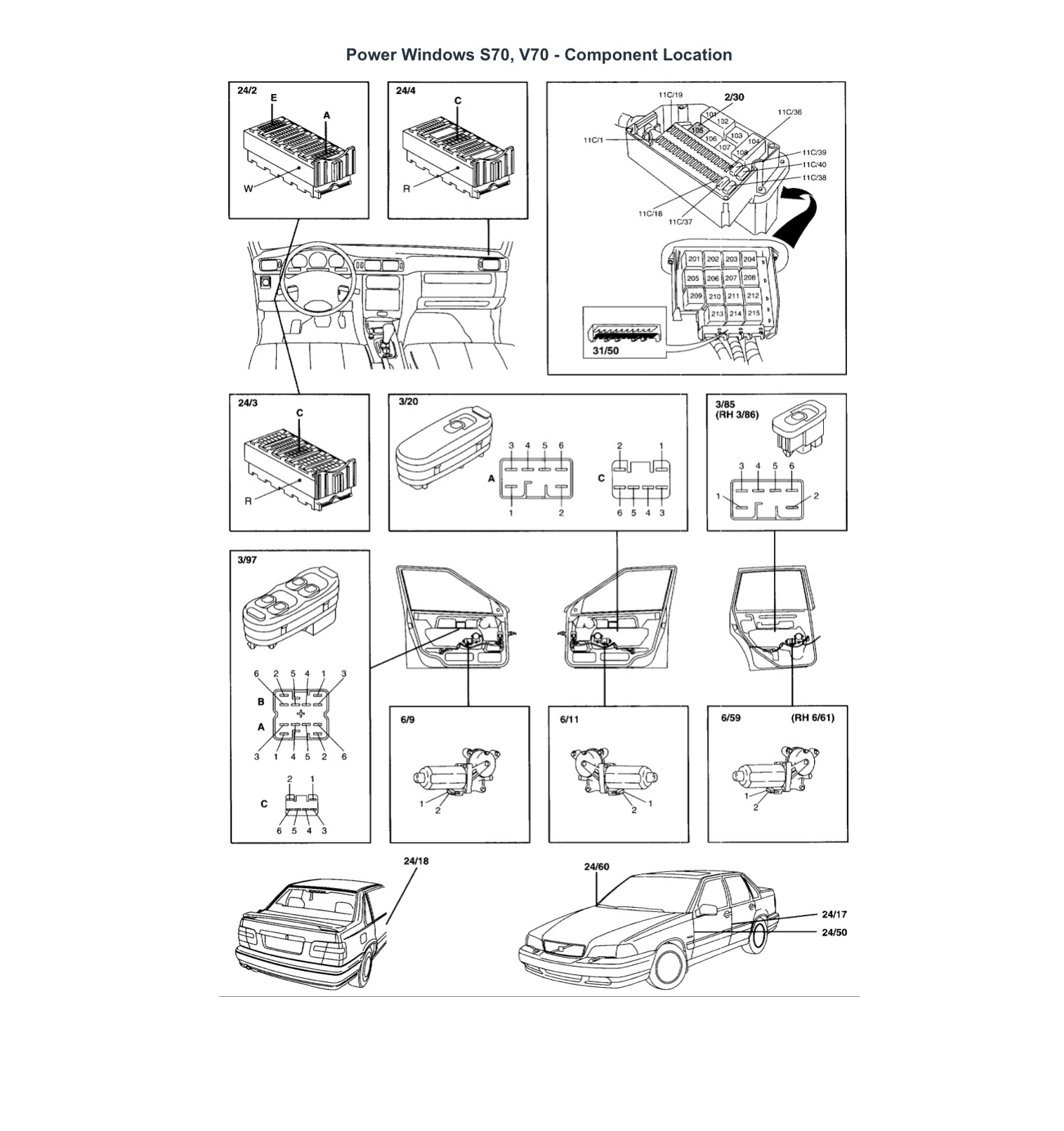

the window motor. Here’s the diagram.


[scot850]

Thanks guys, but you need to please dumb this down further for me as my brain cell absorbs the info!

SOOOO, if I disconnect the switch from the connector on the back, and hot wire pins 4 + 5 at the same time then I would be direct powering the motor. Assuming it is not the motor, then there is a chance to close the window.

So if I run a wire directly from the battery +ve side and bridge pins 4 + 5 that is all I need to do? From the diagrams you both have kindly added, as BJ says, there appears to be a direct power feed to pin #1. If that is correct to my understanding then jumping pin#1 to 4 + 5 should then close the door and the master switch should be out of the picture, is that correct?

As BJ says, if there is direct power to the rear switch, then the master switch should have no effect on operation assuming the override switch in not in the OFF position. Power must then go directly to the master switch or otherwise how does the OFF switch control the rear window switch on the rear door to prevent it opening?

I did try to see if switching the OFF/ON control made any difference and it did not. If that control wire is a broken wire then depending how it works would that kill power to the rear?

Thanks,

Neil.

[abscate]

You are going to ..

Pop up the window switch from the door

Pull the connector off the switch so it is loose from the switch, completely.

Now look at the fine print and find the number 4 and 5 terminals in the connector. It will be the middle two in the row of four, but confirm.

Then confirm again that the wires to these are one Red white, one green

YOur battery will connect direct to these two terminals, pos to one, negative to the other, The motor will run one direction, and you reverse the pos and neg to turn it in the other directiion.

[scot850]

Thanks for simplifying to my level abscate! That will by-pass the master switch totally. At least from this if I can get the window shut I can diagnose the issue later if required. I am helping the owner currently. Lovely family and he is very busy and has been out of town. He really appreciates the help as it is his Dad's car so doesn't want it scrapped, but to go to a good home. Still too much cost for me to justify. Needs brakes all around, timing belt and as it will be the 3rd, I have taken your info into account, but if mine I would replace the pump for piece of mind. Then needs all fluids, thermostat, plugs, possibly coils, and that is assuming replacing #1 cylinder coil gets all 5 cylinders running again! Then there are the cosmetics like the disintegrating door panels that need re-glued. Amazingly, no ABS light (yet)!

I have not even been under the car to check the 'oil' leaks purported from the engine and transmission. Needs an oil cap seal at least and not even tried the rubber glove yet!

Neil.

[BlackBart]

Just a contrary thought here, and maybe you’re way past this -

Is there any motor noise grinding in the door? Clicking? Could it be not the switch but a motor failure? (Rear windows don’t get the use the drivers would, but...)

[MoVolvos]

I went to see a S70 yesterday and while there found that one of the rear windows was stuck open.
Neil.

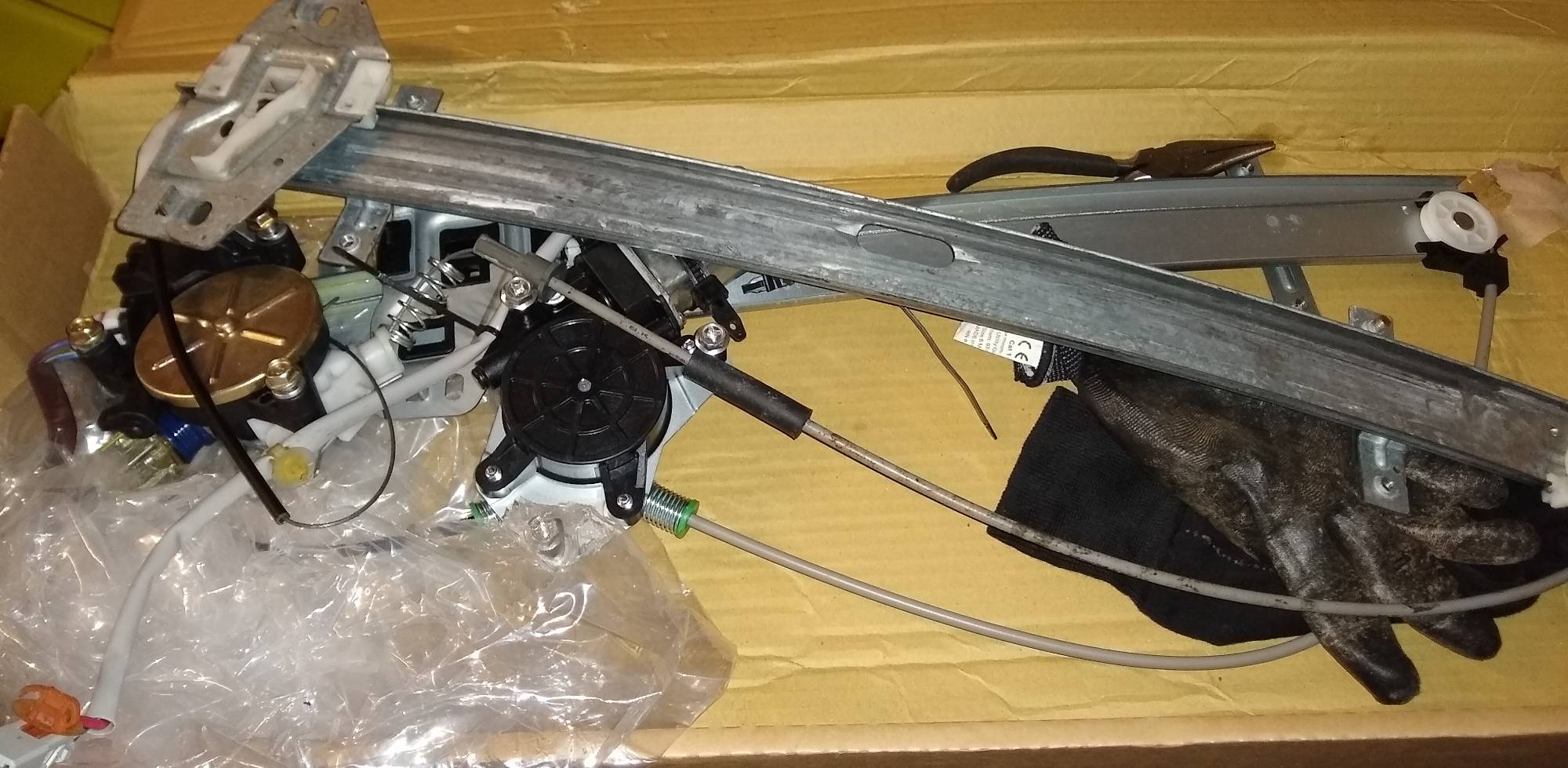

A crude video but if all window regulators have just 2 pins from the motor... Trying to find time to replace the 03 Odyssey passenger regulator.

.


.

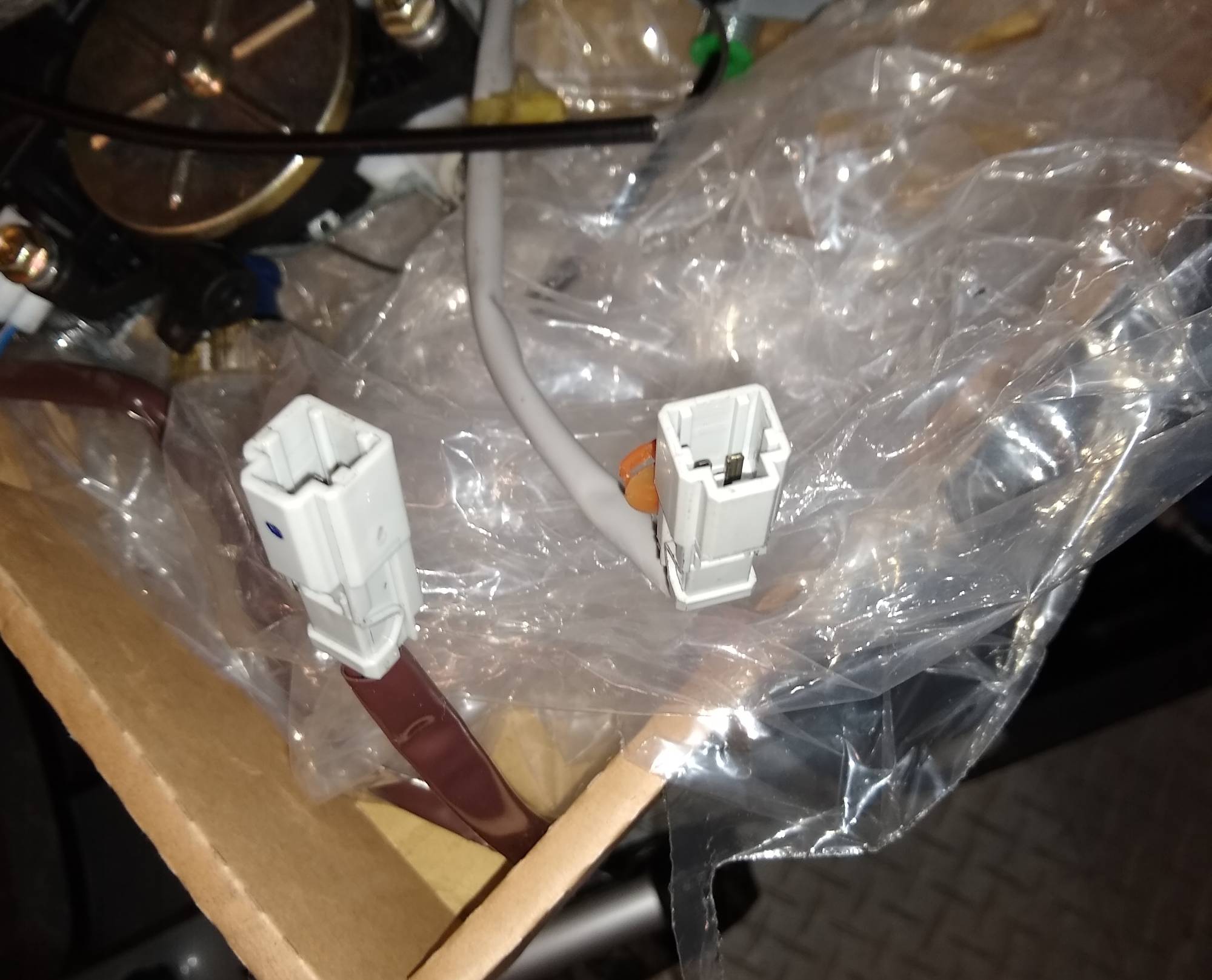

Regulator Plug 1.jpg (454.82 KiB) Viewed 366 times

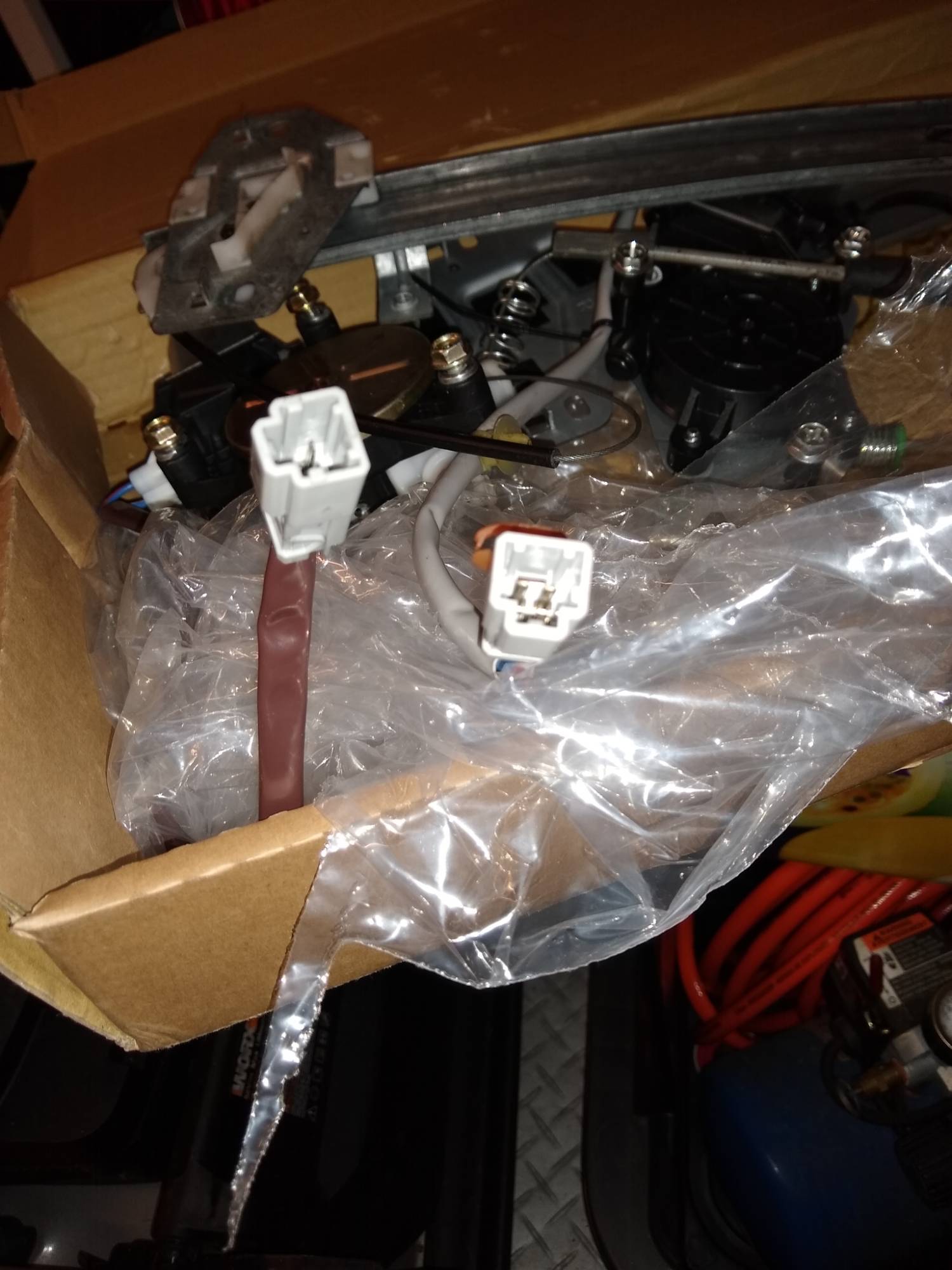

Regulator Plug 2.jpg (445.47 KiB) Viewed 366 times

.

[scot850]

Thanks guys for the replies.

Blackbart - There are absolutely no noises whatsoever, hence wanting to try a direct power to the window. The motor worked enough for the owners little guy to open it but then would not close. Now nothing from either front or rear door switch to the rear motor.

Mo Volvos - Thanks for the simplifying for me. Abscates note is also great as I now know which pins to operate. I don't like removing the door switch without removing the panel but already know the drivers' door panel has separated from many of the mounts as the 98-00 of this age are prone to do. Chances are the rear will do the same for me!

Neil.

[abscate]

A battery charger , especially a newer smart one, might not work as a DC supply. If you use a battery, a 10 amp fuse in the positive lead can stop a day going from good to bad.
