1998 1999 2000 awd torque tube driveshaft part numbers variations

Post by abscate »

Will tabulate info here in text

Application

S70 awd 1999 2000
V70 awd 1998 1999 2000

I don’t believe the s70 1998 came in awd?
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread
Top
User avatar
abscate
MVS Moderator
Posts: 35289
Joined: 17 February 2013
Year and Model: 99: V70s S70s,05 V70
Location: Port Jefferson Long Island NY
Has thanked: 1502 times
Been thanked: 3817 times

Post by abscate »

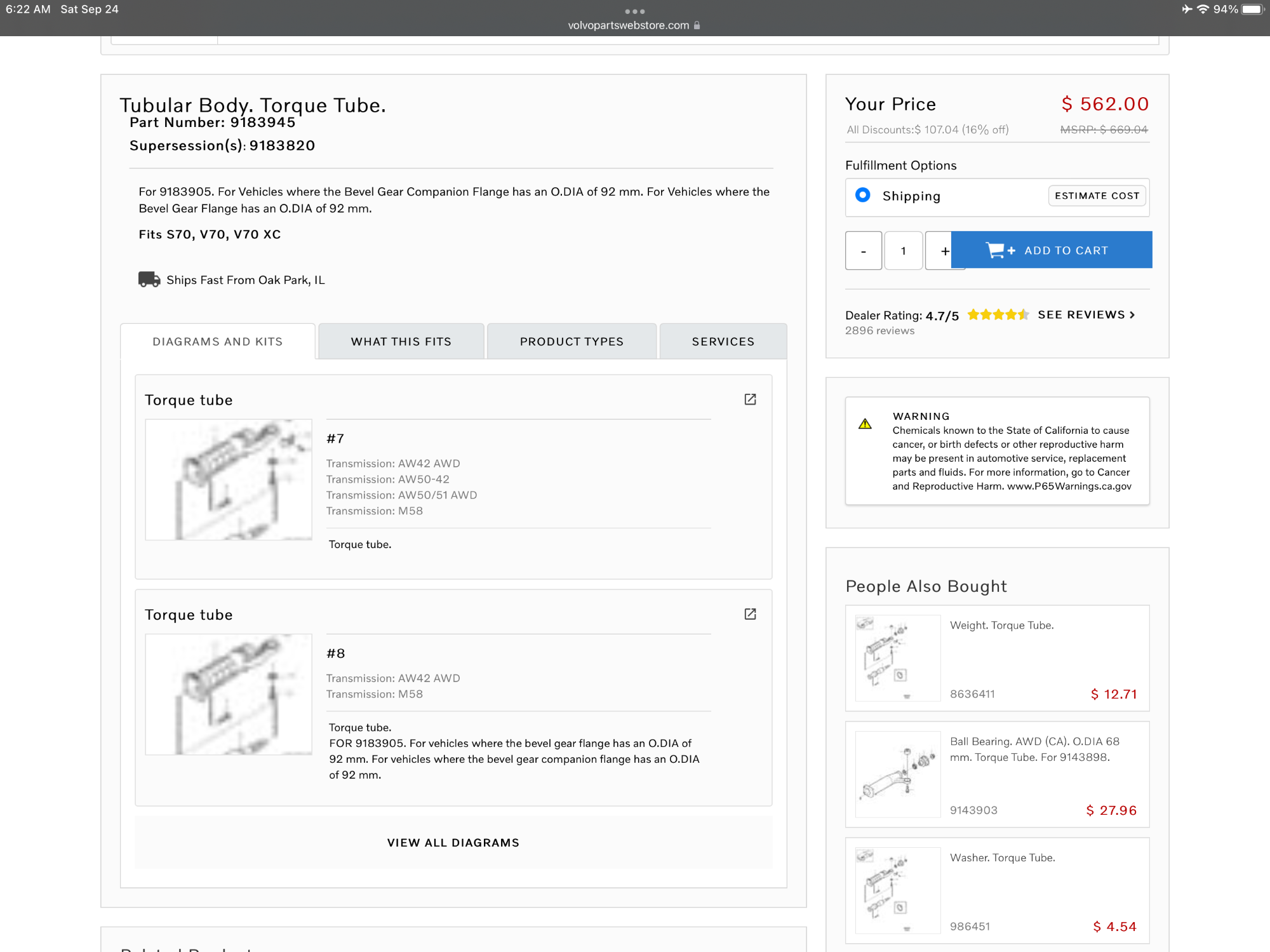

1998 version has92mmor 95mm flange diameter options
Attachments
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread
Top
User avatar
abscate
MVS Moderator
Posts: 35289
Joined: 17 February 2013
Year and Model: 99: V70s S70s,05 V70
Location: Port Jefferson Long Island NY
Has thanked: 1502 times
Been thanked: 3817 times

Post by abscate »

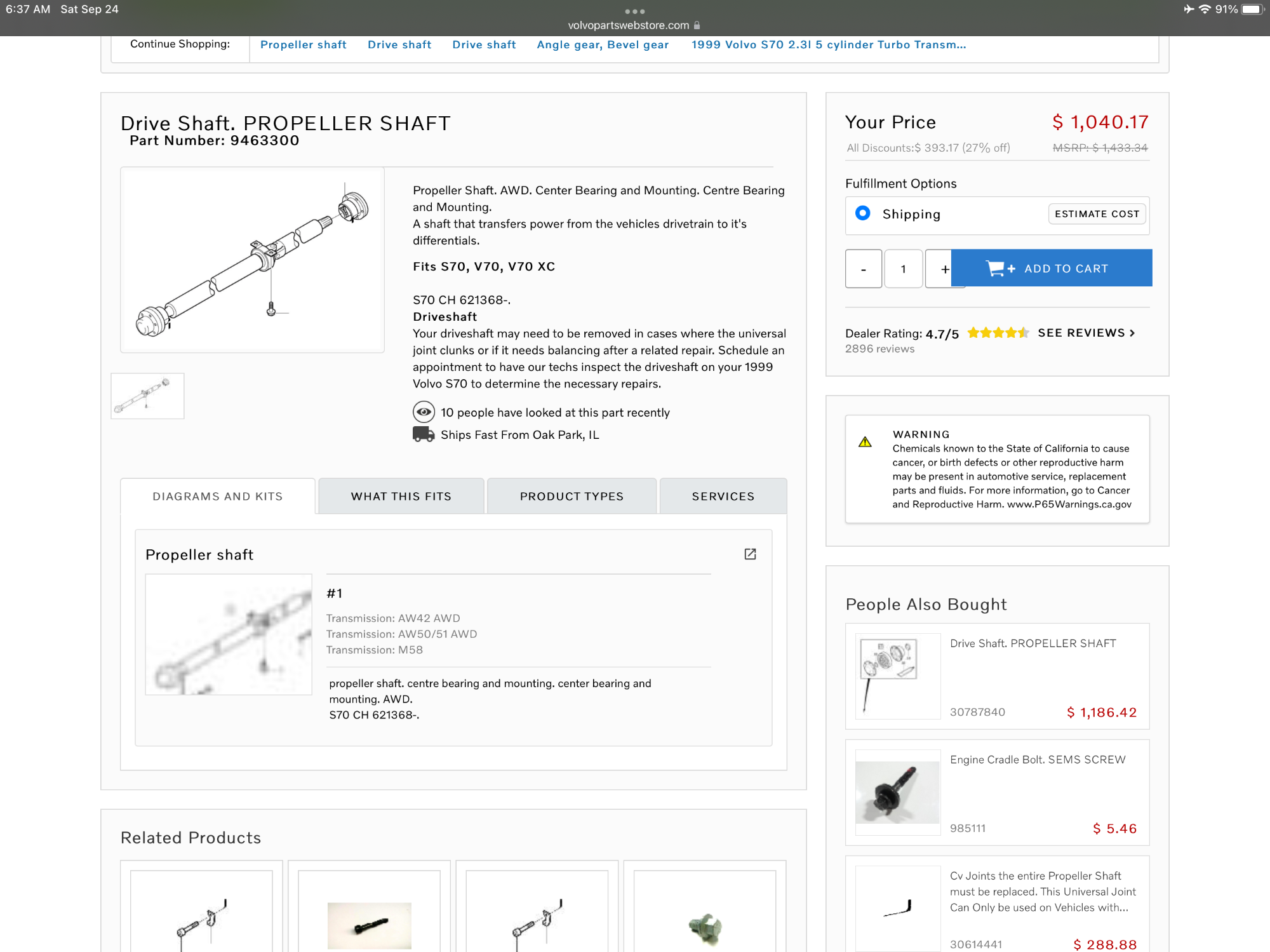

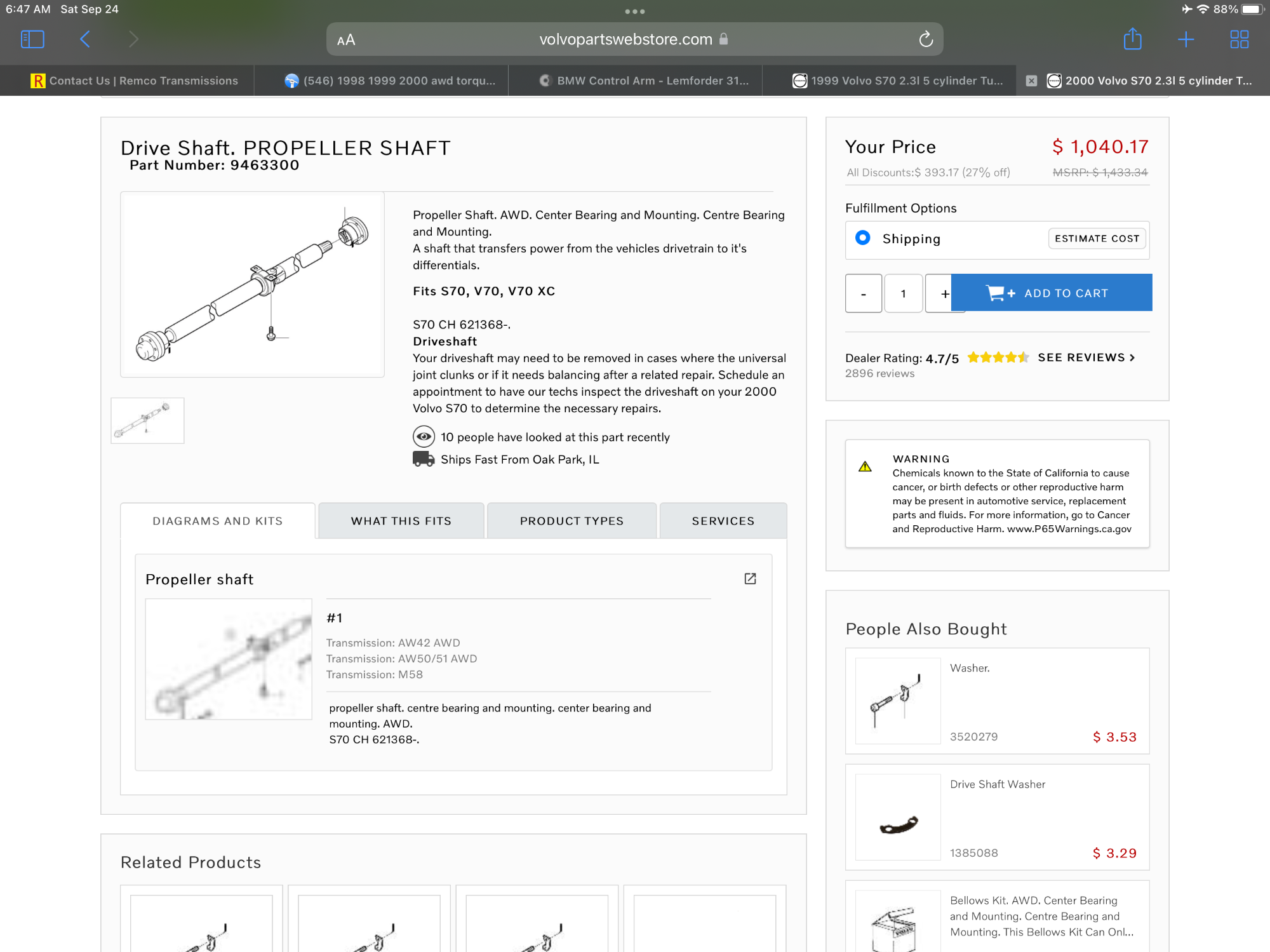

1999 propeller shaft late chassis break
Attachments
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread
Top
User avatar
abscate
MVS Moderator
Posts: 35289
Joined: 17 February 2013
Year and Model: 99: V70s S70s,05 V70
Location: Port Jefferson Long Island NY
Has thanked: 1502 times
Been thanked: 3817 times

Post by abscate »

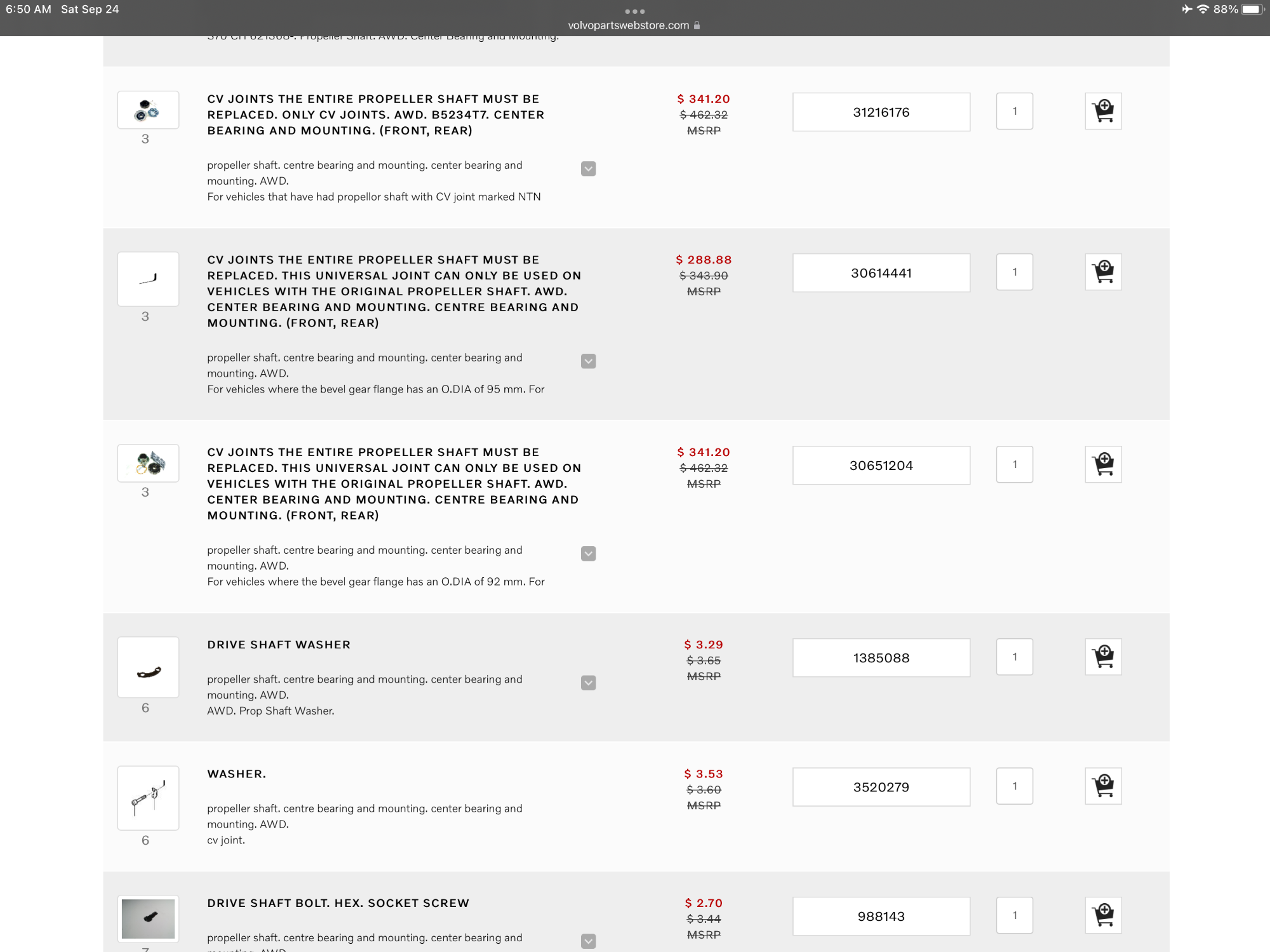

Propellor shaft options, cv joints
Attachments
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread
Top
User avatar
abscate
MVS Moderator
Posts: 35289
Joined: 17 February 2013
Year and Model: 99: V70s S70s,05 V70
Location: Port Jefferson Long Island NY
Has thanked: 1502 times
Been thanked: 3817 times

Post by abscate »

Picture of two f the variants
