Help Identifying This Part!!

Post by itsa45dude »

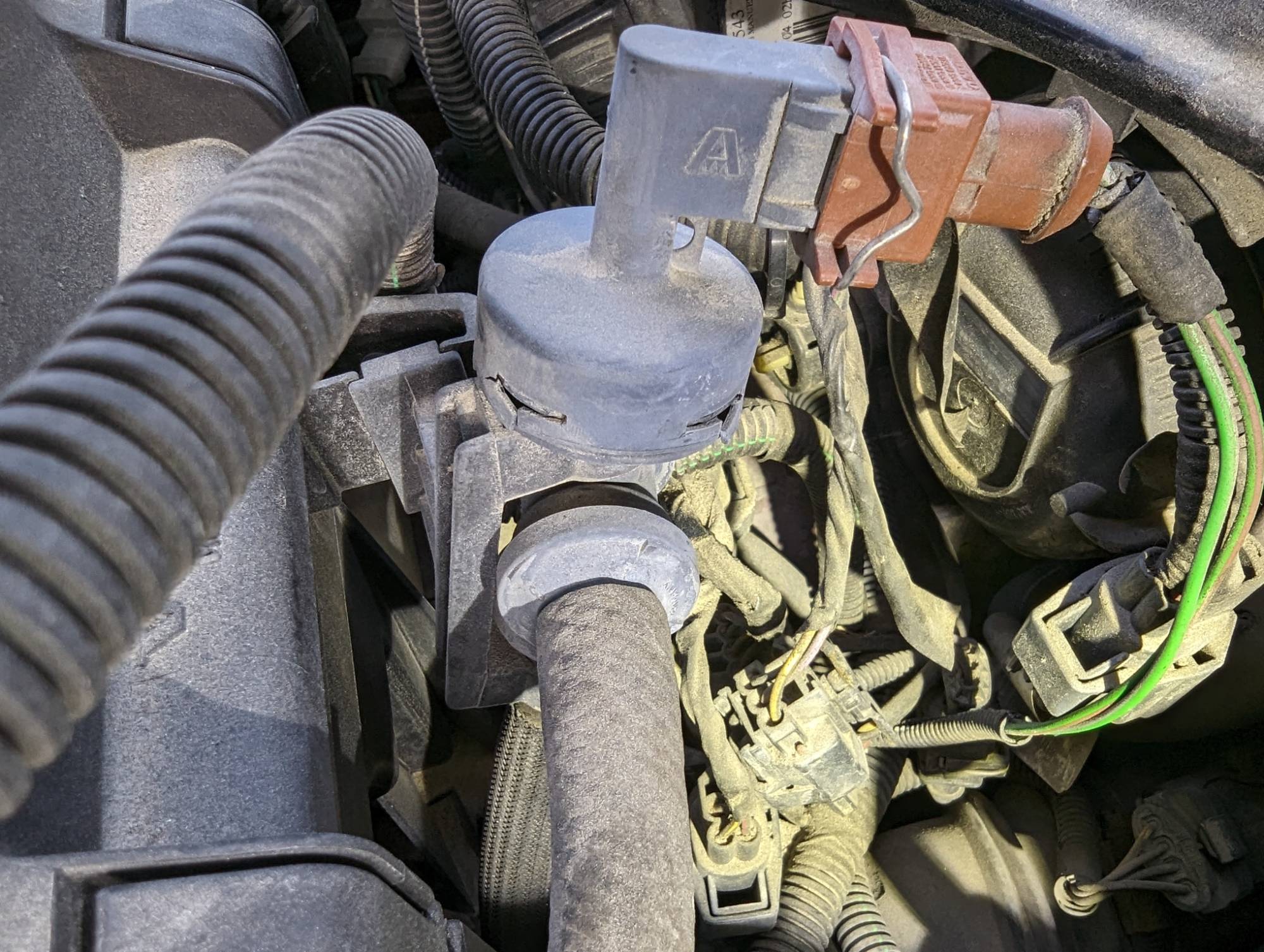

Working on this Volvo 2004 XC70 and found this part broken. I think it's part of the EVAP system, but I can't find any part that looks remotely like it! Any help would be greatly appreciated.
Top
cn90
Posts: 8251
Joined: 31 March 2010
Year and Model: 2004 V70 2.5T
Location: Omaha NE
Has thanked: 4 times
Been thanked: 466 times

Post by cn90 »

Search forum for vacuum pump.

Just a small crack, if it still works, just leave it alone.
2004 V70 2.5T 100K+
2005 XC90 2.5T 110K+
Top
cuhfs
MVS Moderator
Posts: 645
Joined: 31 August 2011
Year and Model: 850,XC70,XC90,S60,80
Location: New Jersey
Has thanked: 17 times
Been thanked: 28 times

Post by cuhfs »

Volvo Booster Vacuum Switch - Genuine Volvo 31400692
04 C70 Convert Auto
06 XC90 Auto (ORE) #401/800
06 S80
05 S80
12 S60
04 XC70 Auto (Parts car)
96 850 Wagon Manual Trans & 98 V70 (gone)
95 850 Sedan Auto Trans (gone)
04 XC70 Auto (gone)
04 C70 Convert (gone)
01 C70 Convert Manual Trans (gone)
Top
scot850
Posts: 14864
Joined: 5 April 2010
Year and Model: 2000 V70 R
Location: Calgary, Alberta, Canada
Has thanked: 1836 times
Been thanked: 1709 times

Post by scot850 »

Use a zip-tie around it and pull it tight.

Neil.
2006 V70 2.5T AWD Polestar tune
2000 V70 R - still being an endless PITA
2006 XC70 - Our son now has this and still parked in our garage
2003 Toyota 4Runner V8 Limited
2015 Kia Sportage EX-L - Sold
1993 850 GLT -Sold
1998 V70 XC - Sold
1997 Volvo 850 SE NA - Went to niece in California - Sold
2000 V70 SE NA - Sold
Top
User avatar
abscate
MVS Moderator
Posts: 35272
Joined: 17 February 2013
Year and Model: 99: V70s S70s,05 V70
Location: Port Jefferson Long Island NY
Has thanked: 1497 times
Been thanked: 3810 times

Post by abscate »

scot850 wrote: ↑06 Oct 2023, 19:46 Use a zip-tie around it and pull it tight.

Neil.

See above. That’s important. When it flies apart you either have no brake vacuum assist or you burn out the pump , which is expensive
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread
Top
THAI UNG
Posts: 36
Joined: 7 September 2013
Year and Model: 2007 V70 2.5T
Location: Los Angeles
Been thanked: 4 times

Post by THAI UNG »

Did this almost 5 years ago when one clip broke and it still holds, hope this helps…
Top
