Friend told me I'm a bull in a china shop when it comes to any type of repairs as I tend to break things. Wanted to see if I could remove the DIM without breaking any tabs or other plastics so took a little more time. Instead of paying the $150 to send it out he will be doing the soldering per last video at the bottom.
He's into electronics, computers and is also an electrician. Said shouldn't be too difficult but we are going to remove the 03 S80 T6 DIM as it just went out recently although the car has sat for over 2 years with a bad transmission.
.
Put pressure on the side and push up rather than using a bone tool. Worked well for both sides. It wasn't as easy as the video below as it looks like no one has ever removed these pieces before.
.
- DIM 1.jpg (459.35 KiB) Viewed 623 times

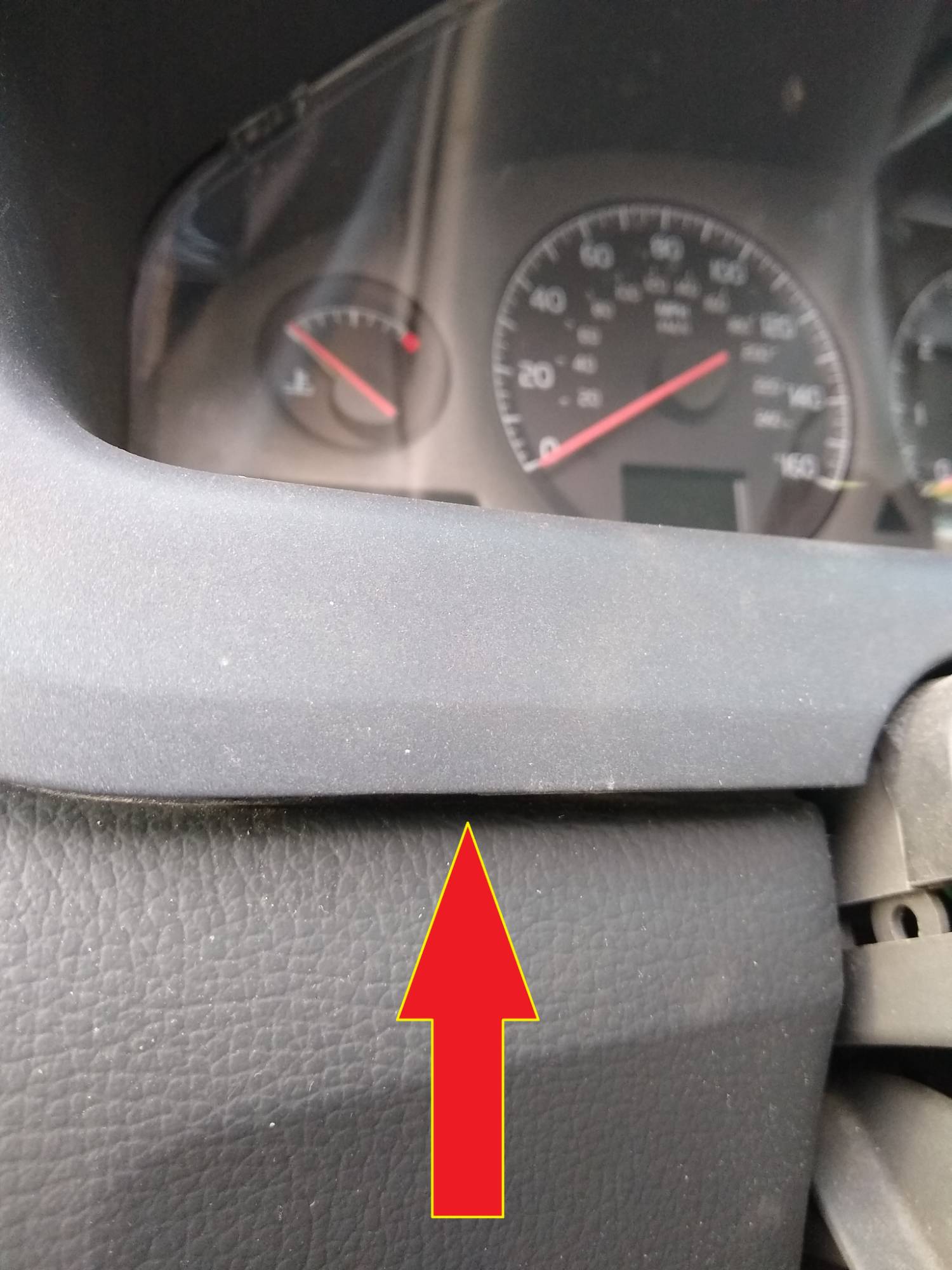

There are 5 clips on the cover. First pry bottom out slightly as the dash cover pulls straight out. Someone in a video showed he broke the Odometer Reset due to pulling the top out first and angling / pull up the bottom section out.
.
- DIM 2.jpg (462.19 KiB) Viewed 623 times
I tried pulling the inner upper and edge with my hands, gloves provided some grip, rather then denting the dash with a bone tool.
.
- DIM 3.jpg (414.15 KiB) Viewed 623 times

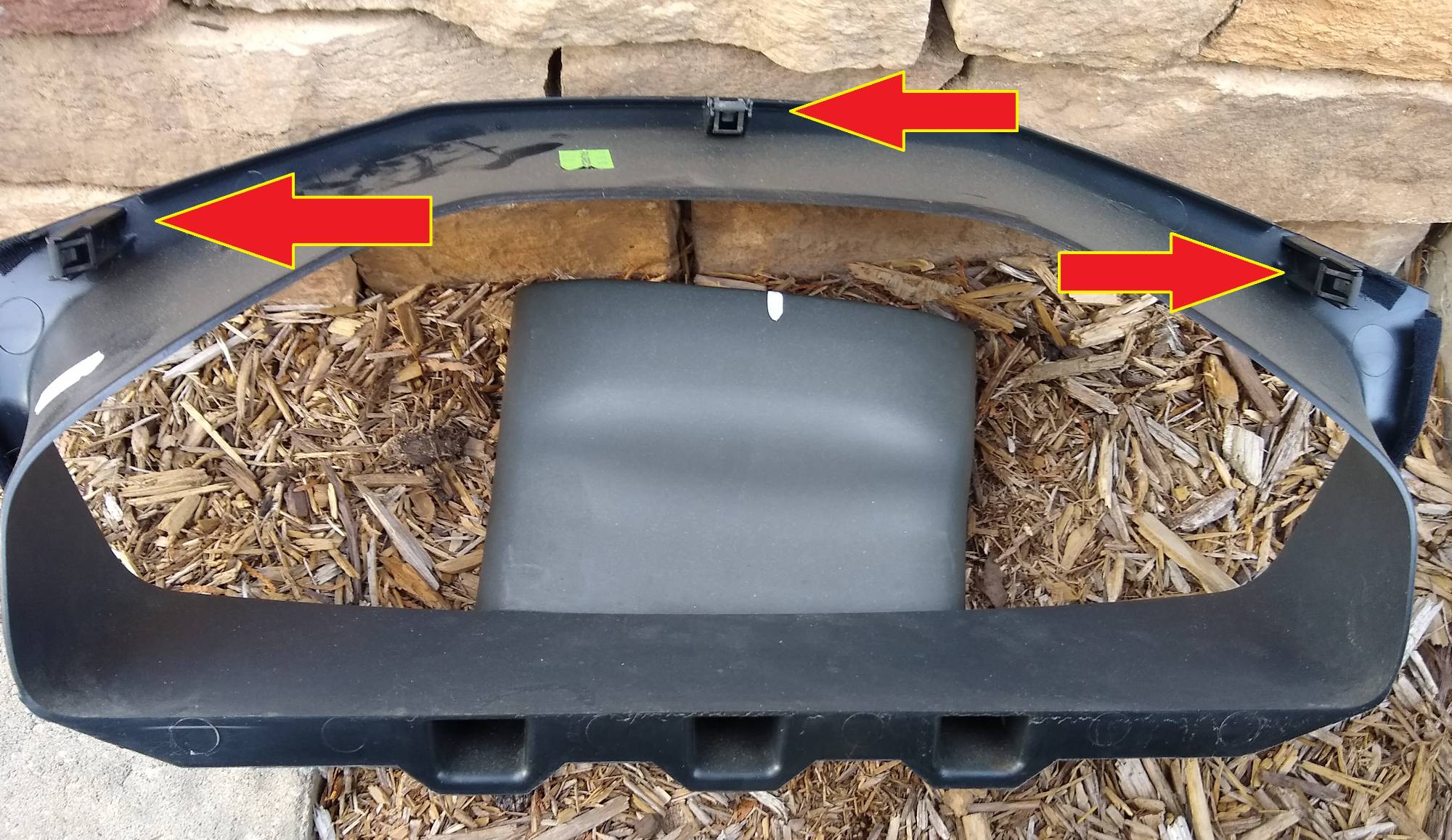

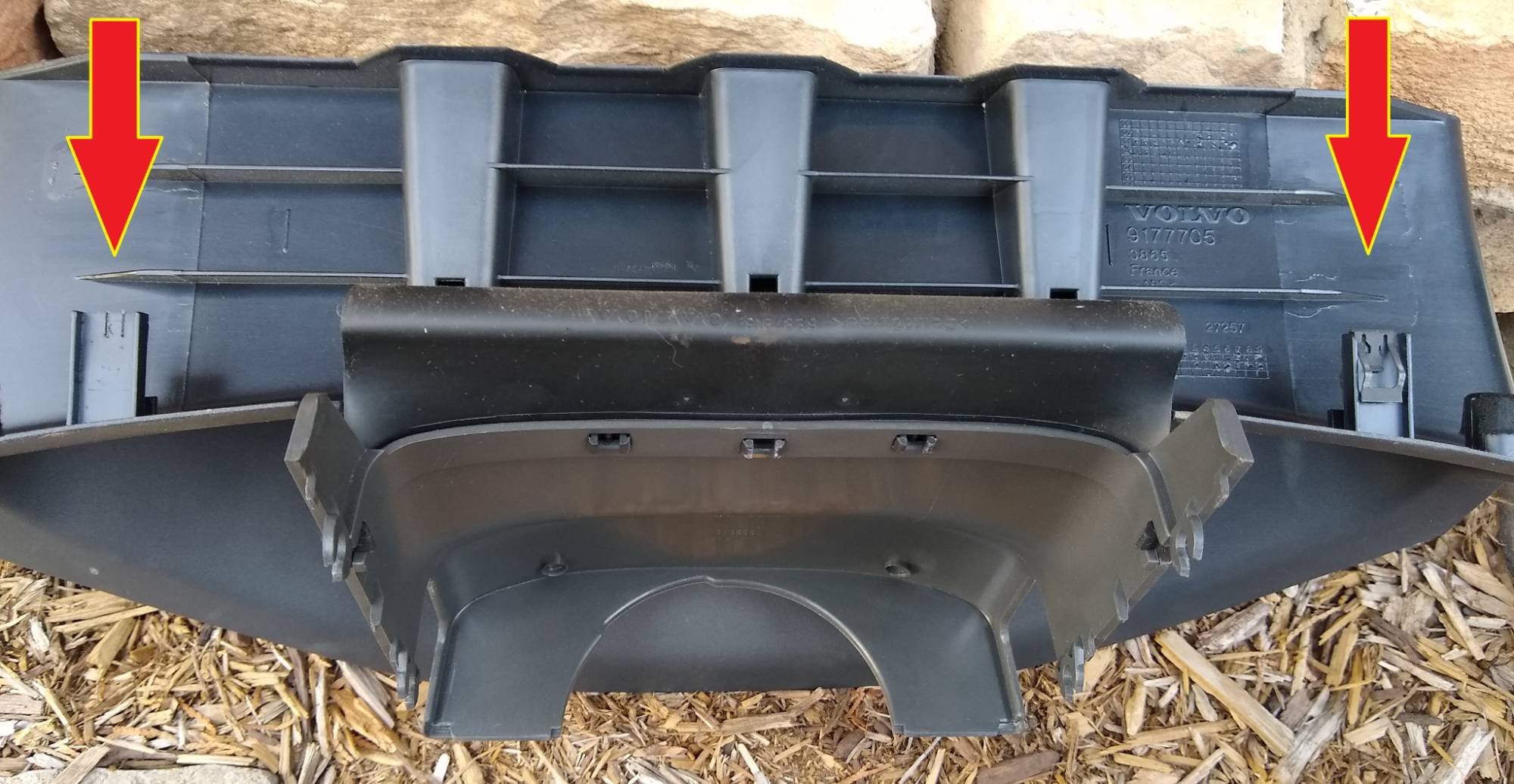

The 5 tabs and top of the steering cover are one piece. Didn't look carefully if they can be separated.
.
- DIM 4.jpg (469 KiB) Viewed 623 times
- DIM 5.jpg (586.54 KiB) Viewed 623 times

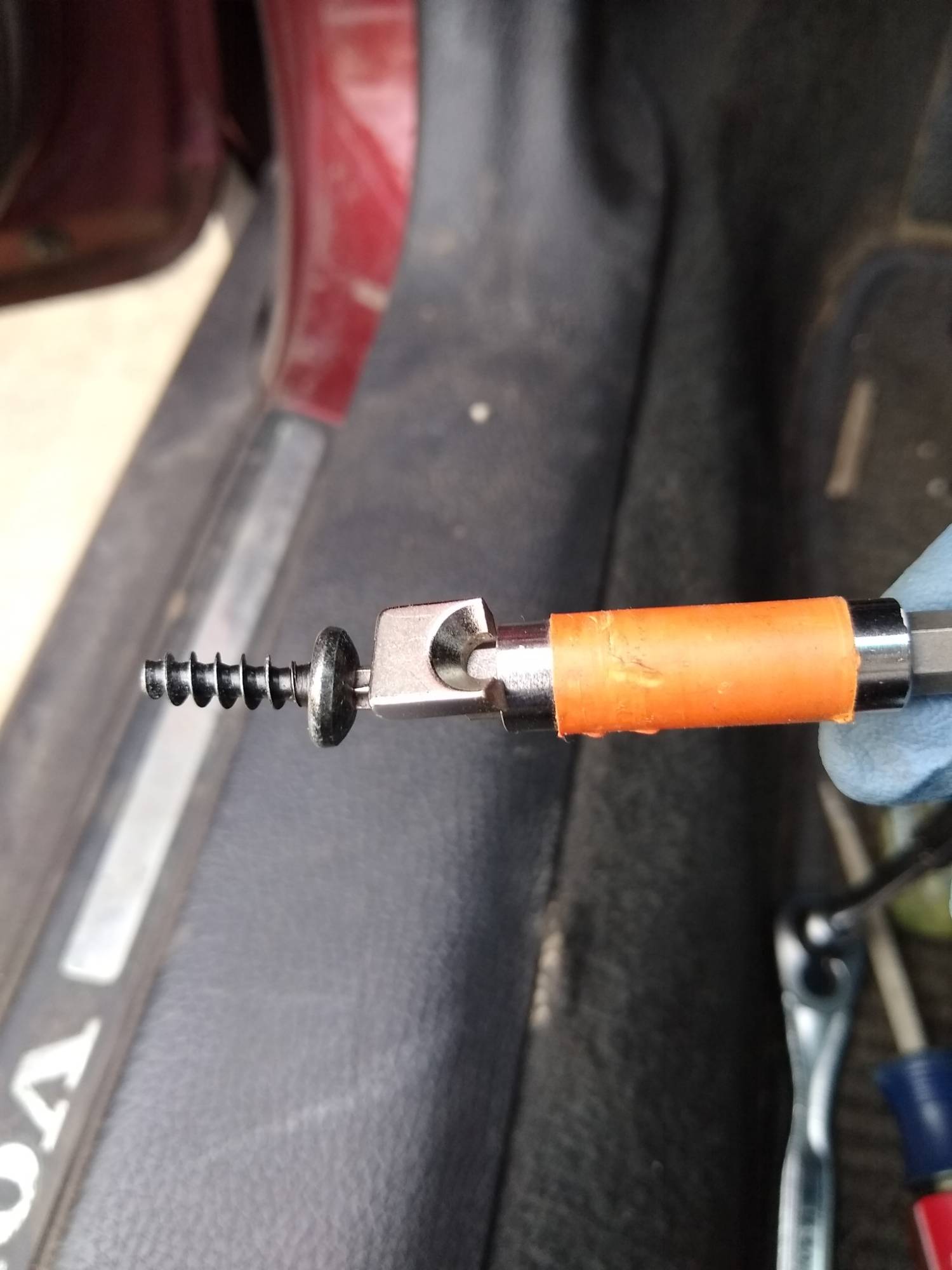

There are 4 screws holding the DIM in the dash. They are set in so get a magnet of some kind. None of my tools are magnetized so...
.
- DIM 6.jpg (387.67 KiB) Viewed 623 times

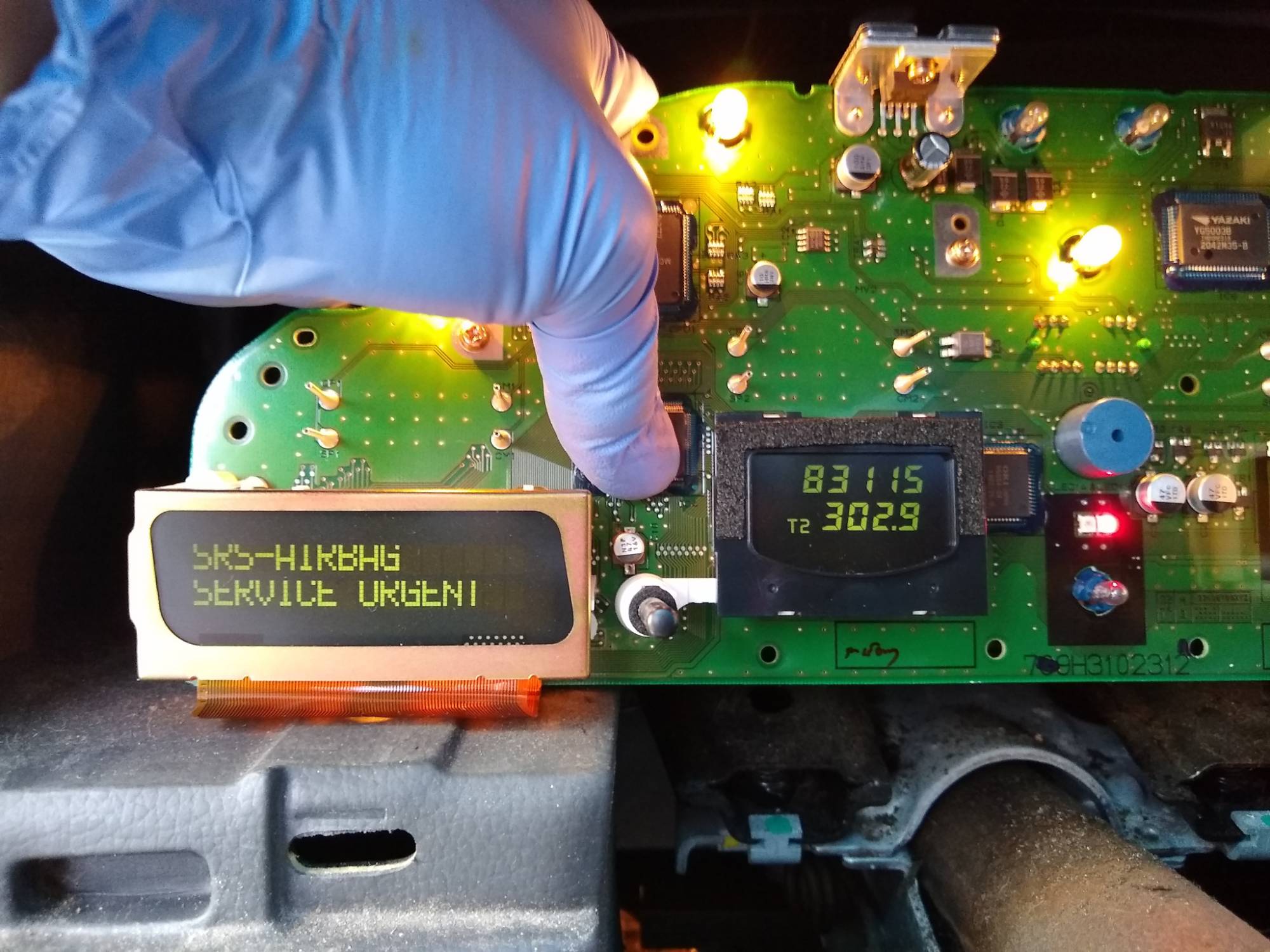

The video below shows the DIM being taken apart so I didn't take photos but I did put it back to try it out. When I removed it only the Check Engine light would come on for a second and everything else was dark. With no pressure or stress from the enclosure everything lit up except the Message Center going in and out. With light pressure on that IC Chip it stabilized.
.
- DIM 7.jpg (478.58 KiB) Viewed 623 times
- DIM 8.jpg (524.61 KiB) Viewed 623 times
OH! Also removed the Driver's Switch but will do another post.
.
- DIM 9.jpg (501.38 KiB) Viewed 623 times
.
.
