2004 XC70.

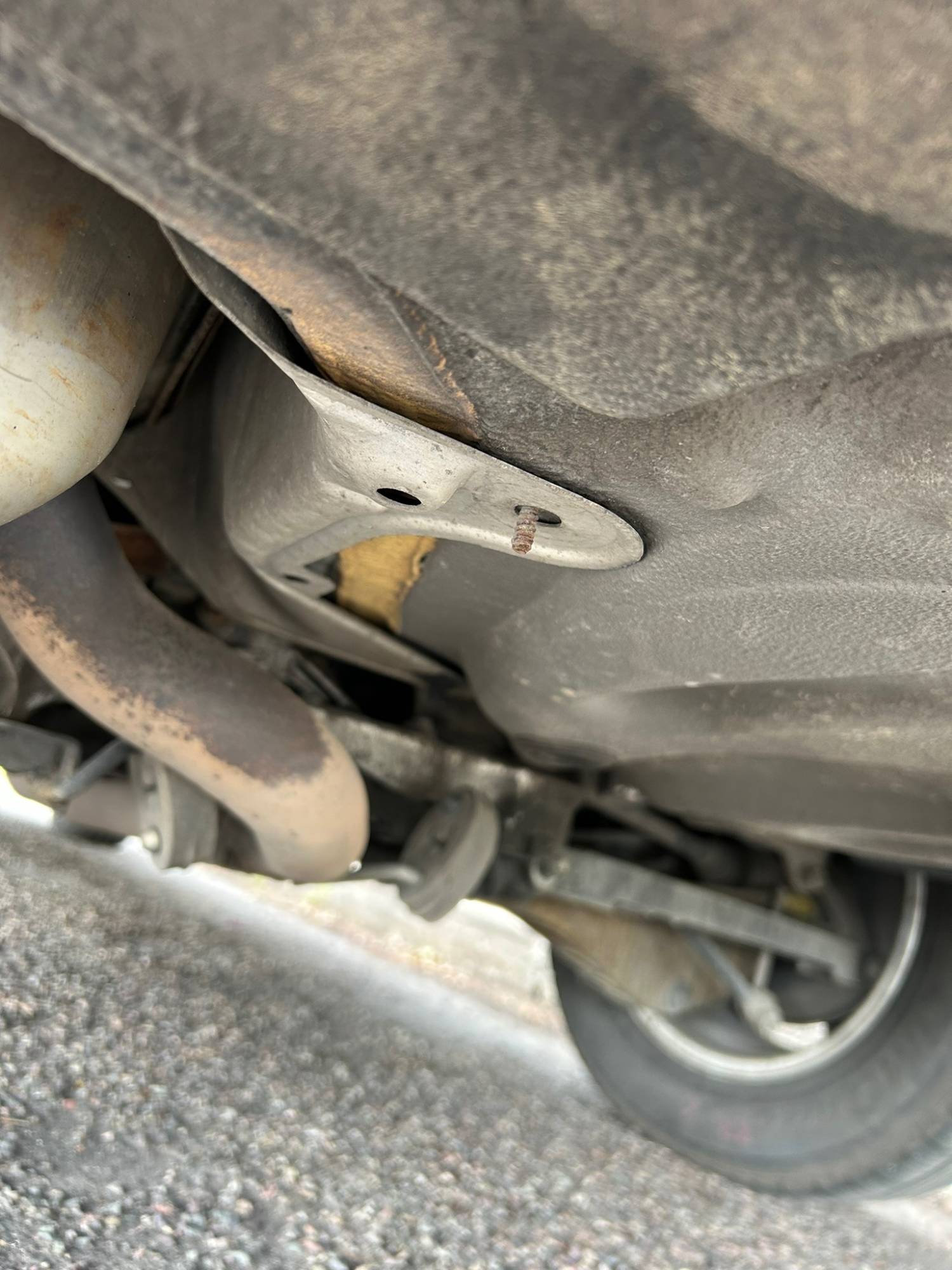

Muffler rattle made me think UH oh, but it's this heat shield near the rear muffler missing a hold-down hardware.
Volvo heat shield.jpg

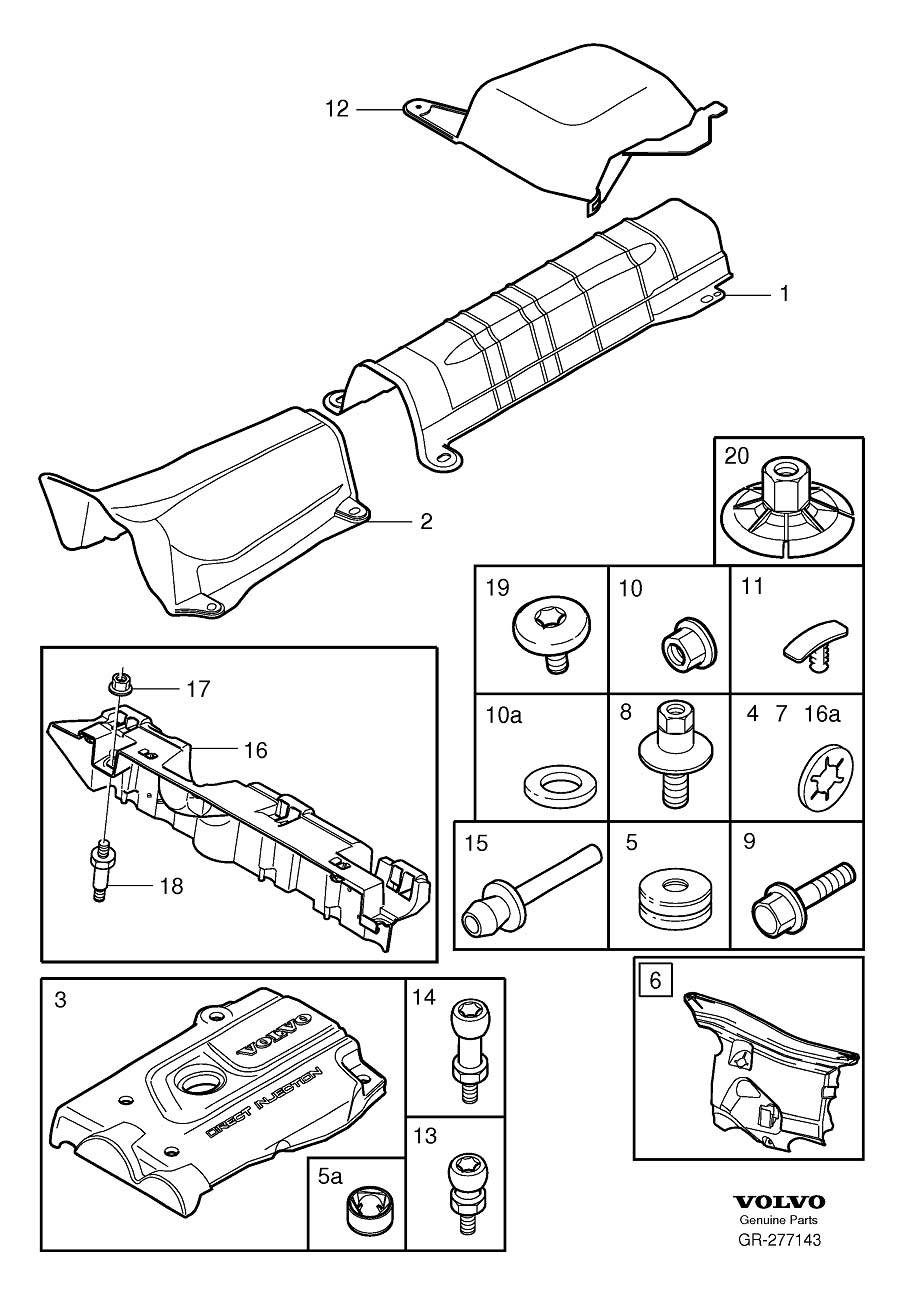

On the parts diagram, its got to be #12 here....

They don't make it clear what hardware goes there, but it's a threaded stud so I'm thinking it's #20 here - just a rubber/plastic threaded nut / washer bit. It could be nut #10 as well. Anyone know? Thanks -
Volvo floor pan head shield nut.jpeg
Volvo floor pan head shield nut.jpeg (54.26 KiB) Viewed 1339 times
ex-1984 245T wagon
1994 850T5 wagon
2004 XC70 wagon BlackBetty
Top
User avatar
Blacklab467
Posts: 1139
Joined: 09 Aug 2016, 16:25
Year and Model: 2007 xc 70
Location: Calgary, AB
Has thanked: 117 times
Been thanked: 271 times

Post by Blacklab467 »

It should be a 10mm solid nut with an integral washer, these are real common throughout the car and can be found in the wheel well splash guards fore and aft also. it won't be a plastic fastener. do you have and auto wreckers near you? That would be the best source. If you're not in a hurry I could mail you a couple, I've got a bunch in my random parts bin.
2003 XC 70 (sold)
2007 XC 70, 1970 Dodge Charger R/T.
Top
User avatar
Blacklab467
Posts: 1139
Joined: 09 Aug 2016, 16:25
Year and Model: 2007 xc 70
Location: Calgary, AB
Has thanked: 117 times
Been thanked: 271 times

Post by Blacklab467 »

Hmmmm, I just read the parts description, looks like it may be a plastic fastener, I would substitute a metal nut and coat the threads in neversieze.
2003 XC 70 (sold)
2007 XC 70, 1970 Dodge Charger R/T.
Top
User avatar
BlackBart
Posts: 6725
Joined: 10 Dec 2016, 17:03
Year and Model: 2004 XC70 BlackBetty
Location: Over the far far mountains
Has thanked: 967 times
Been thanked: 921 times

Post by BlackBart »

Good, thanks!
ex-1984 245T wagon
1994 850T5 wagon
2004 XC70 wagon BlackBetty
Top
User avatar
abscate
MVS Moderator
Posts: 36147
Joined: 17 Feb 2013, 17:54
Year and Model: 99: V70s S70s,05 V70
Location: Port Jefferson Long Island NY
Has thanked: 1610 times
Been thanked: 4065 times

Post by abscate »

A big fake SS fender washer from Lowes will make up for any deterioration in the heat shield, too.
