(Solved) 98 V70 I Fenix - OBD ECM readout with LED not working

Post by MotorTheresa »

Good evening,

Since blue V70 is on the road again I wanted to get a deeper look into the ECM and its DTCs. Getting a bad start occasionally which throws a DTC.

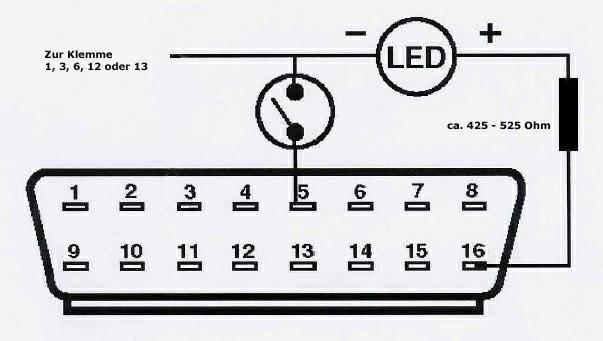

Used this LED rig described here http://volvo-turbo.de/obd-ii.html but LED stays dark. Always.
Am I doing something wrong?
Last edited by MotorTheresa on 28 Apr 2025, 03:11, edited 1 time in total.
V70 1998 B5252F/S MT
Top
User avatar
misha
Posts: 5379
Joined: 7 December 2008
Year and Model: '97 850 2.5 20v
Location: Serbia
Has thanked: 152 times
Been thanked: 402 times

Post by misha »

Fuse ok?
'97 850 2.5 20v / fully equipped / Motronic 4.4 from the factory / upgraded with S,V,C,XC70 instrument cluster / polar white wagon
History of Volvos in the family:
'71 144 S
'73 144 De Luxe
'78 244 DL
'78 244 DL
'79 244 GLE
'85 340 GLS
Top
MotorTheresa
Posts: 44
Joined: 11 July 2024
Year and Model: V70 1998 B5252F/S MT
Location: Germany
Has thanked: 31 times
Been thanked: 11 times

Post by MotorTheresa »

misha wrote: ↑07 Aug 2024, 12:01Fuse ok?
checked all fuses. I say: yes
V70 1998 B5252F/S MT
Top
User avatar
misha
Posts: 5379
Joined: 7 December 2008
Year and Model: '97 850 2.5 20v
Location: Serbia
Has thanked: 152 times
Been thanked: 402 times

Post by misha »

Possible reversed led polarity?
Did you tried it directly to a car battery?
'97 850 2.5 20v / fully equipped / Motronic 4.4 from the factory / upgraded with S,V,C,XC70 instrument cluster / polar white wagon
History of Volvos in the family:
'71 144 S
'73 144 De Luxe
'78 244 DL
'78 244 DL
'79 244 GLE
'85 340 GLS
Top
hausmeister
Posts: 572
Joined: 22 July 2006
Year and Model: 1995 850T5-R
Location: Austria
Has thanked: 250 times
Been thanked: 77 times

Post by hausmeister »

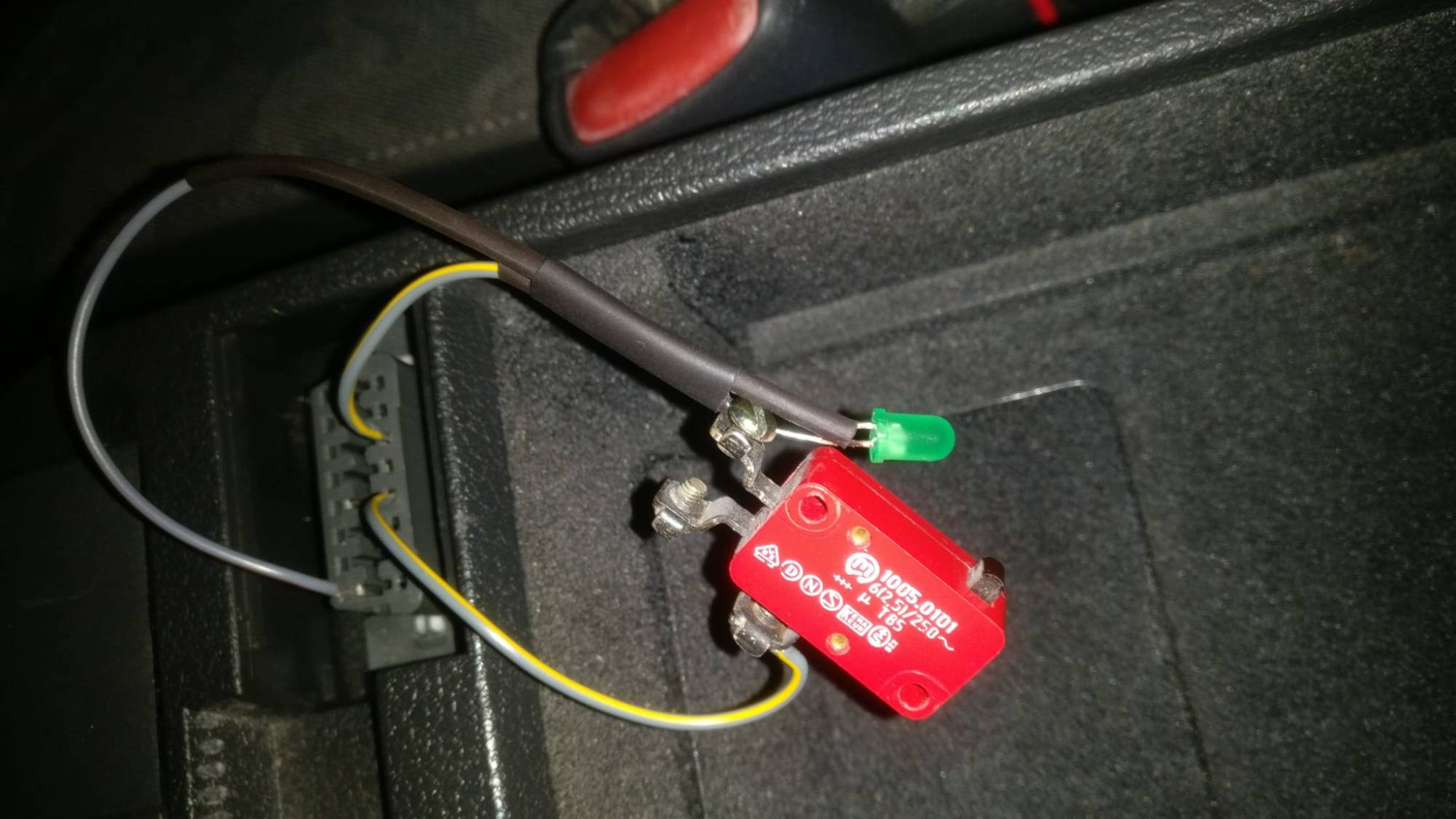

Never used that gadget... Are you sure it is wired correctly? - I can't tell from the picture.
You can start by checking if there is the correct voltage for the led present after the resistor and 12v before.. and go from there I think. Test the LED separately etc. probably needs 1-3v. But you probably already got it working I hope.
Also why are you using pin 3?

In any case good luck with the Fenix.
850 T5-R '95 auto Image
Top
MotorTheresa
Posts: 44
Joined: 11 July 2024
Year and Model: V70 1998 B5252F/S MT
Location: Germany
Has thanked: 31 times
Been thanked: 11 times

Post by MotorTheresa »

Apologies, I just saw your replies here. Will follow the suggestions and check, then come back. Topic still open. Since I get MLC on rough startups it would be just perfect to see what's behind that hardware wise :)
Will follow up here, sorry for the late response.
V70 1998 B5252F/S MT
Top
scot850
Posts: 14864
Joined: 5 April 2010
Year and Model: 2000 V70 R
Location: Calgary, Alberta, Canada
Has thanked: 1836 times
Been thanked: 1709 times

Post by scot850 »

Have you got the ignition on to position II when testing?

Neil.
2006 V70 2.5T AWD Polestar tune
2000 V70 R - still being an endless PITA
2006 XC70 - Our son now has this and still parked in our garage
2003 Toyota 4Runner V8 Limited
2015 Kia Sportage EX-L - Sold
1993 850 GLT -Sold
1998 V70 XC - Sold
1997 Volvo 850 SE NA - Went to niece in California - Sold
2000 V70 SE NA - Sold
Top
MotorTheresa
Posts: 44
Joined: 11 July 2024
Year and Model: V70 1998 B5252F/S MT
Location: Germany
Has thanked: 31 times
Been thanked: 11 times

Post by MotorTheresa »

Yes, Pos II
V70 1998 B5252F/S MT
Top
MotorTheresa
Posts: 44
Joined: 11 July 2024
Year and Model: V70 1998 B5252F/S MT
Location: Germany
Has thanked: 31 times
Been thanked: 11 times

Post by MotorTheresa »

misha wrote: ↑17 Aug 2024, 13:20 Possible reversed led polarity?
Did you tried it directly to a car battery?
Today I have turned to this task again and indeed found the LED polarity wrong ... So, good hint!
Resoldered and will test tomorrow.
V70 1998 B5252F/S MT
Top
User avatar
P80GLT
Posts: 397
Joined: 18 January 2023
Year and Model: 850, 1997, GLT
Location: Scotland
Has thanked: 154 times
Been thanked: 176 times

Post by P80GLT »

It is possible you will need to replace the LED with a new one as incorrect polarity can cause them to fail
1997 850 GLT website
2010 XC90 SE...SOLD
2005 V70 2.5T SE
