Pls help me put this mysterious rubber seal back in its place - 850, 1995

Post by geodonuts »

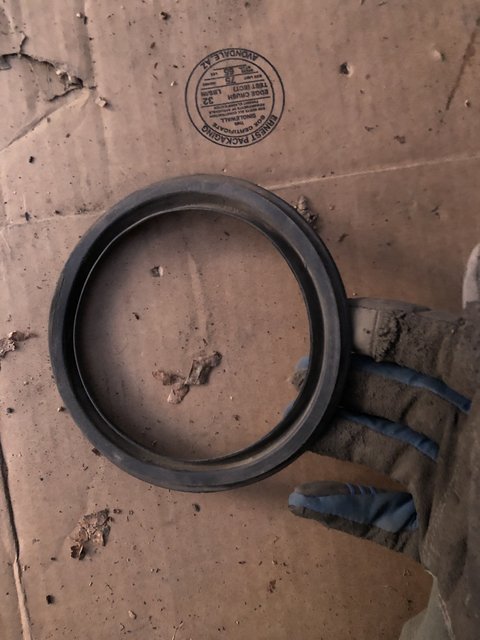

This round black rubber ring appeared somewhere in the process of removing the fuel tank, hopefully for the last time of this car’s life, and i cant seem to figure out how it fits, presumably over the hole for the fuel pump access inside the wagon trunk. I will add a picture in a moment, still figuring that part out ;) I know it doesnt cover the inside side of the access port because Ive used the metal edges to lever a screwdriver against in order to unscrew the plastic lock rings for the sender unit etc, and there are bent notches to show this. Does it affix to the outside somehow, via the removable steel ring plate which holds the upward facing screws which the inside plate cover attaches to? How have I missed seeing this until now, when it falls out?

A mystery, and Id hate to figure this out after I get the tank reinstalled but better late than never. Pls share your thoughts if you have any, thank you always!

geodonuts
Posts: 3
Joined: 11 February 2020
Year and Model: 1995 850
Location: West Coast

Post by geodonuts »


User avatar
Clemens
Posts: 1932
Joined: 3 September 2015
Year and Model: 96 855 R + 94 855 T5
Location: Austria
Has thanked: 473 times
Been thanked: 219 times

Post by Clemens »

late, but still: is there a seal around the fuel pump hole? I did a few fuel pumps a few years ago, and I'm quite sure there is a seal which would be that size.

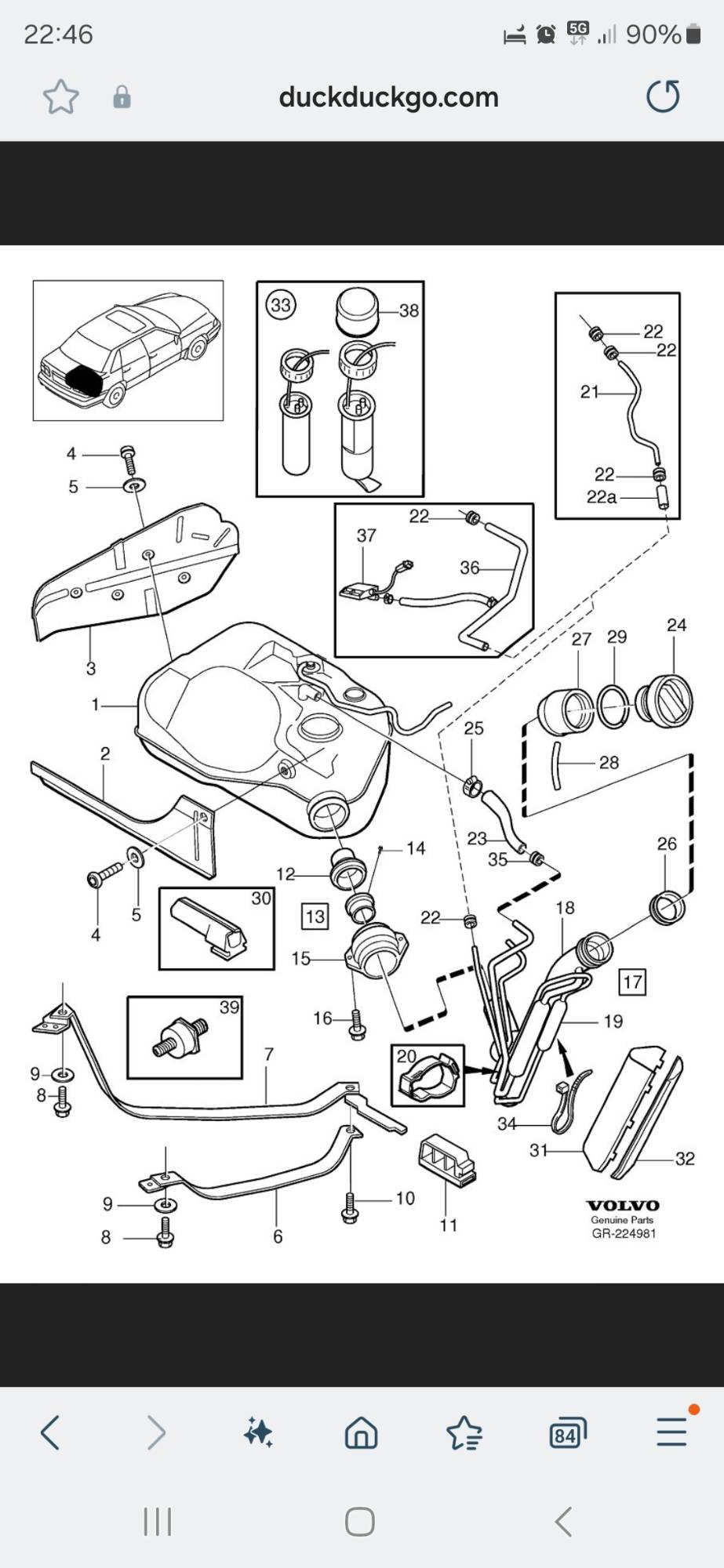

Maybe that pic helps?:
Screenshot_20241117_224618_Samsung Internet.jpg
Summer: 1996 855 R
Winter: 1994 855 T5M
Donor: 1995 854 10V

User avatar
Clemens
Posts: 1932
Joined: 3 September 2015
Year and Model: 96 855 R + 94 855 T5
Location: Austria
Has thanked: 473 times
Been thanked: 219 times

Post by Clemens »

Screenshot_20241117_224849_Samsung Internet.jpg
Forget what I wrote above. There seem to be no seals around the pump cover.

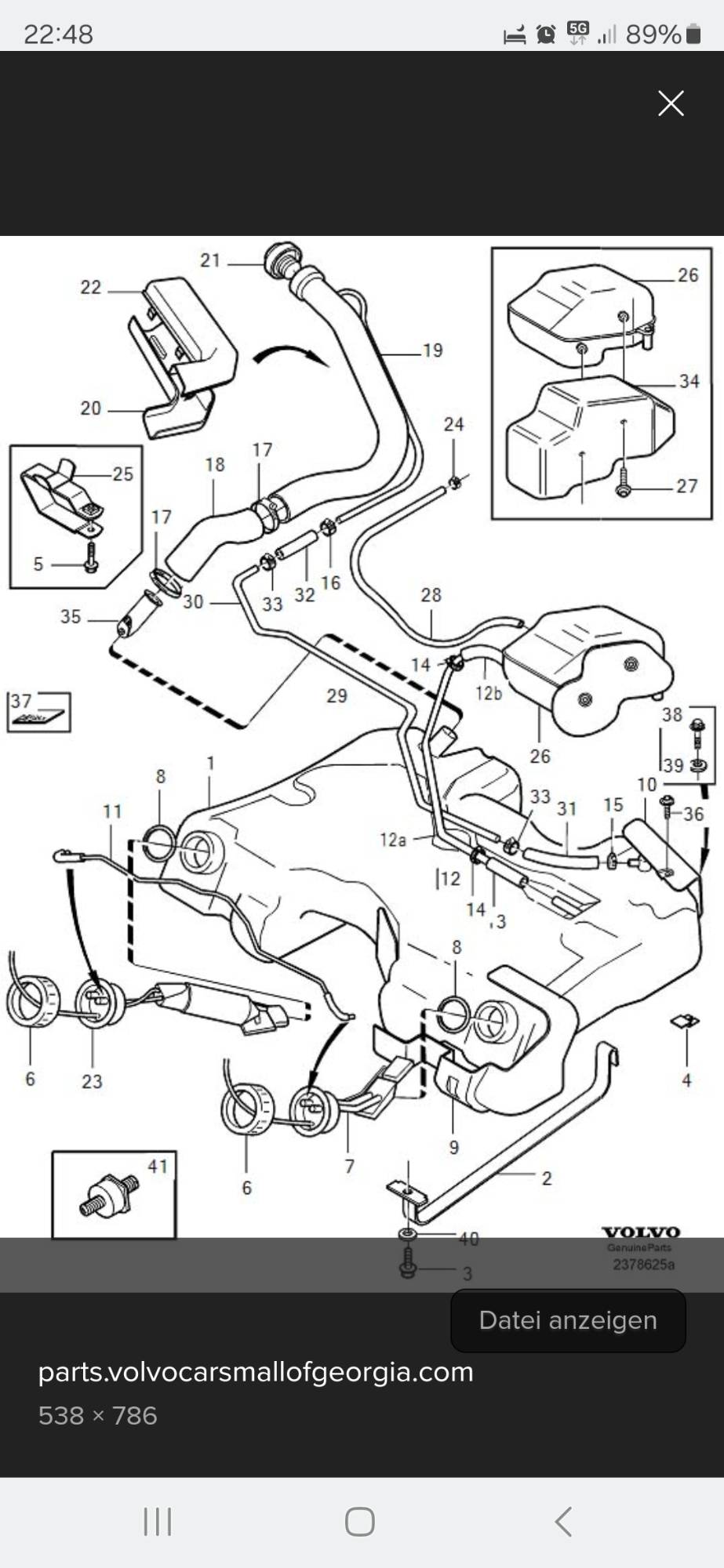

But maybe it is this #17 seal in the following picture:
Last edited by Clemens on 19 Nov 2024, 04:55, edited 2 times in total.
Summer: 1996 855 R
Winter: 1994 855 T5M
Donor: 1995 854 10V

User avatar
BlackBart
Posts: 6492
Joined: 10 December 2016
Year and Model: 2004 XC70 BlackBetty
Location: Over the far far mountains
Has thanked: 927 times
Been thanked: 884 times

Post by BlackBart »

What about #8?
ex-1984 245T wagon
1994 850T5 wagon
2004 XC70 wagon BlackBetty

User avatar
Clemens
Posts: 1932
Joined: 3 September 2015
Year and Model: 96 855 R + 94 855 T5
Location: Austria
Has thanked: 473 times
Been thanked: 219 times

Post by Clemens »

BlackBart wrote: 17 Nov 2024, 19:32 What about #8?
witchcraft, you just put that there ...
well, at least my memory is better than my latenight exploded view reading skills.
Summer: 1996 855 R
Winter: 1994 855 T5M
Donor: 1995 854 10V

User avatar
BlackBart
Posts: 6492
Joined: 10 December 2016
Year and Model: 2004 XC70 BlackBetty
Location: Over the far far mountains
Has thanked: 927 times
Been thanked: 884 times

Post by BlackBart »

I just remembered a big rubber seal under the lid.
ex-1984 245T wagon
1994 850T5 wagon
2004 XC70 wagon BlackBetty
