Emergency help: how do drive belts go back on

Post by JDDurham »

hello all,
Sorry to bother.

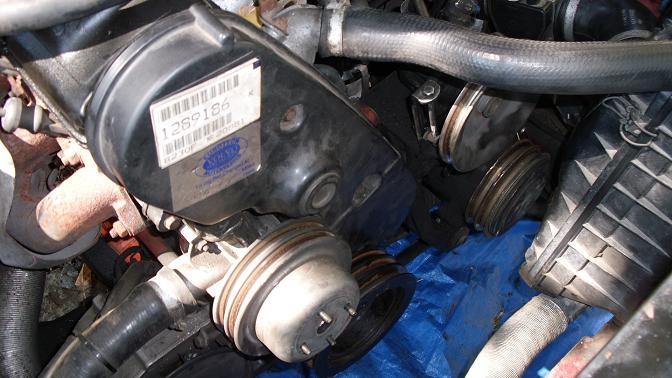

In my haste to change out the timing belt of my 240DL 1988 Volvo I have forgotten how the drive belts go back on. Can someone send me a picture of their belts installed. I have a Haynes book that doesnt show how they reinstall. Engine open to the weather and tools all over I need to get all this back straight lol. Thanks in advance ----JD
Attachments
carfix 02small.jpg
carfix 02small.jpg (235 KiB) Viewed 284 times
carfix 03small.jpg
carfix 03small.jpg (242.25 KiB) Viewed 284 times
Top
JDDurham
Posts: 5
Joined: 30 September 2009
Year and Model: 240DL 1988
Location: Suffolk, VA USA

Post by JDDurham »

Hello back again,
Panic subsided Brain reengaged I think I got it.
---JD
