electrical wire identification needed

Post by North42g »

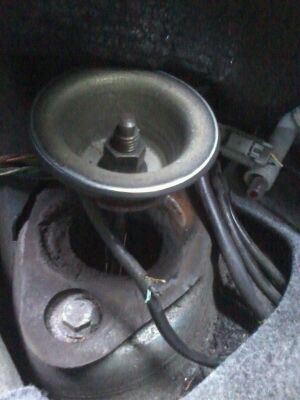

Right Rear Shock Mount w/ Broken 3-wire connector
Right Rear Shock Mount w/ Broken 3-wire connector
imagejpeg_2 (15).jpg (19.26 KiB) Viewed 745 times

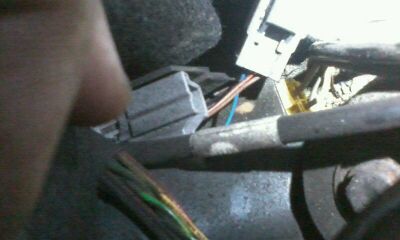

female side of connector
female side of connector
imagejpeg_2 (16).jpg (15.48 KiB) Viewed 745 times
[/attachment]

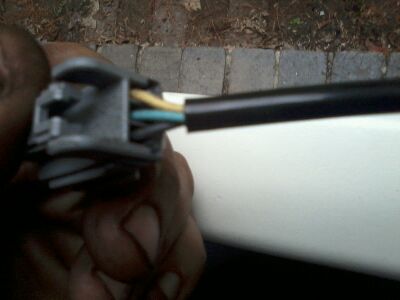

3-wire connector
3-wire connector
imagejpeg_2 (14).jpg (14.36 KiB) Viewed 745 times
While replacing rear shocks on my 1998 S70 2.4 base model, I discovered on the right side (passenger side) a group of electrical connectors. The shock mount has busted and in turn cut through a three wire connector. Can anyone identify what these wires control? (See Pic below) it looks like it is a Yellow / Light Blue / and the third wire is either black or dark grey. ( color could be faded due to age).
So if anyone can tell me what these wires control that would be excellent.
Things wrong with my car are: The ABS light on dash comes on/off intermittently. The SRS/Airbag light is always on. And the Power windows and mirrors haven't worked since I bought it.(and I've replaced the Master switches, the relays, the this, the that...)
I have looked at the wire diagrams, but the ones I have don't tell me what is located where. Thanks for any help.
1995 850 GLT Estate -190k
1998 S70 -233k
2003 VW Jetta 2.0L -130k
1994 Saturn SC1 -288k ..and still going strong
1969 Ford Bronco 302 -119k

jimmy57
Posts: 6694
Joined: 12 November 2010
Year and Model: 2004 V70R GT, et al
Location: Ponder Texas
Has thanked: 4 times
Been thanked: 320 times

Post by jimmy57 »

It looks like the fuel tank pressure sensor wiring to me.

North42g
Posts: 39
Joined: 12 February 2012
Year and Model: 850 GLT, 1995
Location: Massachusetts

Post by North42g »

fuel tank pressure sensor? ok, i'll look into that. Do you think an OEM wire schematic will identify the wire/connectors and their locations?
1995 850 GLT Estate -190k
1998 S70 -233k
2003 VW Jetta 2.0L -130k
1994 Saturn SC1 -288k ..and still going strong
1969 Ford Bronco 302 -119k

User avatar
jreed
Posts: 1619
Joined: 8 March 2009
Year and Model: '97 Volvo 855 GLT
Location: RTP, North Carolina
Has thanked: 352 times
Been thanked: 192 times

Post by jreed »

I think it's very likely that the wiring diagram will identify the connectors and the the wire colors going to them -- at least the wiring diagrams in the Haynes manual for the 850 lists wire colors and shows the connectors. The location of the connector in the car may only be given in a general schematic sense.
1997 855 GLT (Light Pressure Turbo) still going strong. Previous: 1986 240 GL rusted out in '06, 1985 Saab 900T rusted out in '95, 1975 Saab 99 rusted out in '95, 1973 Saab 99 rusted out in '94

Ozark Lee
MVS Moderator
Posts: 14798
Joined: 7 September 2006
Year and Model: Many Volvos
Location: USA Midwest
Has thanked: 4 times
Been thanked: 75 times

Post by Ozark Lee »

You will need to spend quite a bit of time with these but they identify every wire and connector, once you determine what system is involved.

http://www.volvowiringdiagrams.com/?dir=

Download the appropriate set of schematics.

...Lee
'94 850 N/A 5 speed
'96 Platinum Edition Turbo
Previous:
1999 V70XC - Nautic Blue - Totaled while parked.
1999 V70XC - RIP - Wrecked Parts Car.
1998 S70 T5
1996 850 N/A
1989 740 GLT
1986 740 GLT
1972 142 Grand Luxe

jimmy57
Posts: 6694
Joined: 12 November 2010
Year and Model: 2004 V70R GT, et al
Location: Ponder Texas
Has thanked: 4 times
Been thanked: 320 times

Post by jimmy57 »

You can take SRS, power window and power mirrors off the list. No wires for those run in that area.
It could be ABS but those should be two wire leads with a very rubbery insulation over them. The ABS wheel speed sensor leads come to a connector that is docked in that vicinity and meet a couple of connectors and the wires forward are twisted.
I can't find the second page of the motronic 4.3/4.4 diagram. The first page does not show the tank pressure sensor.
