2000 S80 T6 Need location of electrical relays

atomic928 · Post by **atomic928** » 05 Apr 2015, 19:28

I'm looking for some chart that shows what relays are what in my Volvo 2000 s80 t6. I have a diagram for the relays under the driver's dash, which include the fuel pump relay, but the engine compartment and the truck compartment both have fuses and relays. The owner's manual gives all the fuses but I can find nothing that describes and locates all the relays and what they control. Currently I'm looking for any transmission relays but I know in the future I'm going to need the information on the other relays.
Any information would be appreciate.

Thanks
Carl

THAI UNG · Post by **THAI UNG** » 07 Apr 2015, 12:27

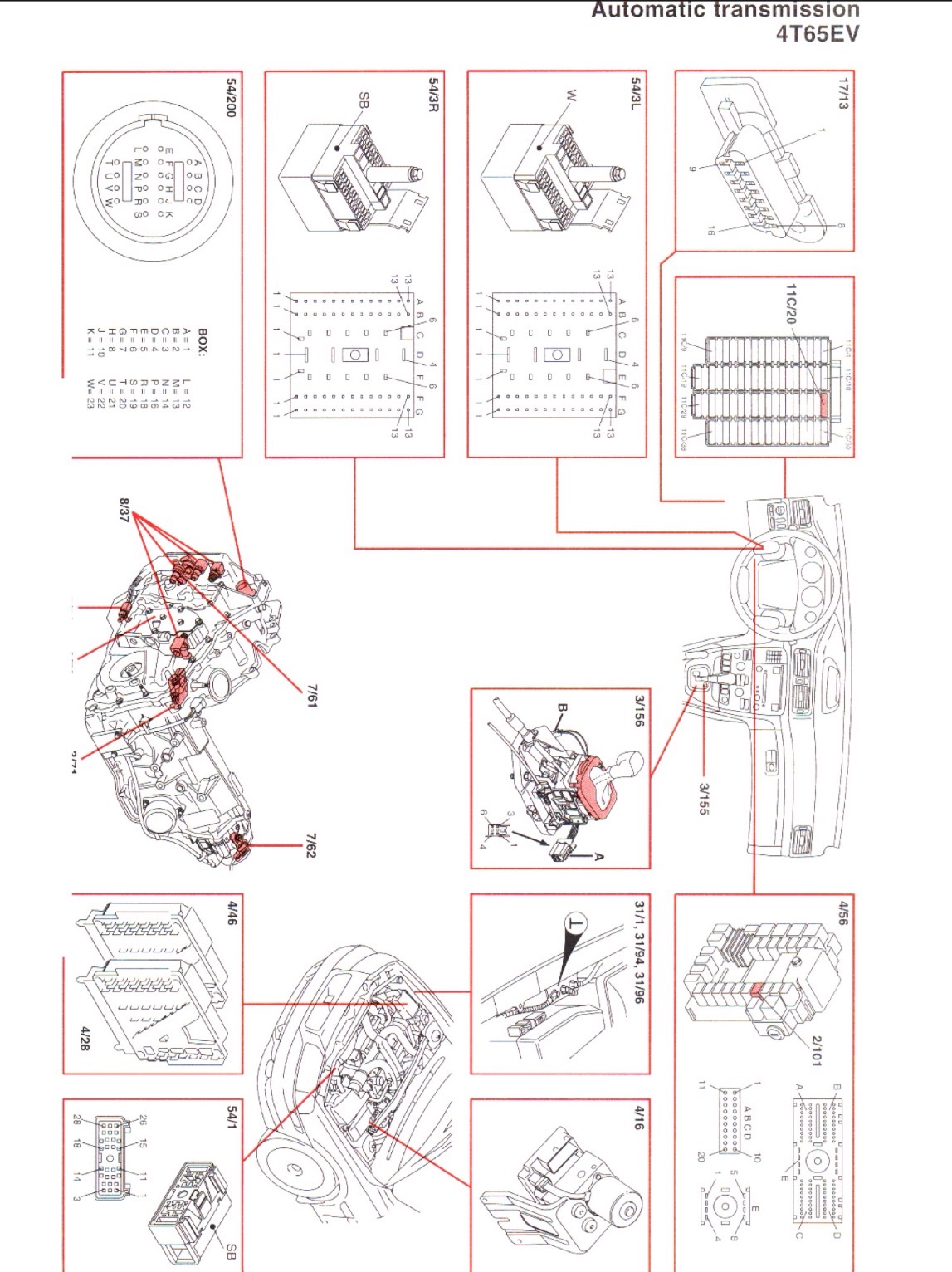

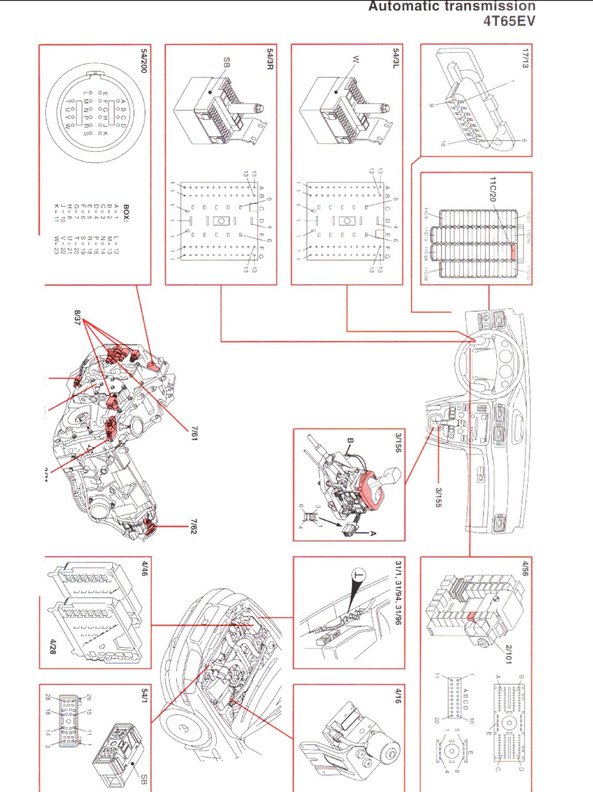

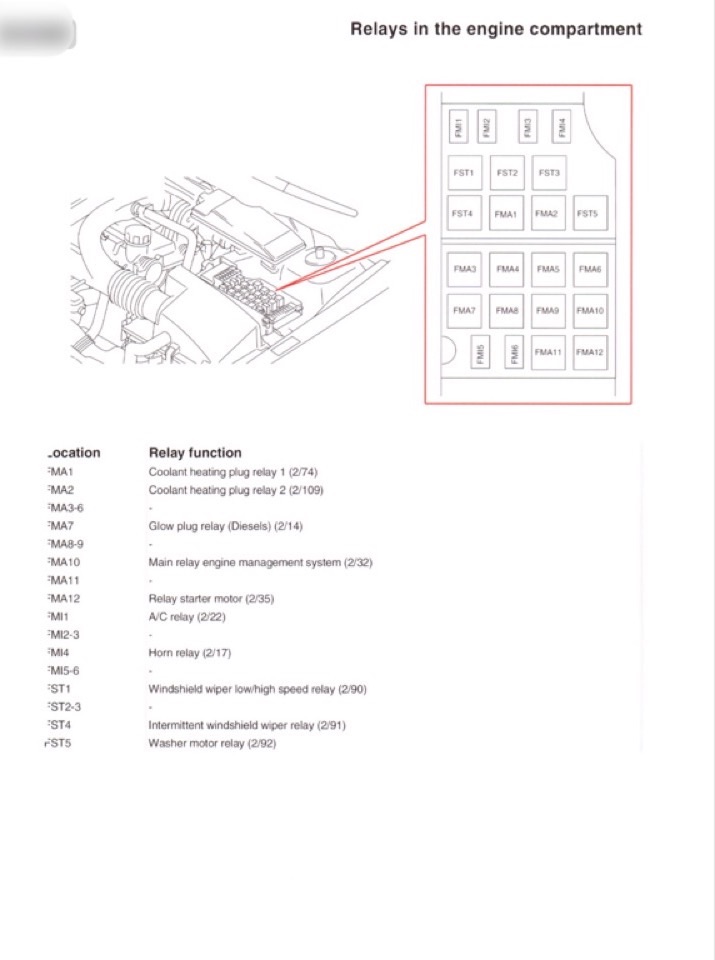

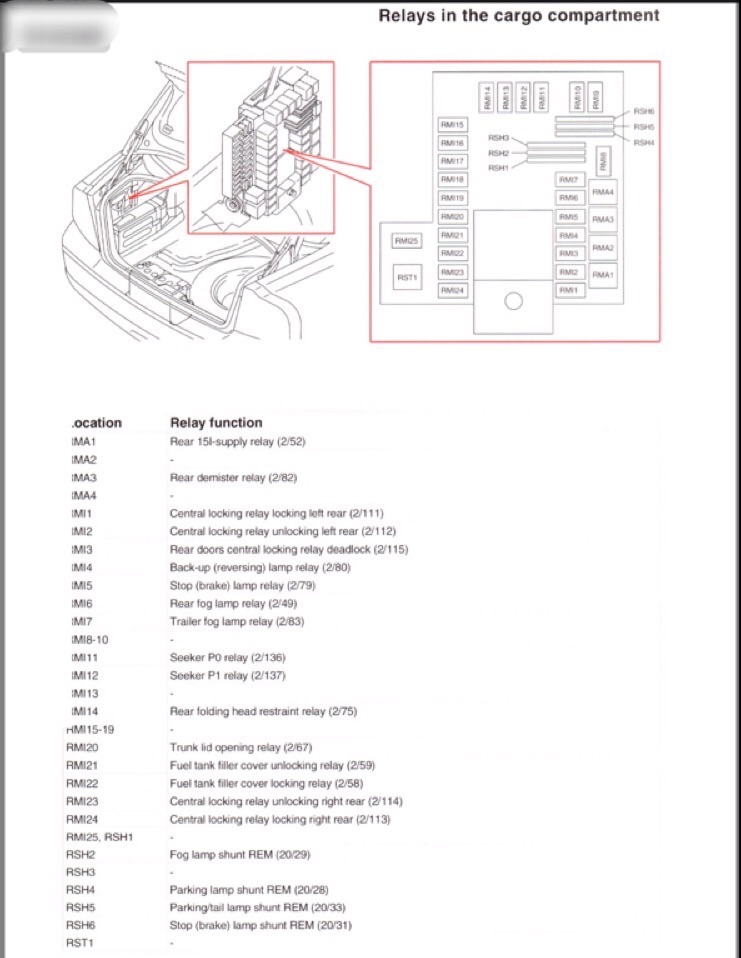

I hope these diagrams could help...

atomic928 · Post by **atomic928** » 20 Apr 2015, 22:06

Thank you

viper007 · Post by **viper007** » 28 Dec 2017, 03:17

Hi, can I ask for the same documentation for the S80 D5, 2001?
What is it for a book ???
Thank you Vaclav.
