95 T-5R Accelerator Pedal/Cruise Control

Euro_Hobbs · Post by **Euro_Hobbs** » 02 Jun 2015, 16:47

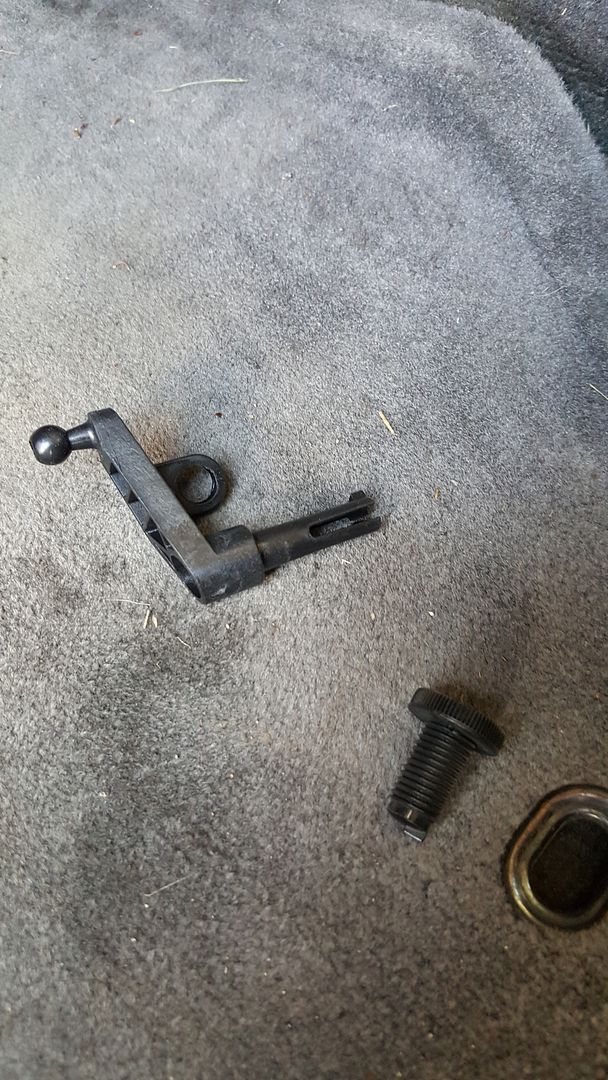

So in the quest to fix my cruise control I found the servo arm disconnected from my gas pedal and the connector completely missing...I ordered a new piece and screw but for the life of my I cannot figure out how to connect it to the back of the pedal...any one have an idea how this is setup? Apologies as I am typing this from my phone since my Internet is down. See attached pics...

Post by **scot850** » 02 Jun 2015, 17:02

Looking at Vida, it is not clear, but I would suggest the slotted shaft goes through the top of the pedal where it looks like a nut is from your picture.

The ball socket end should clip into the end of the shaft for the cruise control that should, I believe be just above it.

The picture I have for both auto and manual shows the bolt going through the hole in the middle of the assembly and I'm guessing is a stop screw or adjustment of some sort. The Vida picture shows the screw coming through from the back as we look at your picture.

Neil.

Post by **hausmeister** » 03 Jun 2015, 05:01

They don't show the complete assembly, but maybe you can piece it together from this:
http://www.volvopartswebstore.com/showA ... evel=11059

I can take some pictures If you like (as I have the same model), but you'd have to wait until probably the weekend.

Euro_Hobbs · Post by **Euro_Hobbs** » 09 Jun 2015, 08:29

Sorry for the delay, if you could get some pics that would be great but no rush! I have it together per what I could make of a part diagram I found and it seems to be working, which is good, I just want to make sure I have it absolutely correct.
