2002 V70XC Finding the Fuel Pump Control Module

Post by zooklm » Fri Sep 04, 2015 7:13 pm

I have a no fuel condition on my car and I am trying to locate the fuel pump control module (also known as Pump Electronics Module). It is not in the spare tire wheel well. I have seen the illustrations and VIDA instructions that show it at the front of the tank, near the fuel filter. However it is not readily viewable in the general area (on the side of the tank). The illustrations point toward the top of the tank. However, I tried to feel in that general area (between the top of the tank and car body) and cannot really get my hand positioned to determine if it is there. Does anyone have experience with removing the module? Do you have pictures?
Thanks,
Lee

precopster
Posts: 7469
Joined: Sat Aug 21, 2010 12:20 am
Year and Model: Lots
Location: Melbourne Australia
Has thanked: 4 times
Been thanked: 106 times
Australia
precopster

Re: 2002 V70XC Finding the Fuel Pump Control Module

Post by precopster » Sat Sep 05, 2015 5:09 pm

Under the left passenger seat is a round black fuel tank hatch. Two thick wires green and black power the fuel pump through the access hole. Check for voltage at these wires upon ignition on. There should be a 12V shot for around 2 secs.

If this voltage is present you should look at the pump and not the PEM.
Current cars:2002 XC70, 2006 Ssangyong Rodius (Stavic), 2006 XC90 2.5T, VW Transporter 2.5TDI

www.precisioncarmodules.com.

User avatar
oragex
Posts: 4541
Joined: Fri May 24, 2013 6:20 am
Year and Model: S60 2003
Location: Canada
Has thanked: 92 times
Been thanked: 224 times
Contact:
Canada
oragex

Re: 2002 V70XC Finding the Fuel Pump Control Module

Post by oragex » Sat Sep 05, 2015 7:27 pm

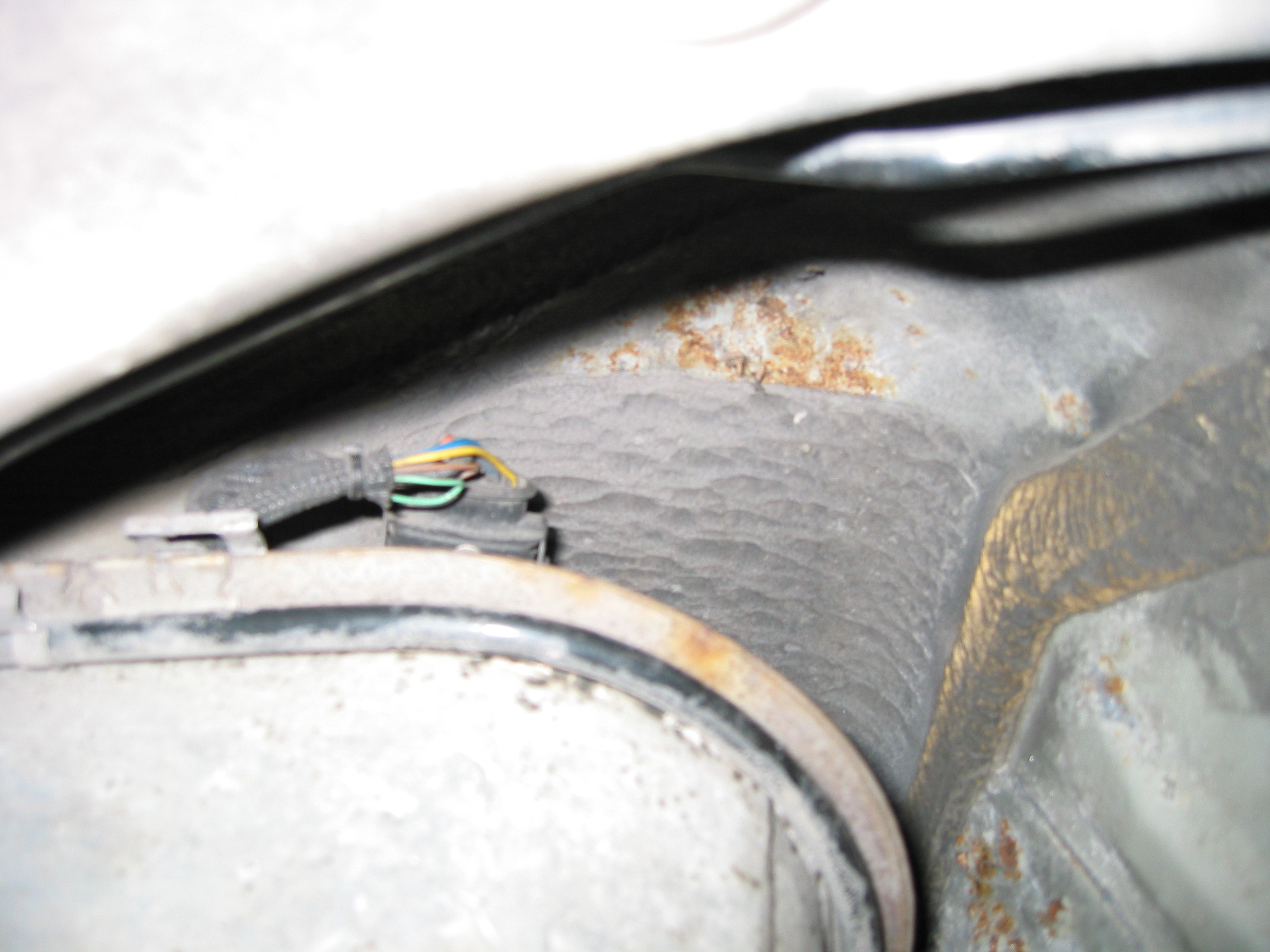

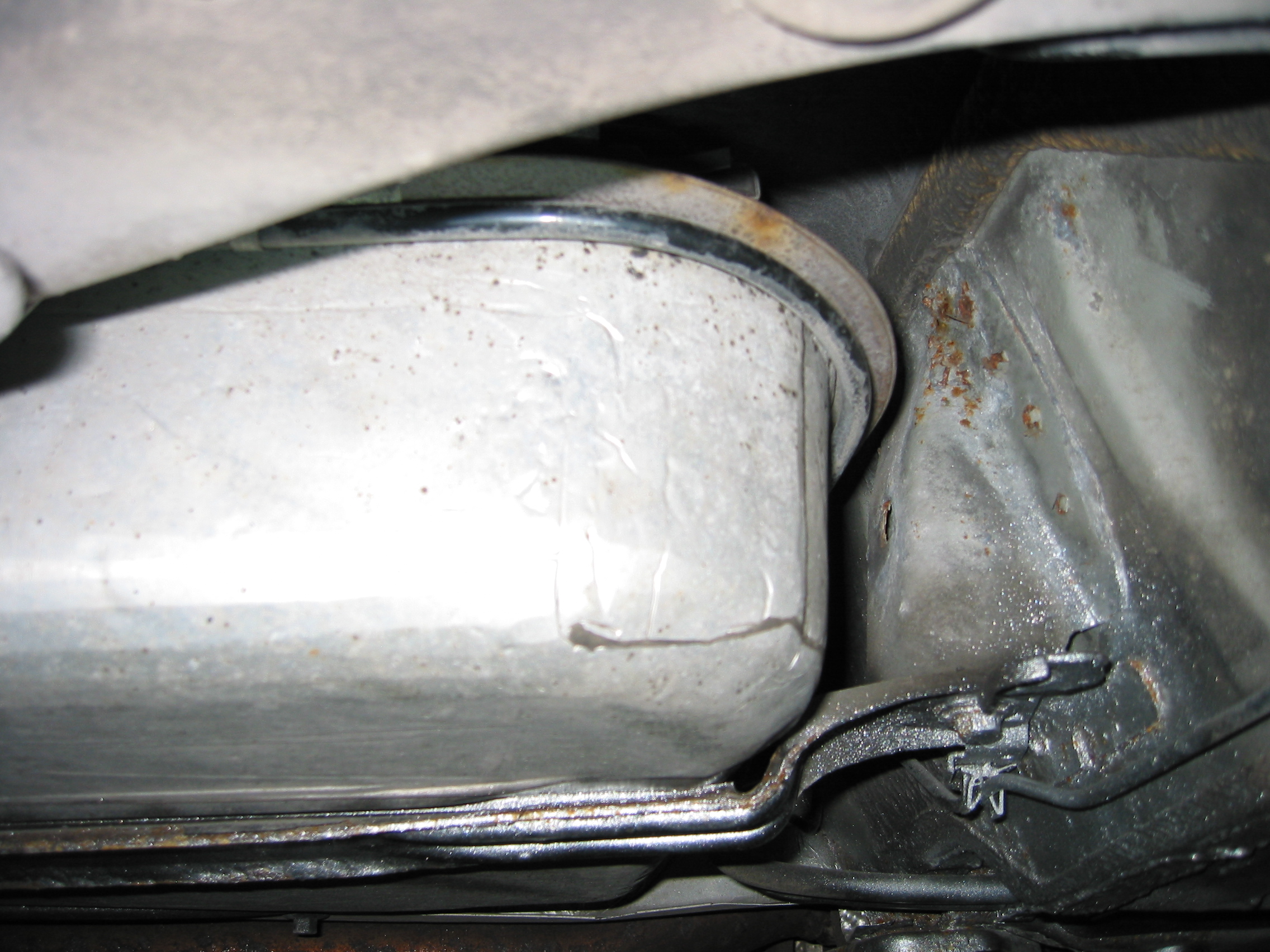

on my model with the metal fuel reservoir, the pem is located on the passenger side, at the top side of the front corner of the tank. you can see it from under the car, there is a cable passing by and the module is fixed on top of the tank with a screw and a spring. these are know to corrode inside but I don't know if it's you real issue, check first as mentioned above.
You do not have the required permissions to view the files attached to this post.

zooklm
Posts: 13
Joined: Mon Nov 12, 2012 3:22 pm
Year and Model: 2002 XC70
Location: Titusville FL
Has thanked: 0
Been thanked: 0
zooklm

Re: 2002 V70XC Finding the Fuel Pump Control Module

Post by zooklm » Sun Sep 06, 2015 5:10 am

Mike,
I will check the voltage and see what it reads.
Oragex, thanks for the photos.
Lee

zooklm
Posts: 13
Joined: Mon Nov 12, 2012 3:22 pm
Year and Model: 2002 XC70
Location: Titusville FL
Has thanked: 0
Been thanked: 0
zooklm

Re: 2002 V70XC Finding the Fuel Pump Control Module

Post by zooklm » Sun Sep 06, 2015 3:11 pm

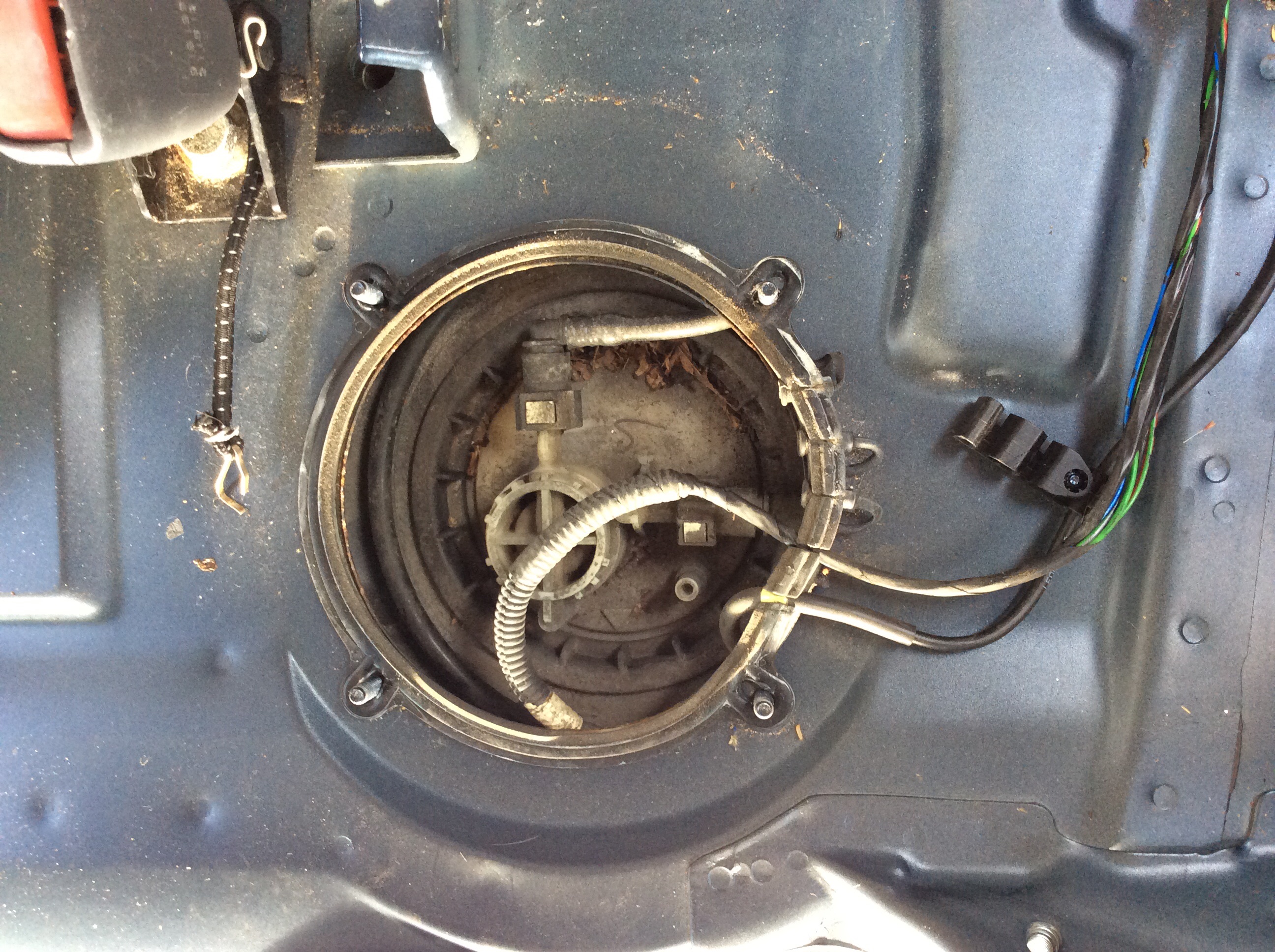

I went looking today, took out the back seat and attached are pictures of what I found
D
You do not have the required permissions to view the files attached to this post.

zooklm
Posts: 13
Joined: Mon Nov 12, 2012 3:22 pm
Year and Model: 2002 XC70
Location: Titusville FL
Has thanked: 0
Been thanked: 0
zooklm

Re: 2002 V70XC Finding the Fuel Pump Control Module

Post by zooklm » Sun Sep 06, 2015 3:15 pm

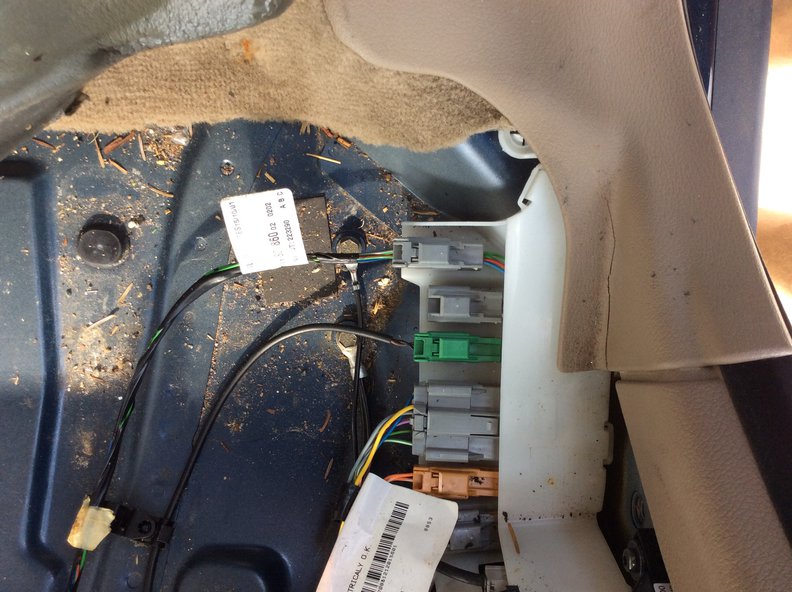

It does not seem to match the illustration from VIDA instructions because there is no big cable plug.
You do not have the required permissions to view the files attached to this post.

zooklm
Posts: 13
Joined: Mon Nov 12, 2012 3:22 pm
Year and Model: 2002 XC70
Location: Titusville FL
Has thanked: 0
Been thanked: 0
zooklm

Re: 2002 V70XC Finding the Fuel Pump Control Module

Post by zooklm » Sun Sep 06, 2015 3:19 pm

Here is the drivers side connectors. Also, I have the plastic tank and looked all around the edges and did not find anything sticking out enough to pull or wiggle.
You do not have the required permissions to view the files attached to this post.

zooklm
Posts: 13
Joined: Mon Nov 12, 2012 3:22 pm
Year and Model: 2002 XC70
Location: Titusville FL
Has thanked: 0
Been thanked: 0
zooklm

Re: 2002 V70XC Finding the Fuel Pump Control Module

Post by zooklm » Sun Sep 06, 2015 3:21 pm

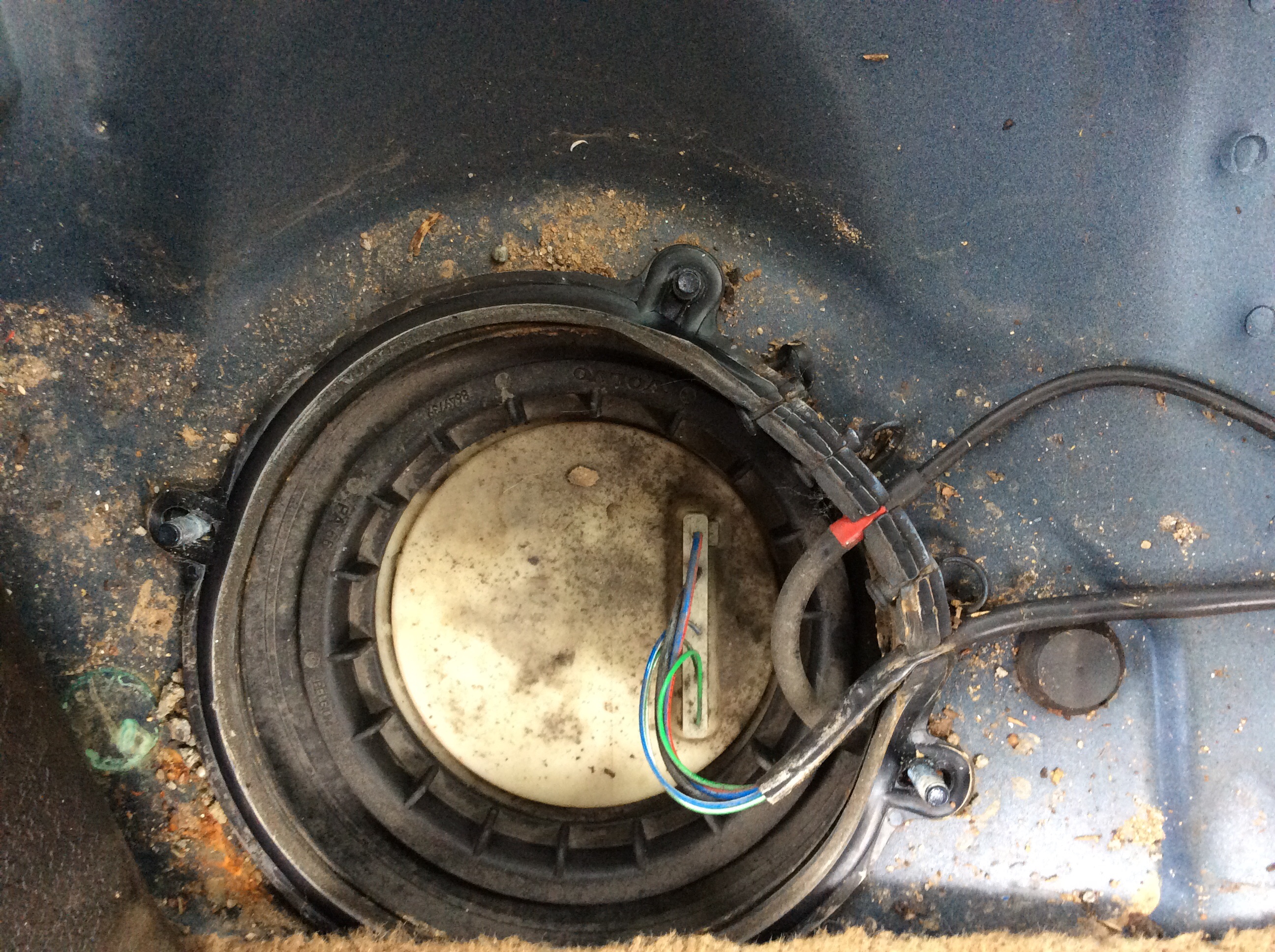

Under the driver side cover
You do not have the required permissions to view the files attached to this post.

precopster
Posts: 7469
Joined: Sat Aug 21, 2010 12:20 am
Year and Model: Lots
Location: Melbourne Australia
Has thanked: 4 times
Been thanked: 106 times
Australia
precopster

Re: 2002 V70XC Finding the Fuel Pump Control Module

Post by precopster » Sun Sep 06, 2015 8:35 pm

The two thick wires under the driver's side (left hand side) cover are the prize. The other 4 thinner wires are for the fuel senders. Even though they are on the opposite side to the pump they route through the extended return line inside the tank.

They change colour under the cover to green/black or blue/black
Current cars:2002 XC70, 2006 Ssangyong Rodius (Stavic), 2006 XC90 2.5T, VW Transporter 2.5TDI

www.precisioncarmodules.com.

DGM
Posts: 459
Joined: Thu Dec 23, 2010 5:20 am
Year and Model: V70 2.4i 2005
Location: Quebec, Canada
Has thanked: 0
Been thanked: 0
DGM

Re: 2002 V70XC Finding the Fuel Pump Control Module

Post by DGM » Tue Sep 08, 2015 8:26 am

My understanding is that your car model/year has no fuel pump control module. I found these diagrams on the Web for a V70 2002 with Me7. Fuel pump is 6/33, the relay is CM12 (2/33) on the CEM. The fuse is 11C/33 in the passenger compartment.

The wiring colors at the pump as per diagram are black & blue.
CEM Me7.jpg

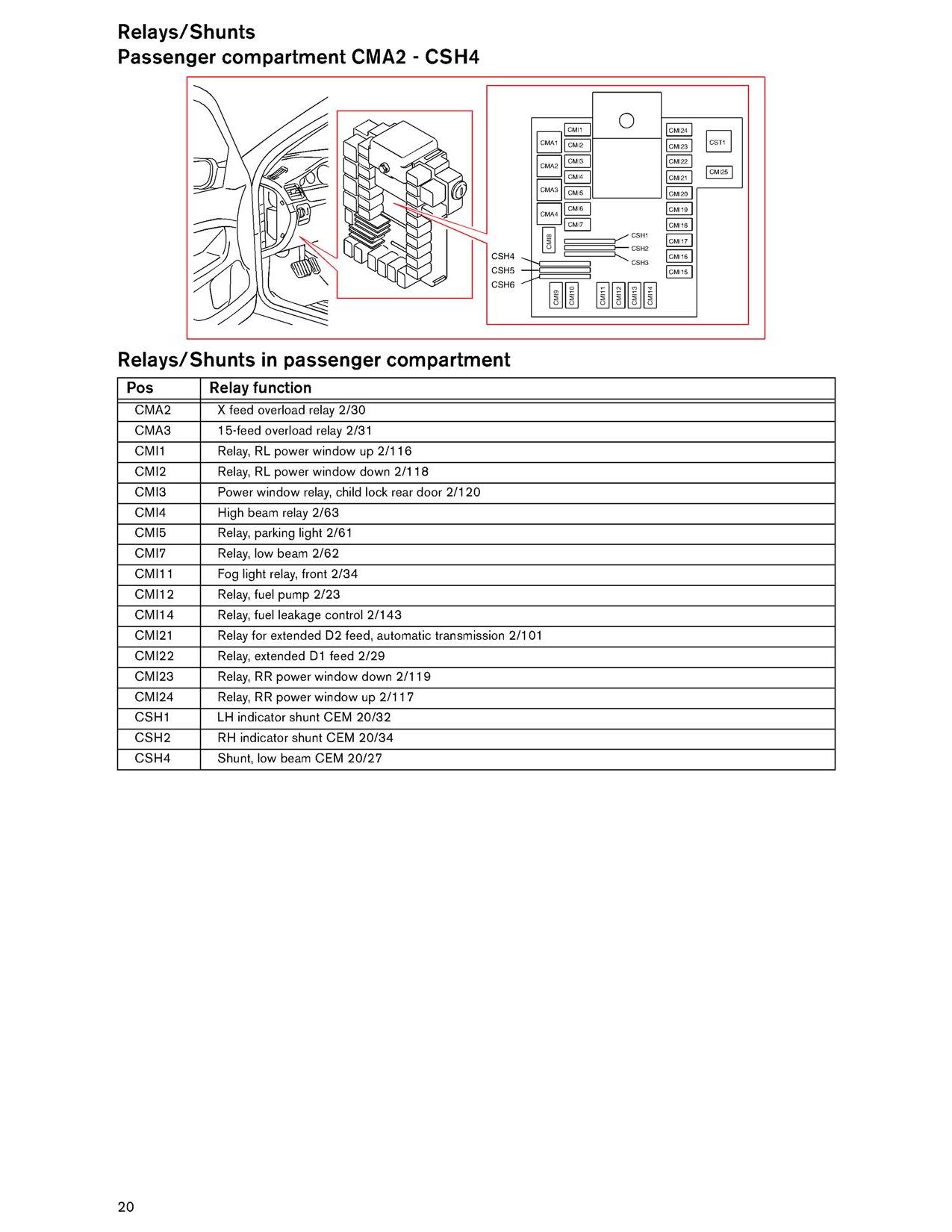

Relay location.jpg
:)
You do not have the required permissions to view the files attached to this post.
V70 2005 2.4i 195,000km, sold
S70 1998 T5 355,000km, sold
960 1994 80,000km, sold
760 1990 Turbo 265,000km, sold
