98 S70 Rear Exhaust Bracket Part Number Question

Post by theWIFES_S70 »

Hey everyone,
Just spent over a half hour (correction, 19 hours...) trying to find out what rear exhaust bracket this is... I can't find the correct part number.

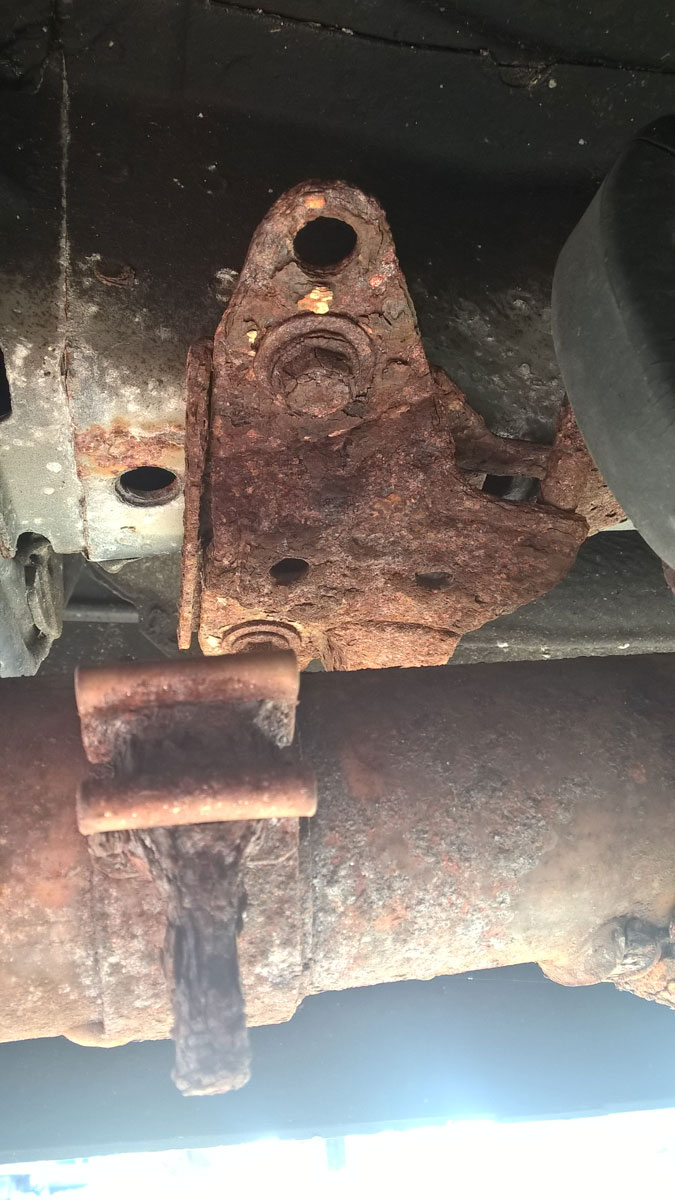

This is my rear-most exhaust bracket.
I'm looking through the parts diagram here: http://www.volvopartswebstore.com/showA ... evel=24656


But cannot find it...

It's not 9434431
https://www.eeuroparts.com/Parts/110083 ... r-9434431/

Nor is it 9470686

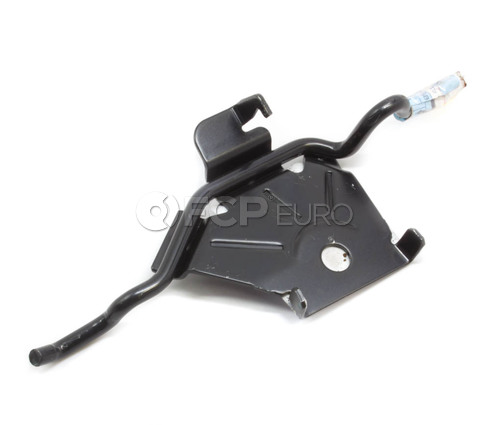

https://www.fcpeuro.com/products/volvo- ... et-9470686

Oh my gosh... So the original piece has been redesigned (I can tell by the lip of 9434431) and you have to install both these pieces together, huh? Seems a little over engineered if you ask me... Can anyone give me a confirmation here? Thanks!
Last edited by theWIFES_S70 on 28 Nov 2016, 11:47, edited 2 times in total.
Retired:
1998 Volvo S70, N/A, 5-speed, 187K
2007 Volvo S40, 2.4i, 5-speed, 121K
2015 Volvo S60, T5, 85K
Top
scot850
Posts: 14864
Joined: 5 April 2010
Year and Model: 2000 V70 R
Location: Calgary, Alberta, Canada
Has thanked: 1836 times
Been thanked: 1709 times

Post by scot850 »

It depends on which chassis # you have on your car. The link you give for the layout states for NA cars. Alternate 1 and Alternate 2 depending on chassis # for item #28. 26 looks like is a stiffener plate for either option. Sorry don't have a FWD to compare.

Neil.
2006 V70 2.5T AWD Polestar tune
2000 V70 R - still being an endless PITA
2006 XC70 - Our son now has this and still parked in our garage
2003 Toyota 4Runner V8 Limited
2015 Kia Sportage EX-L - Sold
1993 850 GLT -Sold
1998 V70 XC - Sold
1997 Volvo 850 SE NA - Went to niece in California - Sold
2000 V70 SE NA - Sold
Top
User avatar
theWIFES_S70
Posts: 1218
Joined: 24 July 2015
Year and Model: 1998 S70 base
Location: Queens, New York
Has thanked: 61 times
Been thanked: 36 times

Post by theWIFES_S70 »

Neil, thanks for replying. Our car is an N/A. I can't see how else this would work unless you install both pieces. I can kinda see one sliding into the other... That sort of makes sense, no?
Retired:
1998 Volvo S70, N/A, 5-speed, 187K
2007 Volvo S40, 2.4i, 5-speed, 121K
2015 Volvo S60, T5, 85K
Top
User avatar
theWIFES_S70
Posts: 1218
Joined: 24 July 2015
Year and Model: 1998 S70 base
Location: Queens, New York
Has thanked: 61 times
Been thanked: 36 times

Post by theWIFES_S70 »

So after further analysis of this part, it is clear to me that I need 9434431.

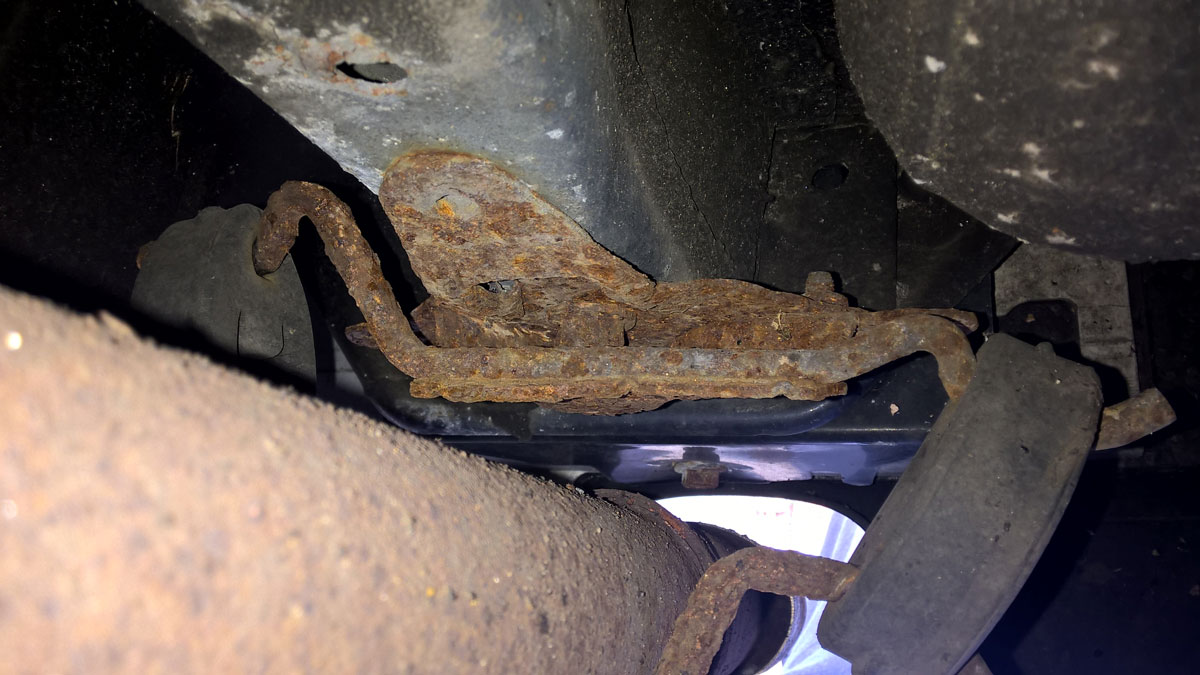

However, I cannot for the life of me find the part that bolts onto this piece. 9434431 connects to the frame of the car and the hanger piece bolts onto this piece with two 12mm bolt holes.

This is the information from the parts diagram...
28 Bracket Part Number: 9470686
S70 FC 1; CH 571090-, FC 2; CH 572194-, V70 CH 550089- FC 1; S70 CH 439914-571089, FC 2; S70 CH 438063-572193, V70 CH 374345-550088
ALTER 1 ALTER 2
So confusing... :o Does this mean that part 28 is the same regardless of the variation?
Retired:
1998 Volvo S70, N/A, 5-speed, 187K
2007 Volvo S40, 2.4i, 5-speed, 121K
2015 Volvo S60, T5, 85K
Top
User avatar
theWIFES_S70
Posts: 1218
Joined: 24 July 2015
Year and Model: 1998 S70 base
Location: Queens, New York
Has thanked: 61 times
Been thanked: 36 times

Post by theWIFES_S70 »

The plot thickens! Good ol' Skandix to the rescue! They're the only ones with a photo of this original part. http://www.skandix.de/en/spare-parts/ex ... r/1031487/

This is VOLVO PART: 3547625


And it's been discontinued...
http://www.volvopartswebstore.com/produ ... 47625.html

:shock:
Retired:
1998 Volvo S70, N/A, 5-speed, 187K
2007 Volvo S40, 2.4i, 5-speed, 121K
2015 Volvo S60, T5, 85K
Top
beigg
Posts: 691
Joined: 22 September 2013
Year and Model: 850 97
Location: Est. Mi

Post by beigg »

I'd thought #36 is what you'd want...
ugh smh 850 Turbo fridge
Top
User avatar
rspi
Posts: 7303
Joined: 5 November 2011
Year and Model: 850 T-5R Wagon
Location: Cincinnati OH
Has thanked: 34 times
Been thanked: 72 times
Contact:
Contact rspi
..

Post by rspi »

Man, all of that stuff is like brand new in our salvage yard. If you'd like me to get you that stuff send me a pm.

I tried to get bolts for that thing for our S70 5 years ago and Volvo told me that they were discontinued then. I was really surprised. I had to use bolts from a 960 hood.
'95 855 T-5R M, Panther - 22/28 mpg, 546,000 miles
'95 955 T-5R Yellow Wagon, Lemonade, 180,000 miles
--------------------
Volvo's of past: '87 740 GLE, '79 262C Bertone, '78 264, 960's, '98 S70 GLT, '95 850 T-5R YellowVolvo Repair Videos
Top
User avatar
theWIFES_S70
Posts: 1218
Joined: 24 July 2015
Year and Model: 1998 S70 base
Location: Queens, New York
Has thanked: 61 times
Been thanked: 36 times

Post by theWIFES_S70 »

I'll probably just get an array of bolts from boltdepot.com... It's always a good idea to have an array of high quality metric flange and hex bolts lying around... Just sent you a PM Robert!!
Retired:
1998 Volvo S70, N/A, 5-speed, 187K
2007 Volvo S40, 2.4i, 5-speed, 121K
2015 Volvo S60, T5, 85K
Top
User avatar
theWIFES_S70
Posts: 1218
Joined: 24 July 2015
Year and Model: 1998 S70 base
Location: Queens, New York
Has thanked: 61 times
Been thanked: 36 times

Post by theWIFES_S70 »

So according to FCP,
985186

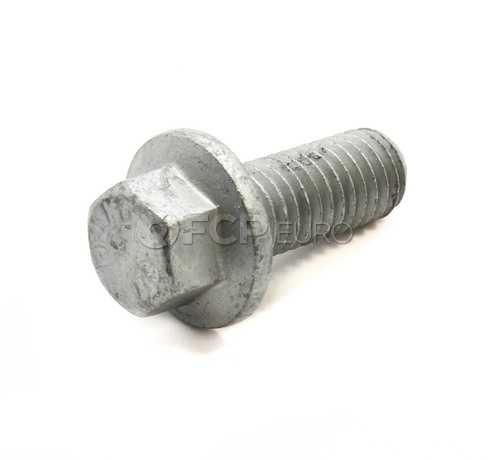

Mounts with 2x of 985186

Which of course, are discontinued.
I can't see how it would mount with two bolts, but I'm going to assume there's something there I can't see because of how the part was photographed.

I'm almost certain these are 12mm bolts...
The exploded parts diagram only shows one bolt that you need two of and I checked it and a 1/2" SAE socket fits around it. Now to figure out how long it needs to be...


I'm thinking 30mm or 35mm in length, if I had to guess...
https://www.boltdepot.com/Metric_flange ... .75mm.aspx

edit:
Just received my bolt order, I guess I should have paid more attention to the specifics. Yes, the boltdepot link above points to 12mm bolts, but 12mm bolts does not mean 12mm socket size bolts! (These are 16mm across the head...) The OE Volvo bolts are 12mm socket size bolts. Which means these are MOST LIKELY 8mm (JIS) flange bolts (12mm head!!) bolts. Guess it's time to place another order... :roll:
Last edited by theWIFES_S70 on 30 Nov 2016, 10:06, edited 2 times in total.
Retired:
1998 Volvo S70, N/A, 5-speed, 187K
2007 Volvo S40, 2.4i, 5-speed, 121K
2015 Volvo S60, T5, 85K
Top
User avatar
theWIFES_S70
Posts: 1218
Joined: 24 July 2015
Year and Model: 1998 S70 base
Location: Queens, New York
Has thanked: 61 times
Been thanked: 36 times

Post by theWIFES_S70 »

OK, FCP order is in. Bought everything I could, even this sillyness... (Which shows up in the exploded parts diagram...)

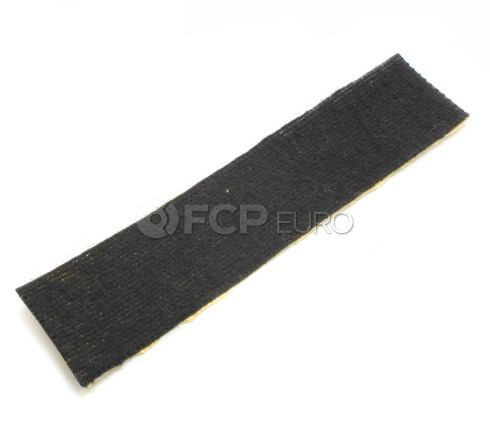

A PIECE OF SWEDISH FELT!
