1996 850R Fuel Tank Heat Shield/Protection Plate

Post by wackenhut »

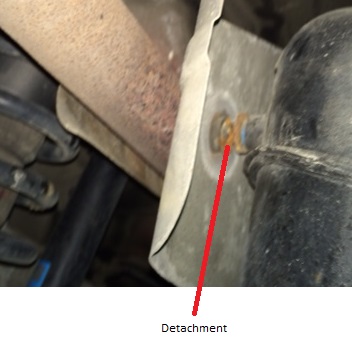

I was able to find a picture of the part that is having an issue from this site. Basically the connection where labeled "detachment" is still on and perfectly fine, however the other sections towards the other end are not connected to the tank causing the shield to drop down. I am not sure how many connections there are to the tank but it looks like mine is only connected now at this one point.

What is involved in fixing this and how important is this piece? Not sure if I am able to fix it or need to take it somewhere. Who would be best to take it to?

Thank you.

Posts: 6541
Joined: Mon Apr 05, 2010 2:46 pm
Year and Model: 2000 V70 R
Location: Calgary, Alberta, Canada
Has thanked: 22 times
Been thanked: 309 times

Post by scot850 »

I replaced the shield on my 2000 V70 FWD base as the PO had somehow managed to beat the life out of it and it had become bent and rusty at the mounts. The part was not expensive, but while I recall it having one mount on the RHS rear of the tank (which had been damaged and had to be epoxy glued back on) I just can't recall haw the LH end was mounted. Not sure if the 850 and V70 are the same, but on the first page I show pictures of the one on my car. It looks like there was a mount either end, but it was also held in place by the fuel tank straps.


2000 V70 R - still being an endless PITA
2006 XC70
2003 Toyota 4Runner V8 Limited
2015 Kia Sportage EX-L
1993 850 GLT -Sold
1998 V70 XC - Sold
1997 Volvo 850 SE NA - Went to niece in California - Sold
2000 V70 SE NA - New project and test bed - Sold

Posts: 190
Joined: Tue Jul 07, 2015 9:32 pm
Year and Model: 850R 1996
Location: FLORIDA

Post by wackenhut »

Anyone know how the left side was mounted? Almost seems it is mounted in a few locations.

Posts: 6937
Joined: Wed Mar 31, 2010 9:54 am
Year and Model: 2004 V70 2.5T
Location: Omaha NE
Been thanked: 169 times

Post by cn90 »

I think "Ozark Lee" posted info on this topic many years ago in forum.
Not sure if the factory recall is still in effect.
2004 V70 2.5T 100K+
2005 XC90 2.5T 110K+
