2005 V70NAM evap hose routing near subframe help

Post by abscate »

Cleaning up a few things from the clutch job and I'm not sure about something.

Can someone with a mid decade P2 get me a picture or description of where the evap hose runs on these cars?

Does it come over or under the subframe Coming forward after the white squeeze connector?

I know it clips to the inside of the subframe on the right side, just below the motor mount, but I don't see The routing aft of that as intuitive. Angling it up and over puts a big twist on it and a lot of chafe points but hanging below the subframe doesn't seem right either,

:?:
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread

User avatar
abscate
MVS Moderator
Posts: 35267
Joined: 17 February 2013
Year and Model: 99: V70s S70s,05 V70
Location: Port Jefferson Long Island NY
Has thanked: 1497 times
Been thanked: 3809 times

Post by abscate »

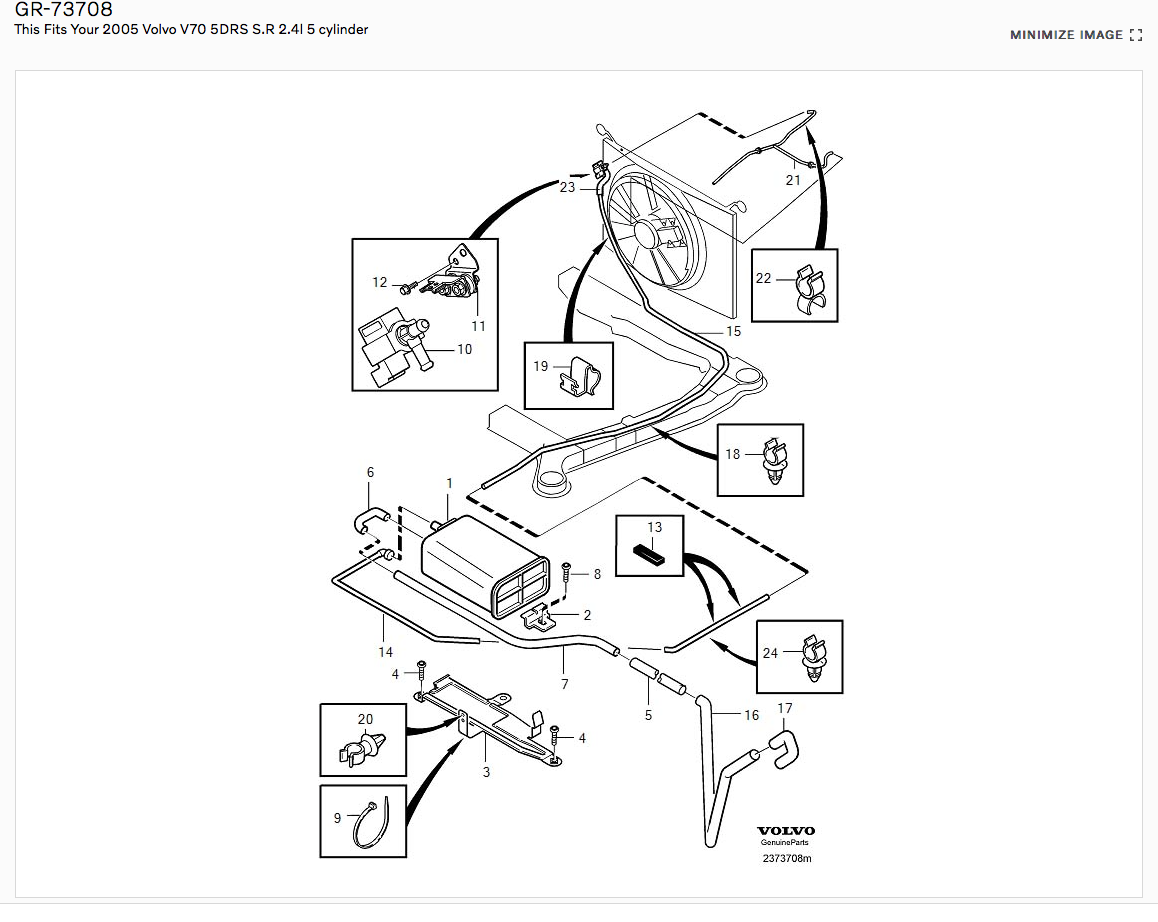

Volvo Webstore to the rescue
Attachments
Screen Shot 2019-12-23 at 1.41.45 PM.png
Screen Shot 2019-12-23 at 1.41.45 PM.png (294.64 KiB) Viewed 436 times
