OBD Port no power 98 v70xc

Bdates · Post by **Bdates** » 21 Jan 2019, 17:15

My OBD2 port used to work and now it doesn't. It is not my scanner because it still works on my wife's escape. Any ideas?

jantt · Post by **jantt** » 21 Jan 2019, 20:38

Fuse ?

Post by **abscate** » 22 Jan 2019, 04:27

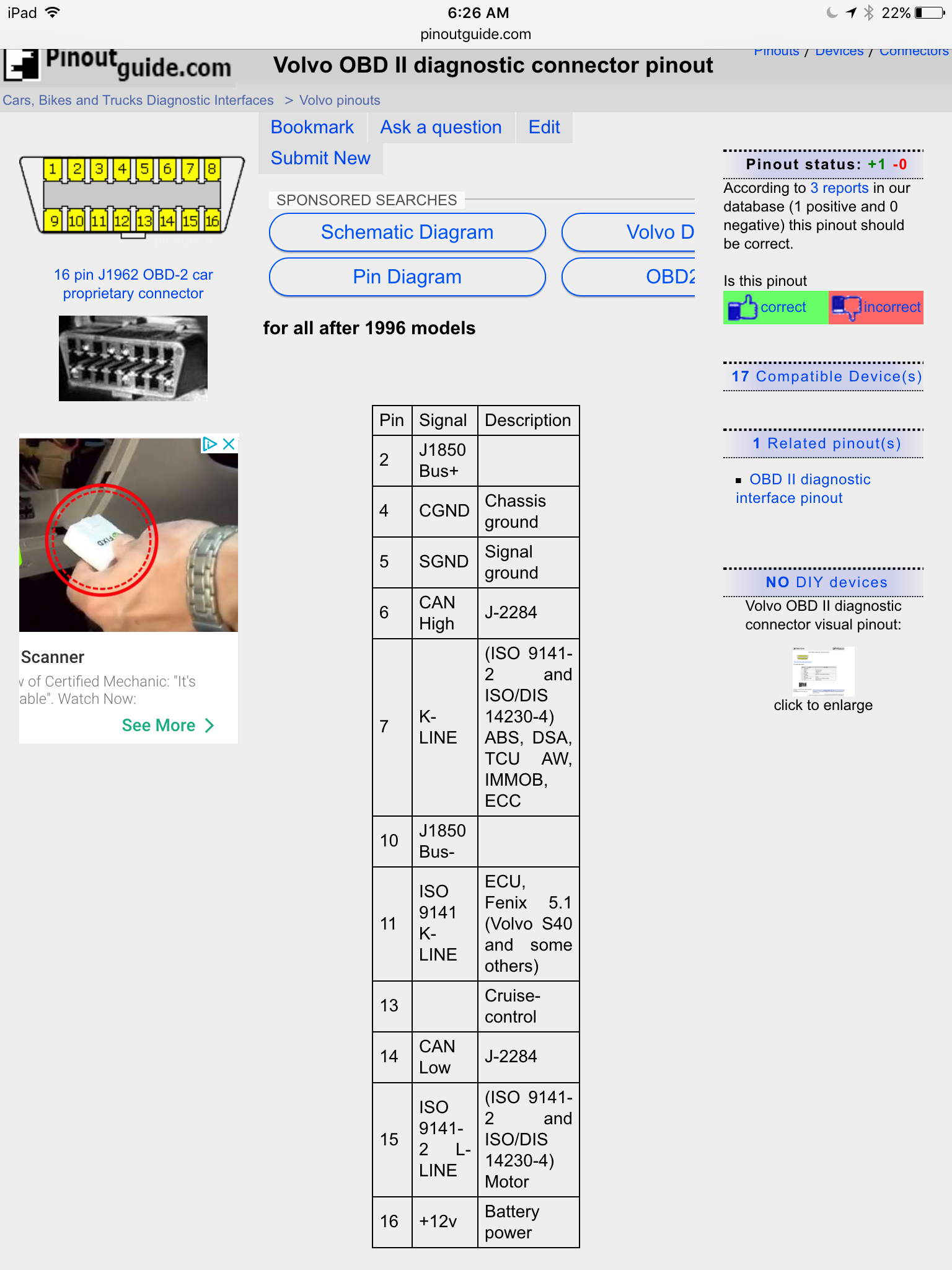

Here's the Pinout to check for voltage.

Bdates · Post by **Bdates** » 23 Jan 2019, 11:50

No voltage, red to pin 16, black to 4. Nothing.

Bdates · Post by **Bdates** » 23 Jan 2019, 11:51

jantt wrote: ↑21 Jan 2019, 20:38Fuse ?

I don't know of a fuse for the obd2 port.

Post by **abscate** » 23 Jan 2019, 12:29

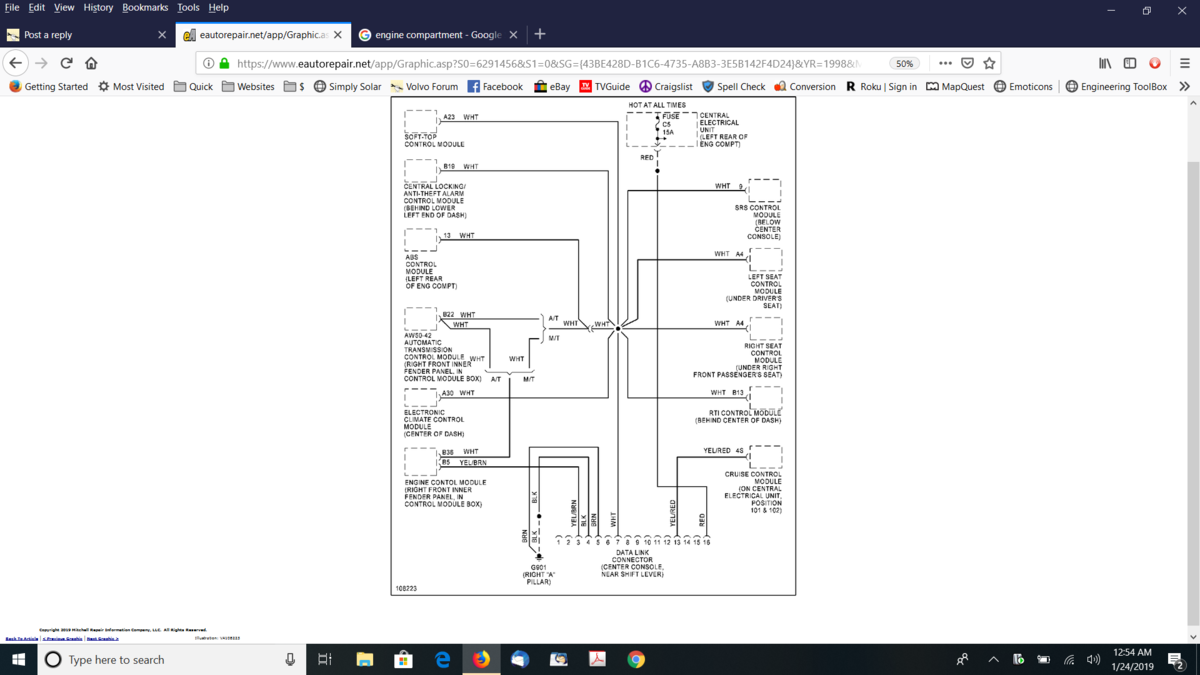

Head up to the sticky which helps locate wiring diagrams, find yours, and start tracing back to from the port.

On ME7 it is fused right off the main power buss, but your 1998 might be different

Bdates · Post by **Bdates** » 23 Jan 2019, 19:45

abscate wrote: ↑23 Jan 2019, 12:29 Head up to the sticky which helps locate wiring diagrams, find yours, and start tracing back to from the port.

On ME7 it is fused right off the main power buss, but your 1998 might be different

the sticky?

Post by **abscate** » 23 Jan 2019, 19:51

Sticky post " how to find wiring diagrams"

jantt · Post by **jantt** » 23 Jan 2019, 22:38

same fuse as for the lighter.
In my C70 2000 there are fuses in both boxes that go to the OBD

Post by **RickHaleParker** » 23 Jan 2019, 23:56

Bdates wrote: ↑23 Jan 2019, 11:51 I don't know of a fuse for the obd2 port.

Fuse C5, 15A in engine compartment.
