Where is it? Evap Vapor Canister Purge Valve (9470775)

Post by andeus » Fri Feb 15, 2019 5:34 pm

Hey MVS members,
Got DTC p0497 more and more recently, and I'm feeling hesitation, reduced MPG, and harder acceleration.
So, I'm looking to replace the EVAP Vapor Canister Purge Valve - (Part no. 9470775) on my
2004 S80 2.5T AWD- part is in hand as we speak.

I searched high and low, but the exact whereabouts of this valve's location eludes me.
I've found diagrams from Volvo manuals and part lists depicting it, but I don't know where exactly it is, and forums mentioning the valve only do it in passing, with little detail of where exactly it is.
For the record, I am not talking about the solenoid.
The part looks like this.
Is it in the bumper or something?
If not, is it a place I can access without a mechanic?

Also, I'm seeing this other valve- same name and compatible vehicle model: (here).
Are there really two?
Do I have to replace them both to get my acceleration, mpg and response back?
(I know where this one is- I saw it in the engine bay)

Thanks in advance!
Last edited by andeus on Tue Feb 19, 2019 8:42 am, edited 1 time in total.
Currently cruising (or fixing) my 2nd 2004 Volvo S80 2.5L Turbo.

User avatar
RickHaleParker
Posts: 3925
Joined: Mon May 25, 2015 2:30 pm
Year and Model: See Signature below.
Location: Kansas
Has thanked: 3 times
Been thanked: 487 times
United States of America
RickHaleParker

Re: Where is it? Evap Vapor Canister Purge Valve (9470775)

Post by RickHaleParker » Fri Feb 15, 2019 7:48 pm

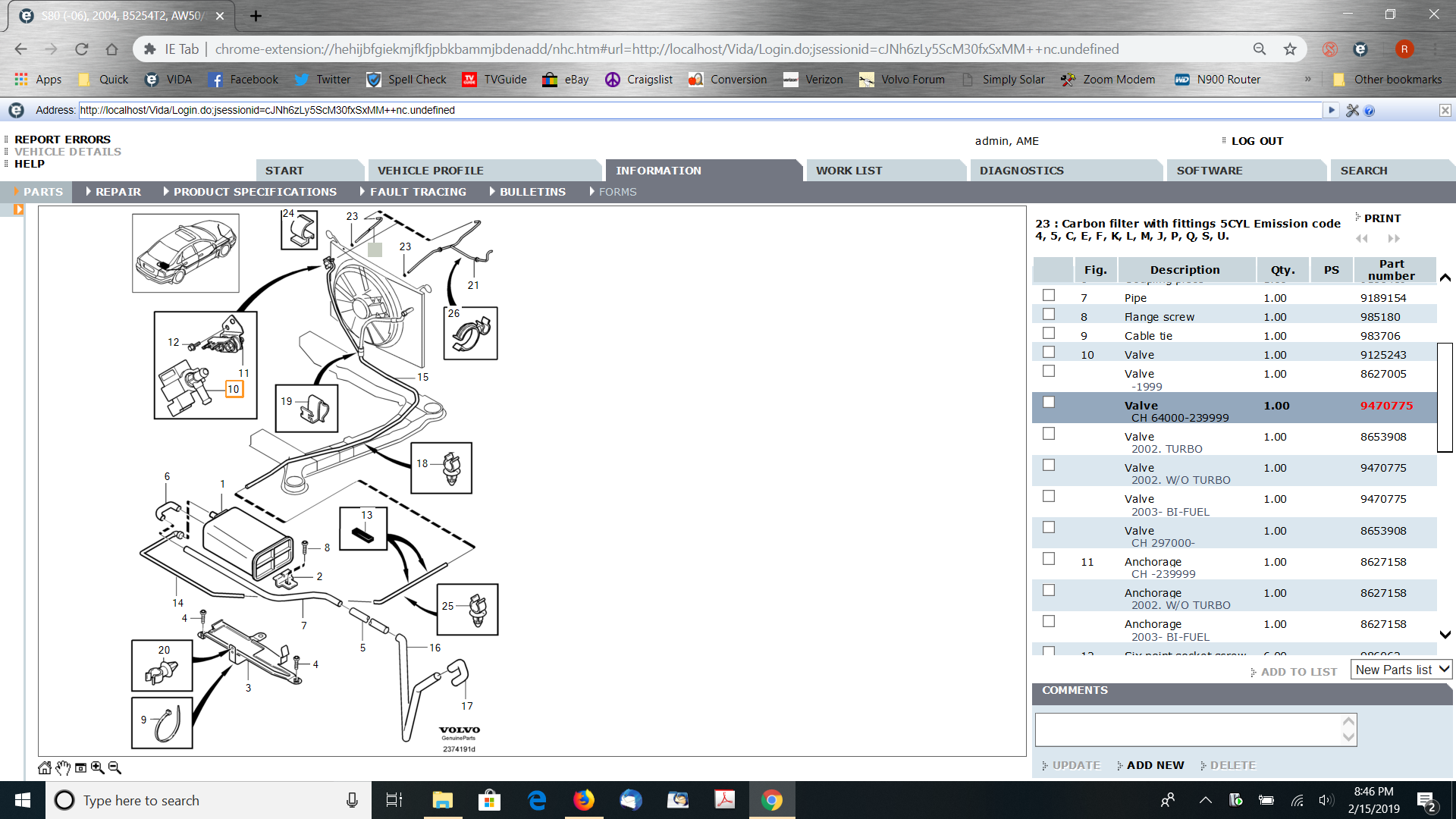

2019-02-15 (1).png
--------
Platform: P80 1998 C70, B5234T3, 16T, AW50-42, Bosch Motronic 4.4, Special Edition package, Plant: Uddevalla Sweden.
Platform: X40 (Nedcar) 2003 S40, B4204T3, 14T twin scroll AW55-50/51SN, Siemens EMS 2000. Plant: Born Netherlands.
Platform P2 2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0, Plant Torslanda Sweden.
Platform P2 2004 S60R, B2524T4, AW50/51 AWD, Bosch Motronic 7.0, BorgWarner K24 turbocharger, Plant Ghent Belgium.

User avatar
andeus
Posts: 22
Joined: Tue Sep 11, 2018 11:54 am
Year and Model: 2004 S80 2.5LT FWD
Location: NJ
Has thanked: 7 times
Been thanked: 0
United States of America
andeus

Re: Where is it? Evap Vapor Canister Purge Valve (9470775)

Post by andeus » Fri Feb 15, 2019 8:33 pm

RickHaleParker wrote:
Fri Feb 15, 2019 7:48 pm
2019-02-15 (1).png
Alright, how do I access it?
Is in the trunk?
Below it?
Under the car?
Currently cruising (or fixing) my 2nd 2004 Volvo S80 2.5L Turbo.

User avatar
SuperHerman
Posts: 1377
Joined: Mon Dec 01, 2014 1:28 pm
Year and Model: 2004 & 2016 XC90
Location: Minnesota
Has thanked: 0
Been thanked: 143 times
United States of America
SuperHerman

Re: Where is it? Evap Vapor Canister Purge Valve (9470775)

Post by SuperHerman » Fri Feb 15, 2019 8:52 pm

Look at the picture. It is on the radiator.

User avatar
andeus
Posts: 22
Joined: Tue Sep 11, 2018 11:54 am
Year and Model: 2004 S80 2.5LT FWD
Location: NJ
Has thanked: 7 times
Been thanked: 0
United States of America
andeus

Re: Where is it? Evap Vapor Canister Purge Valve (9470775)

Post by andeus » Fri Feb 15, 2019 9:03 pm

My college-fried brain thought that front thing was a tire well or speaker or something.
I'll take a look tomorrow and see if I find it.
Currently cruising (or fixing) my 2nd 2004 Volvo S80 2.5L Turbo.

User avatar
andeus
Posts: 22
Joined: Tue Sep 11, 2018 11:54 am
Year and Model: 2004 S80 2.5LT FWD
Location: NJ
Has thanked: 7 times
Been thanked: 0
United States of America
andeus

Re: Where is it? Evap Vapor Canister Purge Valve (9470775)

Post by andeus » Sat Feb 16, 2019 1:55 pm

The valve was not where the diagram specified.
Radiator and fan do not have or hold this valve.
.
Currently cruising (or fixing) my 2nd 2004 Volvo S80 2.5L Turbo.

User avatar
SuperHerman
Posts: 1377
Joined: Mon Dec 01, 2014 1:28 pm
Year and Model: 2004 & 2016 XC90
Location: Minnesota
Has thanked: 0
Been thanked: 143 times
United States of America
SuperHerman

Re: Where is it? Evap Vapor Canister Purge Valve (9470775)

Post by SuperHerman » Sat Feb 16, 2019 6:54 pm

Try this recent post.
viewtopic.php?f=10&t=88390

User avatar
andeus
Posts: 22
Joined: Tue Sep 11, 2018 11:54 am
Year and Model: 2004 S80 2.5LT FWD
Location: NJ
Has thanked: 7 times
Been thanked: 0
United States of America
andeus

Re: Where is it? Evap Vapor Canister Purge Valve (9470775)

Post by andeus » Tue Feb 19, 2019 8:27 am

That didn't help.
Here's what I saw when I removed the top cover like the OP did: (here)
[In order from top to bottom: Left side, Top (general), distance shot, regular Purge Valve and "Boost Pressure Solenoid Valve". See captions as well]
EDIT: I think the OP you linked to simply found the regular Purge Valve. From what I understand, these two parts are not the same(?).

Someone once commented that my Volvo could have been made at the turn of the model year- just as they where switching things up for 2005 models.
Could the Evap Vapor Canister Purge Valve be somewhere else?
Currently cruising (or fixing) my 2nd 2004 Volvo S80 2.5L Turbo.

User avatar
SuperHerman
Posts: 1377
Joined: Mon Dec 01, 2014 1:28 pm
Year and Model: 2004 & 2016 XC90
Location: Minnesota
Has thanked: 0
Been thanked: 143 times
United States of America
SuperHerman

Re: Where is it? Evap Vapor Canister Purge Valve (9470775)  Topic is solved

Post by SuperHerman » Tue Feb 19, 2019 9:27 am

Go back to RickParkerHale's post and zoom in - look for #10. It is on the radiator. If not, it is of the design I linked to and you show an FCP part. In your pictures you show it and correctly identify it.

Do you have the original part in hand or the old part? It could be as you say - you have a newer design and ordered and are looking for the wrong part.
These users thanked the author SuperHerman for the post:
andeus

User avatar
andeus
Posts: 22
Joined: Tue Sep 11, 2018 11:54 am
Year and Model: 2004 S80 2.5LT FWD
Location: NJ
Has thanked: 7 times
Been thanked: 0
United States of America
andeus

Re: Where is it? Evap Vapor Canister Purge Valve (9470775)

Post by andeus » Tue Feb 19, 2019 9:54 am

So that must be it, then.
The design must be the newer, cylindrical design depicted on the other post and on FCP.
This model must truly be "caught between times".

I installed a new radiator in the Volvo on Saturday and saw nothing that looked like the diagram.

Guess I have to order this other one now....fun.
Currently cruising (or fixing) my 2nd 2004 Volvo S80 2.5L Turbo.
