P80 Master O-ring Model Part Number Size Type Comment Thread

Post by **abscate** » 22 Feb 2019, 14:08

You know the scenario - you are working on the car, then suddenly and O-ring is broken
Our great vendors have these parts, but you need to be back on the road now, and $20 shipping on a 0.29 cent part seems rough.

Goal - as we do our DIY jobs, document the size of Orings so we can find the right one locally and get out of a jam.

When you buy O-rings, buy 2 extra. You’ll figure out why

Format

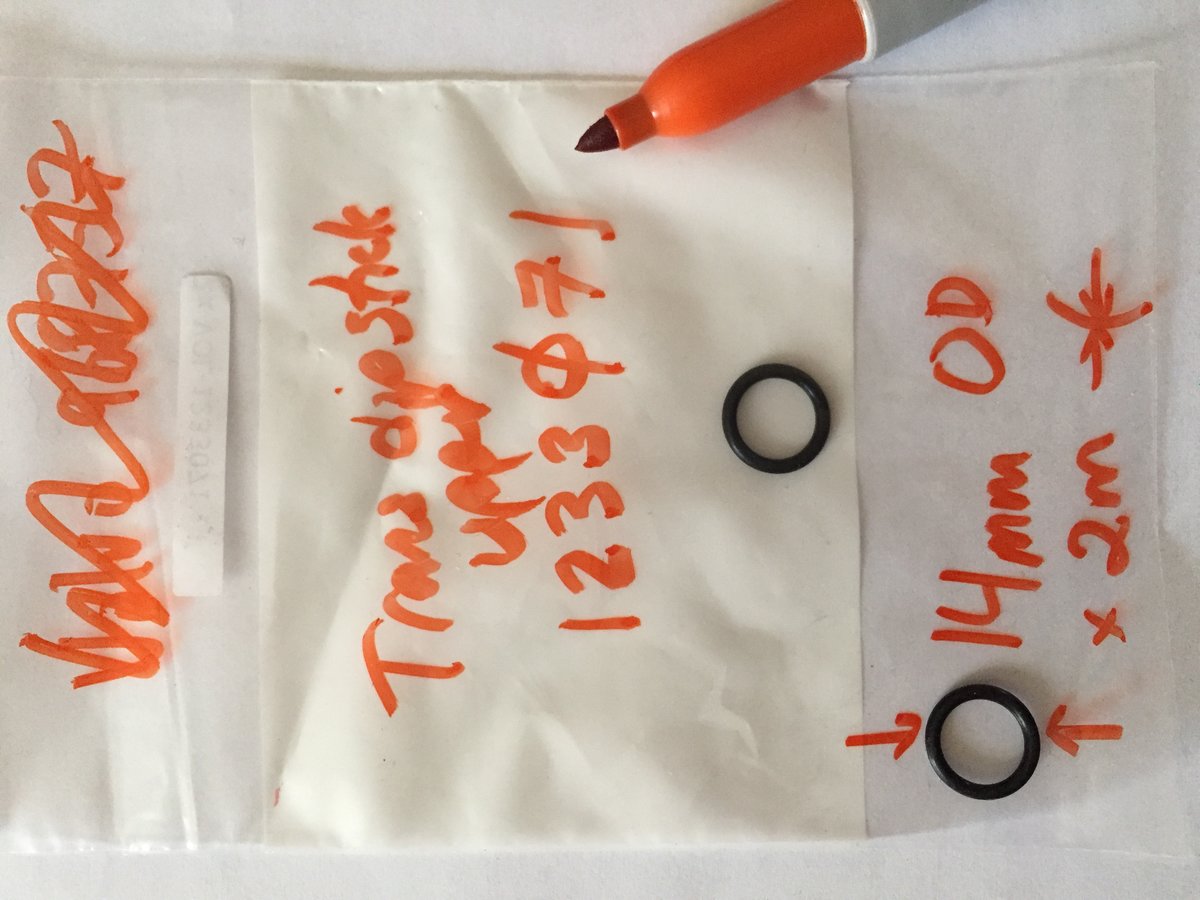

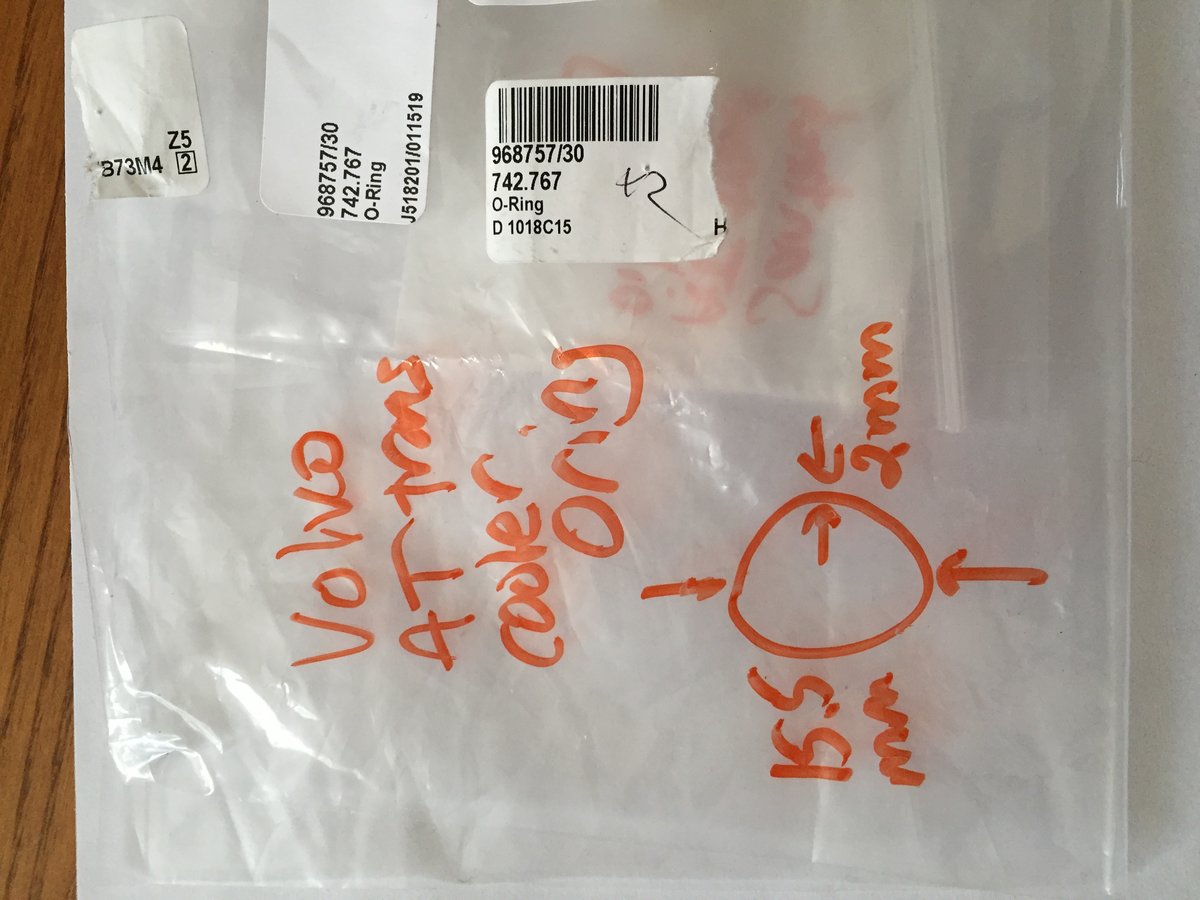

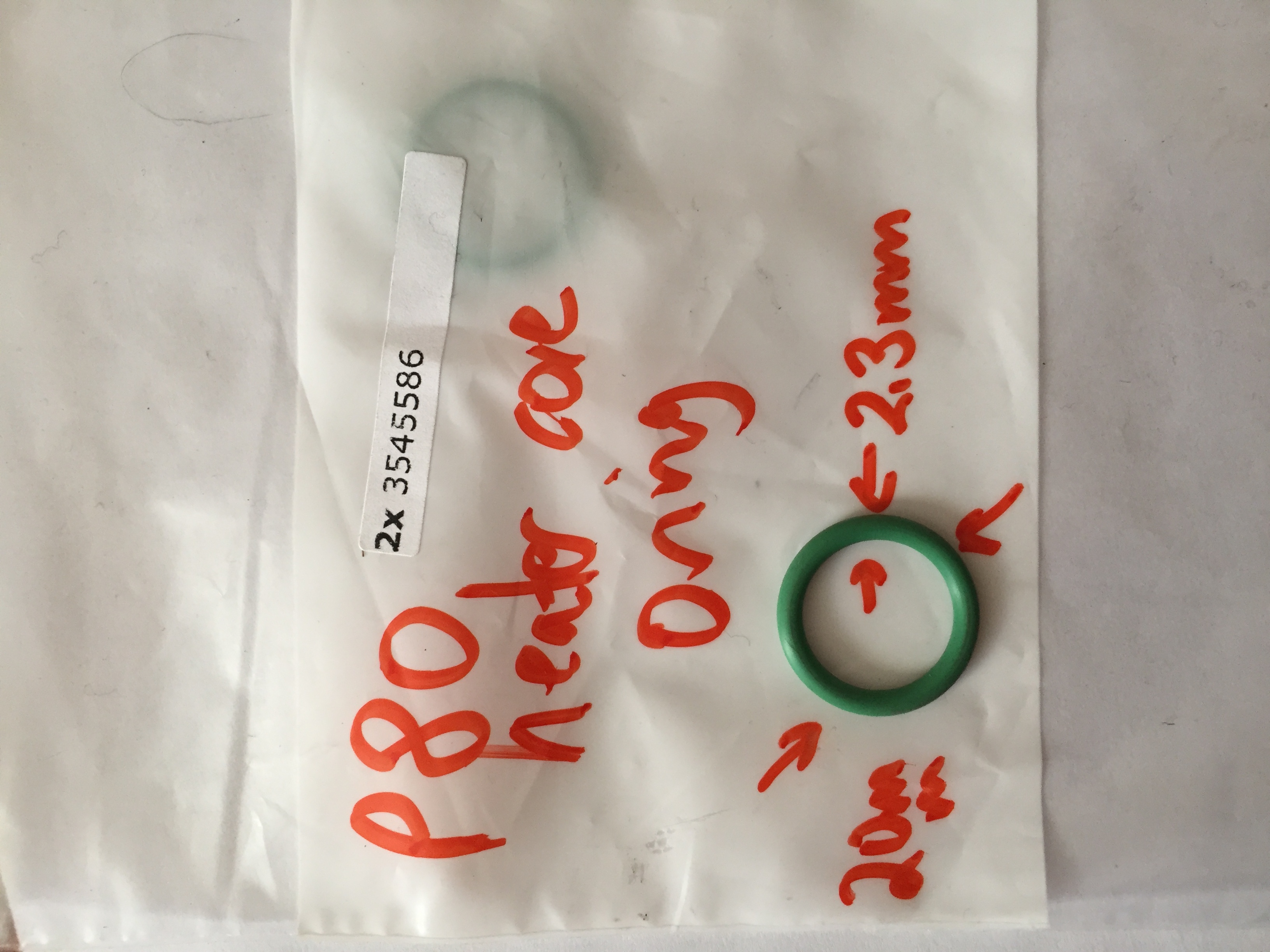

Year Model Volvo part number Size OD by thickness, material, colour, comment

Onionrings

Post by **abscate** » 22 Feb 2019, 14:10

Space reserved for AC Orings

The comprehensive list of O rings on the AC system, 1999

Using Volvo Parts Lisle as guide

http://volvopartslisle.com/assembly/790 ... nditioning

Oring - evaporator cold side 3545416 2 on this line (4 total in system)

Oring Evaporator warm side 988840 2 on line this line (3 total in system)

Oring on pressostat valve (low pressure) 3537501 Qty 1

Orfice valve - downstream Oring 3537797 Qty 1 - this one comes with a new orifice valve

Orfice Valve upstream 988840 one on valve, comes with new valve (total 3 in system)

Oring for fill valve NLA? Fill valve is 6849305 - maybe comes with Oring

Oring between condensor and hard lines 9883337 qty 3 total in system

Condensor pipe to condensor hard line - NLA

Condensor to condensor pipe/compressor NLA

Oring from condenser pipe to compressor 6847526

Oring to compressor suction pipe 354441

ORing from suction pipe to drier 9888433

Oring from drier to hard line/evap warm side 3545416 2 at this location, 4 in system

Post by **precopster** » 22 Feb 2019, 14:46

Great work I needed this when I was doing up my 850 wagon afew years ago.

Should A/C be somewhere in the title?

Post by **abscate** » 22 Feb 2019, 15:09

This is for all O-rings, not just AC !!

Ill work on measuring the AC ones since I have spares.

Post by **precopster** » 22 Feb 2019, 15:12

O ring for vacuum tree on manifold turbo cars?

While you're at it.

Post by **abscate** » 22 Feb 2019, 19:24

Size for ps pump and rack hoses is here, each connector uses 2 on each end

viewtopic.php?t=60914

Post by **abscate** » 23 Mar 2019, 16:00

Some o-ring additions

Post by **abscate** » 02 May 2019, 15:13

Measured on an 1999 Intake Cam

Outer Cap Oring 28mm x 1.5mm

Inner VVT hub Oring 50mm x 1.5mm

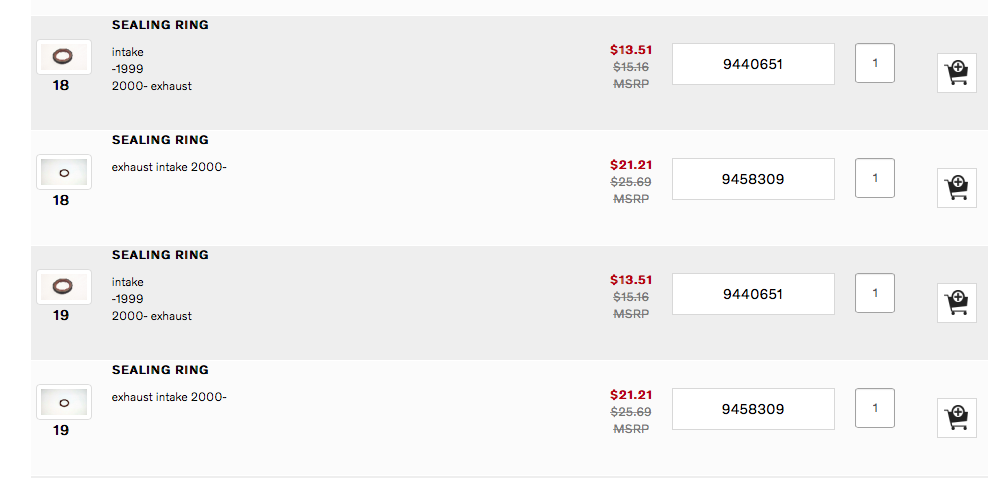

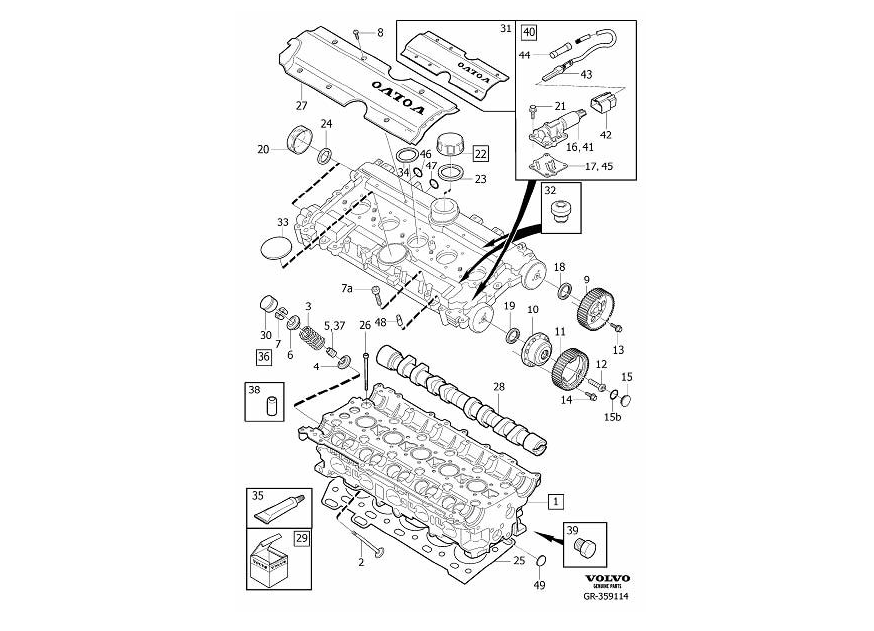

See screen shots for part numbers - it looks like I was measuring a part 9440651

On edit...I think these are the cam seals , not the CVVT Orings

Post by **JimBee** » 22 Mar 2020, 19:34

On page 8 of this tutorial there are more spec's on o-rings for the p80 A/C system.

https://s3.amazonaws.com/images.matthewsvolvosite.com/vo ... torial.pdf

Post by **abscate** » 01 May 2020, 07:27

JimBee wrote: ↑22 Mar 2020, 19:34 On page 8 of this tutorial there are more spec's on o-rings for the p80 A/C system.

https://s3.amazonaws.com/images.matthewsvolvosite.com/vo ... torial.pdf

Really good tutorial about AC refurb , setting up clutch. JimBee shared the things that went wrong , not just the list of steps
