Arduino Volvo Display Thread
- BlackBart
- Posts: 574
- Joined: Sat Dec 10, 2016 5:03 pm
- Year and Model: 2004 XC70 BlackBetty
- Location: Montana
- Has thanked: 39 times
- Been thanked: 30 times
Re: Arduino Volvo Display Thread
Ahh, I see. The "Volvo Driver Distraction Display" is funny!....and true...
But if it does these things (many of which should be on gauges in the first place) that's good....
Boost
Coolant temperature
ATF temperature
Battery voltage
Fuel rail pressure
Short-term fuel trim (STFT)
Throttle plate angle
VVT angles, intake and exhaust
Ignition timing (BTDC)
Misfire counter
But if it does these things (many of which should be on gauges in the first place) that's good....
Boost
Coolant temperature
ATF temperature
Battery voltage
Fuel rail pressure
Short-term fuel trim (STFT)
Throttle plate angle
VVT angles, intake and exhaust
Ignition timing (BTDC)
Misfire counter
ex-1984 245T wagon
1994 850T wagon
2004 XC70 wagon BlackBetty
Is it time for a 1964 122 wagon?
1994 850T wagon
2004 XC70 wagon BlackBetty
Is it time for a 1964 122 wagon?
- E Showell
- Posts: 2857
- Joined: Thu Oct 16, 2008 4:00 pm
- Year and Model: V70R '06 AWD Auto
- Location: Long Valley, N.J.
- Has thanked: 7 times
- Been thanked: 41 times
Re: Arduino Volvo Display Thread
The sad reality for me is that with what I know about electricity (the lights go on when the switch gets flipped up) and programming (that's how you find out what's on TV), the only way this would be doable for me would be as a prepackaged kit with detailed, step-by-step instructions.
'98 V70 NA FWD 5 spd, silver sand metallic (sold)
'99 V70 NA FWD Auto, dark blue (actively for sale)
'99 S70 NA FWD Auto, black (sold and resurrected -- Don't cry for me Argentina . . . )
'07 S80 3.2 FWD Auto, Barents Blue Metallic
'06 V70 R AWD Auto, Sonic Blue Metallic
'04 XC70 Ruby Red Metallic
'99 V70 NA FWD Auto, dark blue (actively for sale)
'99 S70 NA FWD Auto, black (sold and resurrected -- Don't cry for me Argentina . . . )
'07 S80 3.2 FWD Auto, Barents Blue Metallic
'06 V70 R AWD Auto, Sonic Blue Metallic
'04 XC70 Ruby Red Metallic
- E Showell
- Posts: 2857
- Joined: Thu Oct 16, 2008 4:00 pm
- Year and Model: V70R '06 AWD Auto
- Location: Long Valley, N.J.
- Has thanked: 7 times
- Been thanked: 41 times
Re: Arduino Volvo Display Thread
Steve -- we ought to put a couple of these together for our respective rides.
'98 V70 NA FWD 5 spd, silver sand metallic (sold)
'99 V70 NA FWD Auto, dark blue (actively for sale)
'99 S70 NA FWD Auto, black (sold and resurrected -- Don't cry for me Argentina . . . )
'07 S80 3.2 FWD Auto, Barents Blue Metallic
'06 V70 R AWD Auto, Sonic Blue Metallic
'04 XC70 Ruby Red Metallic
'99 V70 NA FWD Auto, dark blue (actively for sale)
'99 S70 NA FWD Auto, black (sold and resurrected -- Don't cry for me Argentina . . . )
'07 S80 3.2 FWD Auto, Barents Blue Metallic
'06 V70 R AWD Auto, Sonic Blue Metallic
'04 XC70 Ruby Red Metallic
-
- Posts: 128
- Joined: Sun Dec 09, 2018 12:59 pm
- Year and Model: 2005 V70 2.4
- Location: USA
- Has thanked: 2 times
- Been thanked: 2 times
Re: Arduino Volvo Display Thread
There are any number of kits and factory built displays that work on the OBD2 port. I didn't realize at first that this device reads the Volvo codes like a mini VIDA/DICE unit. This is way coolE Showell wrote: ↑Fri May 03, 2019 3:15 amThe sad reality for me is that with what I know about electricity (the lights go on when the switch gets flipped up) and programming (that's how you find out what's on TV), the only way this would be doable for me would be as a prepackaged kit with detailed, step-by-step instructions.

I love experiments and have some IT and electronics skills, so I think I will have fun with this

- vtl
- Posts: 1626
- Joined: Thu Aug 16, 2012 1:35 pm
- Year and Model: 2005 XC70
- Location: Boston
- Has thanked: 3 times
- Been thanked: 42 times
Re: Arduino Volvo Display Thread
Replaced my old 2.4" Picaso display with a bigger/newer one (gen4 Diablo 2.8"):

The one I bought about 5 months ago developed a crack in the flat display cable, it is a FUBAR
Had to buy another one.

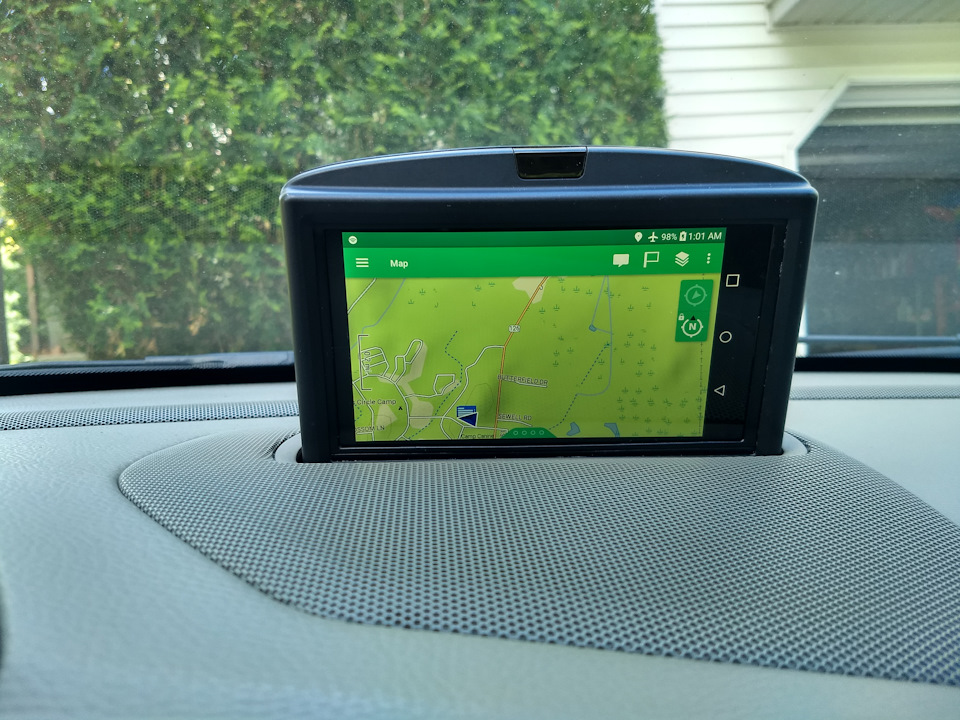

Also my other project: third-party navigation in Volvo RTI:



Not so long ago I had a Garmin nuvi 65LMT installed there, but its battery went dead, the unit was not able to power up. I accidentally had cut the ribbon cable while carving it out of the frame, effectively destroying the unit
Oh well, didn't like that Garmin anyway, and it did not work in Canada, though I paid for the maps... Here LG Stylo 3 goes.
Now I have a GPS navigation of my choice (Copilot) and so much desired topographic maps for my wilderness trips (Garmin Earthmate paired to the DeLorne/Garmin inReach Explorer+).

The one I bought about 5 months ago developed a crack in the flat display cable, it is a FUBAR

Also my other project: third-party navigation in Volvo RTI:



Not so long ago I had a Garmin nuvi 65LMT installed there, but its battery went dead, the unit was not able to power up. I accidentally had cut the ribbon cable while carving it out of the frame, effectively destroying the unit

Now I have a GPS navigation of my choice (Copilot) and so much desired topographic maps for my wilderness trips (Garmin Earthmate paired to the DeLorne/Garmin inReach Explorer+).
05 XC70 260k, 16 XC60 40k, 19 Tundra 1k
- vtl
- Posts: 1626
- Joined: Thu Aug 16, 2012 1:35 pm
- Year and Model: 2005 XC70
- Location: Boston
- Has thanked: 3 times
- Been thanked: 42 times
Re: Arduino Volvo Display Thread
Okay, folks. I got it working finally. Pardon my laziness: I work as a sw developer and doing more sw development in the second shift is much less relaxing than turning wrenches under old Volvo, which falls apart
So it took longer than anticipated.
Same git repo, the esp32 branch: https://github.com/vtl/volvo-ddd/tree/esp32 I got it all working with ESP32 NodeMCU32-S ($11 on Amazon), 2 or 4 CAN-bus shields w/ MCP2515 and a bunch of other stuff mentioned somewhere in the beginning of the topic.
MCP2515 is less advanced than built-in CAN-controller in Arduino Due (SAM3X8, ARM-based), I yet have to rework sensors polling, as it's slower than I want it to be, but it's solvable. Schemes will be drawn soon.
I thought it is good to bump up the topic, since 4D Systems has 35% discount these holidays (promo code 4D35).

Same git repo, the esp32 branch: https://github.com/vtl/volvo-ddd/tree/esp32 I got it all working with ESP32 NodeMCU32-S ($11 on Amazon), 2 or 4 CAN-bus shields w/ MCP2515 and a bunch of other stuff mentioned somewhere in the beginning of the topic.
MCP2515 is less advanced than built-in CAN-controller in Arduino Due (SAM3X8, ARM-based), I yet have to rework sensors polling, as it's slower than I want it to be, but it's solvable. Schemes will be drawn soon.
I thought it is good to bump up the topic, since 4D Systems has 35% discount these holidays (promo code 4D35).
05 XC70 260k, 16 XC60 40k, 19 Tundra 1k
- vtl
- Posts: 1626
- Joined: Thu Aug 16, 2012 1:35 pm
- Year and Model: 2005 XC70
- Location: Boston
- Has thanked: 3 times
- Been thanked: 42 times
Re: Arduino Volvo Display Thread
Schematics: https://easyeda.com/v.mayatskih/volvo-ddd. Work in progress, does not have CAN-shields for the rear seat entertainment, may contain bugs.


05 XC70 260k, 16 XC60 40k, 19 Tundra 1k
-
- Posts: 59
- Joined: Thu Nov 24, 2011 1:02 pm
- Year and Model: V70 2.5T 2004, S60 2
- Location: Melbourne, Australia
- Has thanked: 0
- Been thanked: 0
Re: Arduino Volvo Display Thread
What is that adaptor for the Kenwood HUD in the picture above?
The car audio shops here in Australia insist there isn't double DIN adaptor for any Volvo.
The car audio shops here in Australia insist there isn't double DIN adaptor for any Volvo.
- vtl
- Posts: 1626
- Joined: Thu Aug 16, 2012 1:35 pm
- Year and Model: 2005 XC70
- Location: Boston
- Has thanked: 3 times
- Been thanked: 42 times
Re: Arduino Volvo Display Thread
SCOSCHE VO4152B 2005-07 Volvo S60/S70 Double DIN Install Dash Kit. It is not a perfect fit, but I'm OK with it.
They also have one for 01-04.
They also have one for 01-04.
05 XC70 260k, 16 XC60 40k, 19 Tundra 1k
-
- Posts: 4
- Joined: Wed Nov 27, 2013 1:29 pm
- Year and Model: XC90 2004 D5 AWD
- Location: Austria
- Has thanked: 5 times
- Been thanked: 0
Re: Arduino Volvo Display Thread
Hi,
Suggestion: instead of this overpriced 4D sys Display, the ESP32 could act as an Webserver to host all the data on a webpage, so one could just use its smartphone as Display.
Suggestion: instead of this overpriced 4D sys Display, the ESP32 could act as an Webserver to host all the data on a webpage, so one could just use its smartphone as Display.
-
