Camshaft position for timing

Post by tango_1000 » Sun Oct 20, 2019 12:17 pm

Hello, and thanks in advance for those that help.
I have a C70 2007 T5 Automatic.
I'm trying to finish timing my car. I did it few times now due to my errors, but it was a good practice.
I had to replace the camshaft front oil seal so I had to take the pulleys. I had the tool hold the camshaft in the horizontal position. But there is two horizontal position, and one is totally different from the other (I think).
So my question is which one is the correct one.
There is a notch in both of them for the camshaft router, where this notch have to be?
I'm pretty sure I didn't tight the bolts for the pulleys strong enough when I put them back so I thinks they turn and the camshaft didn't, so I want to do the whole job again and align correctly.
Thanks everyone again



User avatar
RickHaleParker
Posts: 3153
Joined: Mon May 25, 2015 2:30 pm
Year and Model: See Signature below.
Location: Kansas
Has thanked: 3 times
Been thanked: 360 times
United States of America
RickHaleParker

Re: Camshaft position for timing

Post by RickHaleParker » Tue Oct 22, 2019 3:12 am

On the rear of the cams:
1. The two slots, one each camshaft should be horizontal (3:00 to 9:00).
2. The slots are off center. Intake should be above center and exhaust below center.

There is a tool that bolts on the rear of the cams and keep the camshafts in the correct position as you align the other components.There is a tool that bolts on the rear of the cams and keep the camshafts in the correct position as you align the other components.

Go to eBay and search for "Volvo Timing tool set".

These users thanked the author RickHaleParker for the post:
tango_1000


Platform: P80 1998 C70, B5234T3, AW50-42, Bosch Motronic 4.4, Special Edition package, Plant: Uddevalla Sweden.

Platform: X40 (Nedcar) 2003 S40, B4204T3, AW55-50/51SN, Siemens EMS 2000. Plant: Born Netherlands.

Platform P2 2005 XC90 T6 Executive, B6294T, 4T65 AWD, Bosch Motronic 7.0, Plant Torslanda Sweden.
----------------------------------------------------------------
1997 S90, B6304S, AW30-42, Bosch Motronic 4.4 - Sold

tango_1000
Posts: 32
Joined: Fri Jul 15, 2011 11:30 am
Year and Model: c70 2007
Location: chapel hill, nc
Has thanked: 7 times
Been thanked: 0
Argentina
tango_1000

Re: Camshaft position for timing

Post by tango_1000 » Tue Oct 22, 2019 1:32 pm

Yes, just like that.
Thanks to everyone.
Fix!!!!!



tango_1000
Posts: 32
Joined: Fri Jul 15, 2011 11:30 am
Year and Model: c70 2007
Location: chapel hill, nc
Has thanked: 7 times
Been thanked: 0
Argentina
tango_1000

Re: Camshaft position for timing

Post by tango_1000 » Wed Oct 23, 2019 9:16 pm

One more question, now is about the crankshaft pulley.
I took the pulley out of the crankshaft and need help to put it back.
Is the crankshaft have any mark to reinsert the crankshaft pulley??
I can see in the pulley the marks, and also the line where is a little wider inside the pulley.
But I need a mark on the crankshaft to install the pulley. Any help appreciate it.
Thanks



User avatar
RickHaleParker
Posts: 3153
Joined: Mon May 25, 2015 2:30 pm
Year and Model: See Signature below.
Location: Kansas
Has thanked: 3 times
Been thanked: 360 times
United States of America
RickHaleParker

Re: Camshaft position for timing

Post by RickHaleParker » Thu Oct 24, 2019 3:36 am

The wider spine is an alignment key. There is only one so there is only one alignment that will let the two pieces go together.

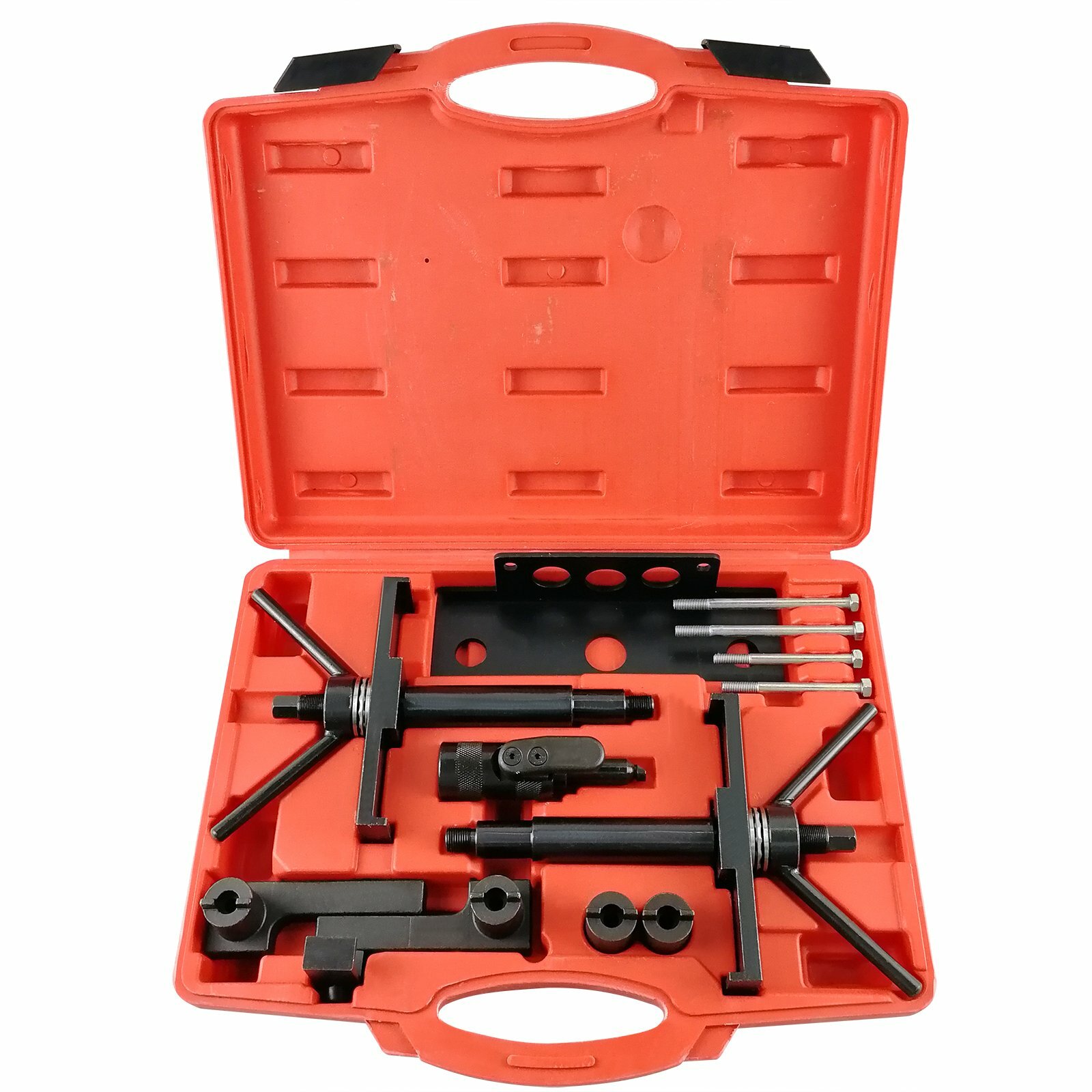

The tool in the center of the kit above is the Crankshaft Alignment Tool. It is used to lock the camshaft in the correct position for timing alignment, the datum for everything else.
