A/C wiring schematic.

aahmes57 · Post by **aahmes57** » 07 Jun 2021, 13:10

Hello all,
Would someone please point me in the right direction for a wiring schematic that covers the air conditioning on a 1998 S70 GLT turbo automatic. I Appreciate your help.
Thanks

Post by **BEJinFbk** » 07 Jun 2021, 19:14

Is your fan speed control 4 steps? (MCC - Manual)
Or AUTO/ Fully variable? (ECC - Electronic)

aahmes57 · Post by **aahmes57** » 08 Jun 2021, 19:02

No it is a slide fan speed with an auto option. No degrees for temperature. MCC

Post by **BEJinFbk** » 08 Jun 2021, 22:34

aahmes57 wrote: ↑08 Jun 2021, 19:02 No it is a slide fan speed with an auto option. No degrees for temperature. MCC

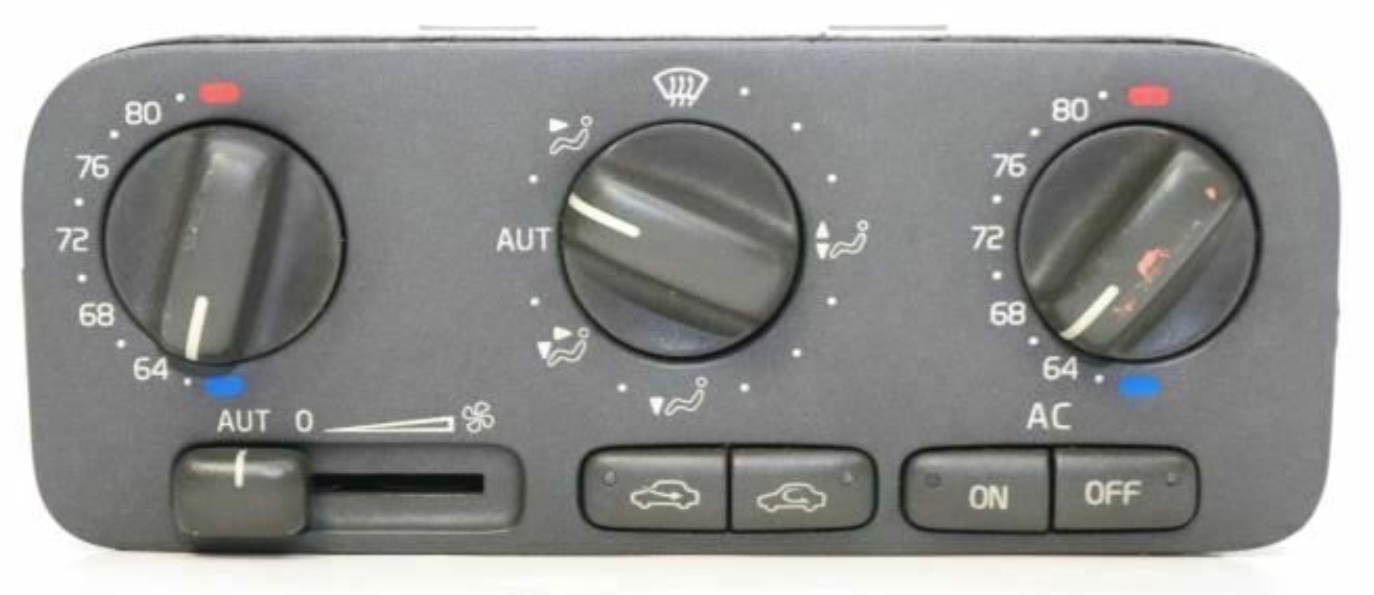

This one?

aahmes57 · Post by **aahmes57** » 10 Jun 2021, 05:02

No, there are No (numbers) degrees for temperature.

Azik09 · Post by **Azik09** » 10 Jun 2021, 12:41

Slider=ECC, turning fan knob=MCC. No other variants

aahmes57 · Post by **aahmes57** » 11 Jun 2021, 06:21

Thanks for the files Azik09.
Been trying to troubleshoot this A/C for a while now.
