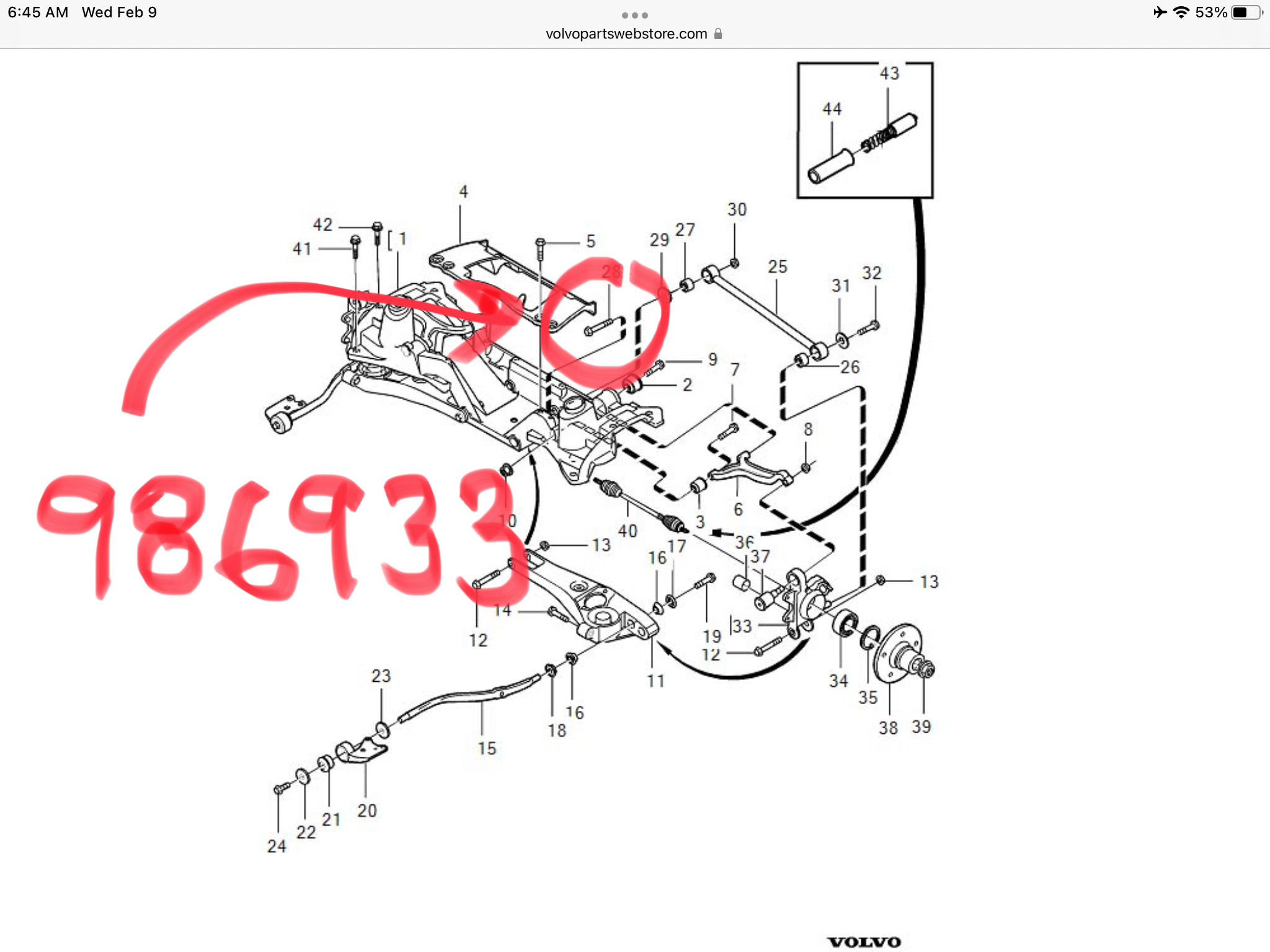

1999 2000 AWD REAR axle toe in adjustment 986933 NLA, making up my parts

Post by **abscate** » 09 Feb 2022, 04:50

Continuing the saga on the AWD

Rear toe in is set by ambushinga bushing and eccentric washer , with a long through bolt with a groove to set up the toe. Of course, the long bolt is now NLA

Im going to figure out the bolt size, thread, and length and have a slot machined in

Anyone else interested in some spares? I’ll run a batch of these.

Note,,,the later bolt used on XC70 and XC90 is too short and won’t work here

Post by **BlackBart** » 09 Feb 2022, 10:40

What is your strategy for ambushing the washer? Is that how an alignment shop would do it...??

Post by **erikv11** » 09 Feb 2022, 11:22

I'll help set up the ambush if you want a consult there.

Post by **abscate** » 09 Feb 2022, 12:19

Nyuck Nyuck Nycuck

I got an eccentric washer and a strange dryer in my basement

Post by **abscate** » 09 Feb 2022, 14:16

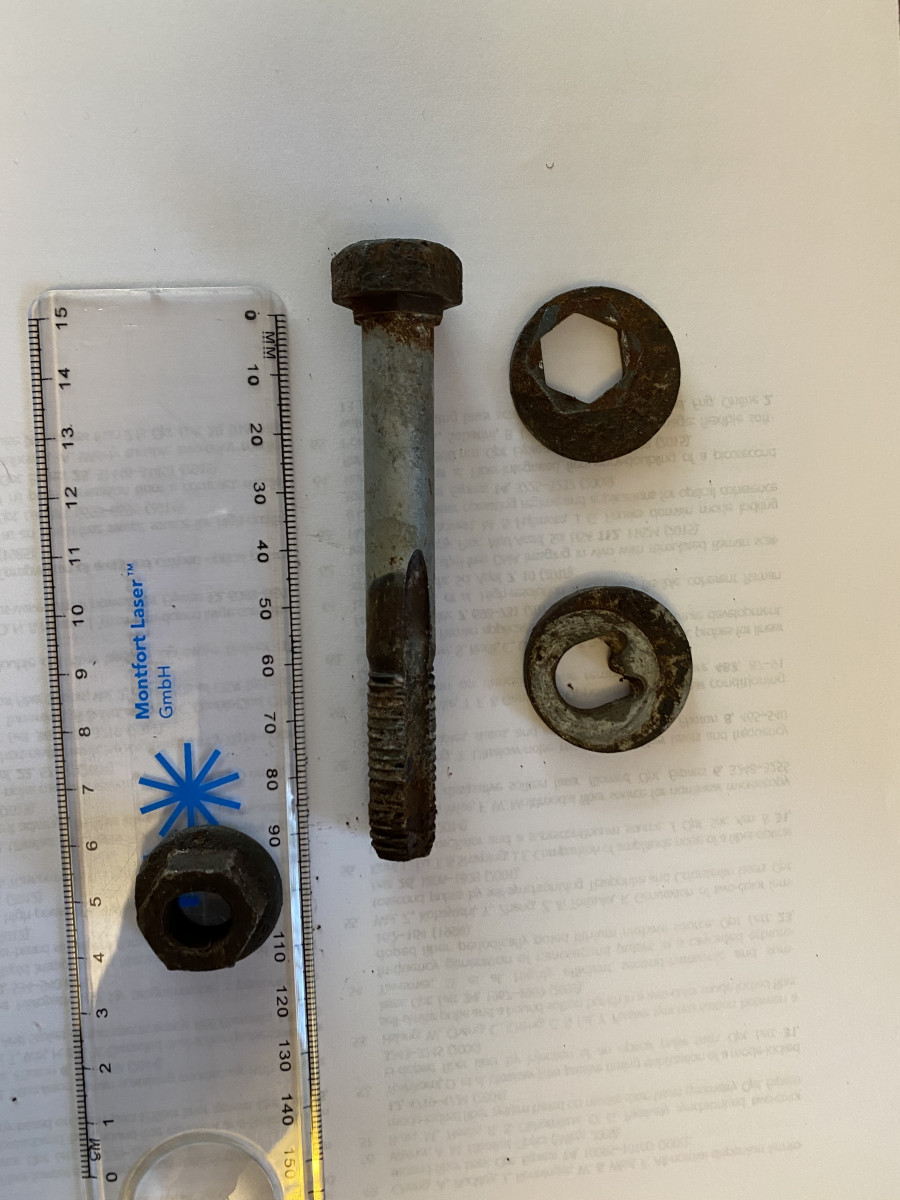

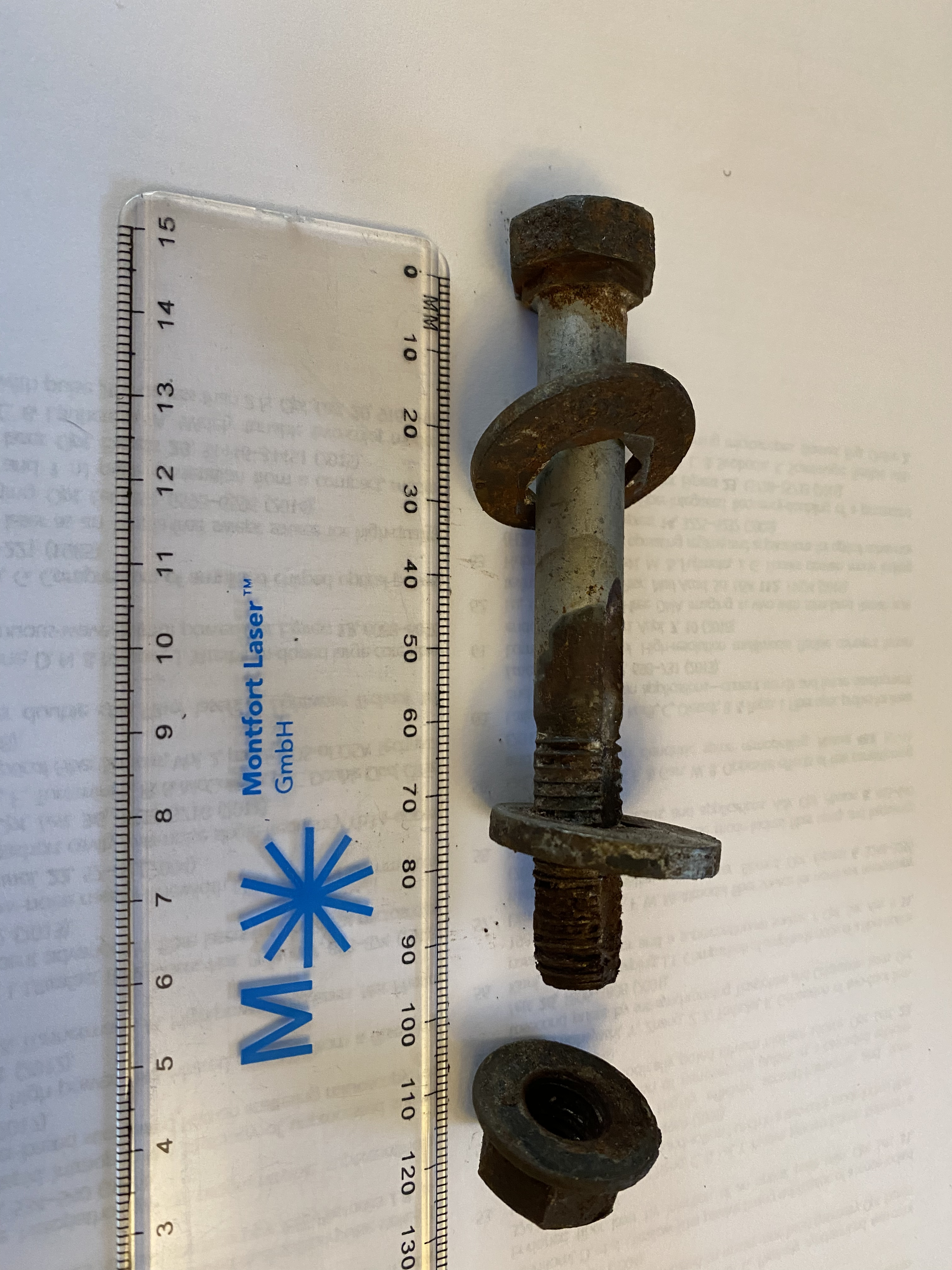

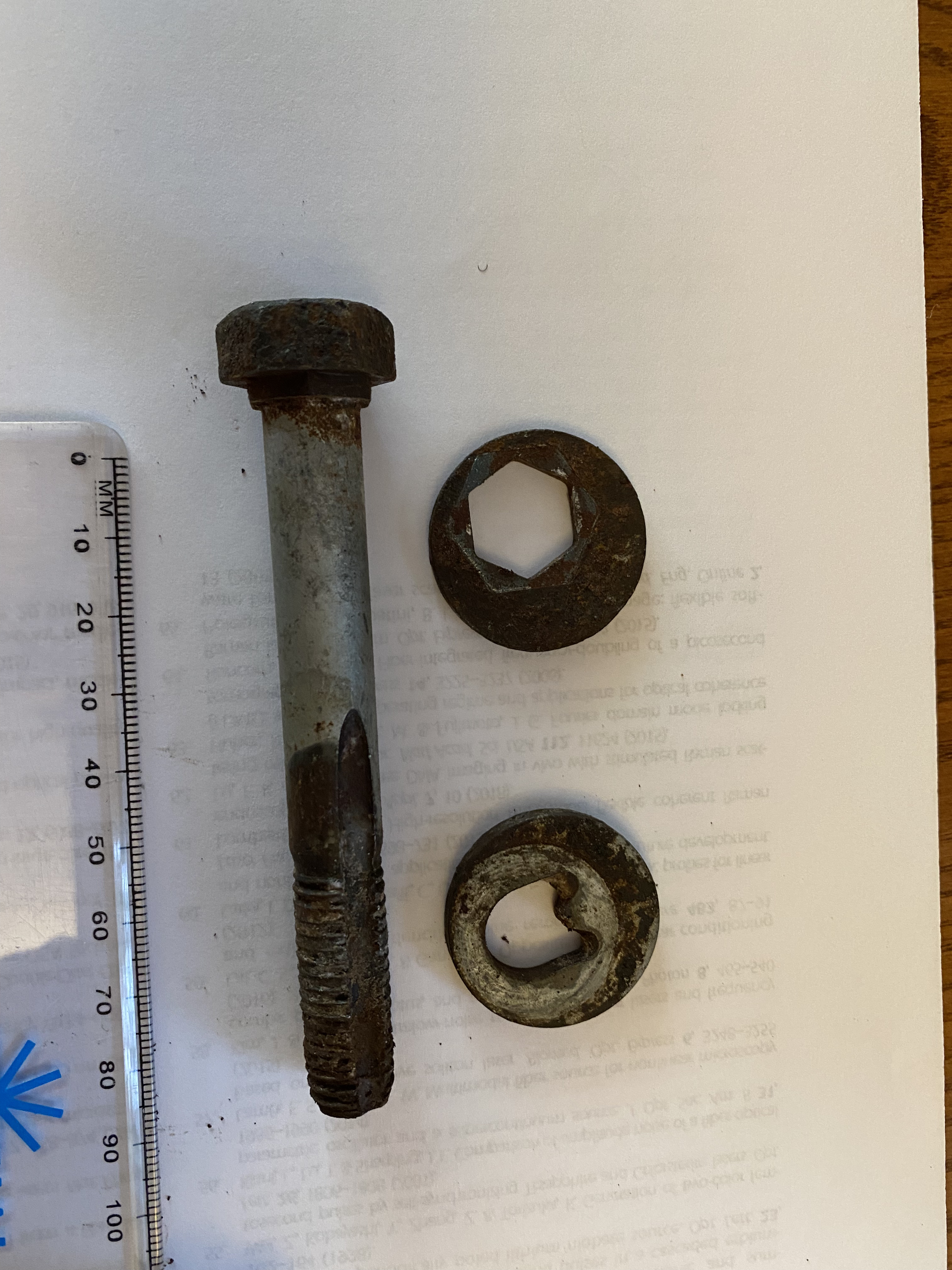

Here are the details in the adjuster. This is not going to be easy to make.

You have to put a hex boss inside the cap head on an M12 bolt in 10.9 steel

One obvious solution is tack weld the adjuster washer to the head

Post by **scot850** » 09 Feb 2022, 17:29

Or I pull you a couple from my stash! I have a couple of spare sets. One I will keep. Let me know. Check what other stuff you need and I can keep chucking stuff in a box if I have them spare!

The rear parking brake back plates are NLA, so suggest you get the feelers out for those. Might be worth trying to find southern or west coast cars where salt is seldom used, same with the rear subframe. They need to cut them to remove them on the caliper side otherwise the rear hub has to be pulled to remove/fit them. If they are cut, then bend them around the hub to fit and then a coupe of tack welds on the cut to repair.

Neil.

Post by **BlackBart** » 09 Feb 2022, 17:39

abscate wrote: ↑09 Feb 2022, 12:19 Nyuck Nyuck Nycuck

I got an eccentric washer and a strange dryer in my basement

Don't put the washer in the dryer, you don't want those to shrink!

Post by **abscate** » 01 Mar 2022, 13:56

Managed to find and order two spares. New part is one piece on the head , the other washer and nut are later P2 parts and are still available

Post by **scot850** » 01 Mar 2022, 17:36

Maybe it is just the angles in the picture, but are the bolts the same diameter?

Neil.

vegvariatti · Post by **vegvariatti** » 09 Sep 2024, 05:48

abscate wrote: ↑09 Feb 2022, 14:16 Here are the details in the adjuster. This is not going to be easy to make.

You have to put a hex boss inside the cap head on an M12 bolt in 10.9 steel

One obvious solution is tack weld the adjuster washer to the head

Dear Abscate,

I 'm about to have those axle bars changed and then adjust toe, and while bars are already on the shelf, still cant manage to find the bolts. Any idea you have this ordered from? It's a '99 V70XC just about to getting a little back to factory condition.

Cheers from Hungary!
