- Parking Brake info is scattered throughout forums, so I will try to put it in 1 place to consolidate the important tricks of the trade.
- Some good links are below, please read them:
E-brake doesn't work...see post by “Ozark Lee”:
https://www.matthewsvolvosite.com/forums ... php?t=8187
DIY: 98 V70 Brake Hydraulic Overhaul (Hoses, Seals, Parking)…by ”cn90”:
https://www.matthewsvolvosite.com/forums ... hp?t=37721
850 Ebrake cable replacement: How to by “Pauloil”:
https://www.matthewsvolvosite.com/forums ... hp?t=39200
------------
I have 2 problems at 150K:
- Brake Shoe friction material fell off, parking brake was useless.
- Parking Brake Cables were somewhat seized at the rear areas (from cracked areas), and since replacing the cables is a PITA, I elected to save them, read on for the tricks! BTW, each cable is $50, so I saved $100.
Online vendors:
Rear Rotor by BALO: $25/each x 2.
Rear Parking Brake Shoes by TEXTAR: $35 for set of 4 shoes.
Volvo Dealer:
Big Spring...PN 1273836 x2; $6/each.
Small Spring...PN 3546028 x2; $5/each.
For these springs, stick to Volvo OEM and nothing else, unless you want to do the work twice.
---> Retaining clips...PN 9157979 x4 (No need for these).
- S70ParkingBrake01.JPG (111.26 KiB) Viewed 6732 times
------------------
BRIEF PROCEDURE:
This DIY is designed to supplement the above DIYs, so I will be brief.
Wear Googles when removing/installing springs!
1. Study the Parking Brake Anatomy:

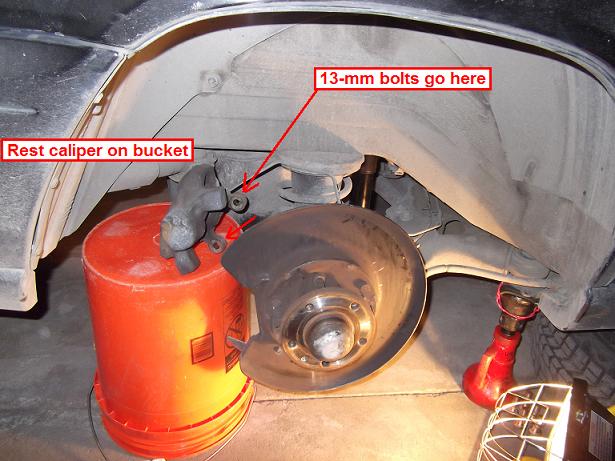

2. Rear End on Jack Stands, safety first! Remove the 13-mm bolts and place brake caliper on a bucket (inverted). Remove the 10-mm nut that holds the rotor in place. Release the pressure by loosening the star wheel adjuster (see below for info, use flash light and small screwdriver), then remove rotor.
- S70ParkingBrake02.JPG (80.42 KiB) Viewed 6732 times

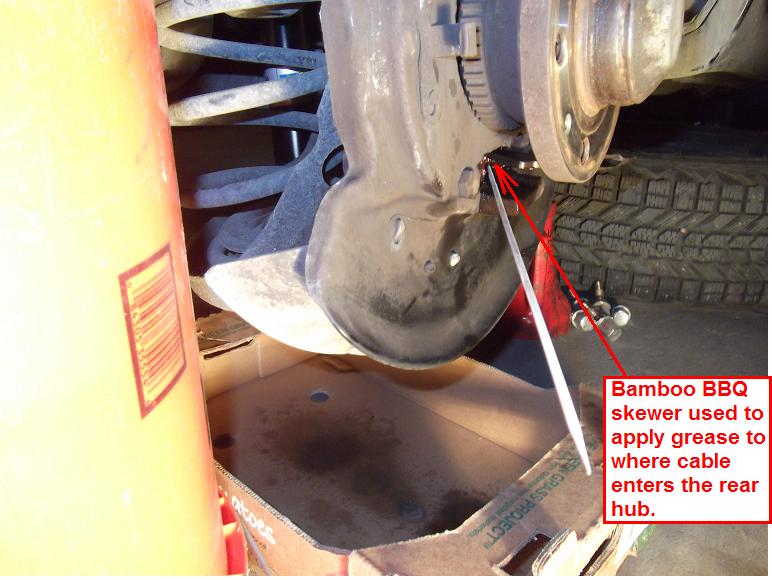

3. Once old shoes/springs are removed, take time to free up the seized cable. Oil/Grease the cable entrance (where the cable enters the hub):
- S70ParkingBrake03.JPG (92.52 KiB) Viewed 6732 times
4. Grease the following items:
- Adjuster
- Expander/Cable area as mentioned above.
- Where the brake shoes meet the adjuster and expander areas.
- Just make sure no grease is on the friction surface.
- Installation note: For adjuster:
* RIGHT side: star wheel faces REAR.
* LEFT side: star wheel faces FRONT.
This way when you adjust the star whell: UP is tighten and DOWN is loosen.
- S70ParkingBrake04.JPG (53.03 KiB) Viewed 6731 times

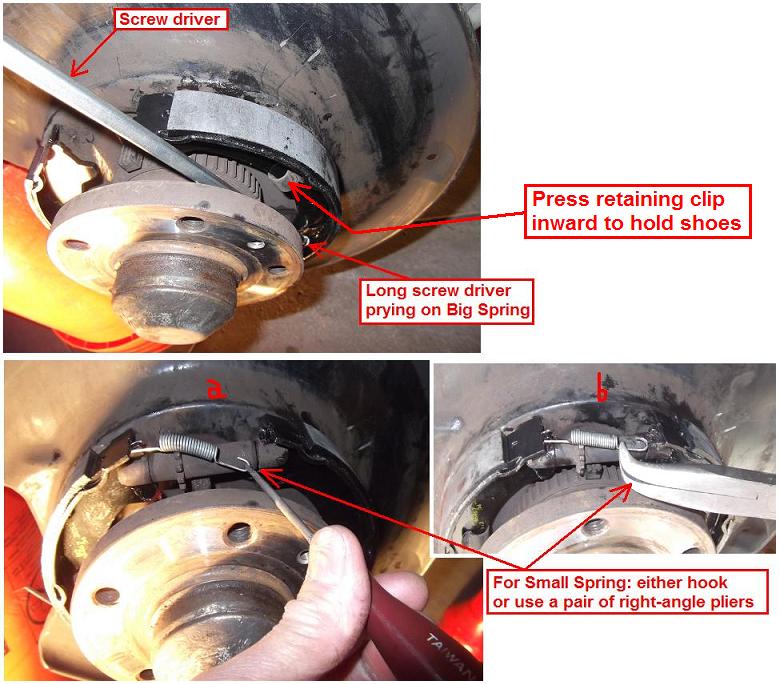

5. The special brake pliers that I have ---> useless!!!
- I used long screwdriver and pick tool or pair of right-angle pliers to install new springs:
---> BIG Spring first
---> SMALL Spring later.
- S70ParkingBrake05.JPG (91.31 KiB) Viewed 6732 times

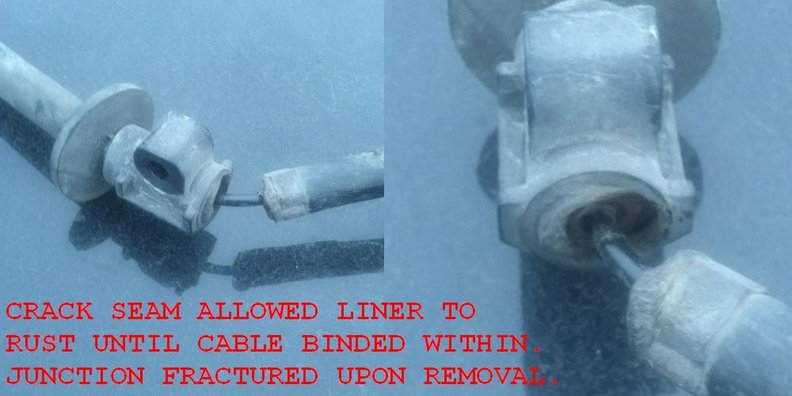

6. How to save the Cables:
- The RIGHT side: 2 crack areas. The rubber sheathing cracked but the metal sheathing was still fine, so I bend the cracked areas a bit, add some WD-40, then 1-2 drops of oil. Repeat the process 10x to allow the oil to soak inside the Cable.
- Tug on the cable a bit, you will see the Expander moves in and out. This is a good sign that the Cable can be saved.
- The LEFT side: only 1 cracked area.
- Again, Oil/grease the area.
- Cover all cracks with 1/2-inch heater hose and zip ties.
- Just slice the heater hose lengthwise and the “opened” area (the part that you spliced) faces downward: this way any water that enters the hose area can drain.
- Since both cables were somewhat seized, I had to pull the Lever (in the cabin) some 20x to free them. Then I tug the cable at the cracked areas a few times. Finally they both freed up, thanks God I saved $100!
- S70ParkingBrake06.JPG (87.12 KiB) Viewed 6732 times
7. Installation Note:
- During removal, the force of pulling off the rotors will pull the Retaining Clips outward a bit. Just push them back in with a screwdriver so they hug the new shoes properly.
- Grease the parts as mentioned above.
- I applied a small amount of Anti-squeal compound on the caliper piston areas. This solved my brake squeal noise!
8. How to adjust the PB Lever:
- See other DIY threads above for info.
- Basically release PB Lever.
- Tighten the star wheel until the rotor stops turning, then back off a few 3-4 notches: use flash light and small screwdriver. The rotor should spin with a slight drag, which is normal.
- Once done, make sure the PB Lever does not move more than 7 clicks once engaged. You may need to adjust the PB Lever inside the cabin (Torx key).
9. Road test and brake shoes bedding:
- Do the "Brake bedding" for the Parking Brake. I think it is a few stops using Parking Brake at speed of 30 mph or so.
- Find an empty stretch of the road to do this "bedding" thingy!
That is it boys and girls!
