1999 S/V70 Repair Database MAP IAT for ETB

Post by abscate »

Thread to document location and removal of the Intake Air Temperature (IAT) and Manifold Air Pressure (MAP) sensor on Electronic Throttle Body Volvos

Part number for IAT is

Test data
Temp C Resistance in Ohms
0 16kOhm
10 9.6 kOhm
20 6.0 kOhm
30 3.9 kOhm
40 2.6 kOhm

part number for MAP is: 915870

Pressure KPa Measured Voltage
90 1.70
100 1.90
150 2,8
200 3.7
Empty Nester
A Captain in a Sea of Estrogen
1999-V70-T5M56 2005-V70-M56 1999-S70 VW T4 XC90-in-Red
Link to Maintenance record thread
Top
User avatar
abscate
MVS Moderator
Posts: 35288
Joined: 17 February 2013
Year and Model: 99: V70s S70s,05 V70
Location: Port Jefferson Long Island NY
Has thanked: 1502 times
Been thanked: 3817 times

Post by abscate »

Pictures with captions on these two sensors
Attachments
View of the MAP sensor removed
View of the MAP sensor removed

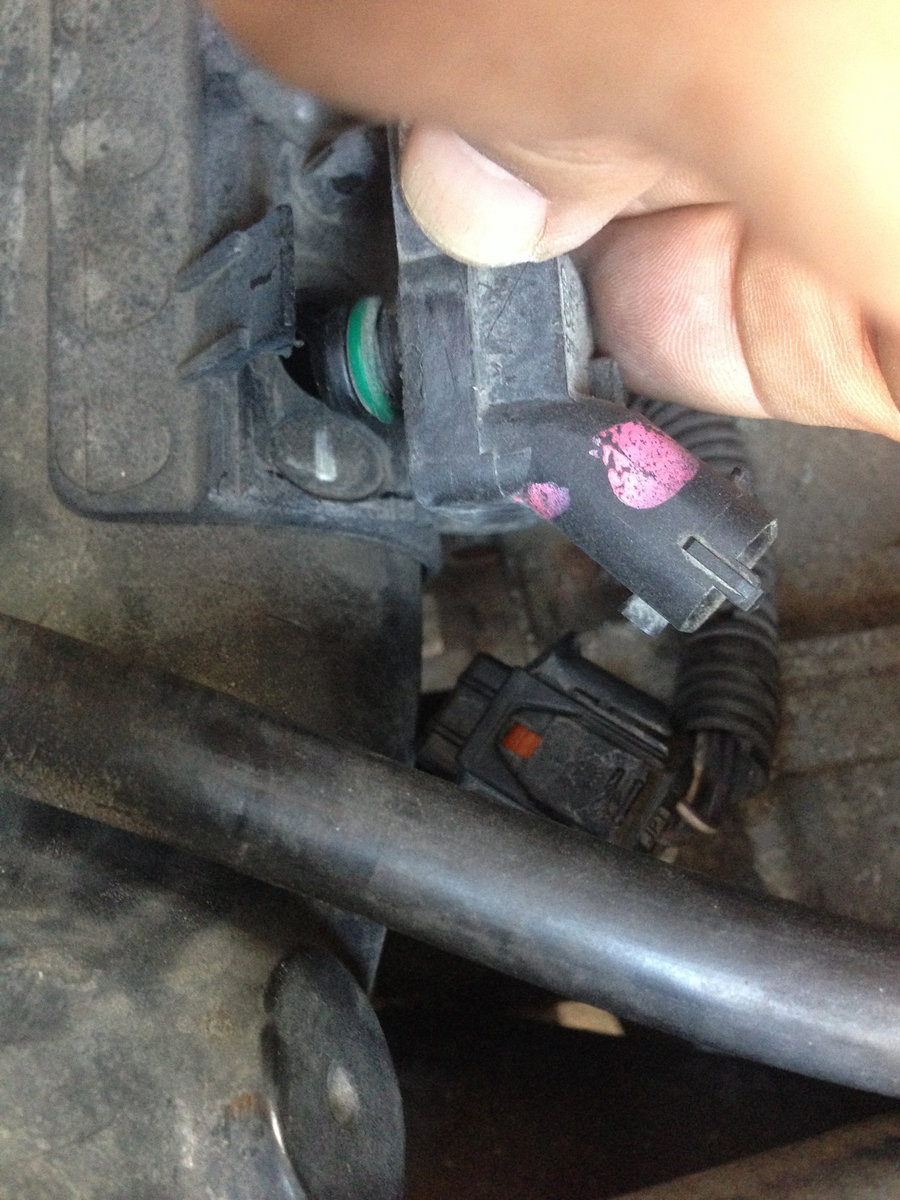

You have to open the ears slightly with a screwdriver and then wiggle the MAP sensor out - mine was quite tight
You have to open the ears slightly with a screwdriver and then wiggle the MAP sensor out - mine was quite tight

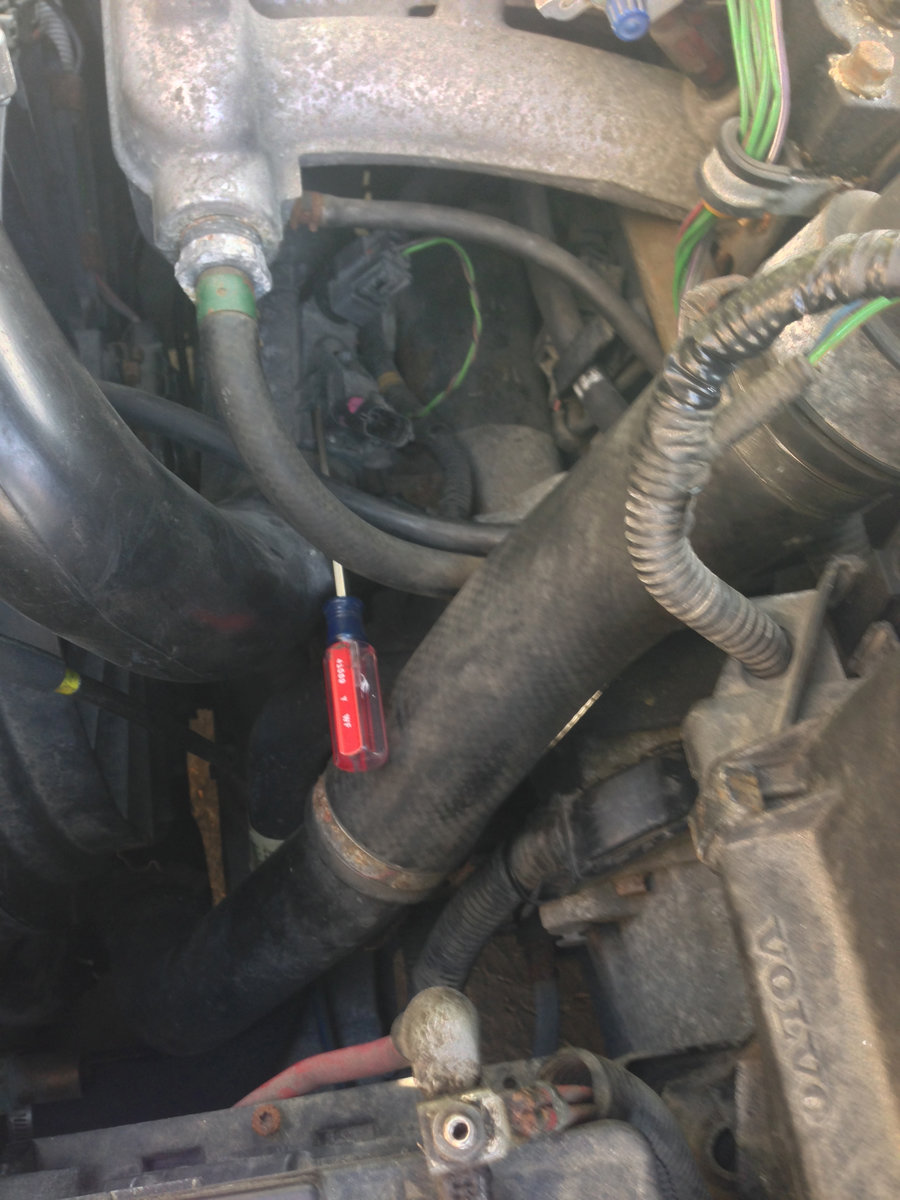

With the intake air hose removed, you can slip a small screwdriver in to release the MAP ears
With the intake air hose removed, you can slip a small screwdriver in to release the MAP ears

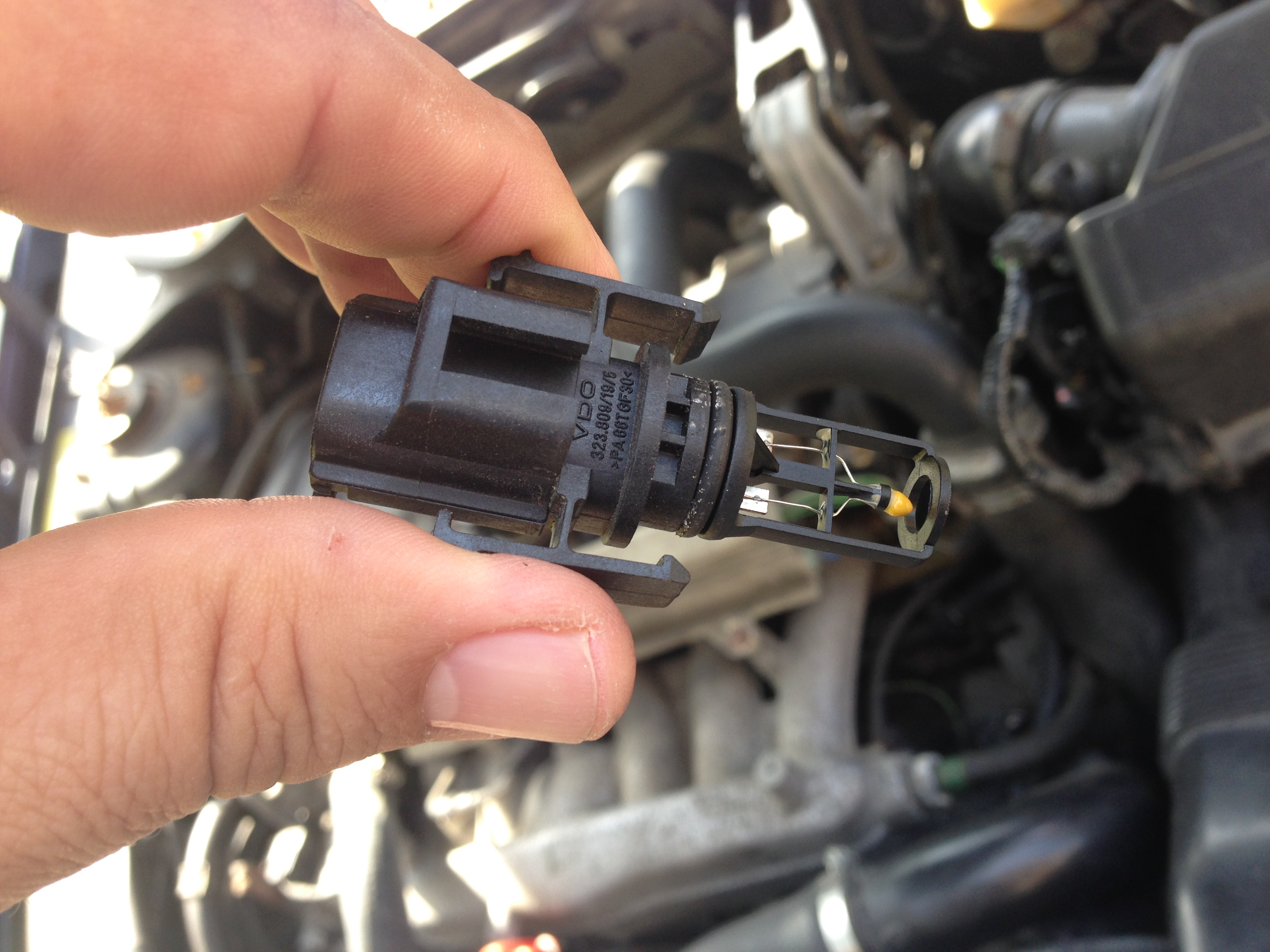

Closeup of the IAT - be careful handling this one
Closeup of the IAT - be careful handling this one
Once the IAT electrical plug is removed, squeeze the ears and lift it straight up out of the ETB manifold
Once the IAT electrical plug is removed, squeeze the ears and lift it straight up out of the ETB manifold

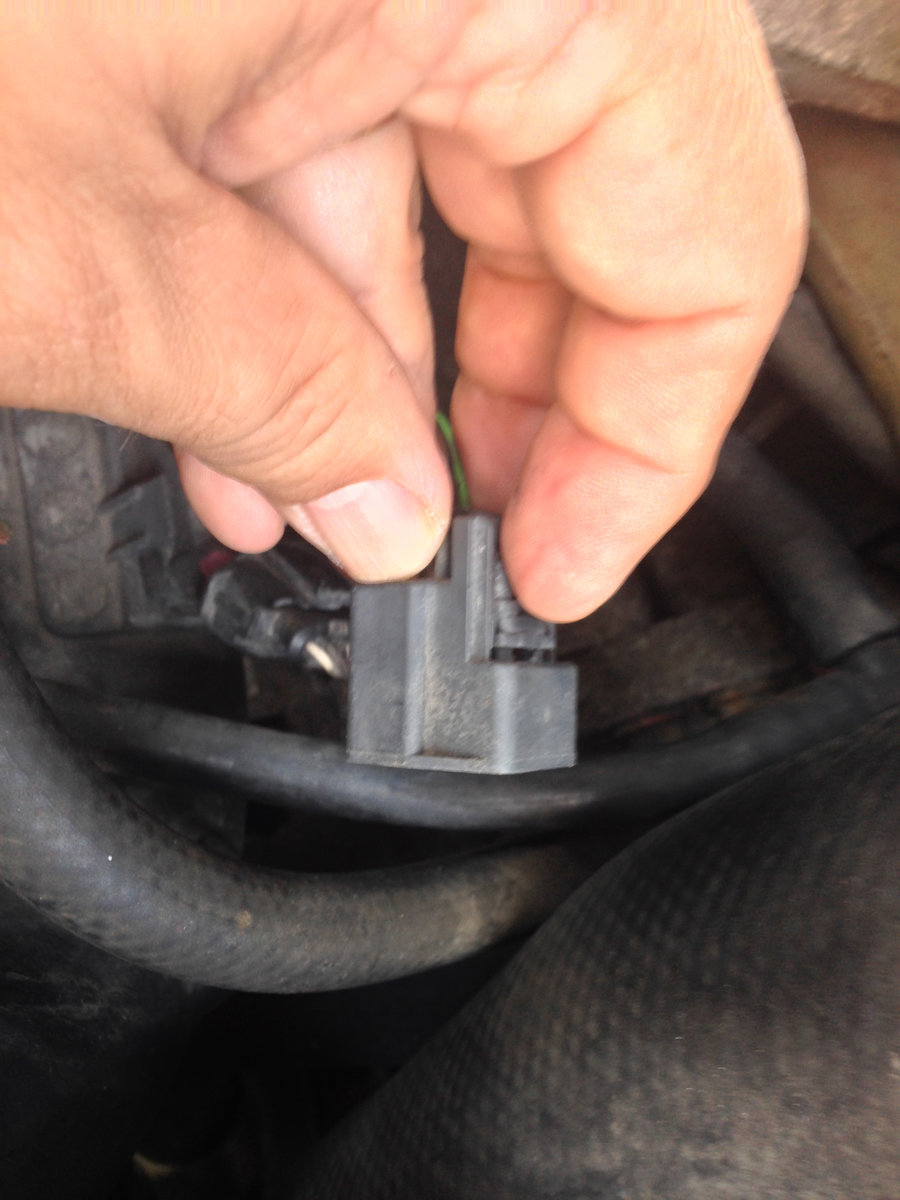

Squeeze here, and pull connector of IAT
Squeeze here, and pull connector of IAT

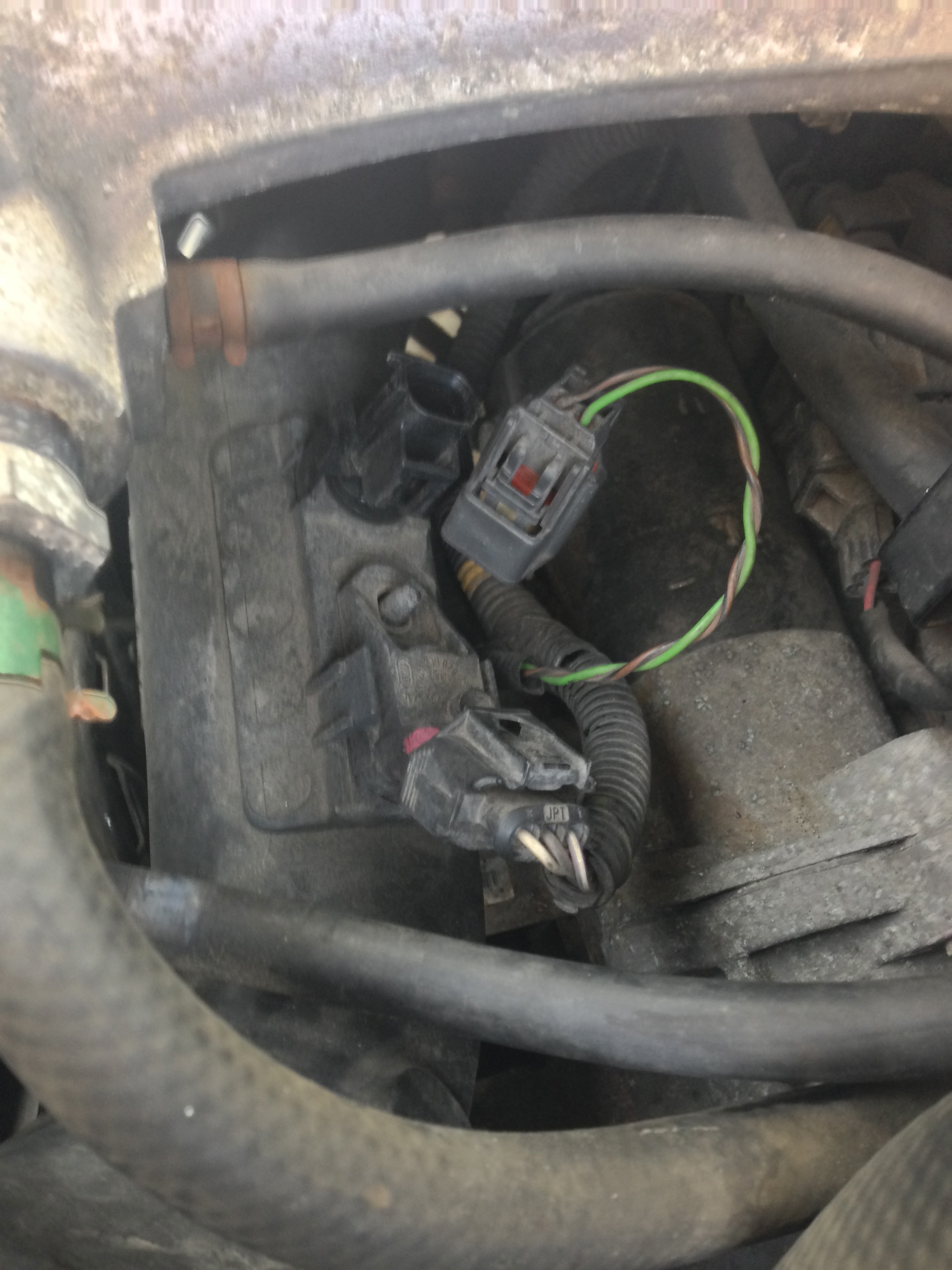

Here are the two sensors on the ETB - one for temp, one for pressure
Here are the two sensors on the ETB - one for temp, one for pressure

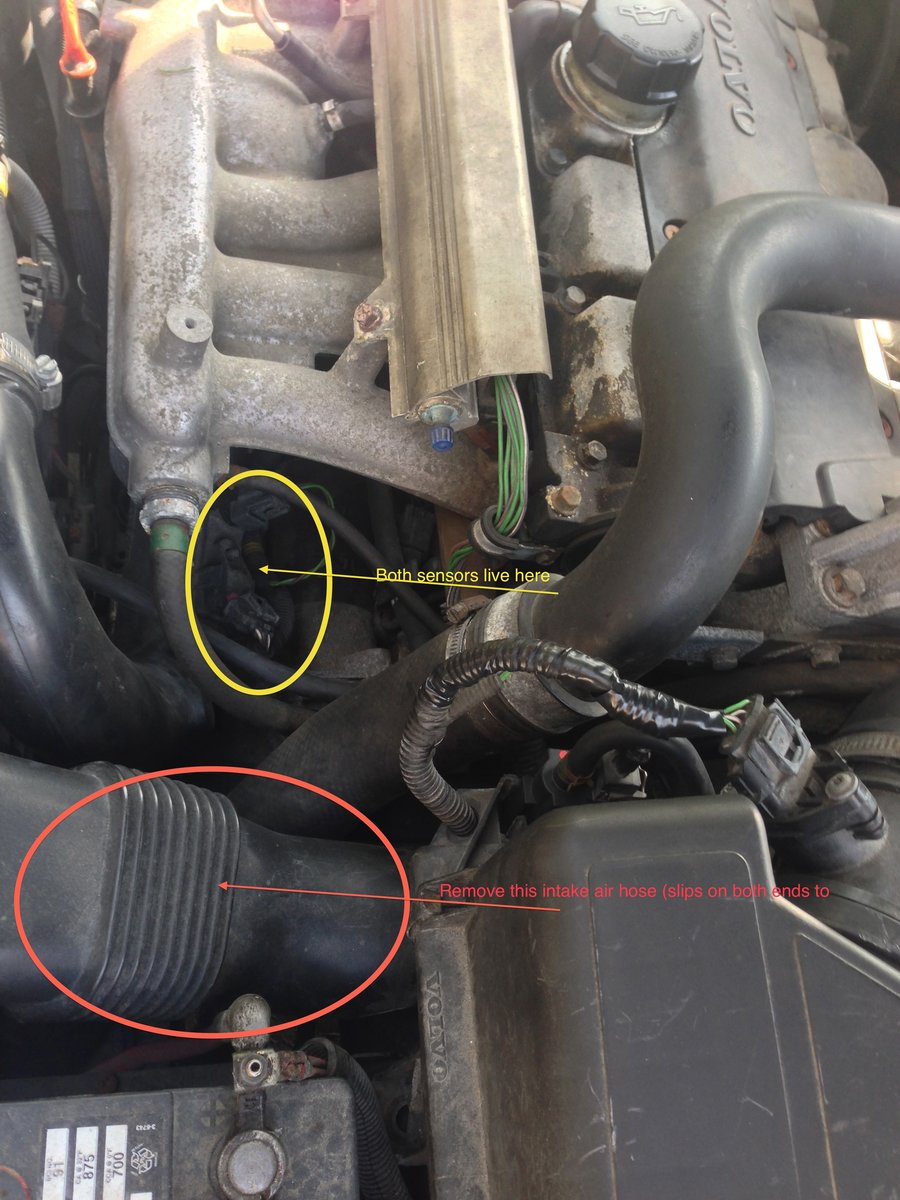

Here is where we will be working today. Get the air cleaner hose out of the way for space - it just slips on both ends (red oval)
Here is where we will be working today. Get the air cleaner hose out of the way for space - it just slips on both ends (red oval)
